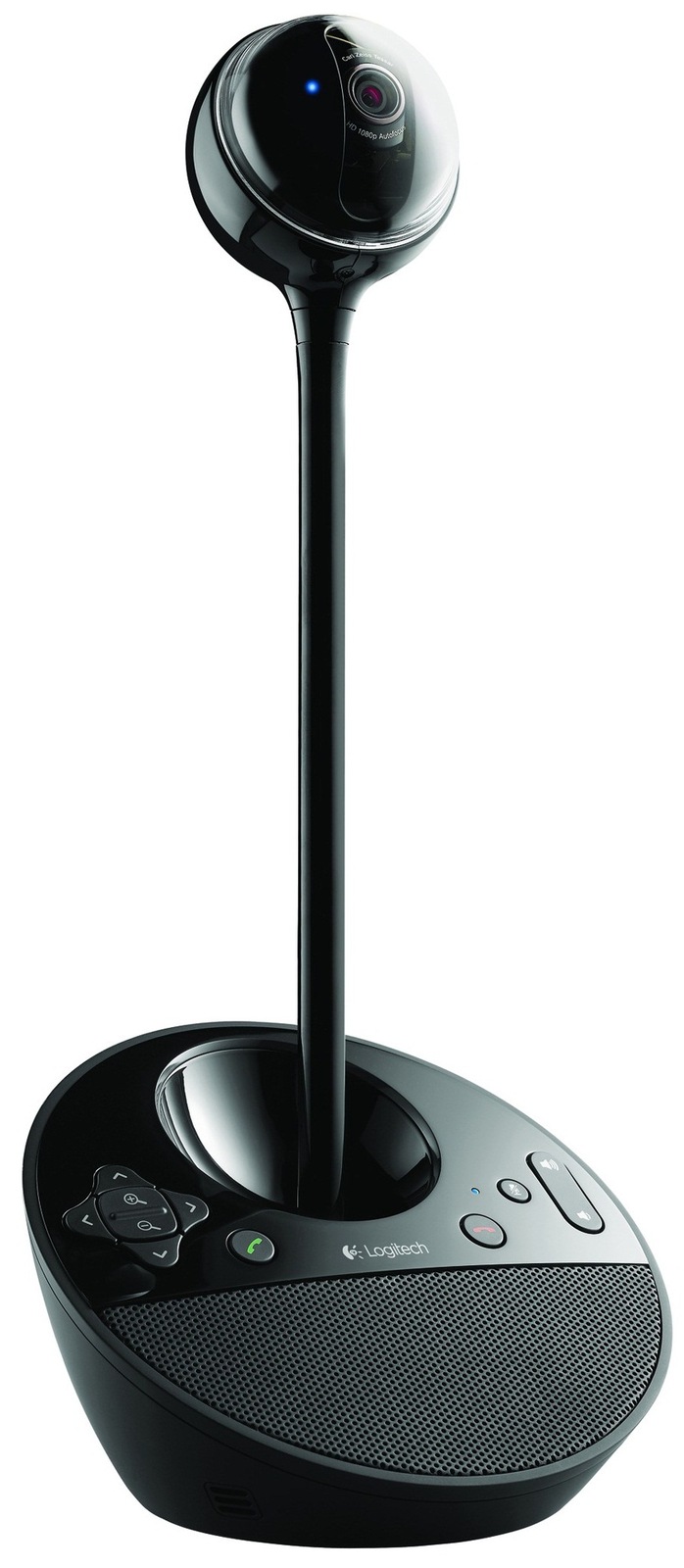

Logitech ConferenceCam BCC950

Amazingly Simple and Affordable Small Group Video Conferencing Has Arrived.

All-in-One Design
Combines HD 1080p 30fps video with high-quality full-duplex speakerphone clarity for professional video conferencing.

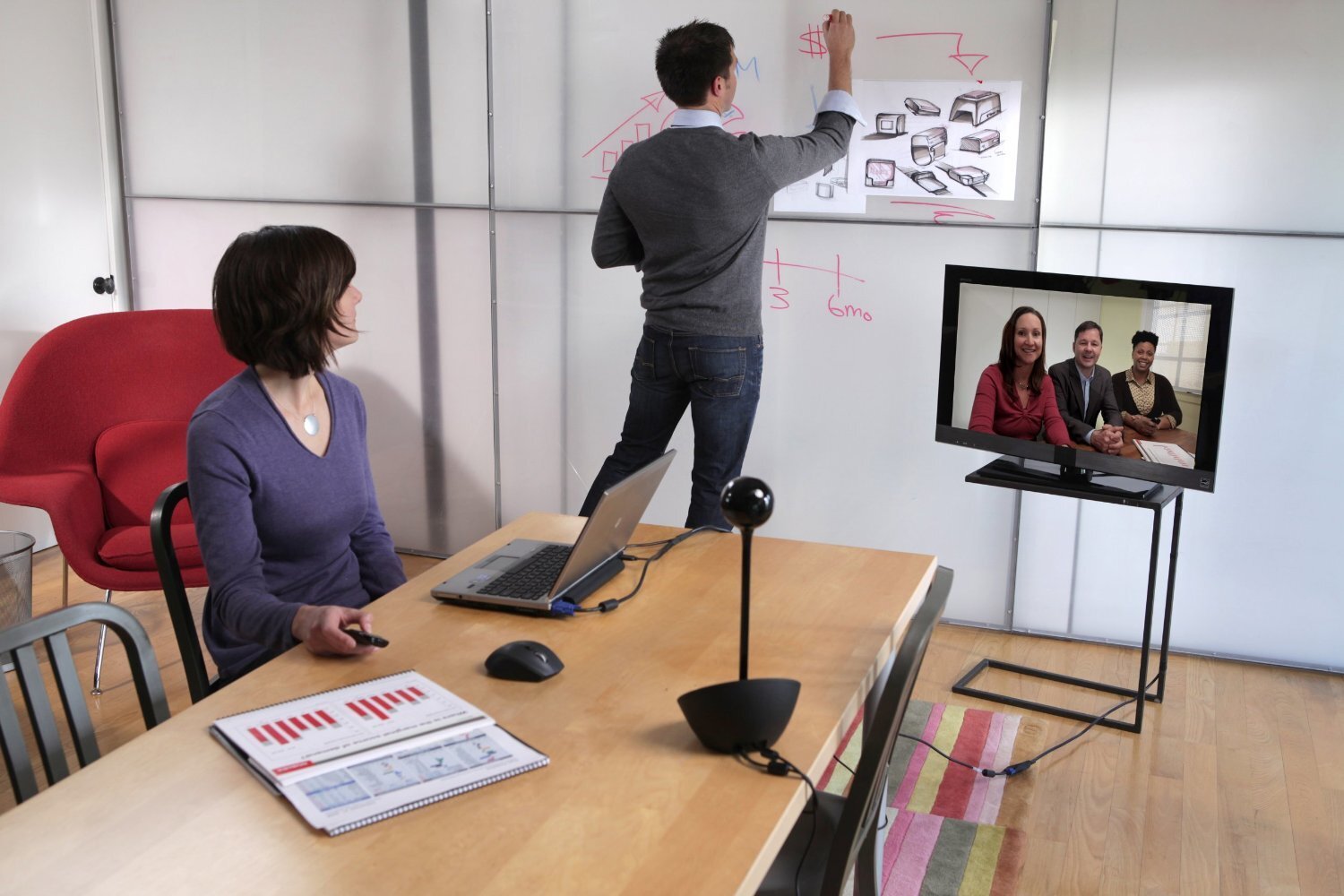

Perfect For Small Groups
Now groups can collaborate over video from conference rooms, offices and collaboration spaces – no more competing for those overbooked conference room systems or huddling around a single PC just to have a video meeting.

Connects to Your PC
UVC H.264 onboard technology helps ensure quick plug-and-play functionality on both PCs and Macs – no software to install.

Uses Desktop Video Applications
Works on virtually any desktop video conferencing and UC application – including Adobe Connect, Avaya, Cisco WebEx and other Cisco Video Conferencing applications, Citrix Go to Meeting, LifeSize Connections, FaceTime, Google Hangouts and Video Chat, Microsoft Lync and Office365, Vidyo, Skype. No proprietary and expensive systems to set up.

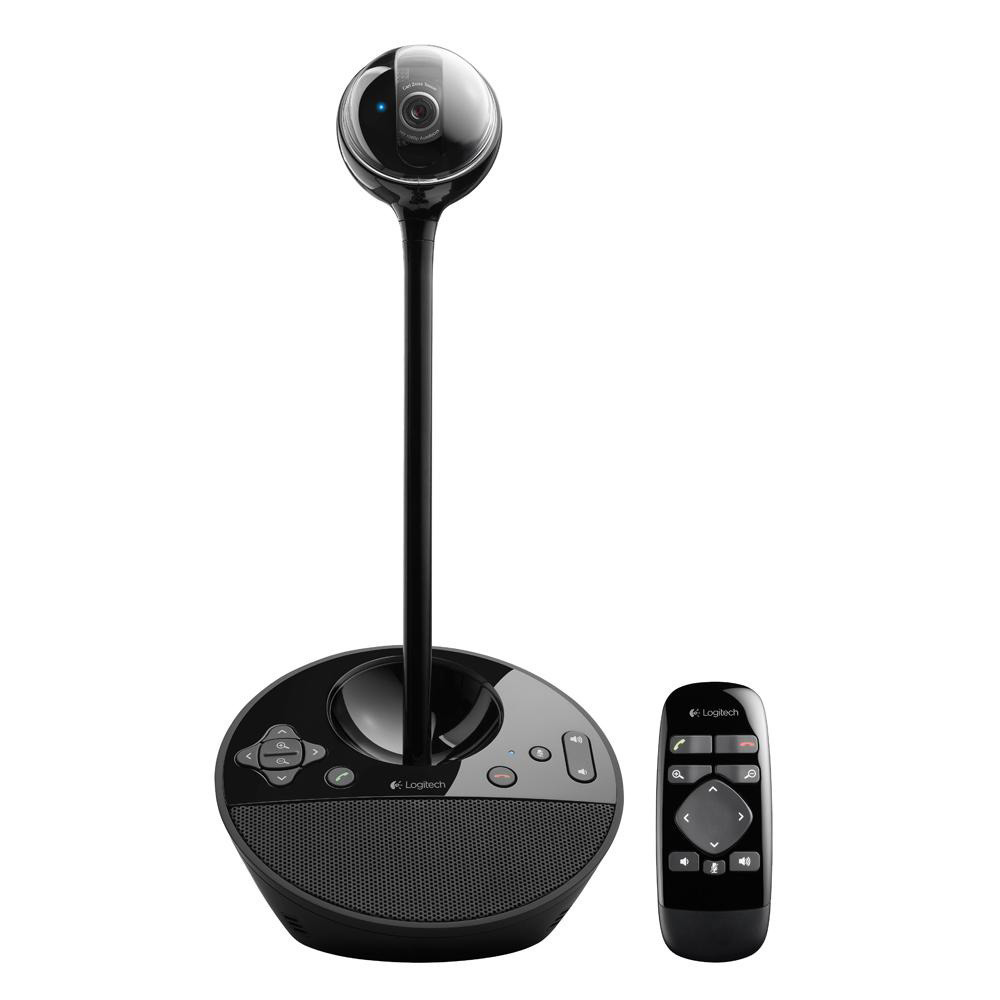

Remote Control Your Meetings
Quickly control your meetings with the remote – answer/end calls, set volume up/down, pan, tilt, zoom and mute.

Everyone Can Be Seen
A 78-degree field of view and 180-degree remote-controlled video pan, tilt, zoom ensures each member of the small group is seen.

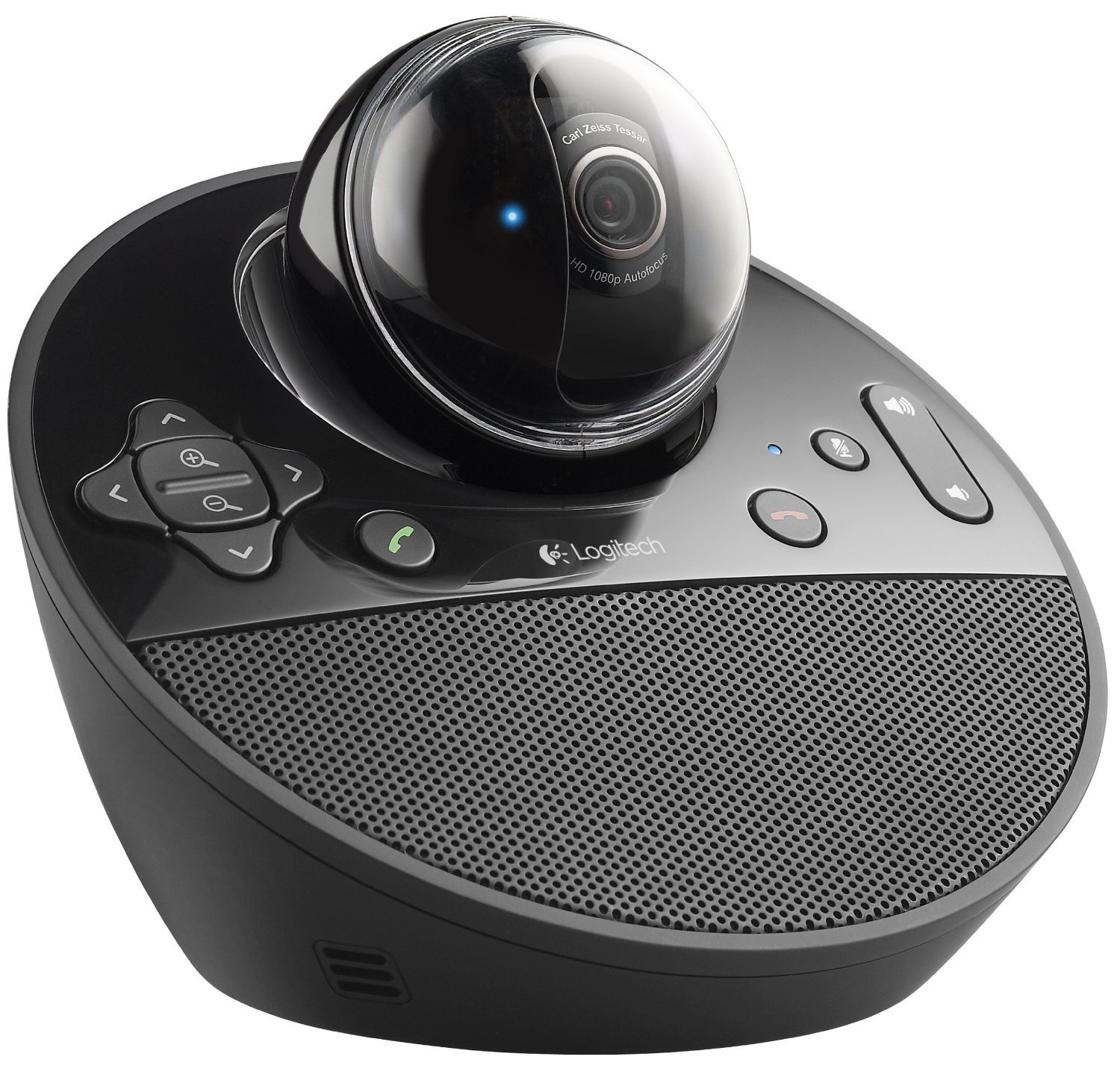

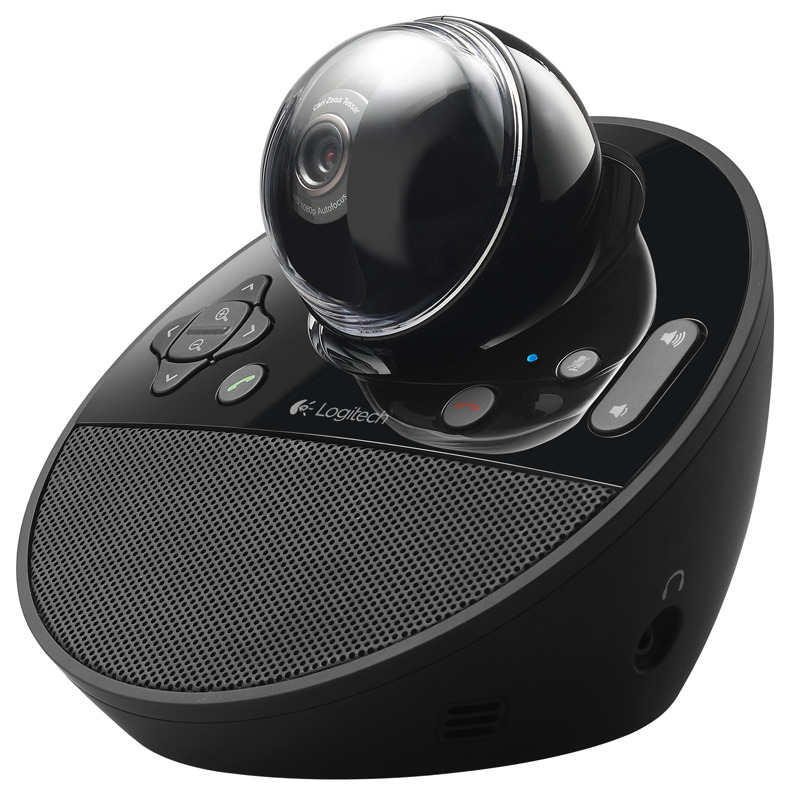

Sound Crystal-Clear
The built-in, full-duplex speakerphone and noise-canceling microphone allow all meeting members to hear and be heard clearly up to 8 feet away from the base.

Carl Zeiss® Optics with Autofocus
Enjoy razor-sharp images from a glass lens designed with the help of an industry leader, Carl Zeiss®. Allows detailed documents, whiteboards, or visuals to be shared close up during calls.

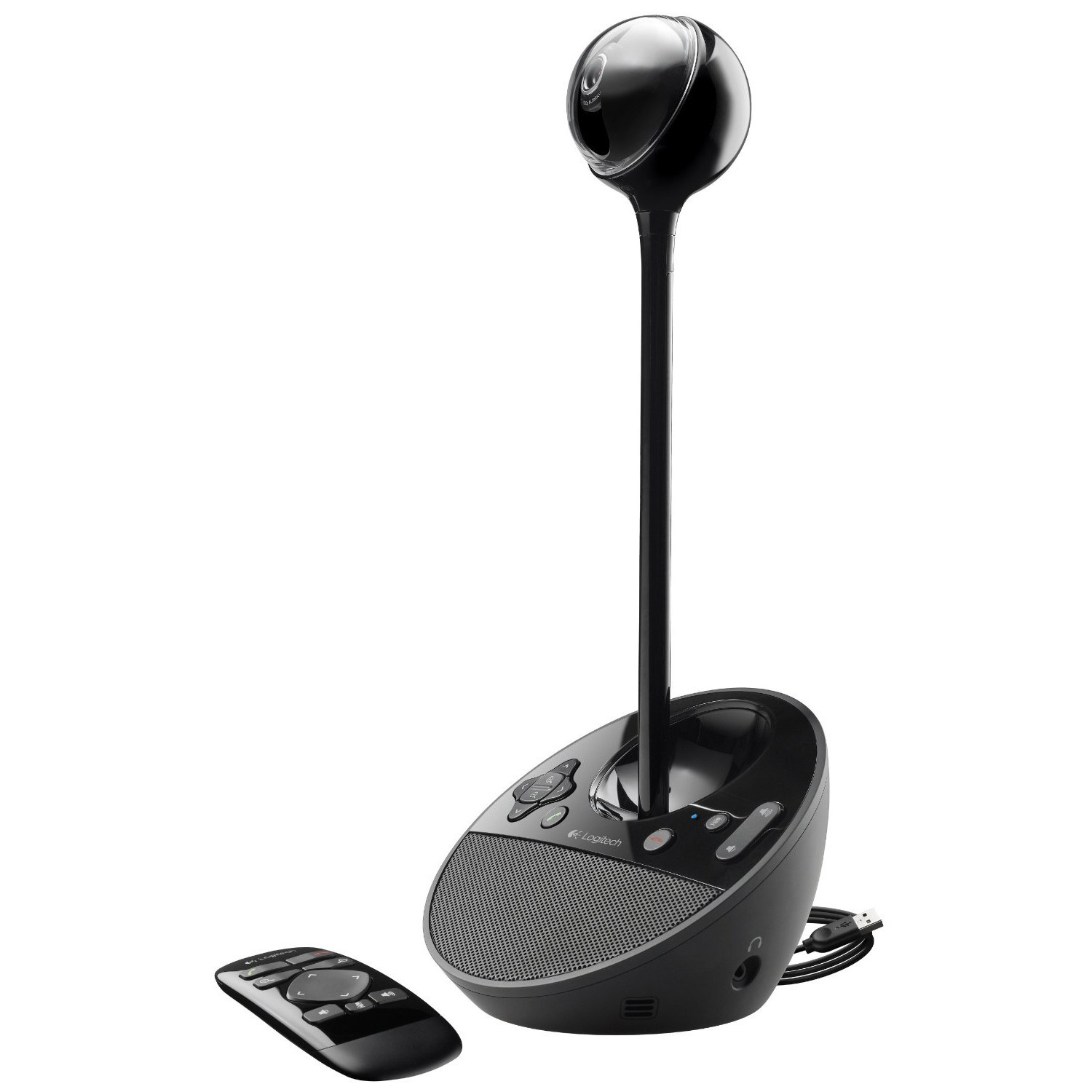

Show Your Best Angle
The camera height extender and 8-foot USB cable allow users to adjust camera height and distance for the most flattering video angles so they can make the best impression during meetings.

Conversations Are Life-Like
Omni-directional sound and echo cancellation audio make it seem like conversations are happening in the same room.

Professional-Grade Certifications
The ConferenceCam is certified for Microsoft® Lync™ and Skype™.



All-in-One Design

01



HD 1080p video and professional audio deliver business-grade videoconferencing for small group collaboration.

Perfect For Small Groups

02

Optimized for private offices, huddle rooms and home offices—enables small groups of 1-4 people to experience video collaboration virtually anywhere.

Connects to Your PC

03

UVC H.264 onboard technology helps ensure quick plug-and-play functionality on both PCs and Macs – no software to install.

Works with Most UC and Videoconference Applications

04

Users are free to use the desktop videoconferencing program of their choice.

Remote Control Your Meetings

05

Easily control meeting functions with the remote: answer/end calls, set volume up/down, pan, tilt, zoom and mute.

Everyone Can Be Seen

06

A 78° field of view and 180° remote-controlled video pan, tilt, zoom helps ensure that each member of the small group is seen.

Sound Crystal-Clear

07

The built-in, full duplex speakerphone and noise-cancelling microphone allow meeting members to hear and be heard clearly up to 8 feet away from the base. The speakerphone can also be used as a standalone during audio calls.

ZEISS® Optics with Autofocus

08

High-precision glass lens automatically focuses on people and objects to deliver razor-sharp resolution. Now detailed documents, whiteboards, and other visuals can be shared close up during calls.

Show Your Best Angle

09

A camera height extender and 8-foot USB cable allows users to adjust camera positioning to achieve the most flattering video angle during meetings.

Conversations Are Life-Like

10

Omni-directional sound and acoustic echo cancellation makes it seem like conversations are happening in the same room.

Professional-Grade Certifications

11

The ConferenceCam is certified for Skype and Skype for Business, Cisco Jabber™ and WebEx® compatible.

Title

12



System Requirements

• UVC mode (No software installation required)
• Windows® XP, Windows Vista®, or Windows® 7
• Mac OS X 10.6 and above

Certifications

Skype for Business, Cisco Jabber™ and WebEx®, Skype™

Warranty Information

2-Year Limited Hardware Warranty

Package Contents

• ConferenceCam base and attached USB cable
• Extender
• Webcam head
• Power cable
• Quick-start guide

Part Number

• PN 960-000939



Technical Specifications

Camera

• Motorized pan, tilt and zoom
• Integrated full duplex Omni-directional speakerphone with 8-foot range
• On-board H.264 encoding
• USB video class (UVC) supported applications
• Full HD 1080p 30fps video calling
• Camera and speakerphone controls, speakerphone and remote control
• Pan, tilt and zoom, volume, audio mute, answer/hang up
• ZEISS® optics with 9-point autofocus
• 78° the field of view
• 180° pan, 55° tilt

Speaker

• Bandwidth: 220 Hz - 20 kHz
• Maximum output level: 80 dB SPL @ 1 foot (0.30 meter)

Microphone

• Bandwidth: 200 Hz - 8 kHz

General

• 3.5 mm analog headset jack
• 10-foot range remote control
• USB 2.0 compliant
• 8-foot USB cable
• 8-foot universal power adapter
• 9-inch extender stem for elevation/eye-level camera angle
• Windows 7, XP, and Mac OS X 10.6 and higher

Product Dimensions

ConferenceCam

• Width: 6.07 in (154.2 mm)
• Height with extender: 13.57 in (344.7 mm)
• Height without extender: 4.11 in (104.4 mm)
• Depth: 5.78 in (146.9 mm)
• Weight for speakerphone only: 16.5 oz (468 g)
• Weight with camer head and extender: 20.03 oz (568 g)

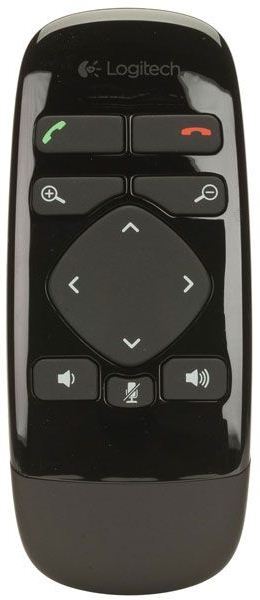

Remote

• Width: 19.29 in (48.8 mm)
• Length: 46.6 in (118.1 mm)
• Height: 7.48 in (19.2 mm)
• Weight: 1.7 oz (47 g)
