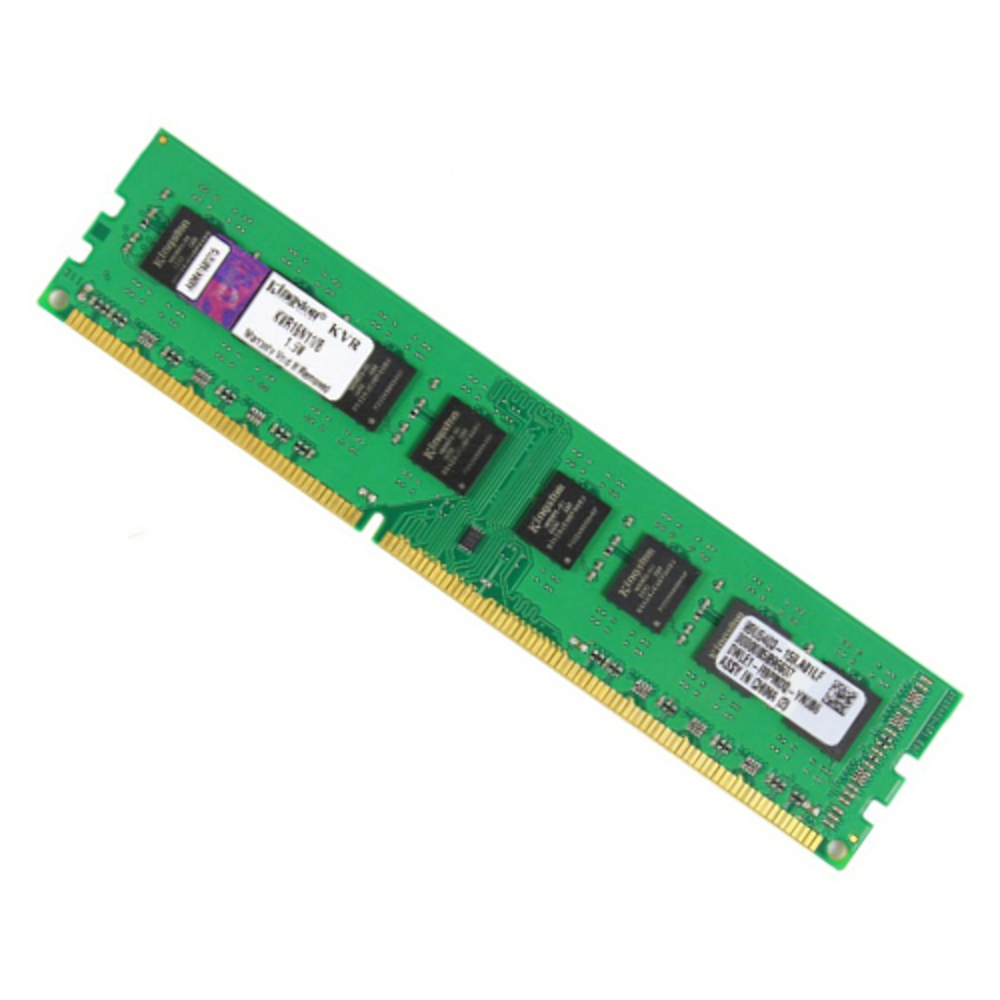

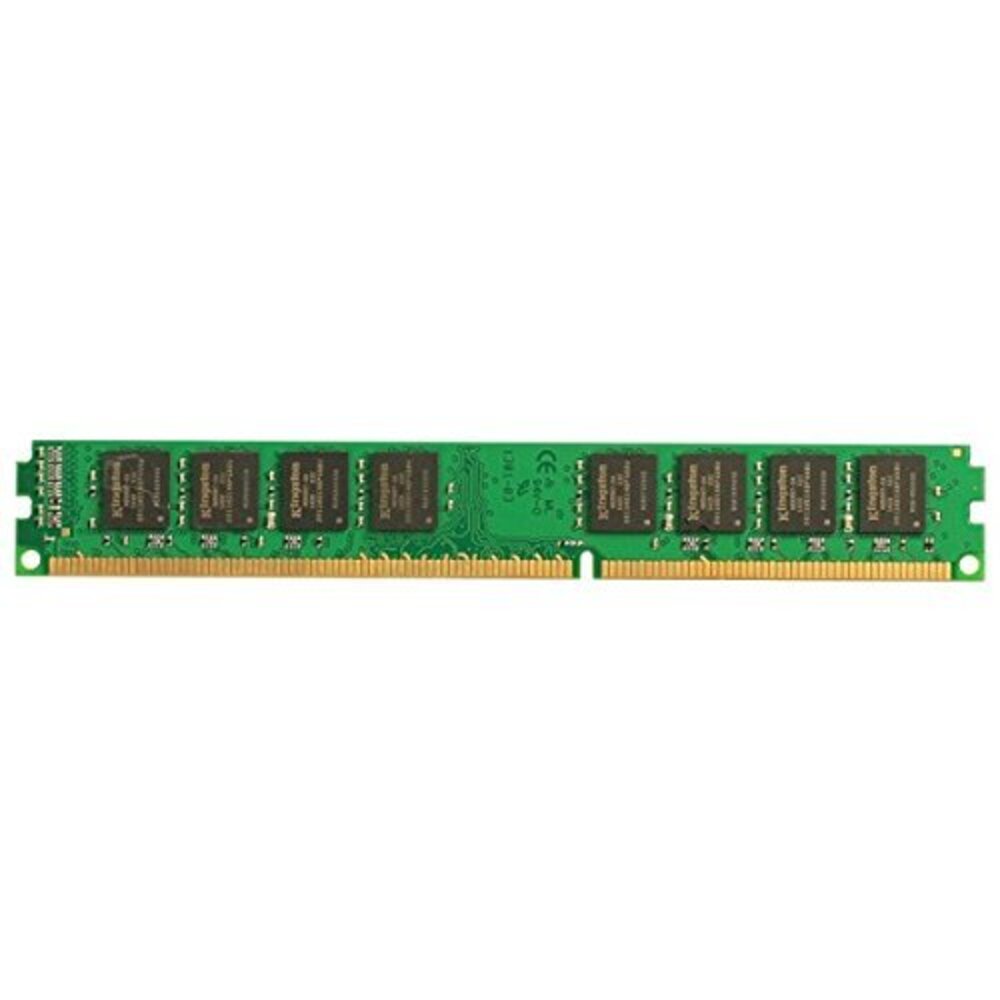

FEATURES This document describes ValueRAM's 1G x 64-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: • JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 8000MHz fCK for 1600Mb/sec/pin • 8 independent internal banks • Programmable CAS latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock • 8-bit pre-fetch • Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS) • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº • Asynchronous Reset • PCB: Height 0.740” (18.75mm) or 1.180” (30.00mm)
