Introducing Next Generation Data Center SSDs 01
The Intel® Solid-State Drive Data Center Family for SATA extends with the Intel® SSD DC S3710 Series. The Intel SSD DC S3710 Series offers the next generation of data center SSDs optimized for write intensive performance with high endurance and strong data protection.The Intel SSD DC S3710 Series accelerates data center performance with read/write throughput speeds up to 550/5201 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 85,000/45,0001. Applications benefit from 55 μs typical latency with max read latencies2 of 500 μs 99.9 percent3 of the time. Combining performance with low typical active power (less than 6.9 watts1 4), the Intel SSD DC S3710 Series improves data center efficiency with superior quality of service and reduced energy costs.
Stress-free Data Protection 02
All of the products in the Intel® SSD DC Family for SATA protect data with full end-to-end data protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features.
Optimized Data Center Endurance 03
Demanding applications require highly reliable storage coupled with consistent performance. The Intel® SSD DC Family for SATA offers a full range of endurance and performance levels1 , designed to meet the needs of your data center workloads. The Intel® SSD DC S3710 Series with 10 full drives writes per day (DWD) is the perfect choice for applications demanding high write performance such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large scale virtualization, and Video on Demand content delivery. The Intel® SSD DC S3610 with 3 full DWD delivers the ideal balance of endurance and performance for mixed read-write workloads such as virtualization and e-commerce. Additionally, the Intel® SSD DC S3510 with .3 full DWD is optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
High Reliability – Low Total Cost of Ownership 04

Intel® SSDs are known industry wide for quality and reliability. The Intel® SSD DC Family for SATA is engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR)2 of 0.44%. The Intel® SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO)3 . Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests and is fully supported with Intel’s 5-year limited warranty and customer support.
Power-Efficient Performance 05

The Intel® SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/5201 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,0001 . Applications benefit from 55 µs typical latency with max read latencies4 of 500 µs 99.9%5 of the time. Combining performance with low typical active power (less than 6.9 watts1,6 ), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy costs, and is ideal for server or application upgrades.

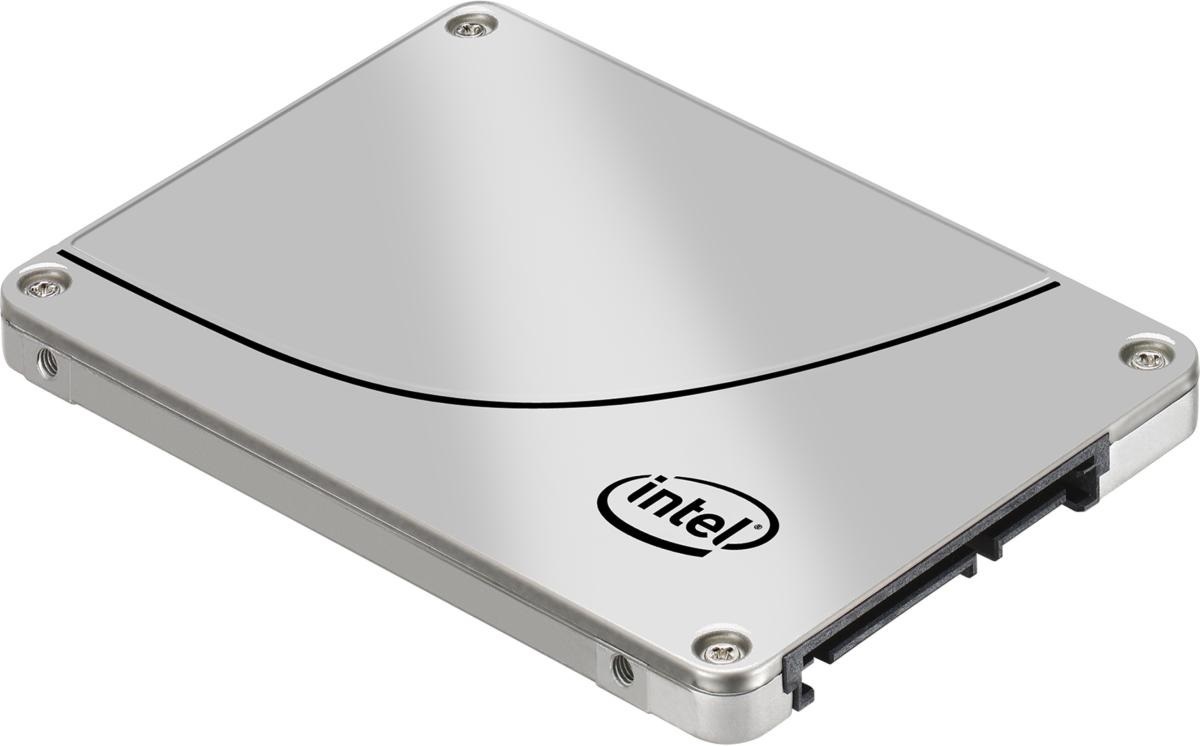

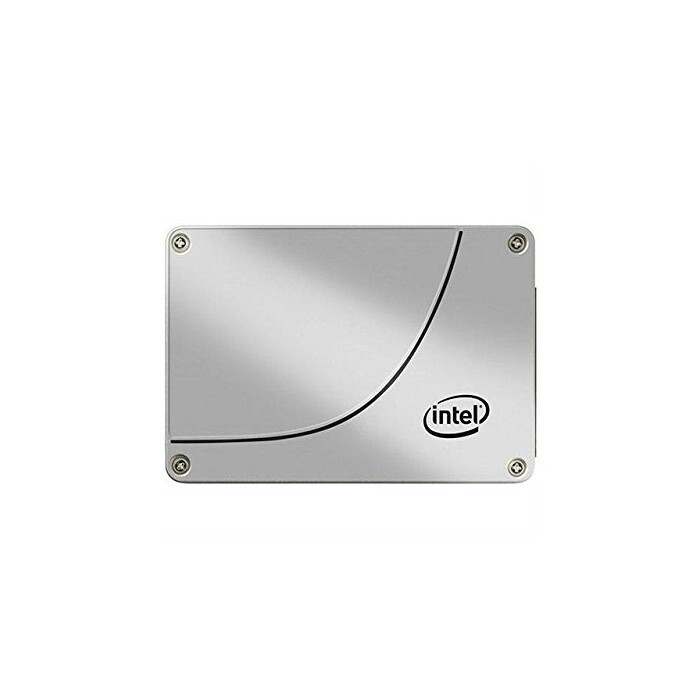

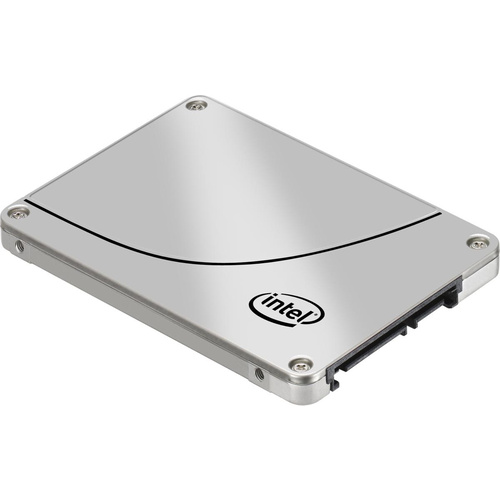

Intel 200GB SSD DC S3710 Series - SATA III 6Gb/s, 20nm, MLC, read/write speed 500/300MB/s, 85K IOPS, OEM, 5-year warranty Sequential Read 550 MB/s Sequential Write 300 MB/s Random Read (100% Span) 85000 IOPS Random Write (100% Span) 43000 IOPS Latency - Read 55 µs Latency - Write 66 µs Power - Active 4.0W Power - Idle 0.6W Vibration - Operating 2.17 GRMS (5-700HZ) Vibration - Non-Operating 3.13 GRMS (5-800Hz) Shock (Operating and Non-Operating) 1000 G/0.5ms Operating Temperature Range 0°C to 70°C Weight 82 grams Endurance Rating (Lifetime Writes) 3.6PB Mean Time Between Failures (MTBF) 2,000,000 hrs Uncorrectable Bit Error Rate (UBER) 10^17 Warranty Period 5 yrs

Type Internal
Specification http://ark.intel.com/products/82939/Intel-SSD-DC-S3710-Series-200GB-2_5in-SATA-6Gbs-20nm-MLC#@specifications
Series S3710
Form Factor 2.5 Inch
Packing Weight 80 g
Capacity 200 GB
Memory Components NAND Flash Memory Multi-Level Cell (MLC) with High Endurance Technology (HET)
Interface SATAIII
Colour Metallic
Data Transfer Rate 6 Gb/s
Sequential Read 550 MB/s
Sequential Write 300 MB/s
Lithography 20 nm
Random Read 85000 IOPS
Random Write 43000 IOPS
Packing Width 150 mm
Packing Depth 22 mm
Power Consumption 4.0 W
Advanced Technologies Enhanced Power Loss Data Protection .
Hardware Encryption AES 256 bit .
High Endurance Technology (HET) .
Temperature Monitoring and Logging .
End-to-End Data Protection .
Packing Height 110 mm
