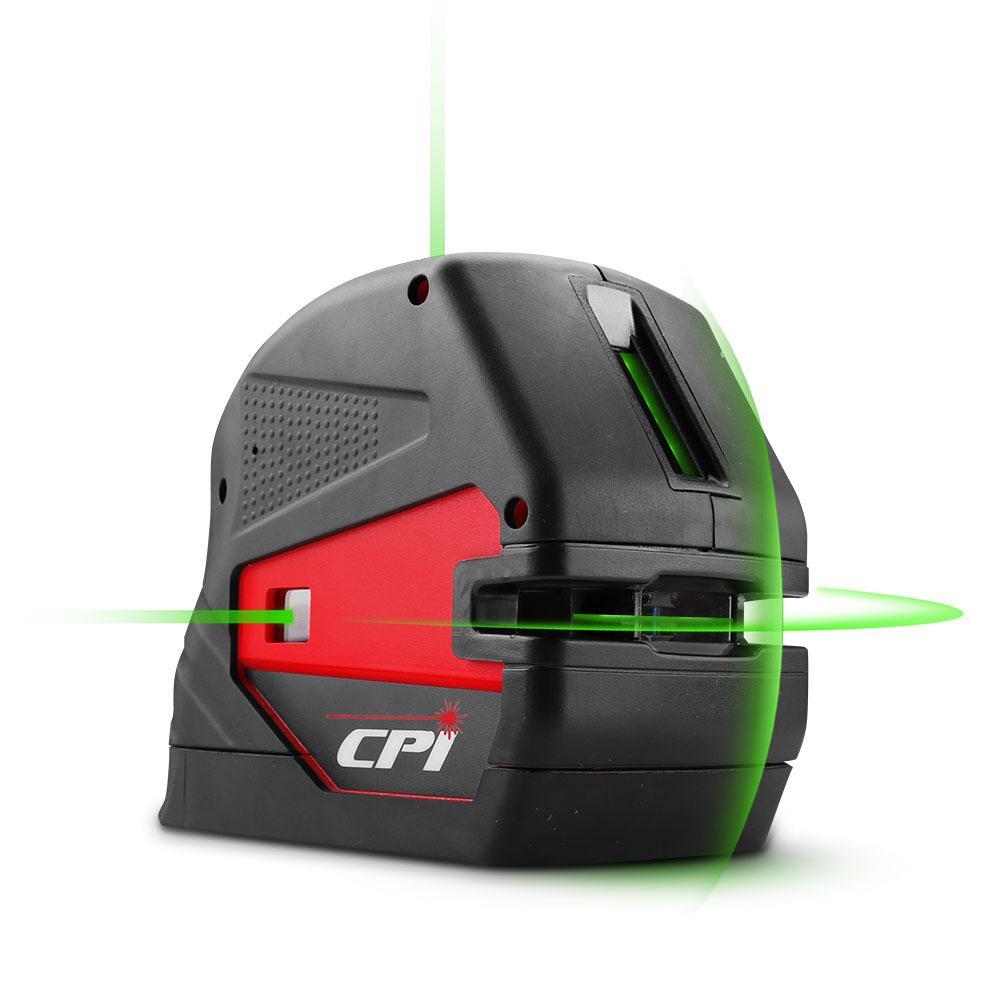

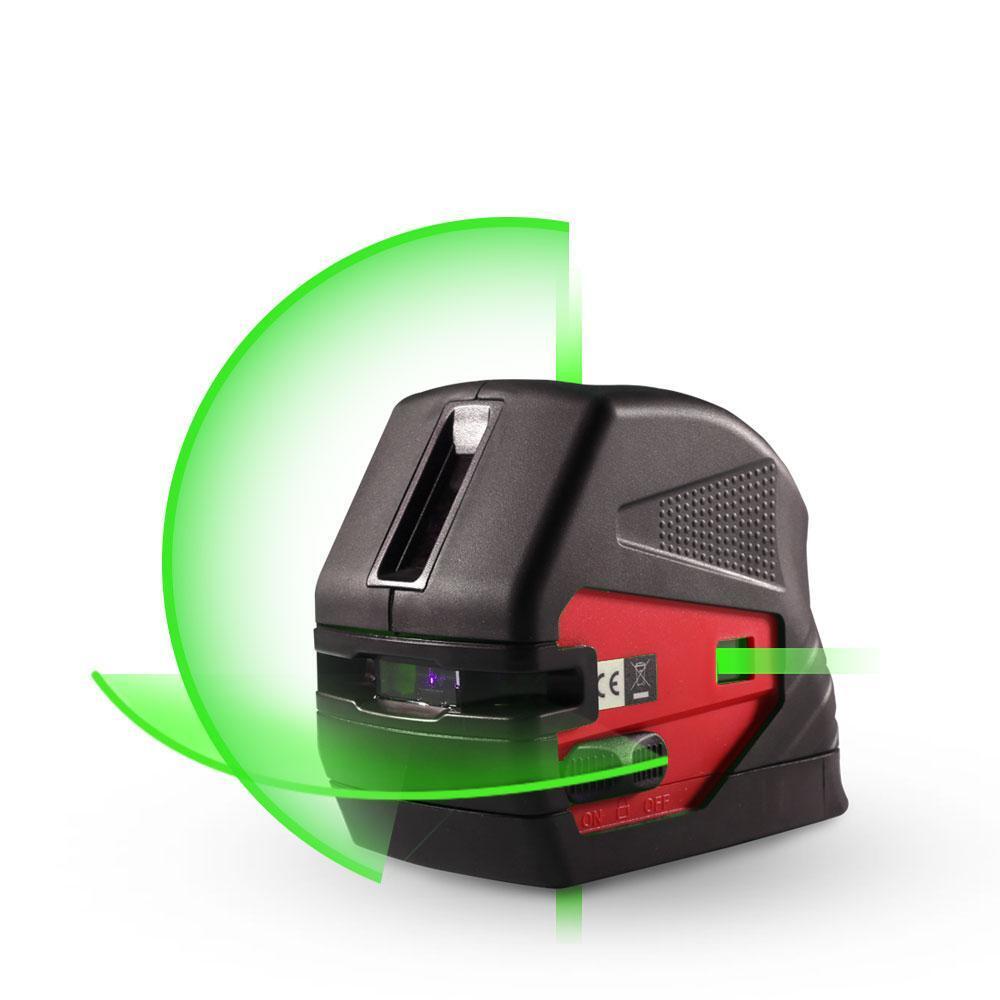

Industrial Laser Level Kit 5-Point and Cross Green Beam Line Self Leveling CPI

The CPI106G Industrial 5-Point and Cross Green Beam Line Laser Kit is perfect for a variety of levelling applications, including light placement, door fittings, window fittings and decking.

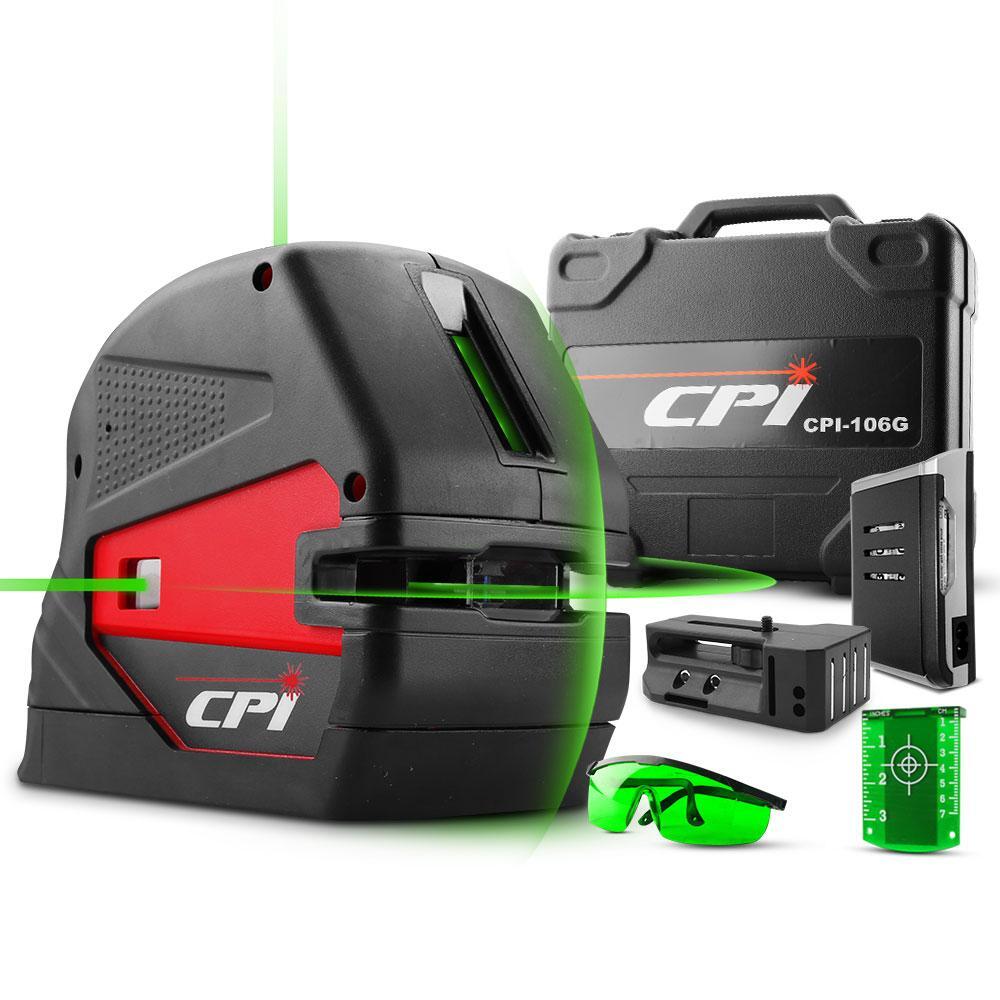

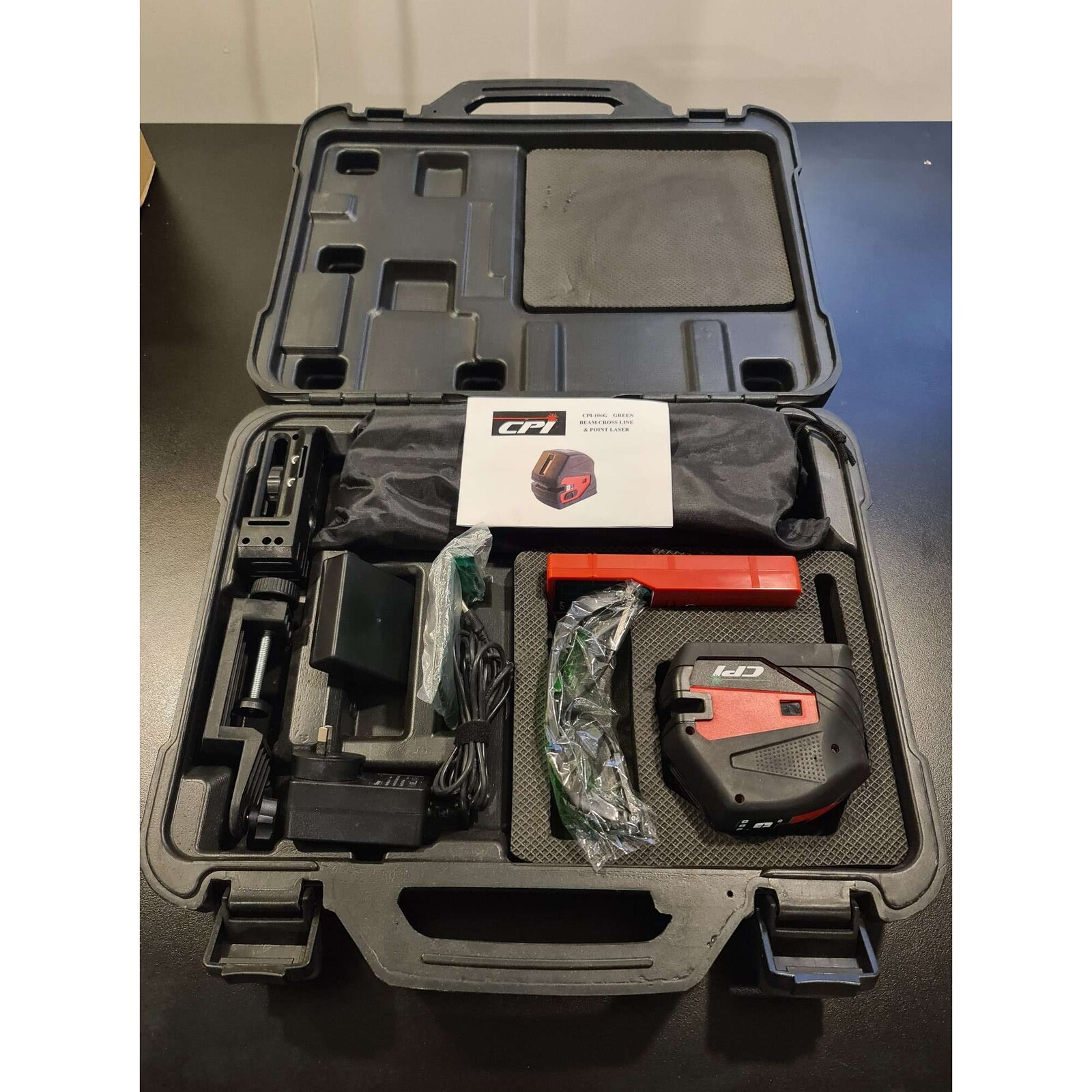

Package includes:

• Instrument (CPI106G Laser)
• Protective glasses
• Laser marker
• 4 x AA rechargeable batteries
• Bracket
• Charger

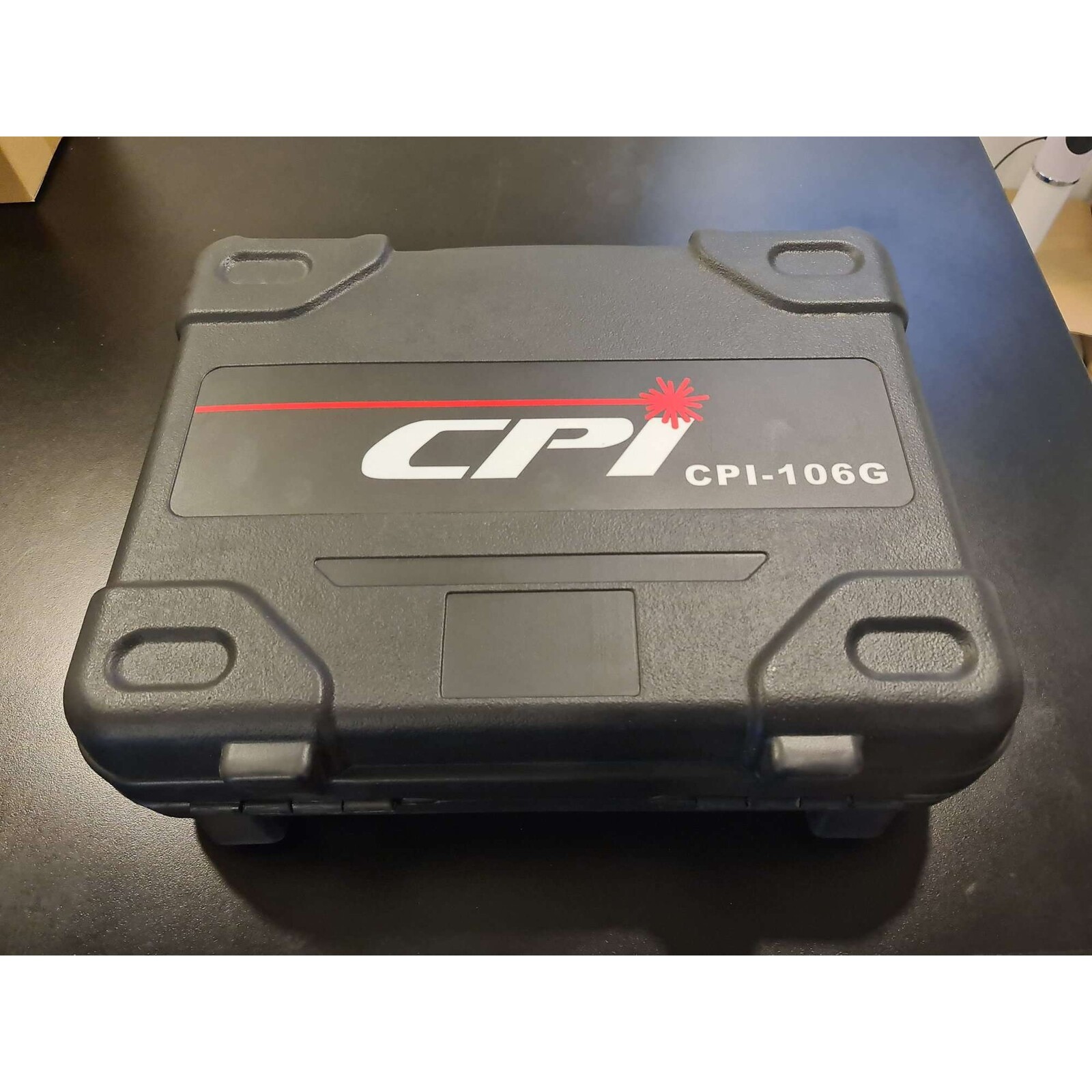

• BMC Case
• User Manual



Features:

• 5 Plumb points
• 2 Cross beams (horizontal line & vertical line)
• Automatic leveling of magnetic compensation systems
• Ultra-range laser flashes
• Tips & audible alarm outside
• Machine self-calibration function
• Easier operating block, can be pulled back and forth against the wall, can be hung on the wall, can be adsorbed on the metal, can be tied to a pillar, can be connected to tripod
• Accuracy: 3mm @ 10m
• Plumb beams: 1.5mm @ 5m
• Self-leveling Range: 5°
• Operating Range: Indoor Mode: Up to 30m Outdoor Mode: Up to 50m, working with laser detector
• Fan Angle: 120° vertical and 120° horizontal.
• Out-of-level Indication: Blinking laser lines and audible alarm
• Pendulum Lock/Off: Protects pendulum during transportation and storage for added durability
• Laser Diode: Class IIIA, 635NM diodes
• Operating Time: 6 hours continuous use (2 lines on).





Specifications:

• Laser wave length: 650nm
• Laser class: Class II / III
• Automatic leveling range: 4.5°
• Power supply: 4 x NI-MH rechargeable batteries
• Dimensions: 104mm x 100mm x 72mm
• Weight: 6kg



Applications:

• Interior decorating
• Instrument installation
• Floor and wall bricks
• Drop ceiling
• Wall frame
• Level wall device
• Wainscot
• Level the cabinets and the shelves
• Build the slope
• and more...
