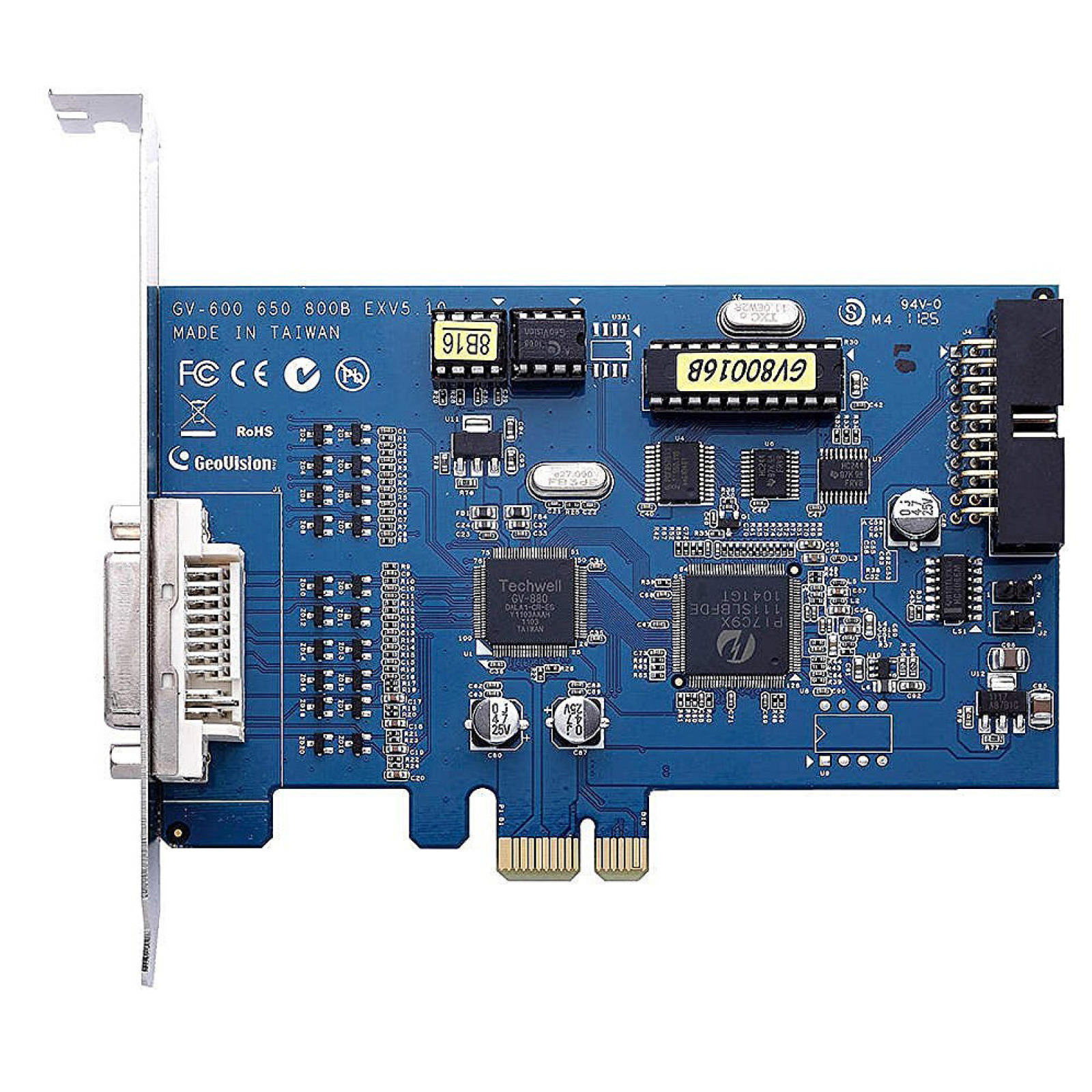

Features

01

Inputs: allows for 4 camera video and 4 audio inputs;

Resolution: gives a resolution of 320 x 240 recording and display resolution at 120fps (NTSC) and 100fps(PAL);

Video Compression: supports Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2 formats;

Remote View: allows remote viewing via Microsoft remote desktop;

Security: strict access control to ensure security;



Main Specs:



Interface: PCI-E (x1);

Input Type: DVI;

Video Input: GV-800B-4 Cams;

Audio Input: 4 Channels, 8 Channels;

Recording Rate CIF: GV-800B-NTSC 4-port: 120 fps;

Recording Rate D1: NTSC 4-port: 100 fps, PAL 4-port: 100 fps;

Display Rate CIF:  NTSC - 4-port: 120 fps , PAL- 4-port: 100 fps;

Display Rate D1:  NTSC- 4-port: 120, PAL- 4-port: 100 fps

Video Resolution: NTSC-704x480, 704x480 De-interlace, 640x480, 640x480 De-interlace, 352x240, 320x240, PAL: 704x576, 704x576 De-interlace, 640x480, 640x480 De-interlace, 352x288, 320x240;

Video Compression Format: Geo MPEG4, Geo H264;

Audio Format: 16 kHz / 16-bit, 32 kHz / 16-bit);

GV-NET/IO Card Support: Yes;

Dimensions (W x H) PCI-E: 120 x 82 mm / 4.7 x 3.2 in;

Installation Guide: GV-800B;

OS Supported: 32-bit-Windows XP / Vista / 7 / 8 / Server 2008, 64-bit-Windows 7 / 8 / Server 2008 R2 / Server 2012;

CPU: Pentium 4, 3.0 GHz with Hyper-Threading;

RAM: Windows XP: 2 x 512 MB Dual Channels Windows Vista / 7 / 8 / Server 2008 / Server 2012 : 2 x 1 GB Dual Channels;

HDD: 80 GB;

Graphic Card: AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color;

DirectX: 9.0c.



•  Specifications



GV-800B GV-800B x 2 Interface PCI-E (x1) PCI-E (x1) x 2,  PCI x 1 + PCI-E (x1) x 1 Input Type DVI Video Input 4, 8, 16 Cams 8, 12, 16, 20, 24, 32 Cams Audio Input 4 Channels 8 Channels Recording Rate CIF NTSC 4-port: 120 fps 16-port: 120 fps 4+4 port: 240 fps 16+16 port: 240 fps PAL 4-port: 100 fps 16-port: 100 fps 4+4 port: 200 fps 16+16 port: 200 fps D1 NTSC 4-port: 120 fps 16-port: 60 fps 4+4 port: 240 fps 16+16 port: 120 fps PAL 4-port: 100 fps 16-port: 50 fps 4+4 port: 200 fps 16+16 port: 100 fps Display Rate CIF NTSC 4-port: 120 fps 16-port: 120 fps 4+4 port: 240 fps 16+16 port: 240 fps PAL 4-port: 100 fps 16-port: 100 fps 4+4 port: 200 fps 16+16 port: 200 fps D1 NTSC 4-port: 120 fps 16-port: 60 fps 4+4 port: 240 fps 16+16 port: 120 fps PAL 4-port: 100 fps 16-port: 50 fps 4+4 port: 200 fps 16+16 port: 100 fps Video Resolution NTSC 704x480, 704x480 De?interlace, 640x480, 640x480 De?interlace, 352x240, 320x240 PAL 704x576, 704x576 De?interlace,  640x480, 640x480 De?interlace, 352x288, 320x240 Video Compression Geo MPEG4, Geo H264 Audio Compression 16 kHz / 16-bit, 32 kHz / 16-bit GV-NET/IO Card Support Yes Dimensions (L X W X H) PCI-E 120 x 82 mm / 4.7 x 3.2 in

Minimum System Requirements For One Card, CIF Resolution
OS Supported	32-bit	Windows XP / Vista / 7 / 8 / Server 2008
	64-bit	Windows 7 / 8 / Server 2008 R2 / Server 2012
CPU		Pentium 4, 3.0 GHz with Hyper-Threading
RAM		Windows XP: 2 x 512 MB Dual Channels Windows Vista / 7 / 8 / Server 2008 / Server 2012 : 2 x 1 GB Dual Channels
HDD		80 GB
Graphic Card		AGP or PCI-Express, 1024 x 768, 32-bit color
DirectX		9.0c
Minimum System Requirements For Two Cards, CIF Resolution
OS Supported	32-bit	Windows XP / Vista / 7 / 8 / Server 2008
	64-bit	Windows 7 / 8 / Server 2008 R2 / Server 2012
CPU		Pentium 4, 3.0 GHz Dual Core
RAM		2 x 1 GB Dual Channels
HDD		160 GB
Graphic Card		AGP or PCI-Express, 1024 x 768, 32-bit color
DirectX		9.0c
