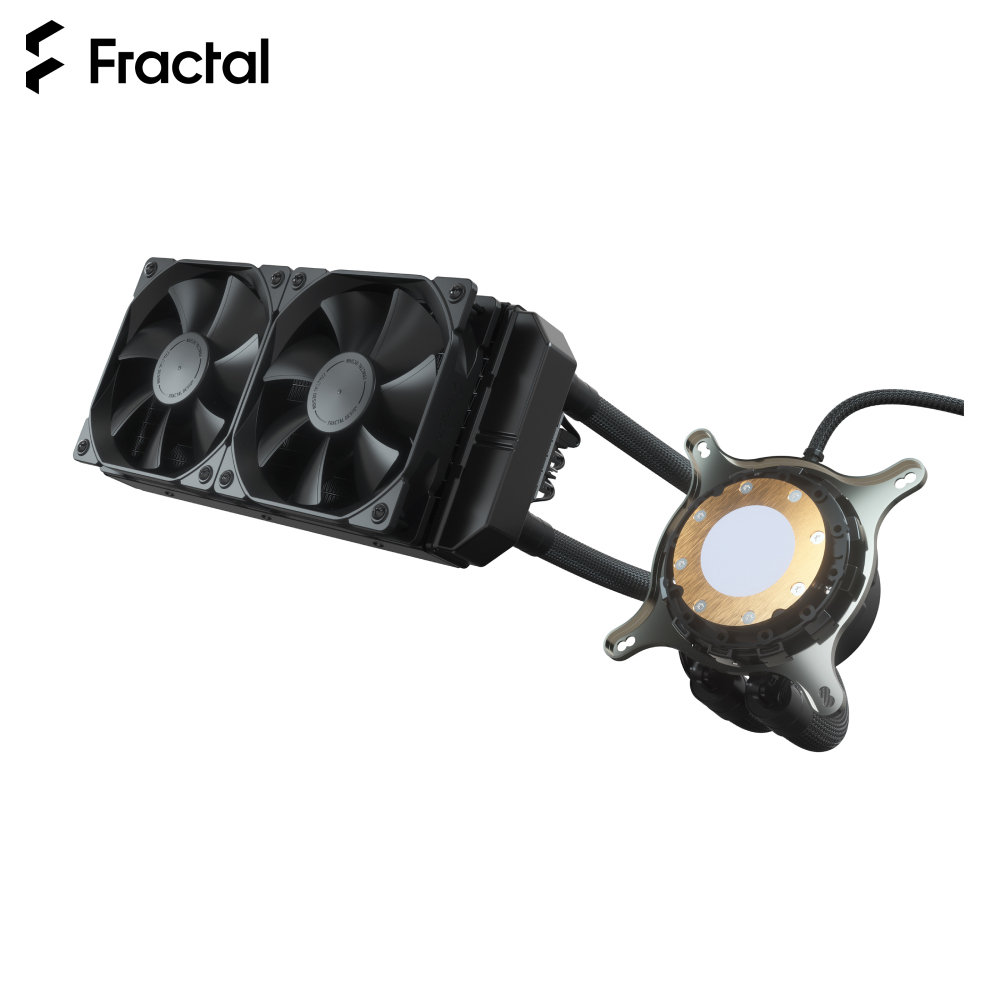

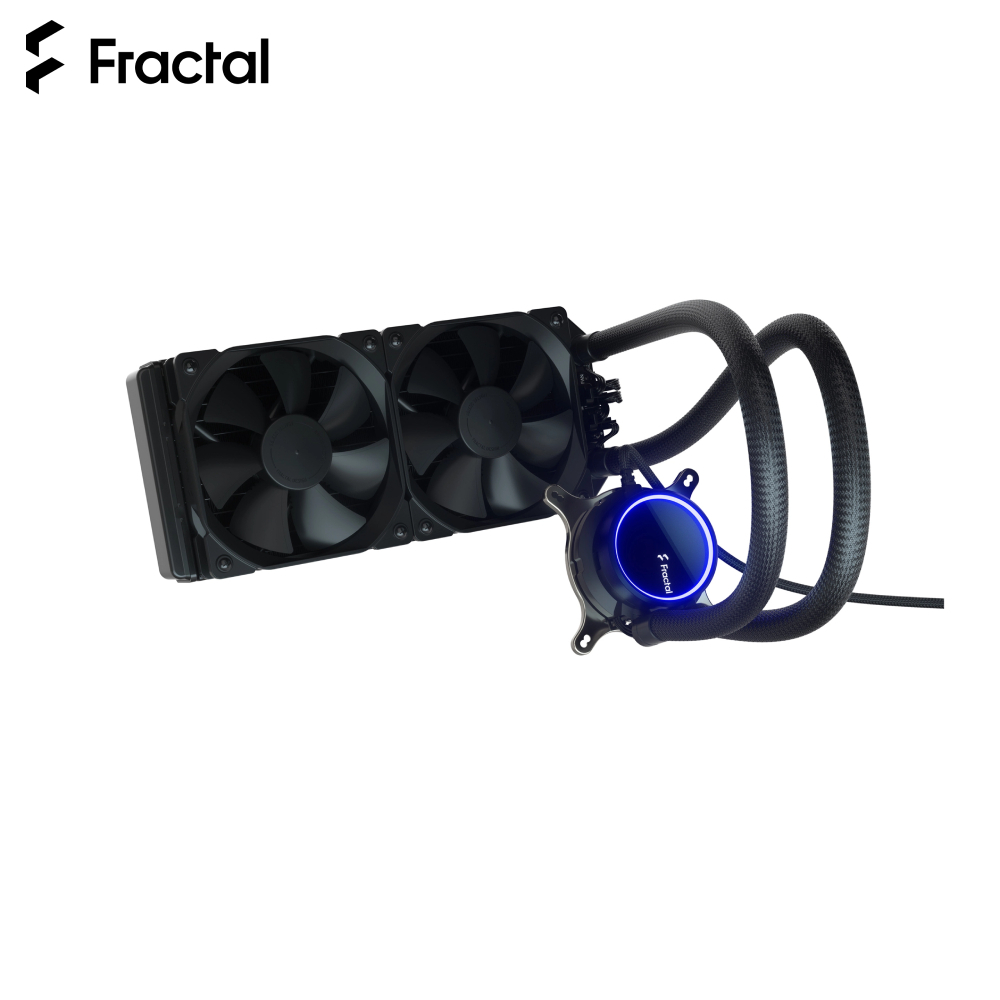

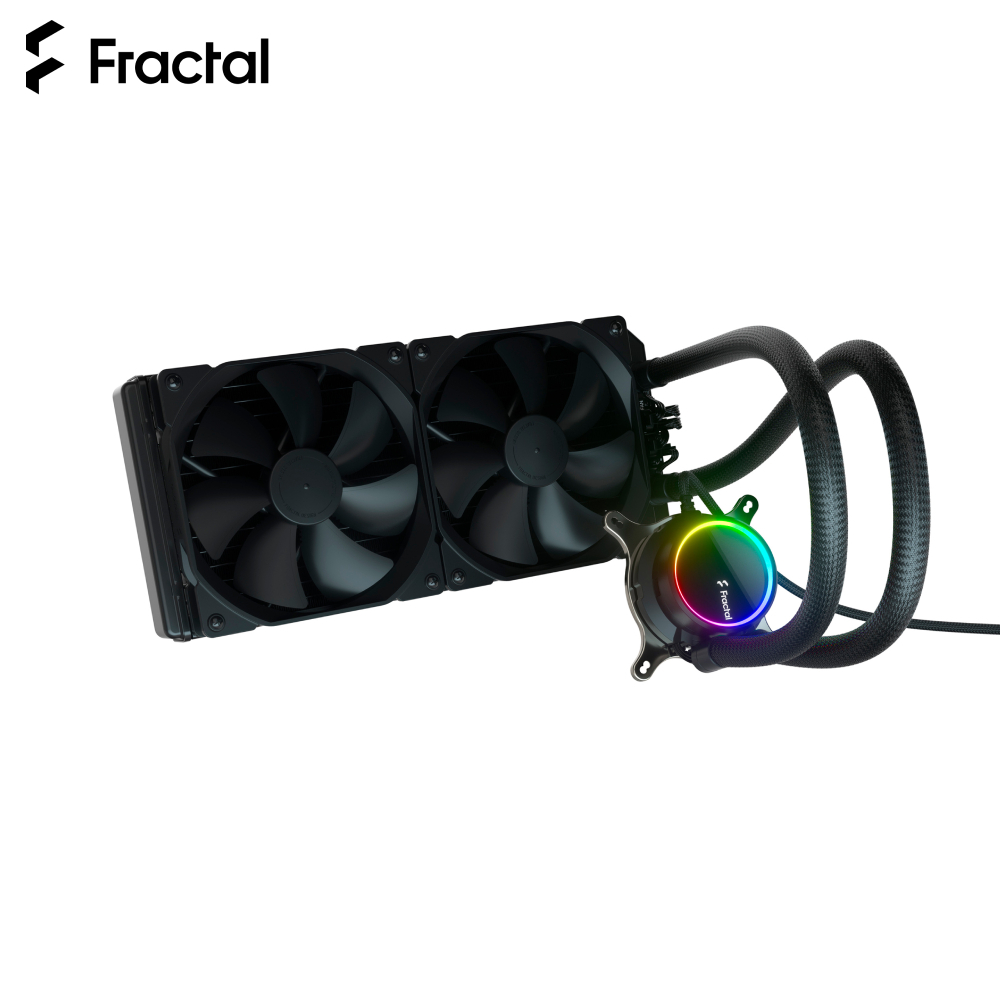

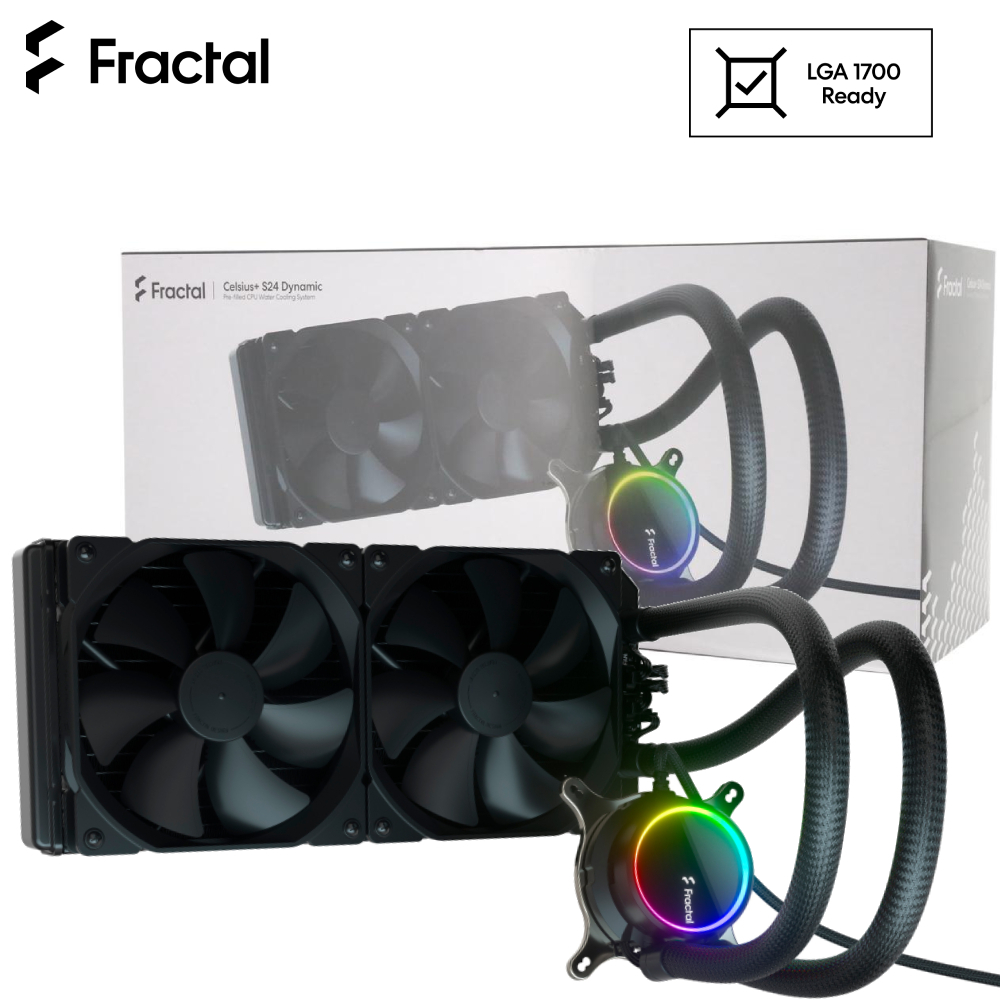

Liquid CPU Cooler Fractal Design Celsius+ S24 Dynamic unit Processor Water Cooling FD-W-2-S2401

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Cleverly concealed wiring in the Celsius’ braided sleeve tubing cleanly connects both power and RGB for the entire system at the pump, and selectable auto/PWM modes offer smart, dynamically optimized performance with the choice of full user control for expert fine-tuning. Available sizes include 240 mm, 280 mm, and 360 mm, each with a choice of Dynamic X2 or Prisma ARGB fans pre-installed

  • Tinted glass pump face with backlit logo and ARGB LED effects
  • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
  • Compatible with LGA 1700



Key features

  • Tinted glass pump face with backlit logo and ARGB LED effects
  • Smart auto control mode dynamically adjusts fan and pump speeds for the ideal balance of silence and cooling performance
  • Twist the pump face to change from auto to PWM mode for full user control
  • ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
  • Sleeved tubing with concealed wiring connects power and ARGB for the entire system at the pump
  • Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
  • Pre-applied thermal paste guarantees optimal application with even coverage
  • Low-permeability rubber tubing with nylon braided sleeves for extra durability and an added touch of style
  • Articulating elbow fittings make tubes easier to route while reducing tension on the pump
  • Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects (Prisma versions only)
  • Specially designed fan blades and outer ring produce a uniform glow (Prisma versions only)
  • High-performance Dynamic X2 PWM fans provide excellent airflow with minimal noise (Dynamic versions only)
  • Optimized fan geometry balances airflow with extra emphasis on static pressure
  • Strategic blade notches diffuse noise from blade/stator interaction (Dynamic versions only)
  • Trip Wire technology reduces blade turbulence
  • LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan



Cool, quiet and colorful

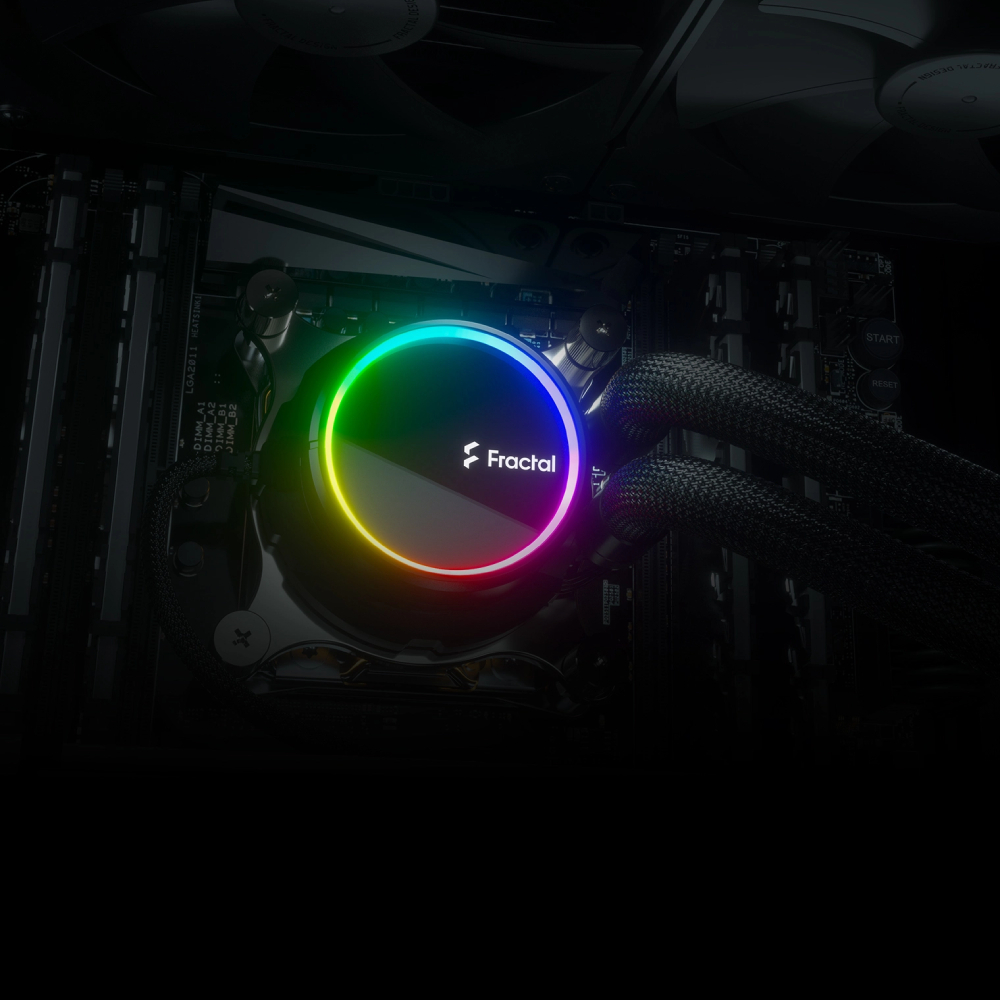

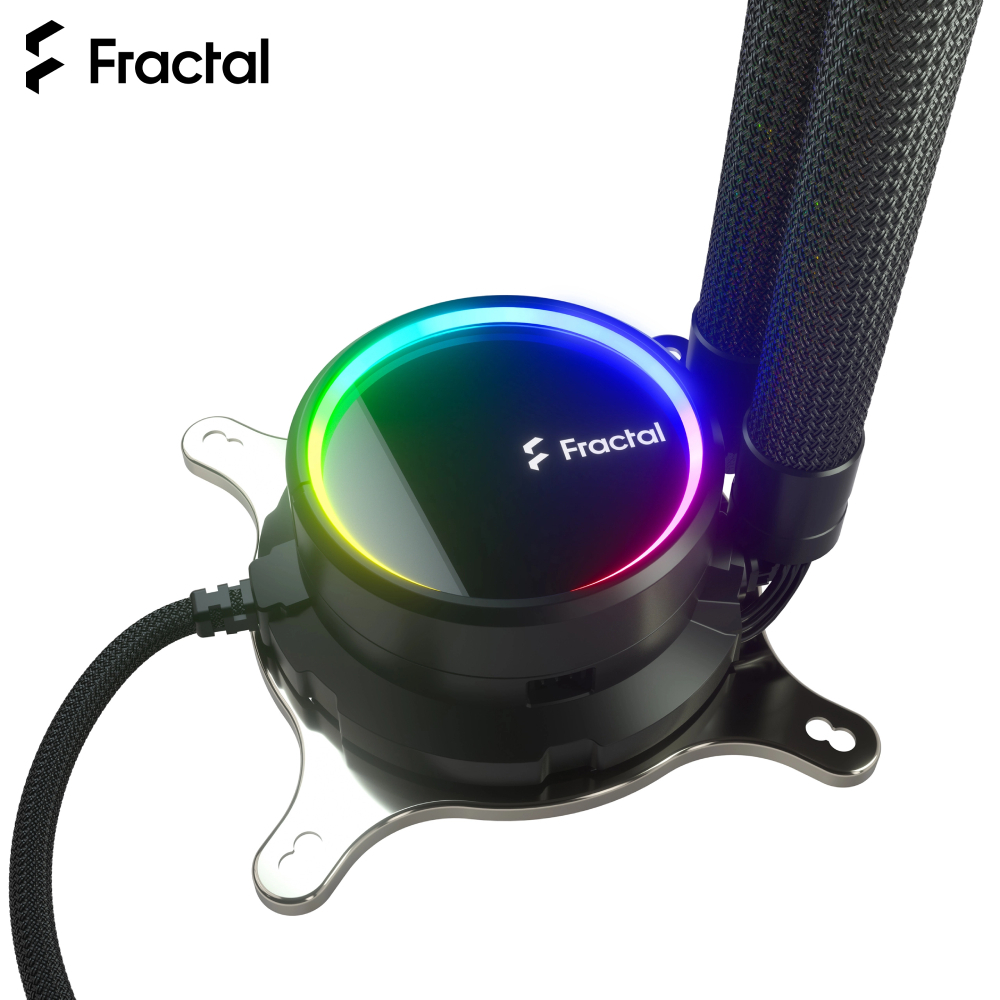

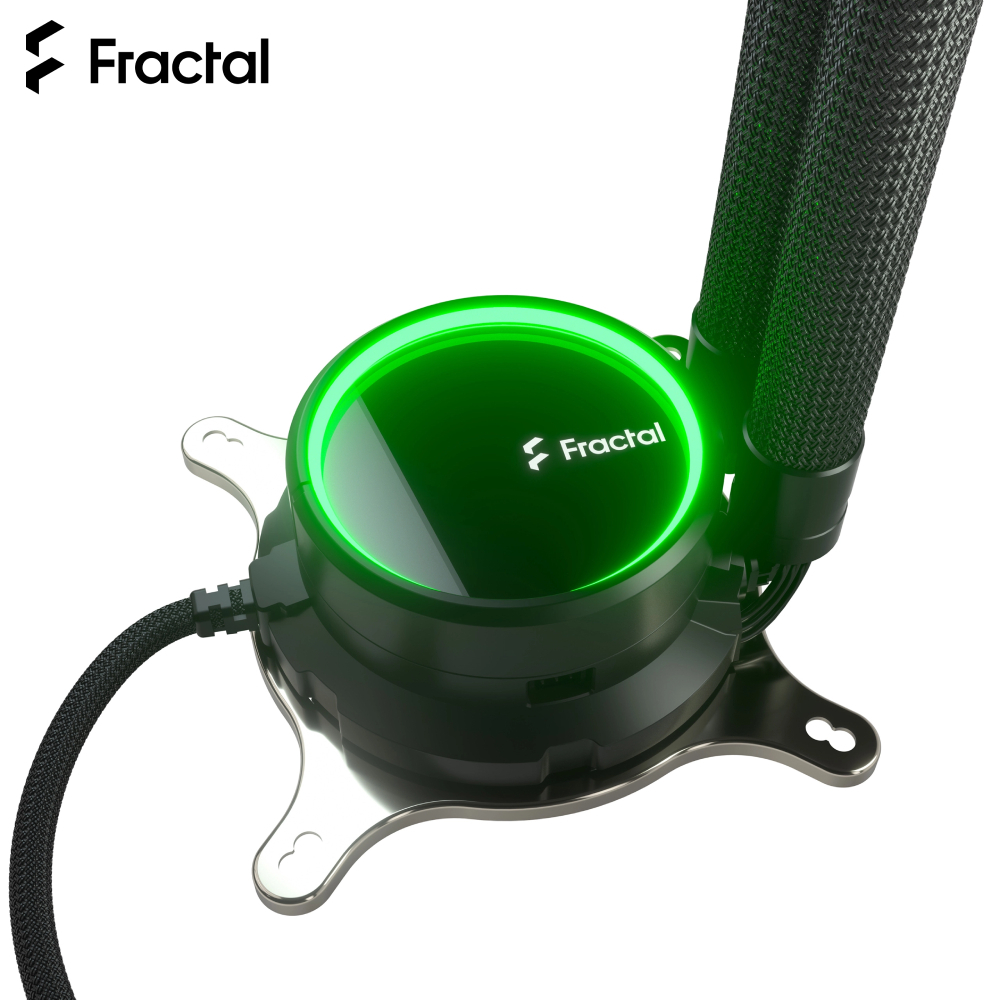

Stylish glass pump face with backlit logo and ARGB LED effects



Outstanding airflow

  • High-performance Dynamic PWM fans for excellent airflow and minimal noise
  • Optimized fan geometry balances airflow with extra emphasis on static pressure
  • Strategic blade notches diffuse noise from blade/stator interaction
  • Trip Wire technology reduces blade turbulence
  • LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan



Get the balance right

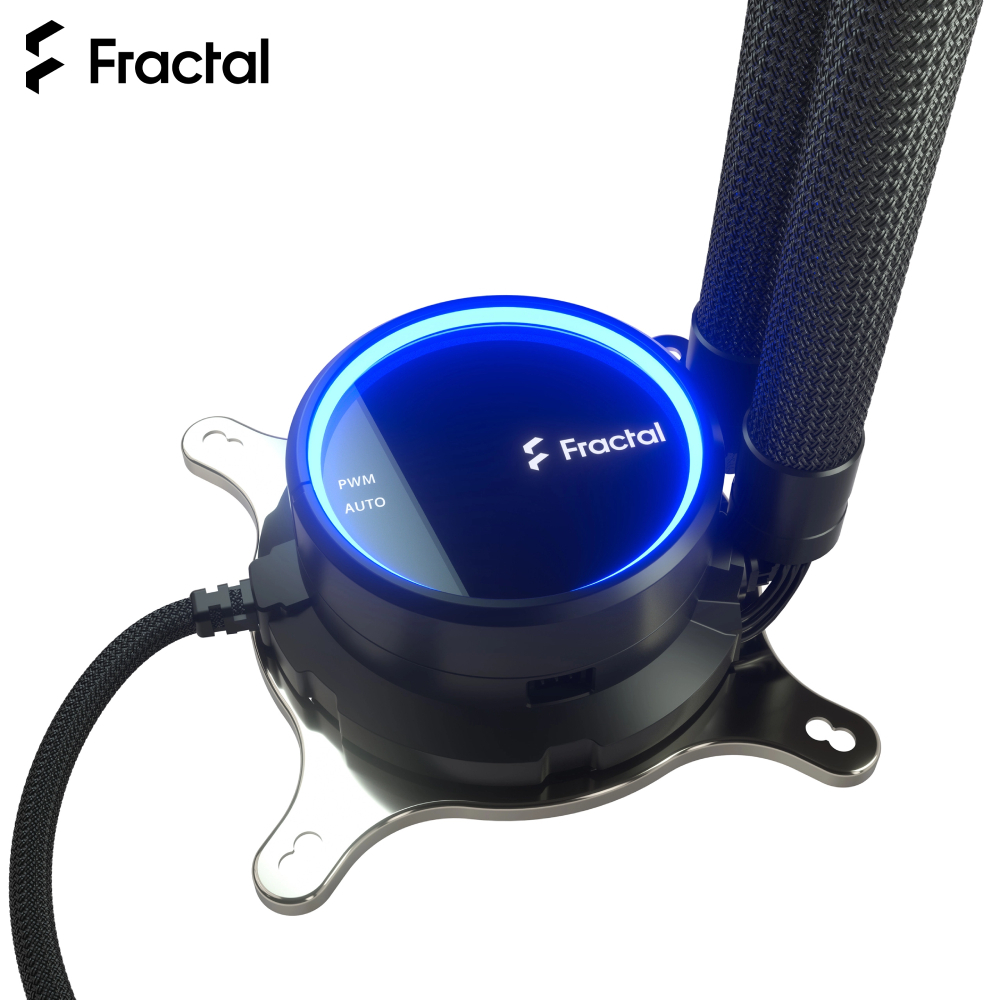

Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control



Tidier through technology

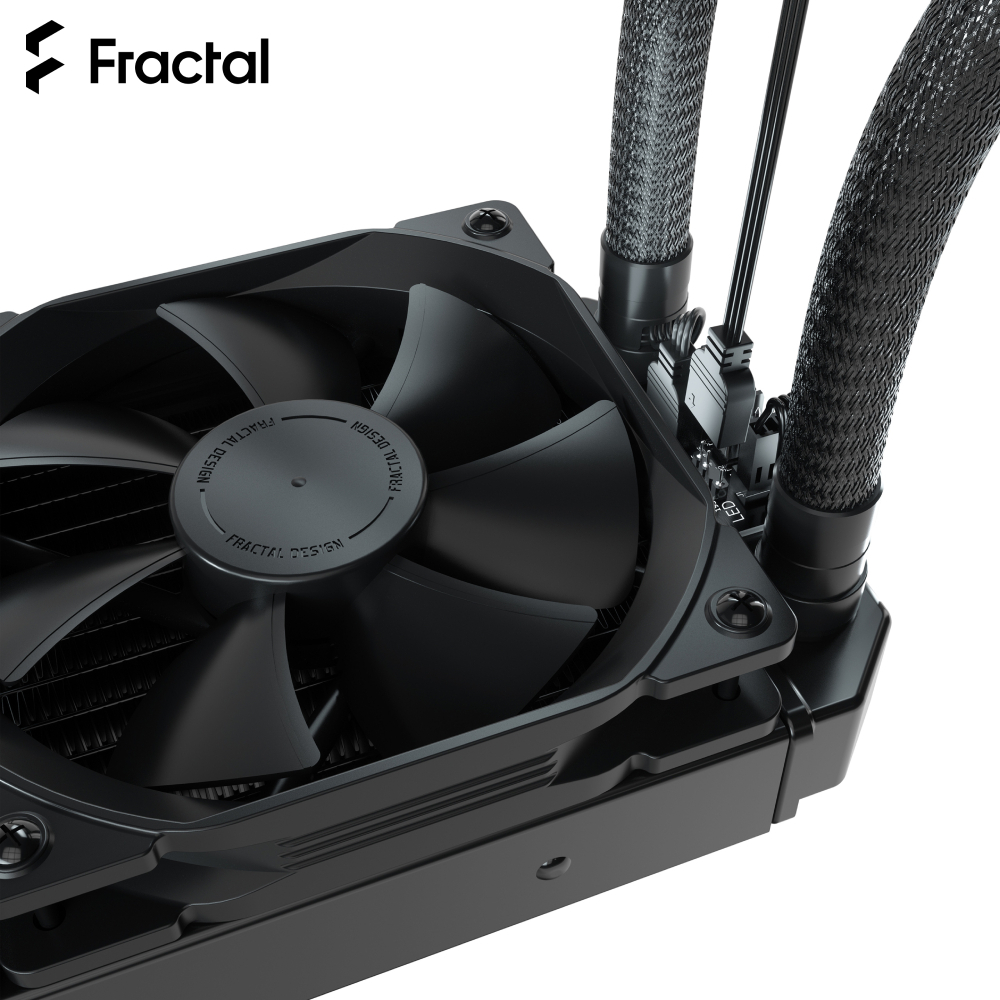

ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation



Forget the thermal paste

With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation



Color-coordinated cooling

Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support



Mounting made easy

  • Supports the most common sockets for both Intel and AMD
  • Compatible with LGA 1700



Up our sleeves

Braided tube sleeves readily contain both the fan control cables and ARGB wires







  • Supported sockets (Intel) - 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
  • Supported sockets (AMD) - AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
  • Coldplate material - Copper
  • Thermal paste - Pre-applied
  • Block height - 45 mm
  • Block measurements (with fittings) - 86 x 75 mm
  • Block diameter (main block body) - 62 mm
  • Pump rotational speed - 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
  • Pump bearing type - Ceramic bearing and shaft
  • Pump PWM control - Yes
  • Pump acoustical noise (full speed) - 20 dBA
  • Pump maximum pressure, 50°C - 1.46 mm H2O
  • Pump input voltage - 12V DC
  • Pump input current (without fans) - 0.36A
  • Pump MTTF - 50,000 hours
  • Tube length - 400 mm
  • Tube material - Low-permeability rubber with braided nylon sleeve
  • Fittings, block side - Articulating 90-degree elbow
  • Fittings, radiator side - Straight rotary
  • Fan control - Dual mode (Auto/PWM)
  • Fan type - Dynamic X2 GP-12 PWM
  • Rotational speed - 500 – 2000 RPM
  • Bearing - LLS
  • PWM - Yes
  • Acoustical noise (max) - 32.2 dBA
  • Airflow (max) - 87.6 CFM
  • Static pressure (max) - 2.3 mm H2O
  • Input voltage - 12V DC
  • Input current (max) - 0.2A
  • MTBF - 100,000 hours
