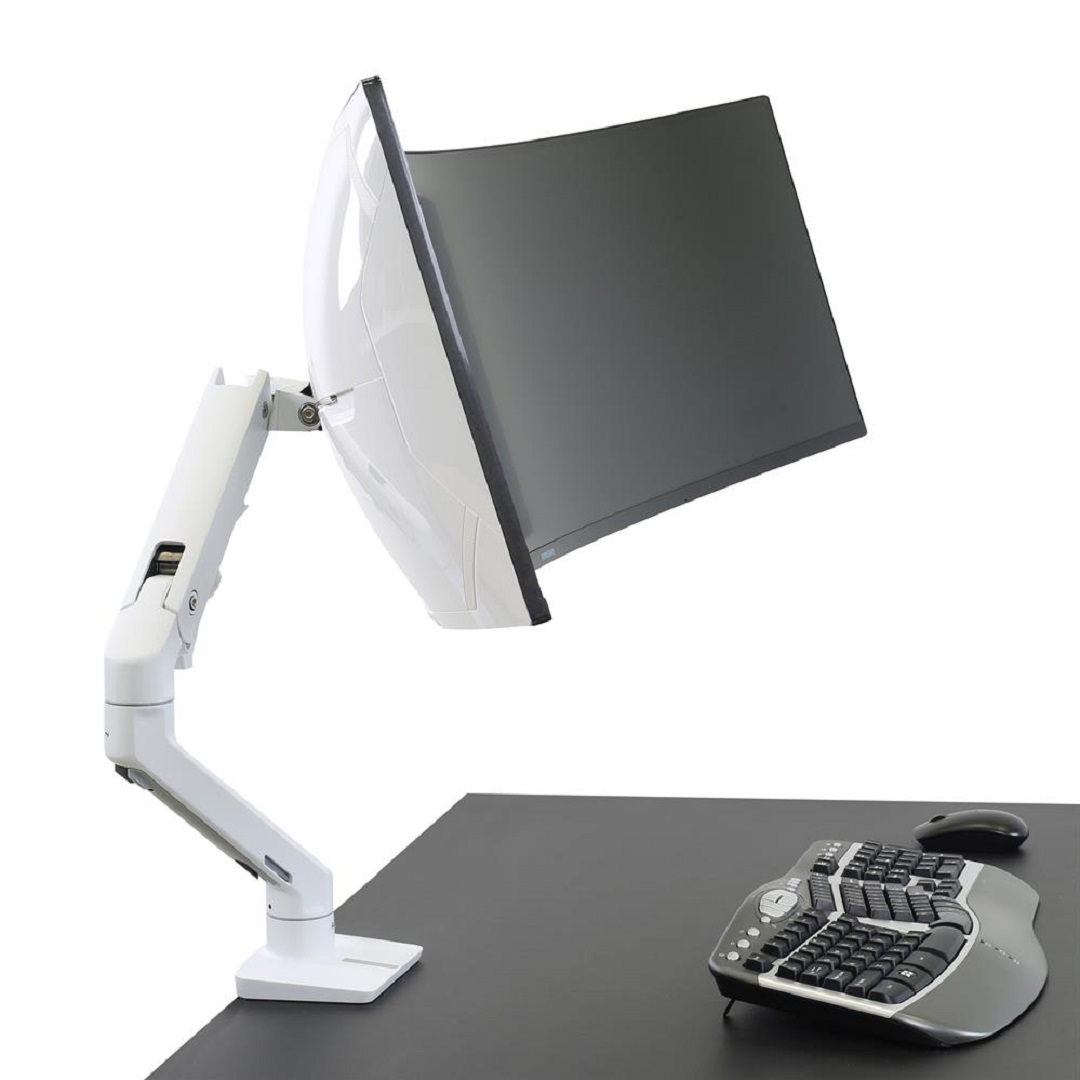

Ergotron 98-540-216 HX Heavy Duty Tilt Pivot Add-on for HX Monitor Arm Stand Mount Holder

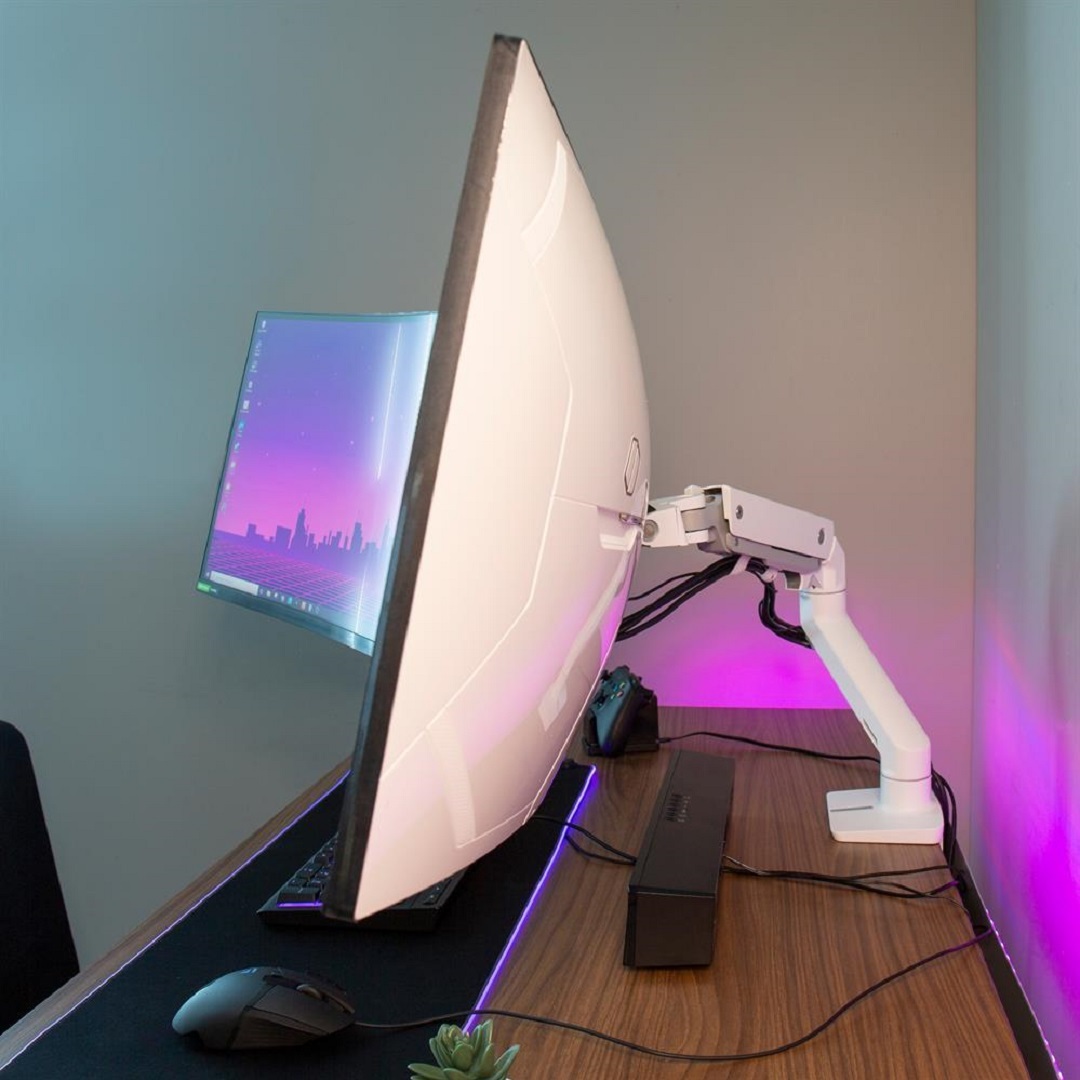

Enable immersive viewing experiences with a professional-grade HX Desk or Wall Monitor Arm. When added to an HX, this heavy-duty pivot gives gamers or office professionals the freedom to move and position ultra-wide curved displays that have a depth of 6"–12" (15–30 cm), such as the Samsung G9.



Benefits:

Sturdy fit

• Tilts +15/-5° to work or play comfortably

Protect your investment

• Quality design securely supports large monitors

Quick install

• Just replace the existing HX pivot for easy attachment of an ultra-wide display

Guaranteed compatible

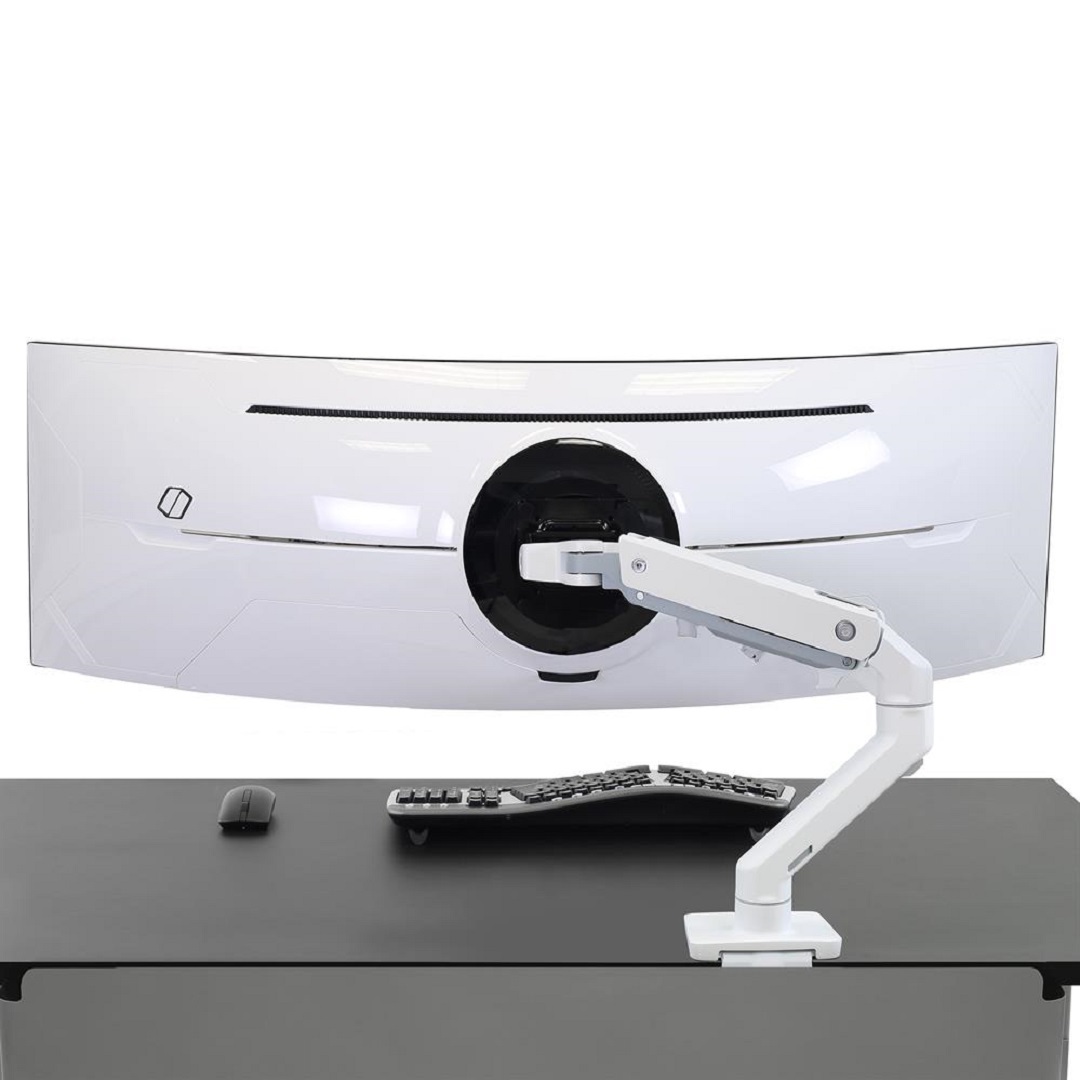

• Works with the Samsung 49" Odyssey G9 Monitor

Reclaim desk space

• Skip the standard monitor base—lift your screen above the desktop

Simple adjustability

• A wide range of motion enables precise screen positioning

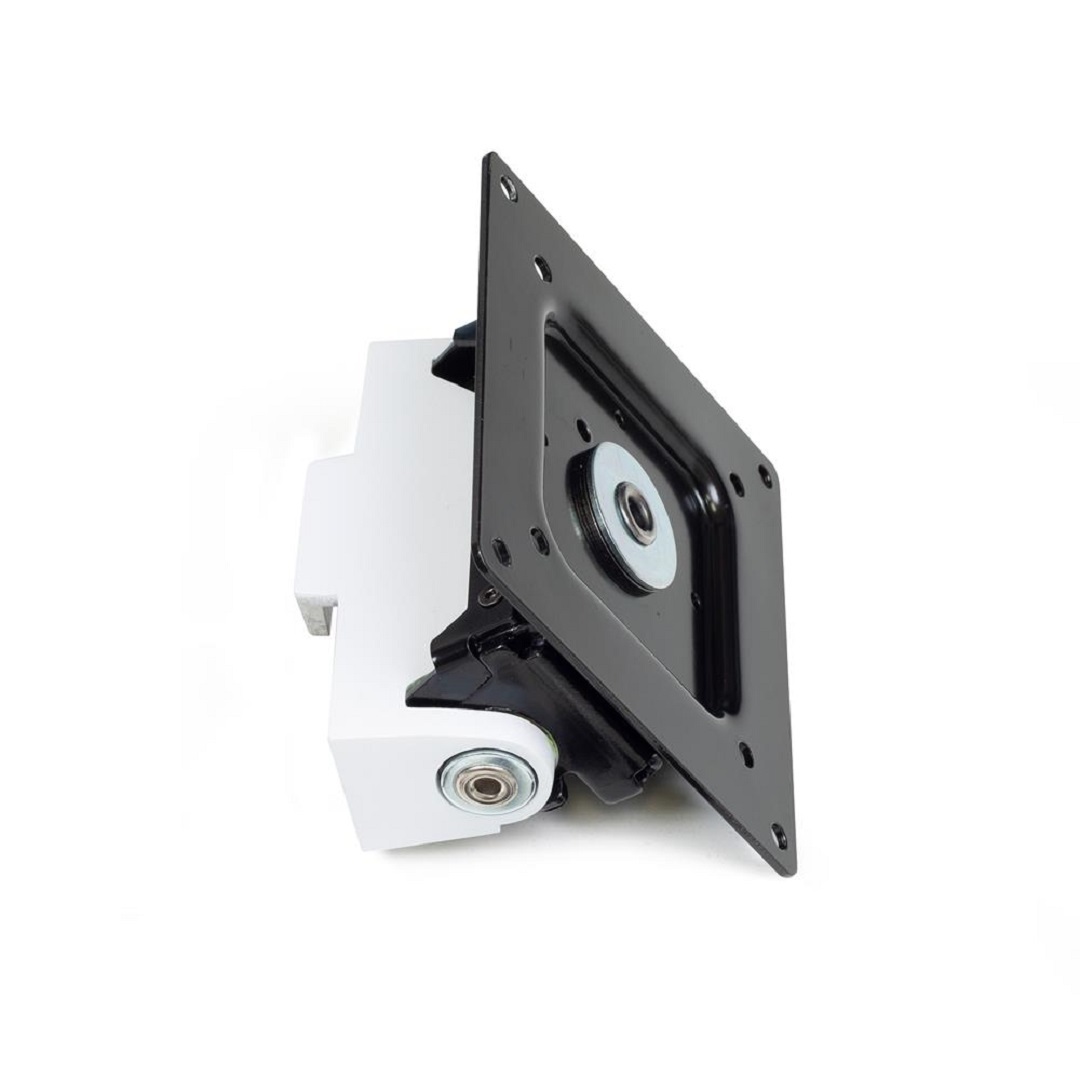

Description: HX Heavy-Duty Tilt Pivot (white)
Includes tilt pivot, attachment hardware

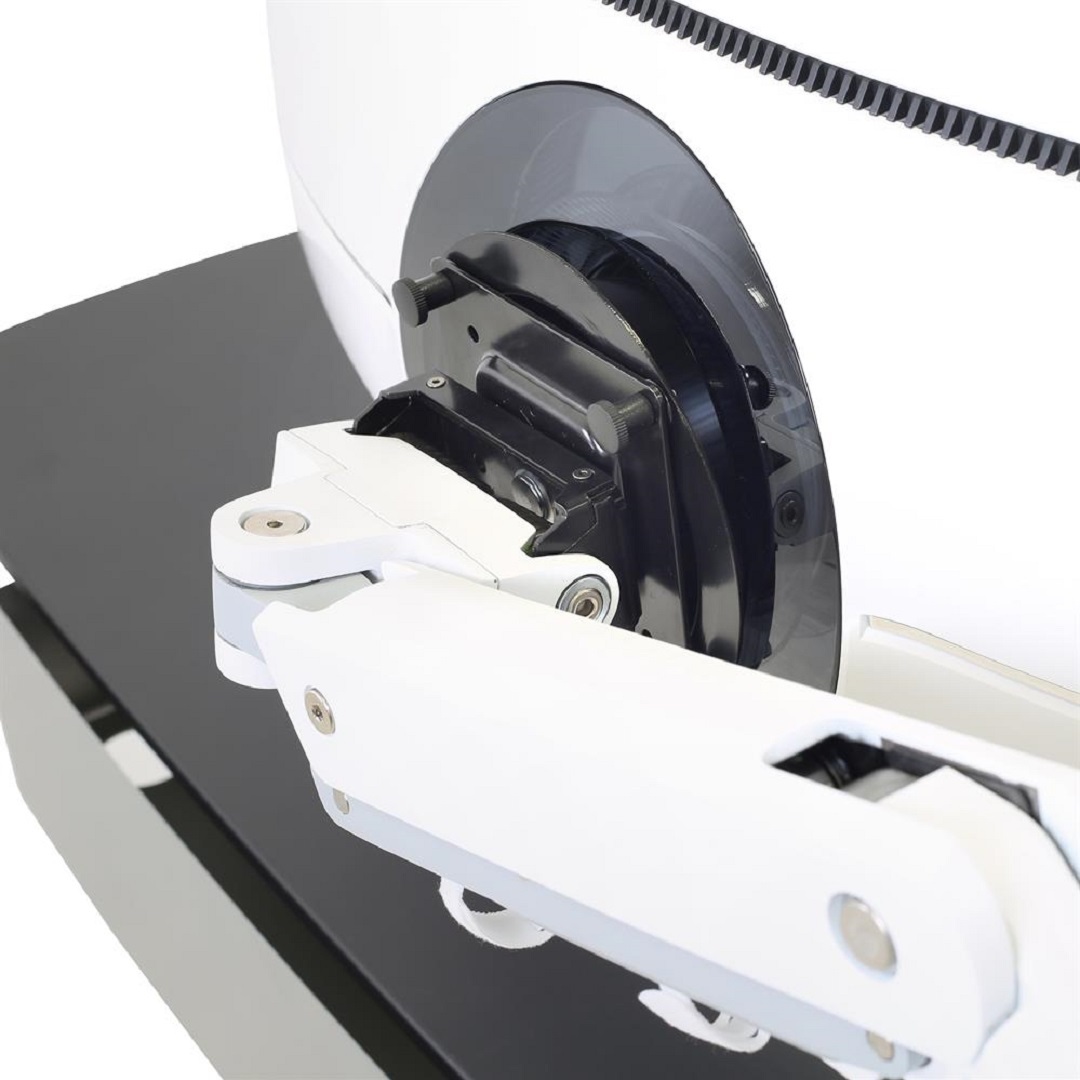

Specially designed to enable using an HX arm with the Samsung 49" Odyssey G9 (C49G97T and C49G95T Series). This pivot’s heavy-duty tilt mechanism compensates for the curved display’s extreme depth of 12" (30 cm)
Suitable for monitors weighing 12.7–19.1 kg with a depth of 15–30 cm without stand. For displays that fall outside these specifications, this pivot is not necessary

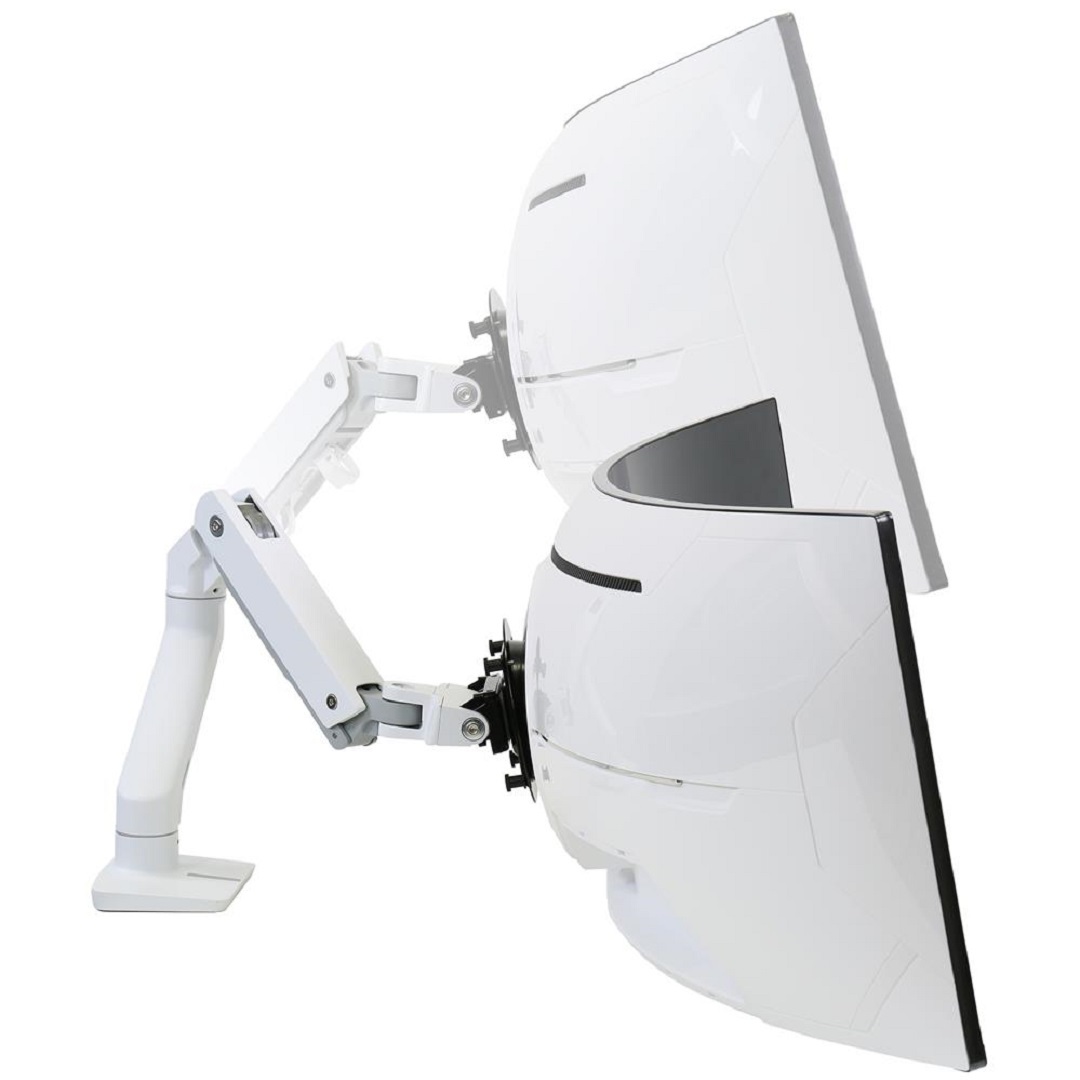

Tilt Range: 15° backward, 5° forward
Mounting Standard: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Recommended worksurface thickness ≥ 1.0" (2.5 cm) in order to minimize vibration
Product Weight: 1 kg
Shipping Dimensions: 20.5 x 17.5 x 10.5 cm
Shipping Weight: 1.3 kg


Specification:

• Screen ≤49"
• Capacity 12.7–19.1 kg
• Tilt 20°
• Rotation 360°
• Vesa MIS-D
