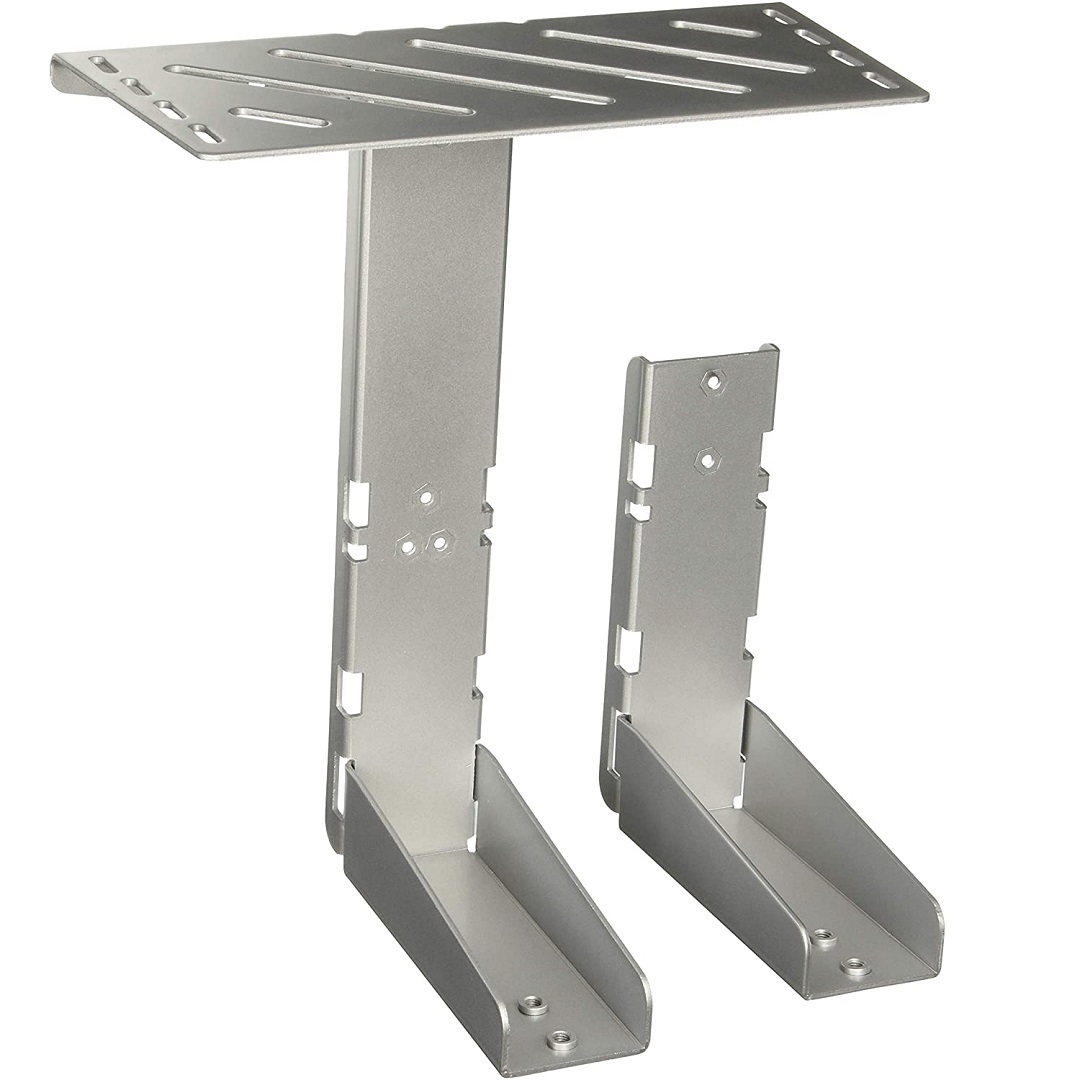

Ergotron 97-780-194 for StyleView Carts Mounting Shelf Holder Bracket Stand Base for Scanner

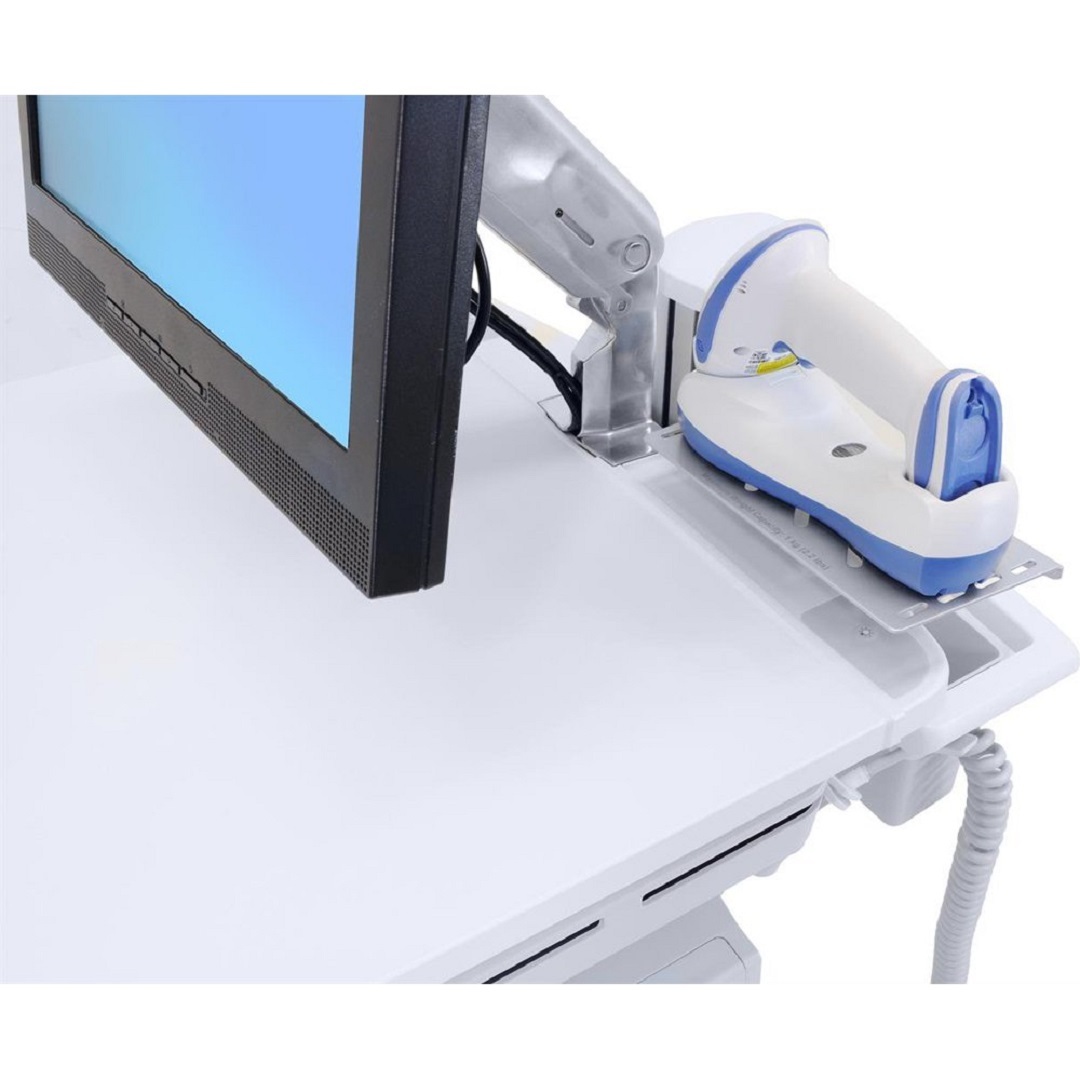

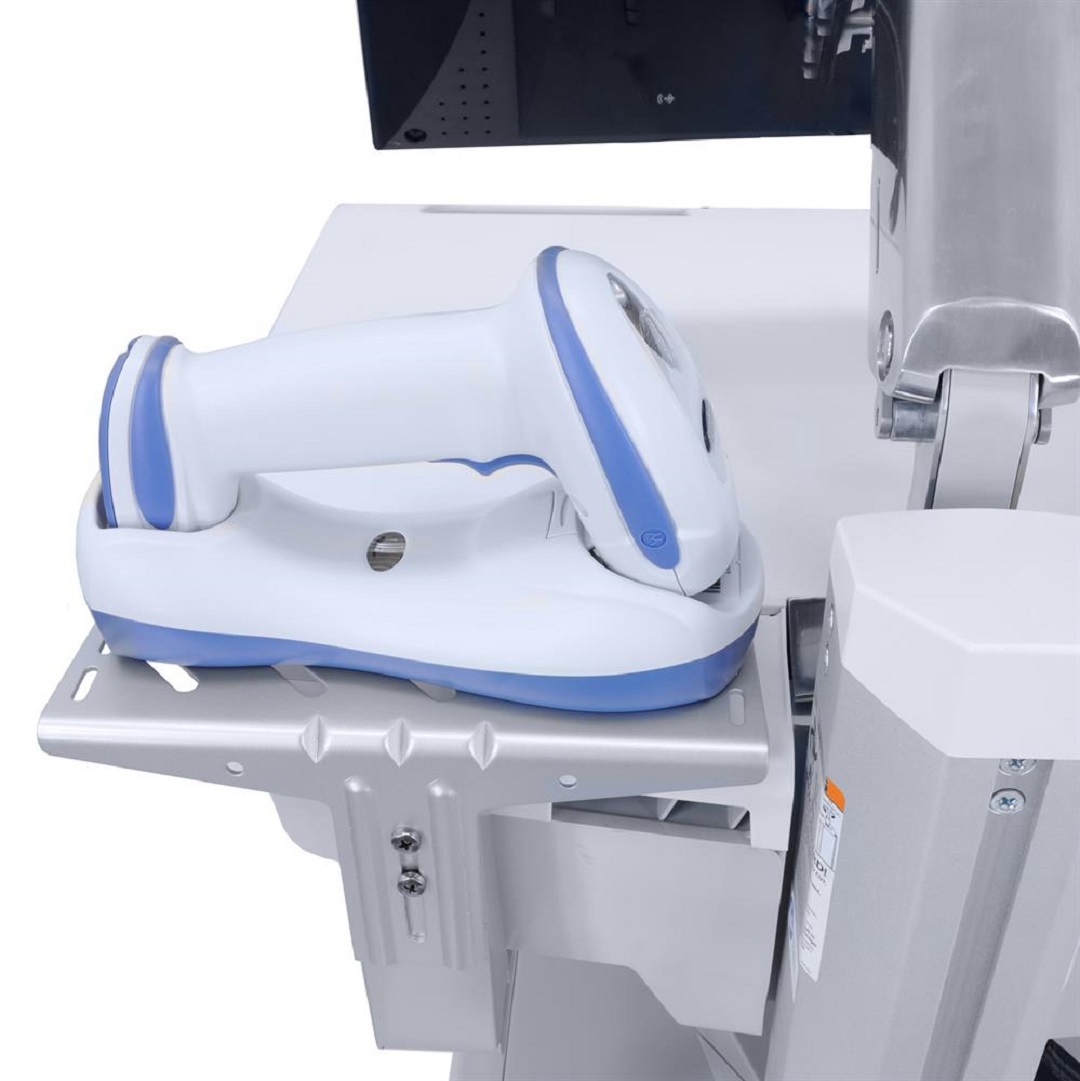

This handy shelf is designed to hold a wireless scanner base at a convenient working height on StyleView carts. Attach it to the work surface or to the back of the cart. Also can be easily integrated into a Wall Track system



Benefits:

• Provides quick and convenient access to a wireless scanner
• Sturdy metal construction
• Easy to clean surfaces
• Works with StyleView carts as well as Ergotron Wall Track

Specification:

• Part Number: 97-780-194
• Description: SV Scanner Shelf (silver)

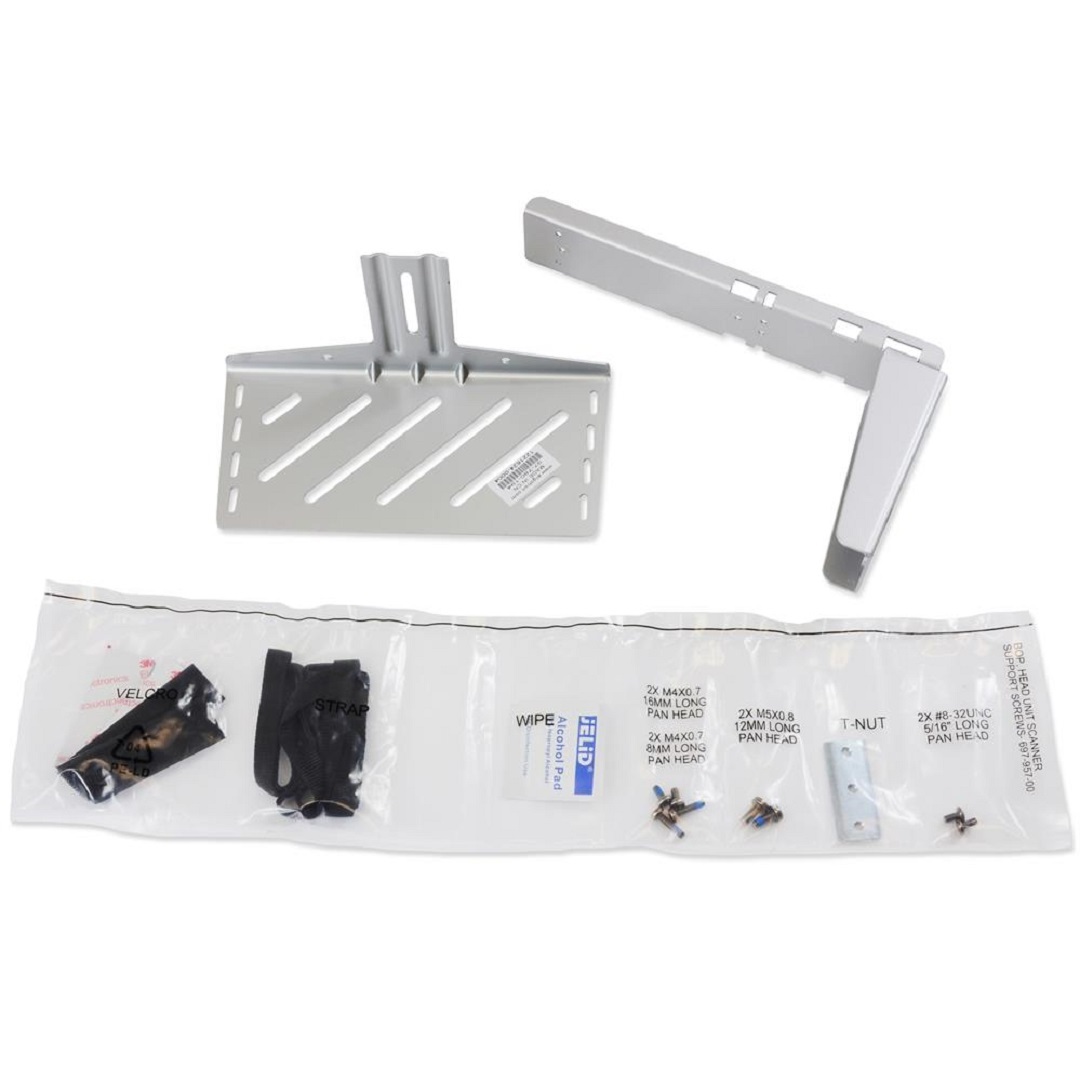

• Includes tray, bracket, Velcro, strap, mounting hardware
• Shelf dimensions = 20 x 10 cm
• Scanner base can be attached to shelf with included Velcro or strap, or via a tripod-mount interface, if present
• The attachment of this shelf impacts the overall weight capacity of the combined LCD / CPU on StyleView carts
• Weight limitations of the cart’s head-unit assembly are as follows:
• SV41 and SV42 SLA LCD carts = 10.4 kg
• SV41 and SV42 laptop carts (SLA and LiFe) =  6.4 kg
• SV42 LiFe LCD carts = 8.6 kg
• Attaches to the cart’s worksurface via included head-unit bracket, or to the back of the cart using included t-slot bracket
• If attaching to Ergotron Wall Track, a separately ordered Track Mount Bracket (97-091) is required
• Shipping Dimensions: 30.5 x 18 x 15.5 cm
• Shipping Weight: 1.4 kg
