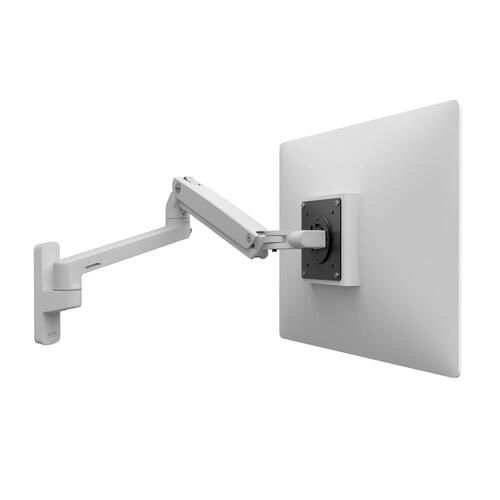

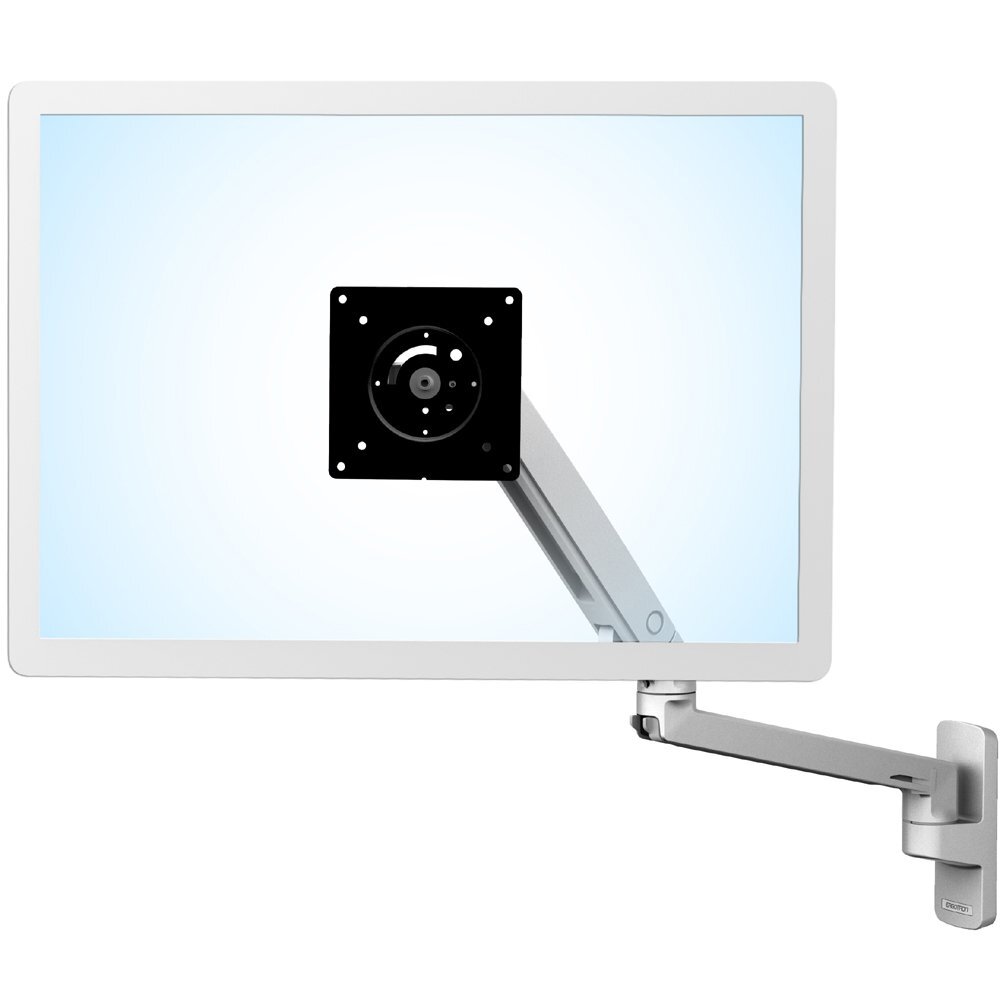

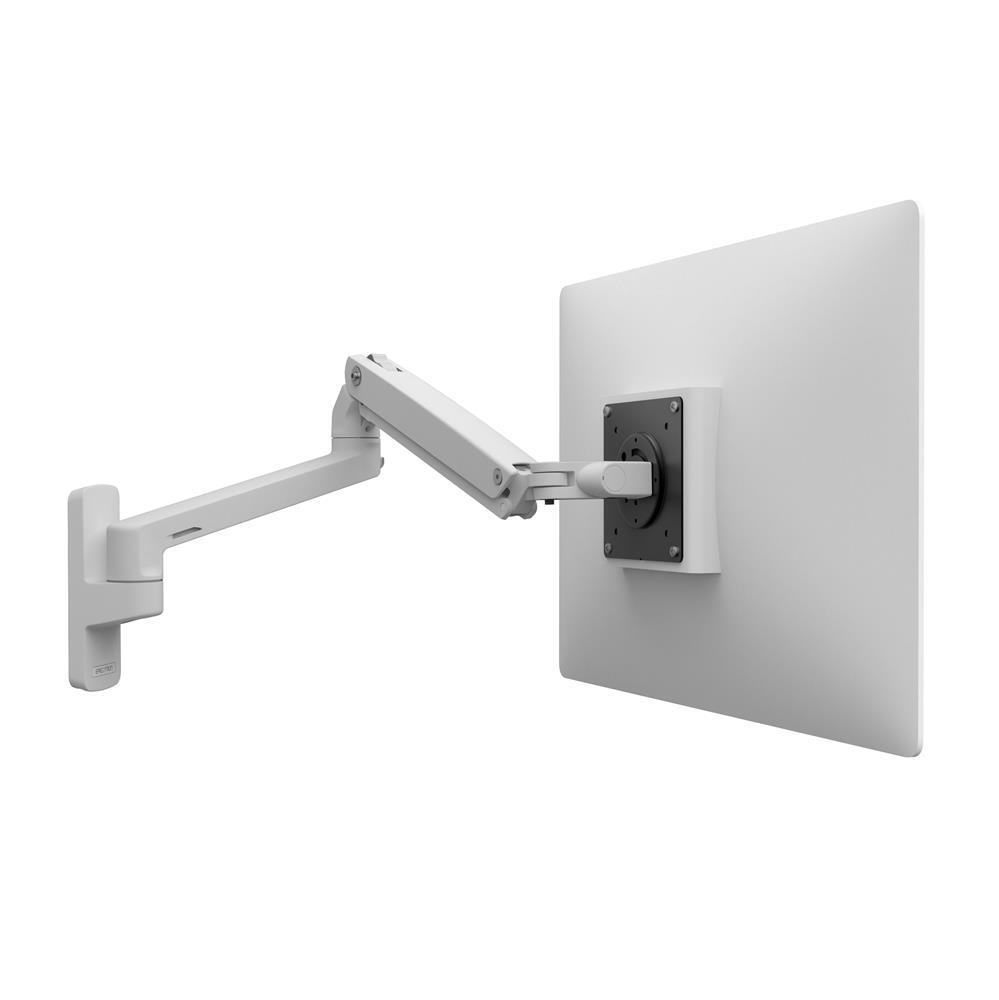

Ergotron 45-505-216 Single Monitor Wall Arm Mount Screen Display LED LCD TV Holder Bracket Up to 34"



Add style without sacrificing functionality. Ergotron 45-505-216 sleek and lightweight MXV incorporates a modern V-shaped design with proven engineering to create a stable yet flexible platform for your LCD monitor or TV.

With a slim profile, MXV offers 13" (33 cm) of height adjustment, integrated tilt, and more - all on a swivel wall mount base. The arm’s adjustability helps increase viewing comfort, while its upscale finish leaves a stylish impression.



Specification:

• Screen  Up to 34"
• Capacity  3.2-9.1 kg
• Lift 33.0 cm
• Tilt 180°
• Pan 360°
• Rotation  360°
• VESA MIS-D

Includes

• Fully assembled arm
• Wall mount base
• Mounting hardware

Notebook Tray

•  Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray

Quality Tested

• 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Arm

•    folds back over the base into a compact retracted position - space between wall and VESA plate is just 4.4" (11 cm) when fully retracted

Mounting Options

• Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately)

Mounting Standards

• VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

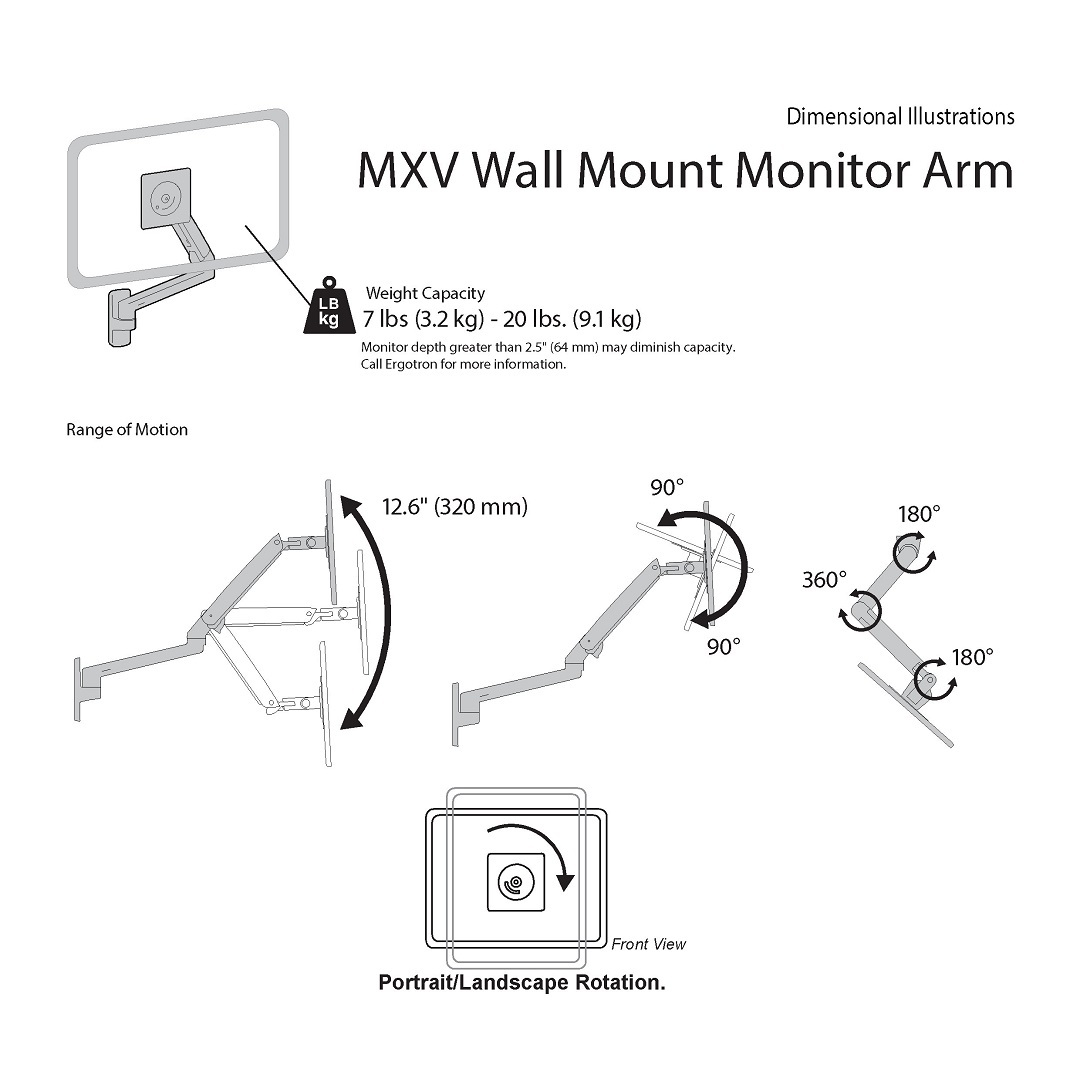

• Tilt Range    90° backward, 90° forward
• Pan Range    180° at base; 360° between extension and arm
• Extension Range    51 cm; maximum extension reach = 63 cm from back of base to VESA mounting plate



Benefits

• Saves valuable desk space with the cable management system and narrower profile - 25% slimmer than the LX arm
• Monitor extension of up to 63 cm, folds to within 11 cm of wall
• Allows you to easily adjust your display with a light touch thanks to patented Constant Force technology
• Creates additional flexibility with a friction pivot that offers a 180-degree tilt
• Supports displays weighing 3.2 to 9.1 kg
• Stays out of your way with a flexible folding arm and cable management system
• Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees
• Attaches directly to sturdy vertical surfaces with a wall mount bracket, or slide it onto our popular Wall Track accessory
• Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
• Arrives fully assembled for you to easily install
