Ergotron 45-489-026 Dual Monitor Stand Arm Desk Mount Screen Display LED LCD TV Holder Bracket



Dual Monitor Stand finds your best view, saves desk space, and discovers your most productive self. The low-profile monitor cross-bar uses a compact range of motion to keep your space, your space.

Benefits:

Comfortable fit

• Moves two monitors in one easy motion

Dual purpose

• Supports two screens up to 25" in size

Maximize space

• Adjusts monitors in a compact range of motion

More workspace

• Free up your desktop for office essentials

Sleek build

• A streamlined look enhances your work area

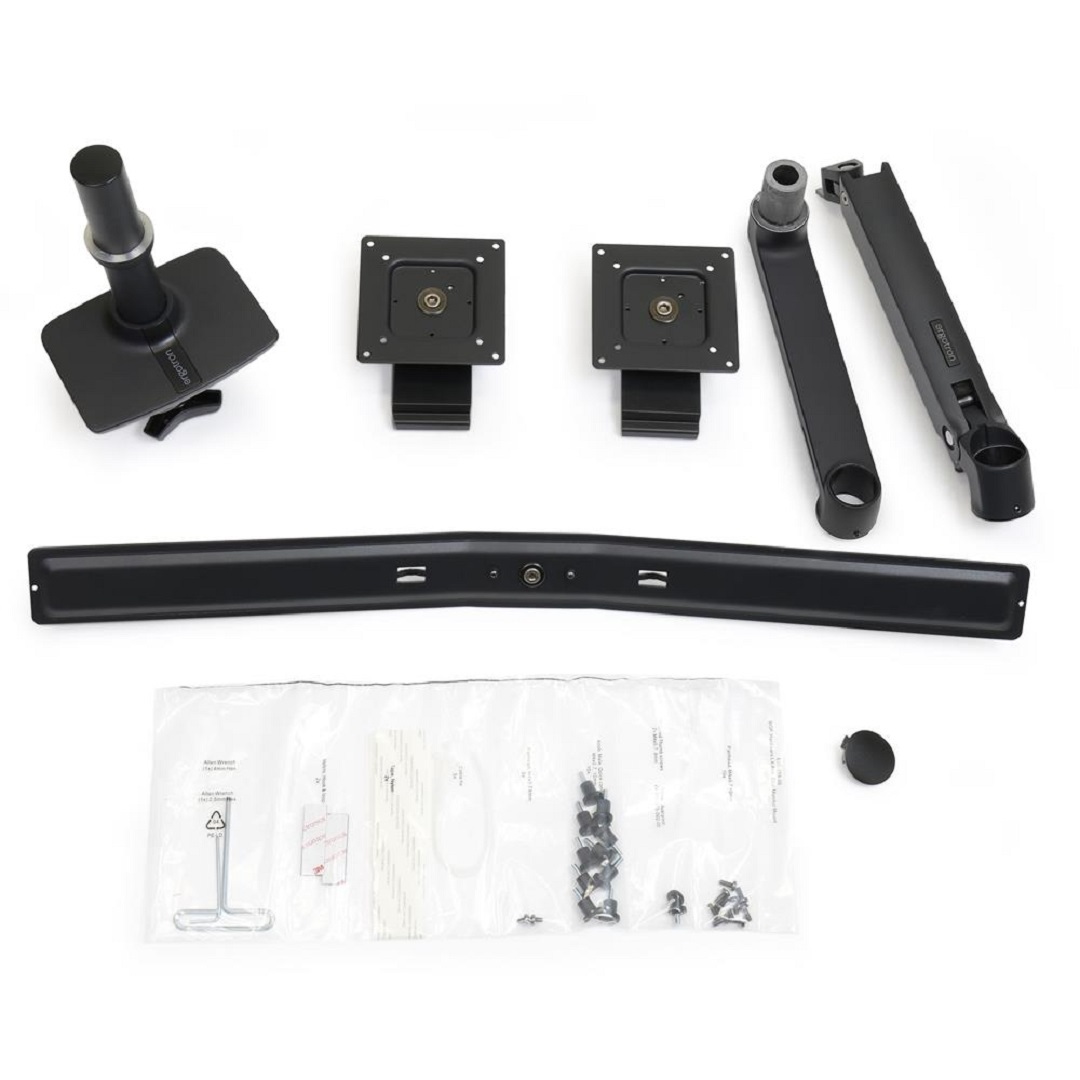

Includes LX Arm, extension, desk clamp, dual bow, two monitor pivots, 7" pole, monitor mounting hardware
Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". The actual allowable width of displays will vary slightly depending on display thickness
Weight Capacity: Maximum individual LCD weight = 2–11 lbs (.9–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)

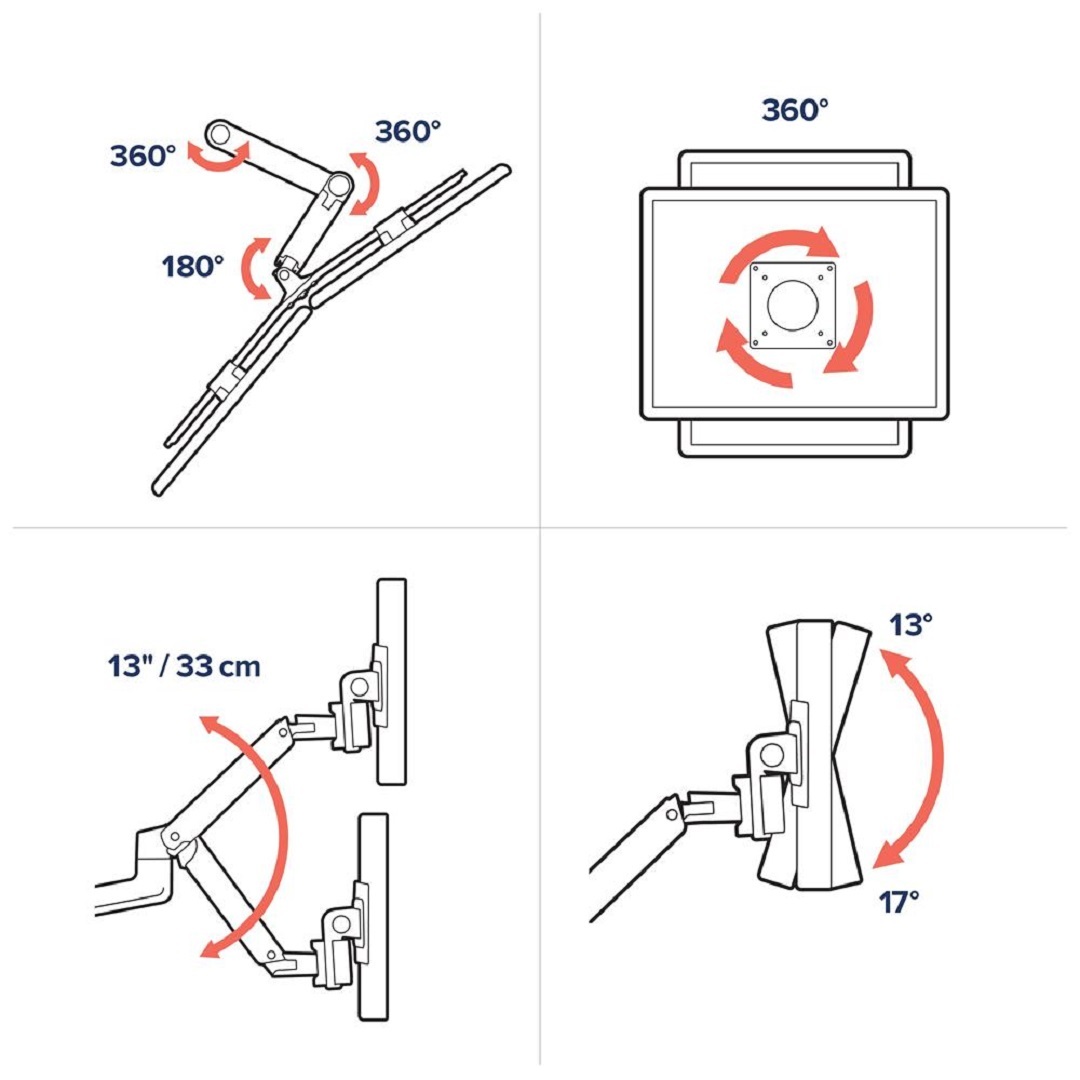

13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight is greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Tilt Range: 13° backward, 17° forward. Each monitor tilts individually

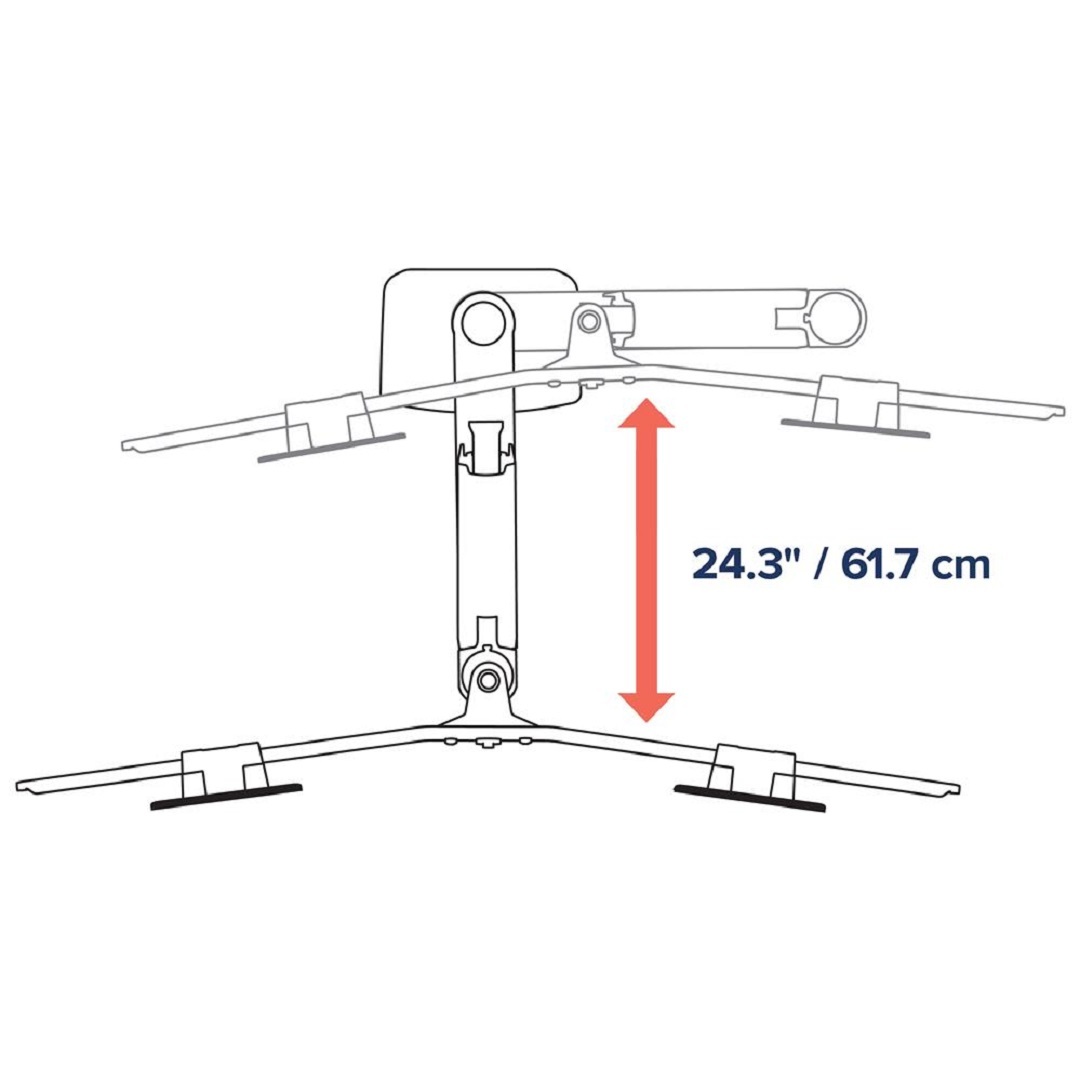

Arm extends out up to 24.3" (61.7 cm) extended reach
Mounting Standards: VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
Streamline cable management that routes cables under arm and within the extension
Portrait / landscape rotation with lockout



Specification:

• Screen ≤25"
• Capacity 1.8 – 10.0 kg
• Lift 33.0 cm
• Tilt 30°
• Pan 360°
• Rotation 360°
• Vesa MIS-D



Note: If installed on WorkFit-T or WorkFit-TL, the maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately ordered Grommet Mount (98-017) accessory is required for attachment
