Ergotron 45-384-026 Single Monitor Stand Arm Desk Mount Screen Display LED LCD TV Holder Bracket

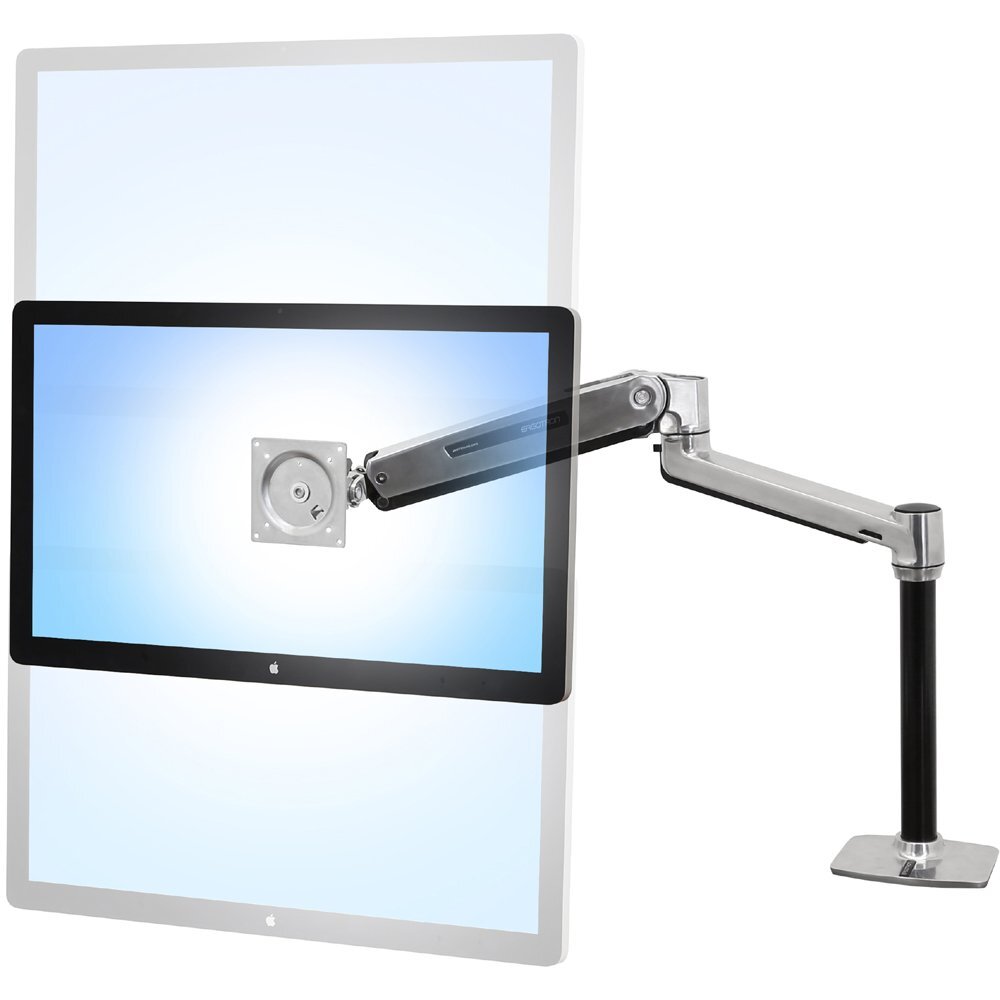

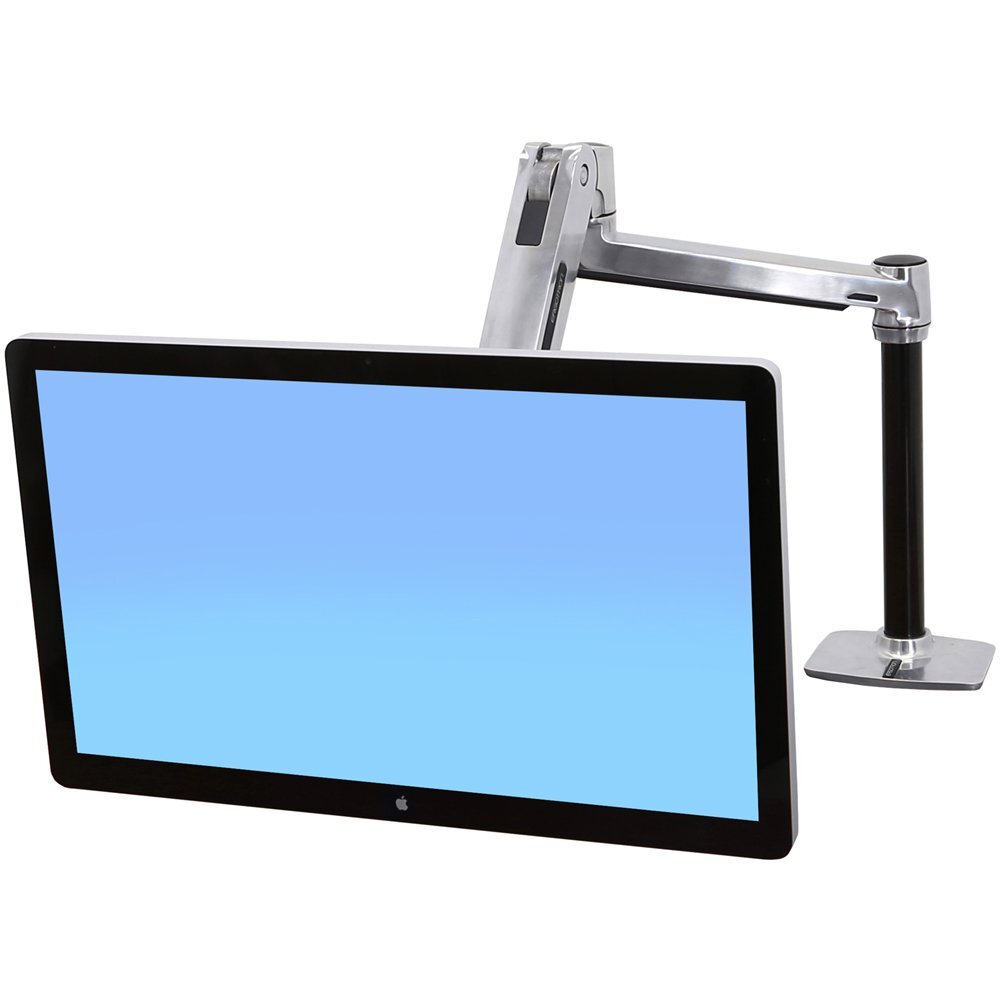

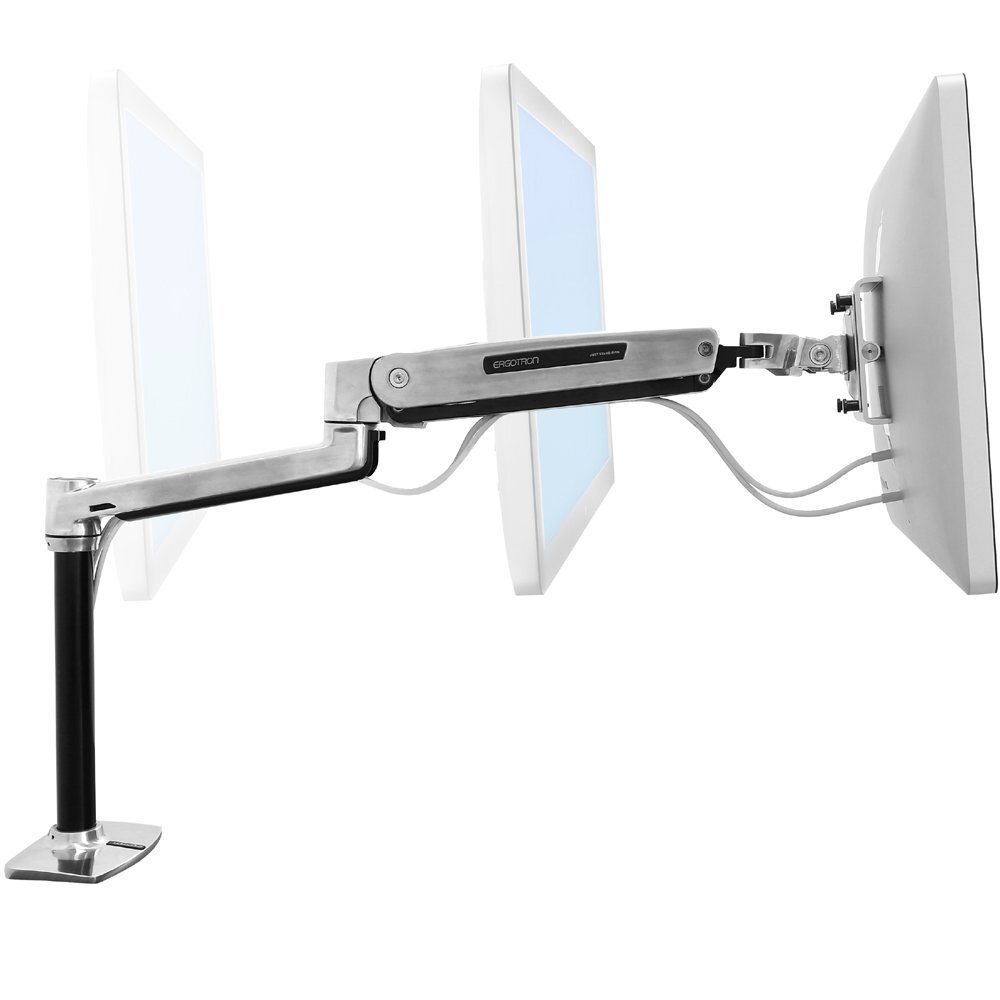

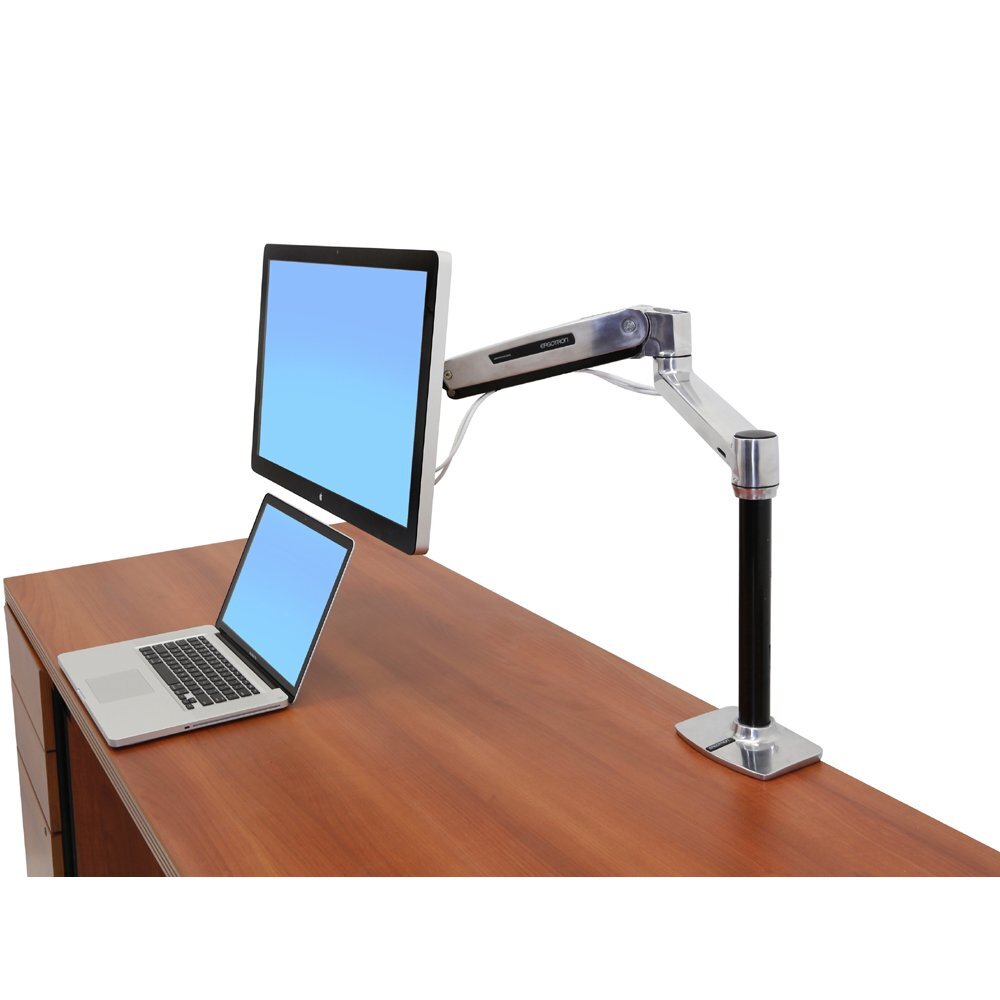

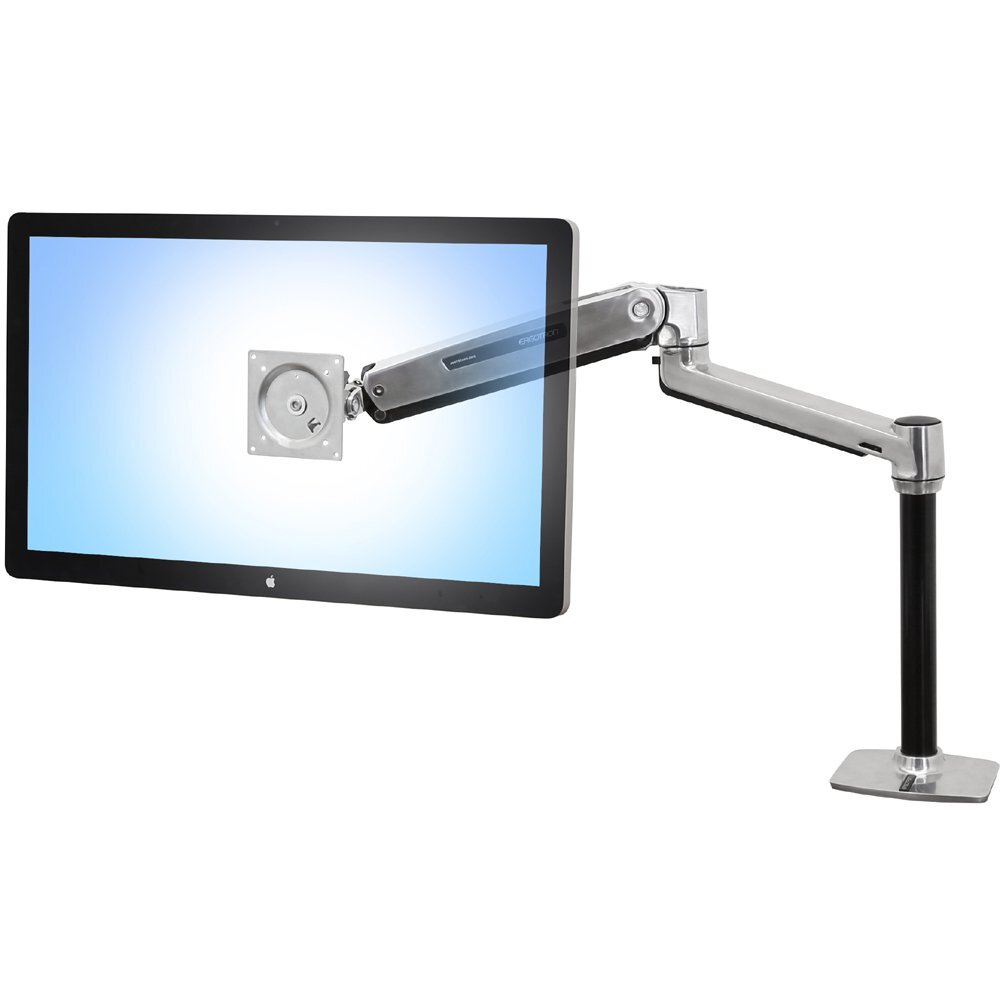

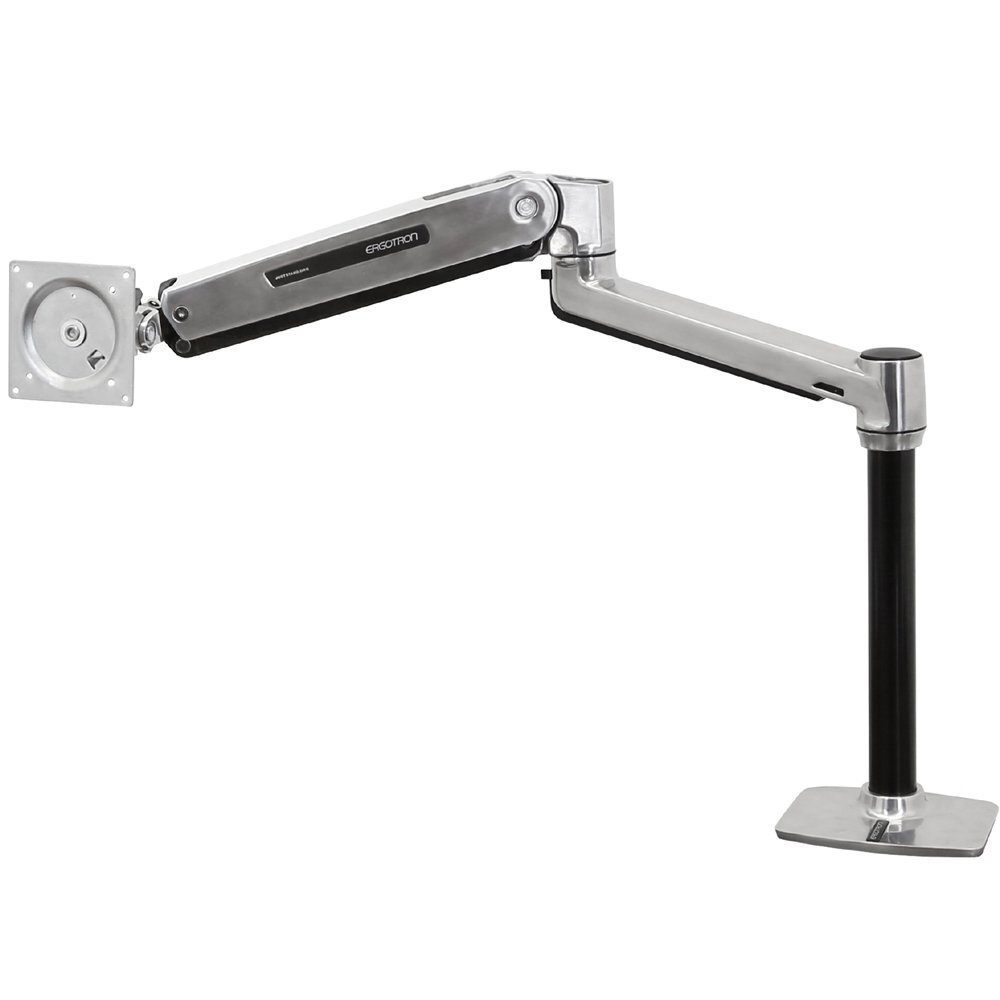

Ergotron 45-384-026 Monitor Stand to analyze data or mount a mid-sized TV up to 13.6 kgs. Provides an unparalleled range of motion, being able to accommodate a user’s sitting or standing posture, 51 cm of vertical adjustment, and 157 cm of side-to-side motion

Benefits:

• 20" height adjustability allows users to alternate between sitting and standing positions while working on the display
• Extends LCD up to 33" and pushes display out of the way when not in use
• Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder, and neck
• Increase viewing comfort - help reduce eye, back, and neck strain
• Upgrade LCD monitors and TVs with improved ergonomic adjustment
• Patented CF motion technology provides premium ease-of-use adjustment

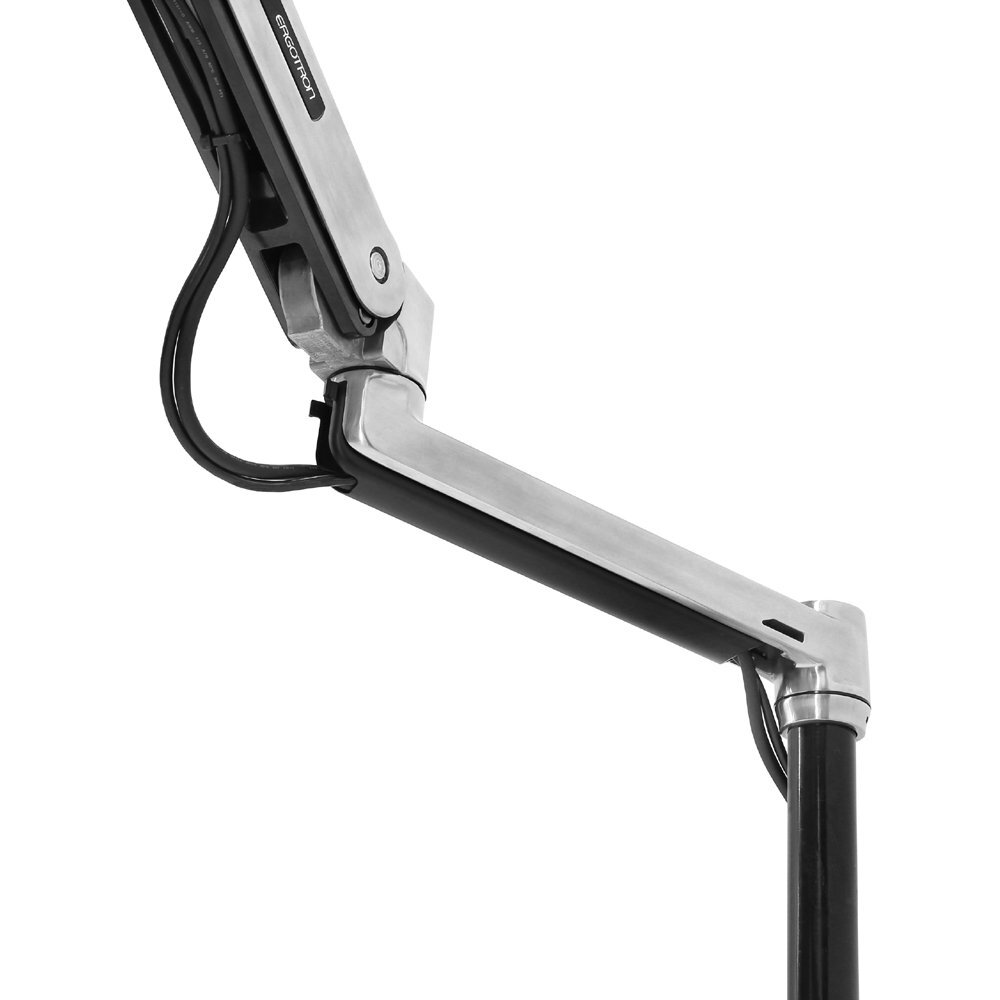

• Cable management clips on the underside of the arm route and hide cords
• Ideal for space-constrained spaces - folds to within 4.5" (12 cm) of the back of the desk in the storage position

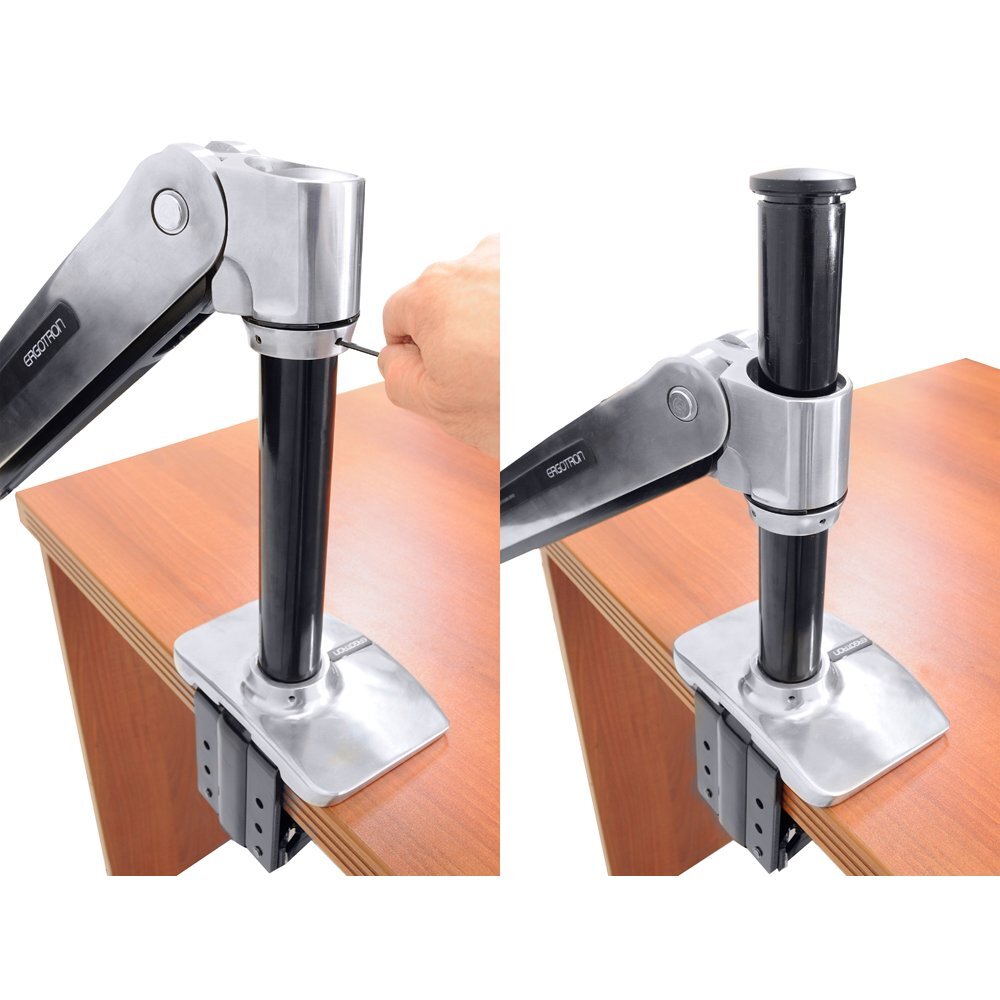

• Secure installation - locking connections between arm, extension, and base



Includes:

• LX HD sit-stand arm
• Extension
• Desk clamp base
• Grommet-mount base
• 40 cm pole
• VESA brackets


Mounting Standards

• VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

Locking Connections

• Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts

Mounting Options

• Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
• Cable Management    Clips on the underside of the arm route and hide cords



Specification:

• Screen:    Up to 46"
• Capacity: 6.3 - 13.6 kg
• Lift:    20" 51 cm
• Tilt:    80°
• Pan:    360°
• Rotation: 90°
• VESA: MIS-D/E/F
