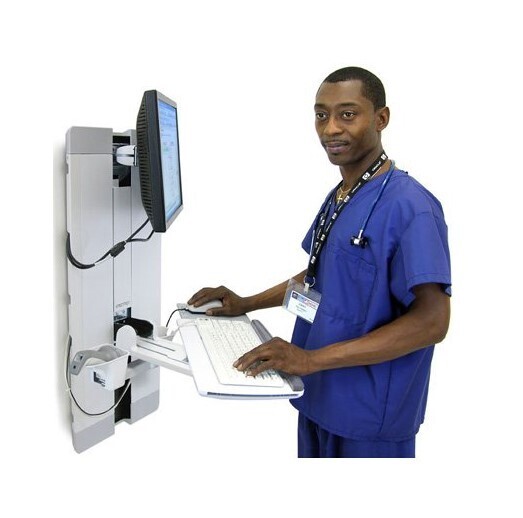

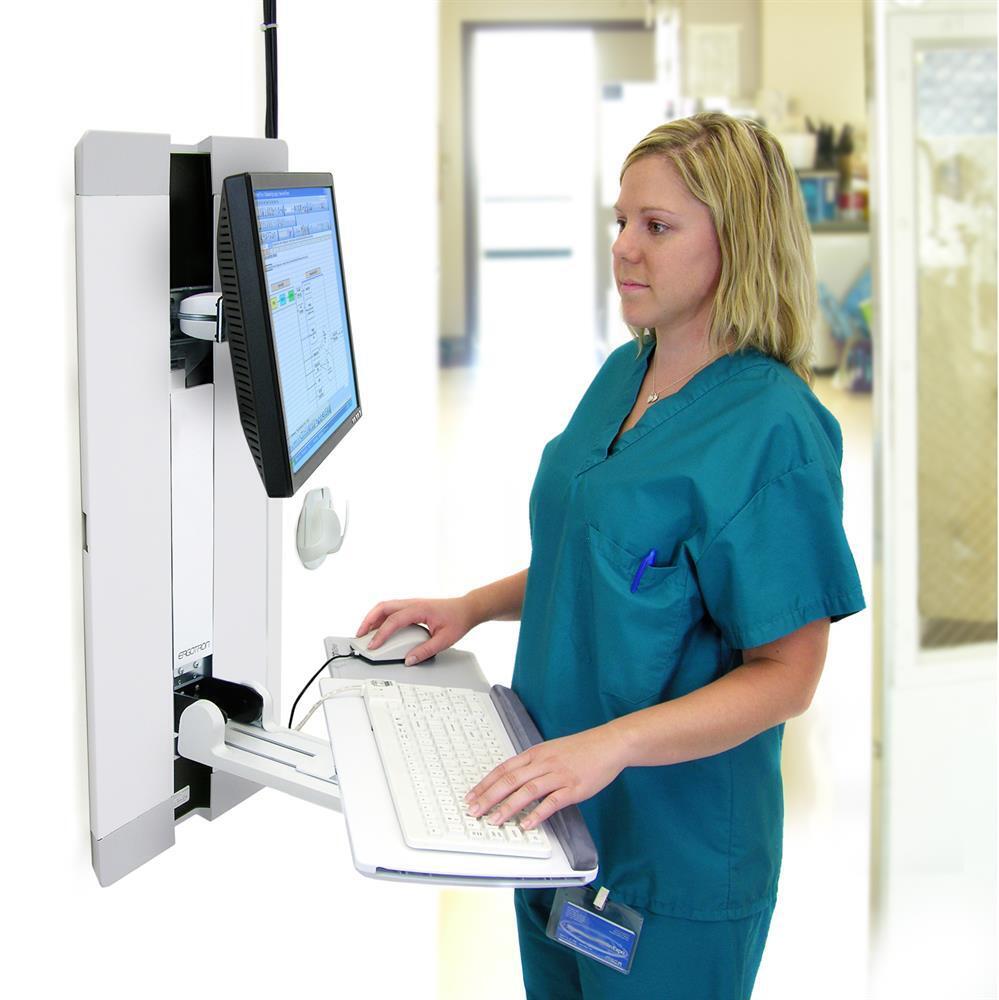

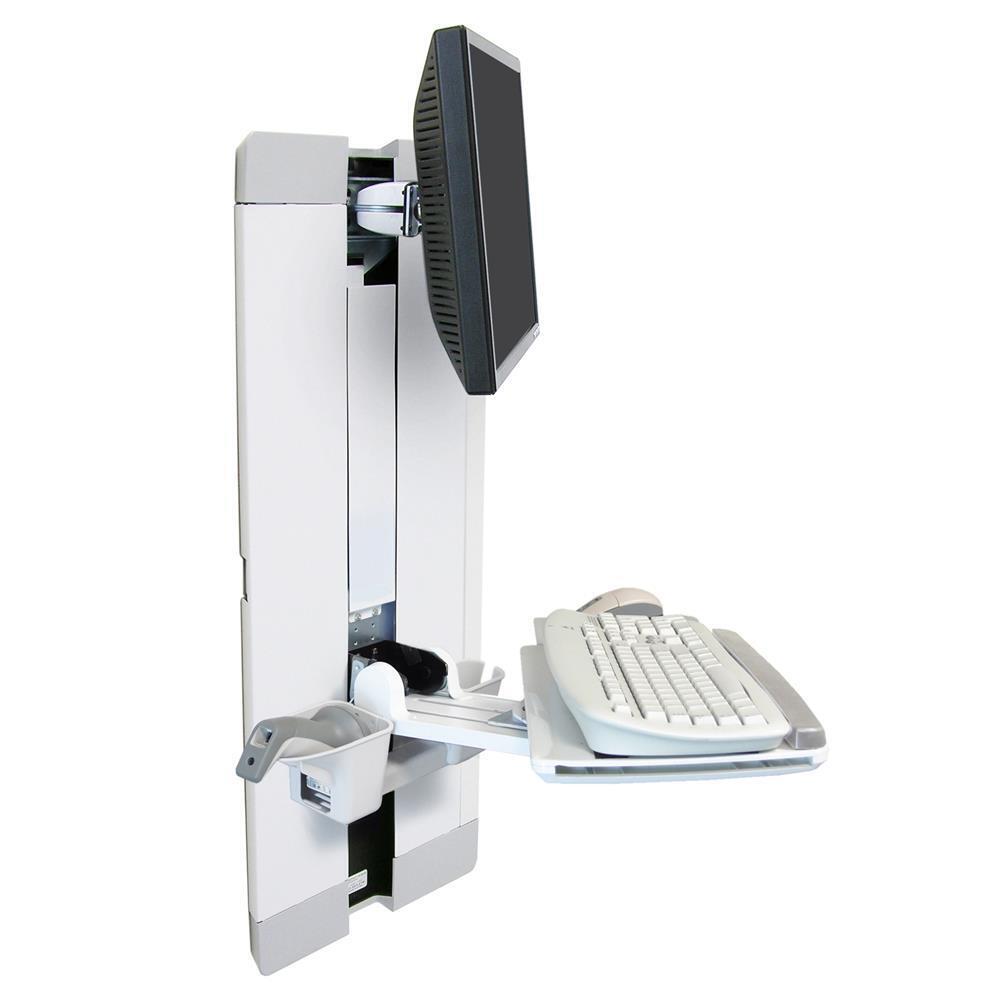

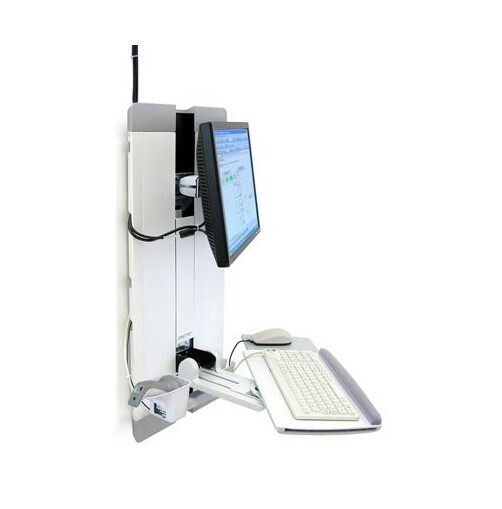

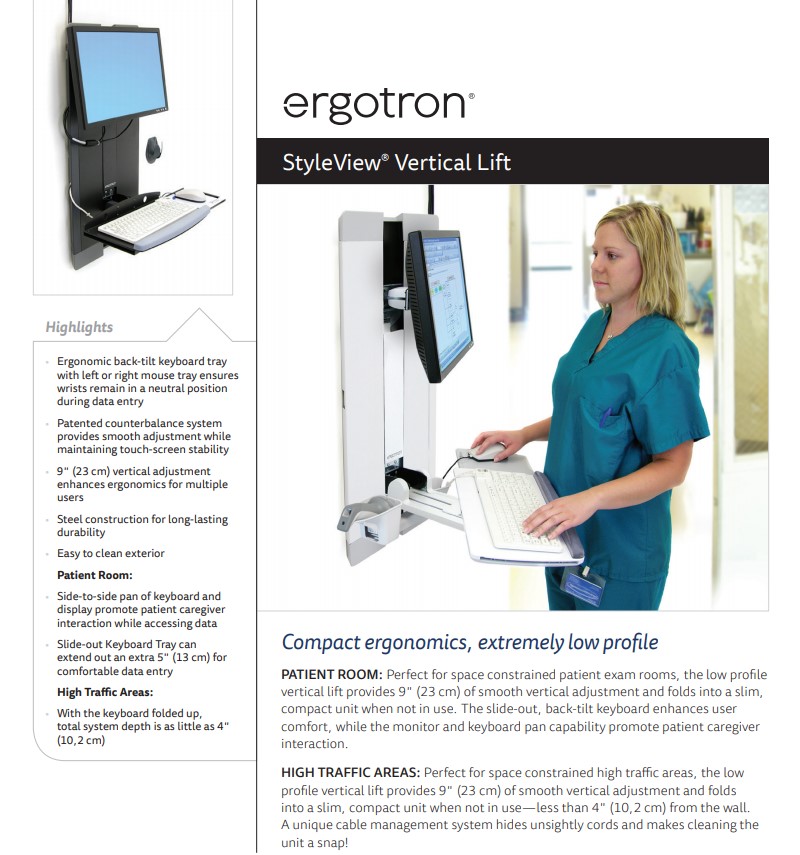

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.

The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!

  • Side-to-side pan of keyboard and display promote patient caregiver interaction while access data
  • Slide-out Keyboard Tray can extend out an extra 5" (125 mm) for comfortable data entry

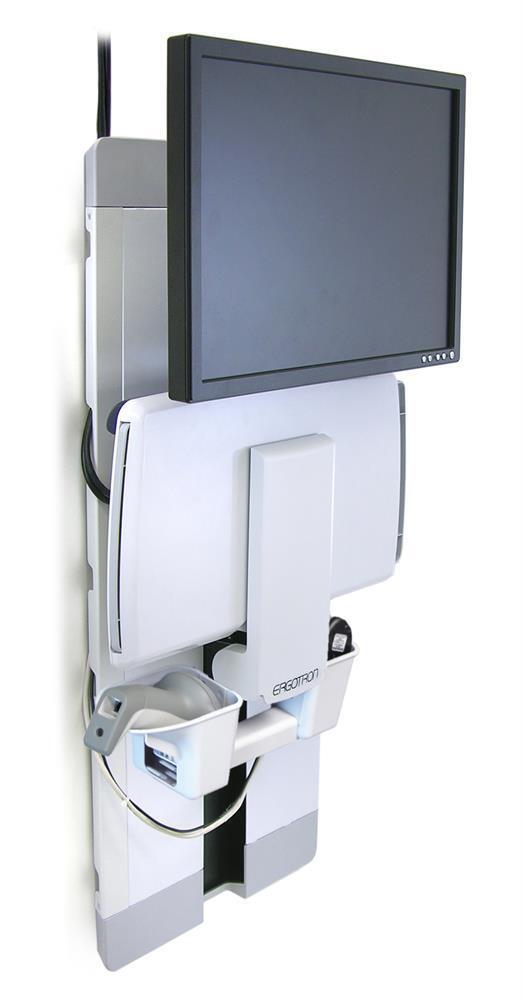

  • With the keyboard folded up, total system depth is as little as 4.5" (114 mm)
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
  • Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
  • 9" (229 mm) vertical adjustment enhances ergonomics for multiple users
  • Steel construction for long-lasting durability
  • Right- or left-side cable management system conceals and organizes cords and makes cleaning a snap.

Part Number

60-609-216

Description

StyleView Vertical Lift, Patient Room version (white)

Includes

  • Mouse pad
  • Wrist rest
  • Mouse pouch
  • Scanner holder

Larger Display

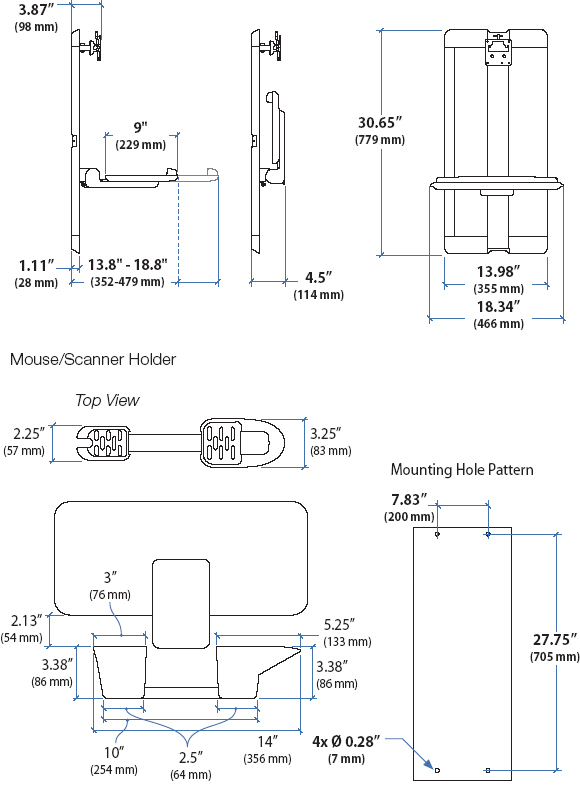

Larger display sizes may inhibit the keyboard tray folding flat in storage position. See Dimensional Illustrations for details

Weight Capacity

Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity

Mounting Standards

VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)

Pans

Monitor pans left/right up to 50° (varies per size of monitor)

Fold-Down Keyboard

Fold-down keyboard with built-in mouse pad surface

Keyboard Tray

  • Keyboard tray extends out up to 5" (127 mm) inches when in use
  • Keyboard tray pans left/right up to 120°
  • Back-tilt keyboard tray adjustable (0 to -10 degrees)

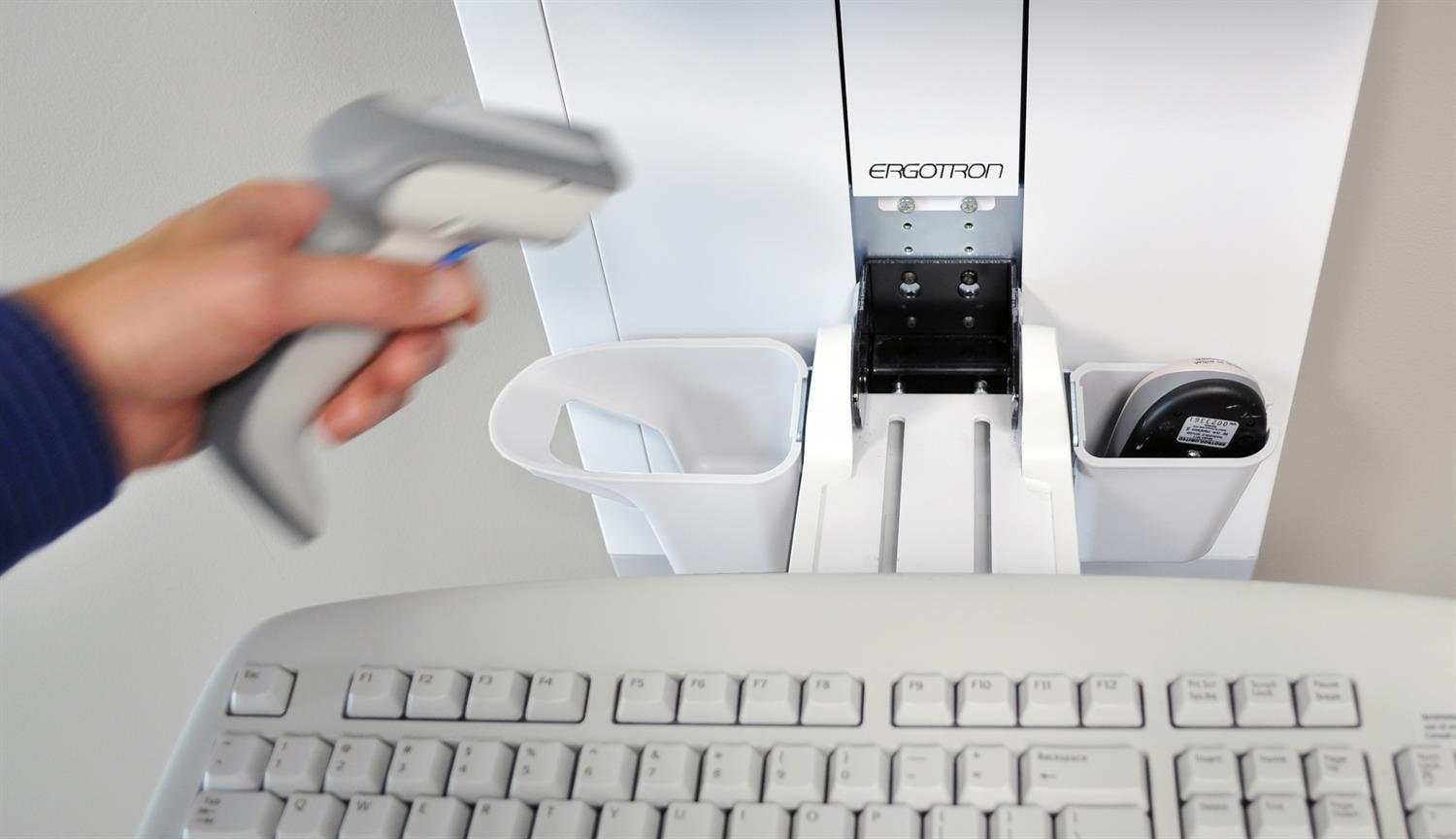

Scanner and Mouse Holder

Scanner and mouse holder integrated into the keyboard tray

Cable Management

Integrated cable management system can be configured on either side

Exterior

Easy-to-clean exterior

Shipping Dimensions

39.5" x 16" x 10.75" (1000 x 406 x 273 mm)

Shipping Weight

35.5 lbs (16.1 kg)

Warranty

Five (5) years
