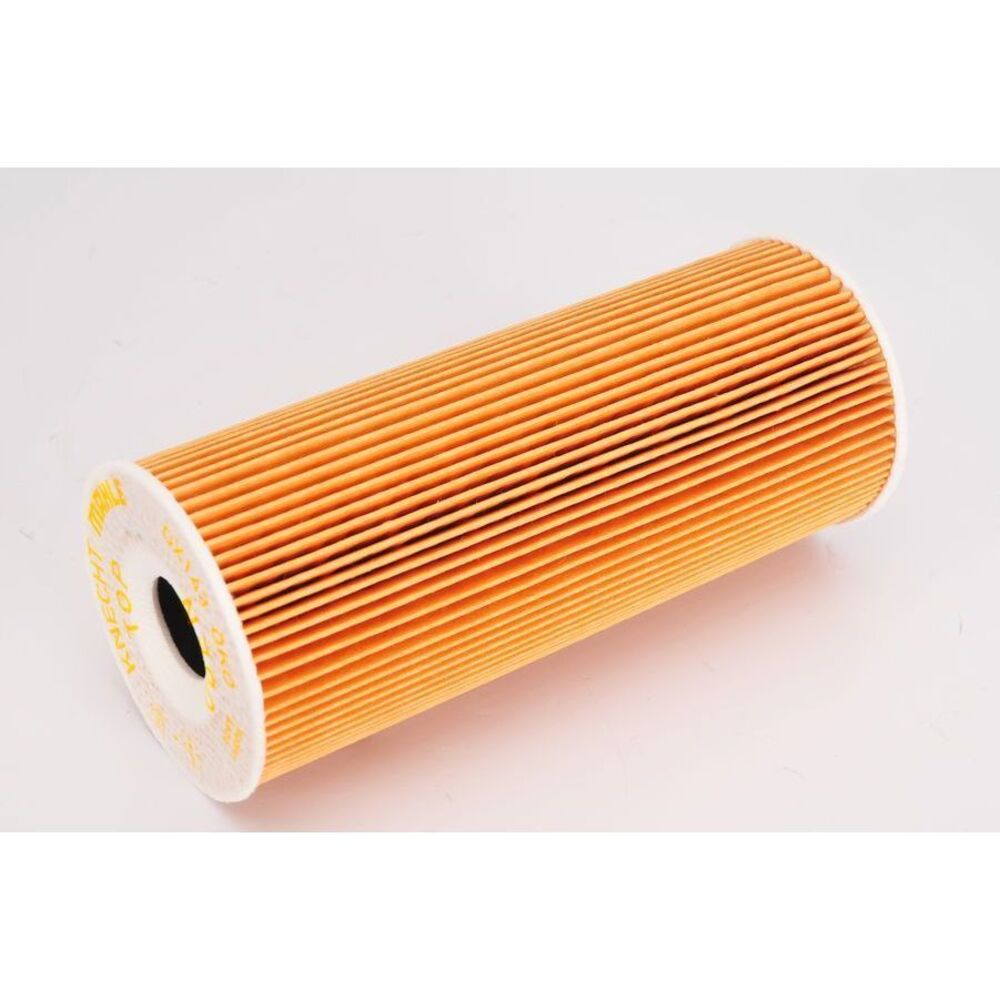

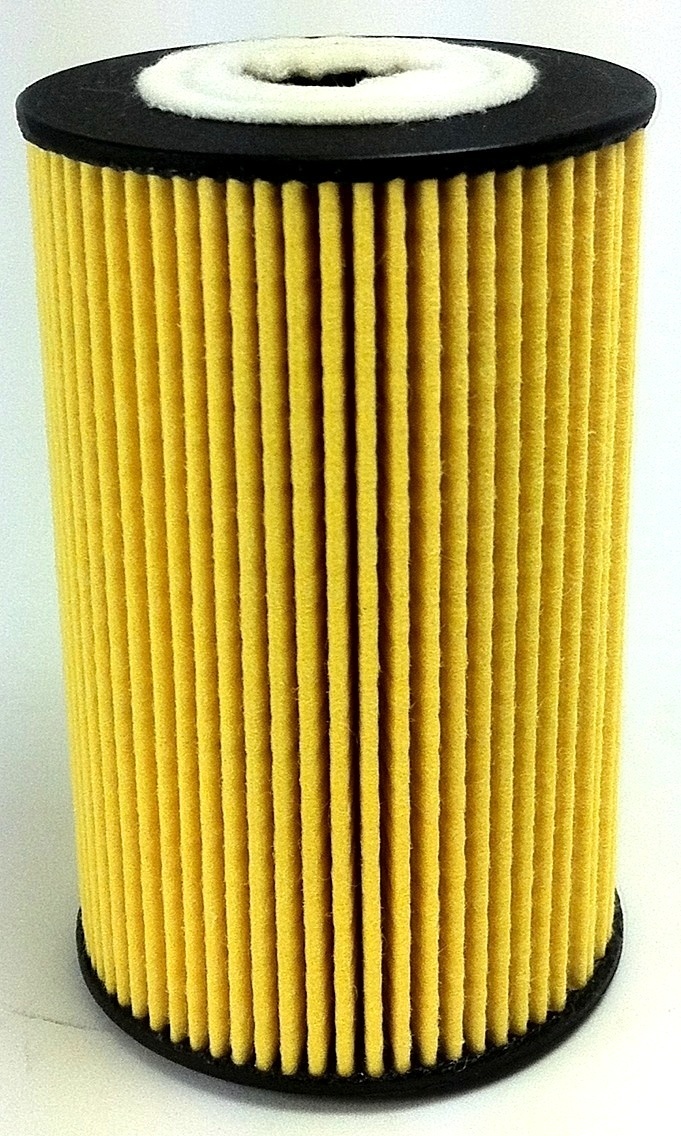

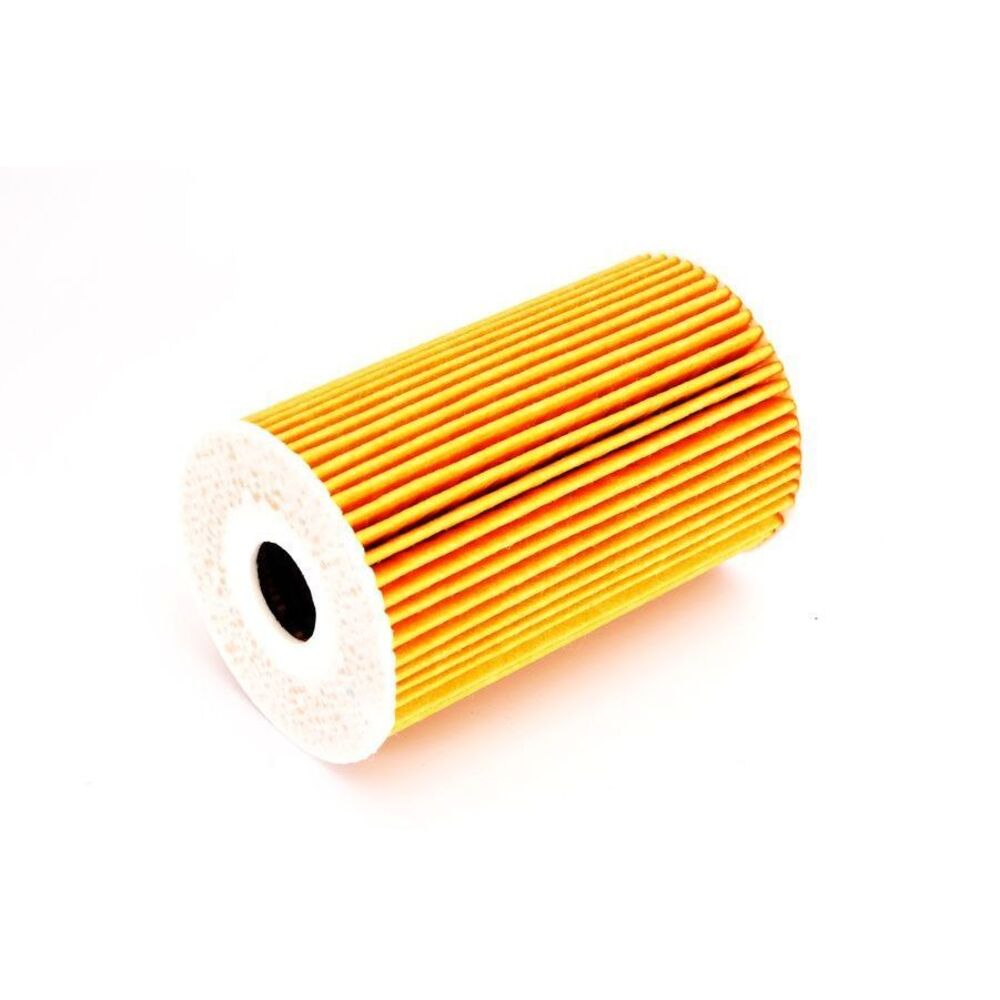

Oil Filters 01
Oil Filters

An engine running on dirty oil won't last. Keep it clean with JS ASAKASHI Oil Filters. It helps to capture harmful contaminants that can harm your engine before they can affect the performance, and life span of your engine. Oil Filter should not just filter engine oil but should do it with high level of efficiency without blocking oil flow and should preserve its quality for sufficient period of time. Efficiency very much depends on the quality and size of filtration media.



Using Plate spring and M-pleating of pleating media gives extended filtration area for compact size filters required by new vehicle manufacturers.

Parts of JS ASAKASHI Spin-on Oil Filter 02
  • Heavy-duty Case of drawn steel provides longer life and improved durability.
  • Anti-Drain back Valve - keeps oil in filter to prevent engine from destructive “dry starts”. It stays flexible in extreme temperatures.
  • Mounting Plate made of heavy gage steel prevents deflection (movement) at the gasket sealing surface and provides strong threaded attachment to the engine.
  • Inner Element made by "M"- type pleated, prescription-blended filter media provides more than adequate filter efficiency. The element has a controlled porosity blended media to assure complete filtration of the oil.
  • Plate Spring is used instead of commonly used coiled spring. That allows increasing size of the element within same size of the filer canister.
  • O-Ring Gasket exterior seal in between the filter and the engine body. Usage of height quality rubber ensures leakage free environment even in extreme temperatures.
  • By-pass Valve is a spring loaded valve assembly calibrated to certain pressure to prevent engine from becoming dry in case of high contamination of media or extremely low temperatures.
Environmental Oil Filters


In addition to its conventional oil filter line JS ASAKASHI offers a wide range of environmentally friendly oil filters for various vehicles applications. During servicing, only filter element is replaced in these vehicles while its internal components are not required to be changed for the whole lifespan of the vehicle.



Here are some reasons why car manufacturers are switching to environmentally friendly oil filters more often these days:


  • It is easy to remove while the skin contact with the used oil is minimized.
  • The risk of installing of incompatible parts is significantly reduced by using back original external components.
  • Thermoplastic end discs of element are made of recycled materials which help to save the environment.
  • The cost of servicing is reduced
Filter System 03
JS Asakashi filters are manufactured by the ADR Group of Companies, a group that has been providing automotive and industrial parts solution, for the OEM/OES customers, for more than 40 years.

In the filtration business, Sakura Filters offers the largest range of applications of more than 6,000 part numbers. It covers Automotive, Commercial, Heavy Equipment, Marines and Industrial sectors. Now, JS Asakashi is one of the largest range of Heavy Duty and Commercial Products in the JS Asakashi brand, including American, European and Asian lines.

The JS Asakashi Filters are designed and manufactured in accordance to SAE, JIS, and DIN standards, to meet the efficiency, life expectancy, vibration, impulse, and other criterias, for best quality assurance.

The JS Asakashi Filters and other ADR Group products are manufactured by the Group, which are ISO/TS compliance companies.

All the products are tested to the ISO/IEC 17025:2005 standard and accredited laboratory.
Specification http://www.js-filter.com/catalogue/filter/98720/OE0073
Material Eco
Product Type Oil Filter
Packing Height 110 mm
Packing Width 70 mm
Packing Depth 70 mm
Packing Weight 200 g
Model HYUNDAI i20, HYUNDAI i30, HYUNDAI Sonata V NF, HYUNDAI i40, HYUNDAI iX 35, HYUNDAI iX 55, HYUNDAI Genesis Coupe, HYUNDAI Equus KIA Mohave, KIA Soul, KIA Rio, KIA Optima, KIA Cee'd, KIA Cee'd Hatchback, KIA Venga HOLDEN Barina
Package Included Yes
Original Part Number 26320-3C300 263003C250 26330-3C300 26330-3C250 26320-3C30A 26320-3F100 263203C300 26300-3C701 26310-2A500 26310-2A501 263103F400 26320-2A500 26320-3C250
Сompatible HYUNDAI, KIA, HOLDEN
Competitor Part Number ACO113 ROF196 FOECO076 J1310514 R2695P ELH4398 N1310508 57250, WL7477

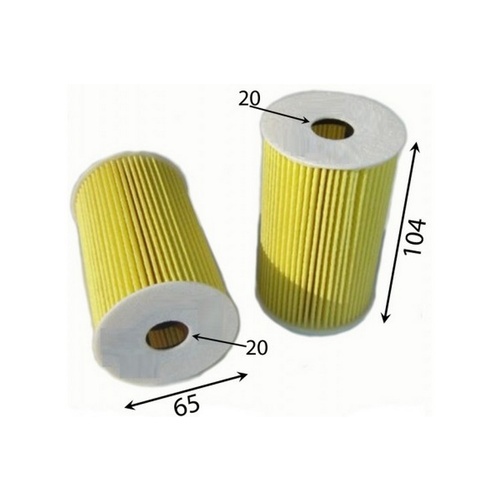

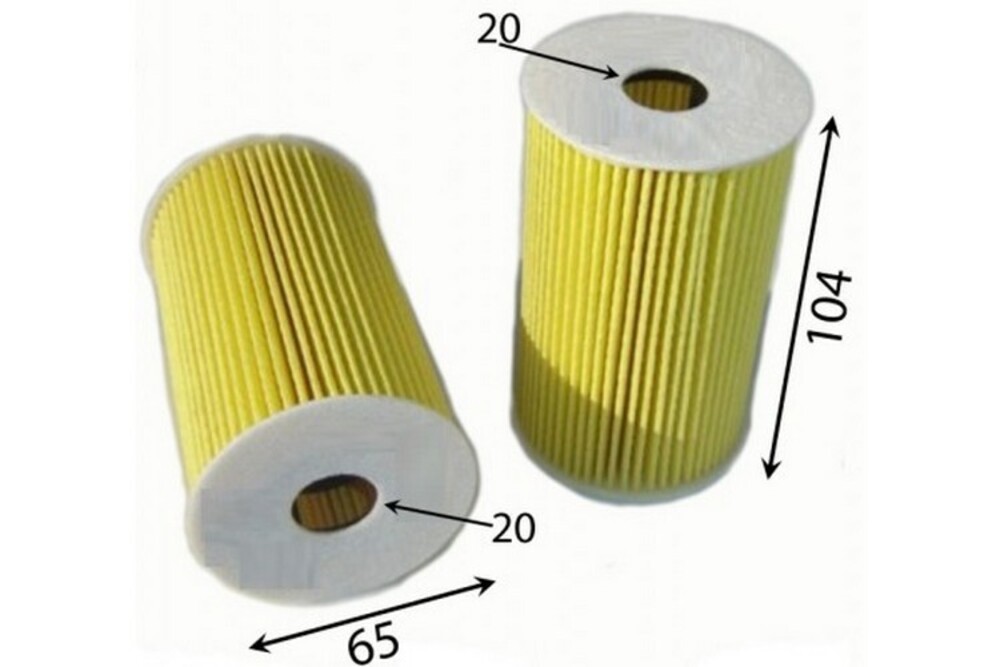

Length 104 mm
Outside Diameter 65 mm
Inside Diameter 20 mm
