acatana |  Standing Desk Frame Table Dual Motorised Electric Height Adjustable Sit Stand ACA-ET223IB-B



Attractive and efficient design:

Our latest standing desk frame incorporates the C-leg design, which provides the same wide feet as our T-leg design but sets the legs closer to the back of the desktop, rather than at the halfway point. This spacious frame design solves the problem of low space utilization under the standing desk by providing more depth and space to mount CPU holders, trays and other add-ons. The open-architecture design also offers optimal knee room and easy access to any tools below the tabletop. The desk’s clean, universal aesthetic makes it an attractive option for office or home use.

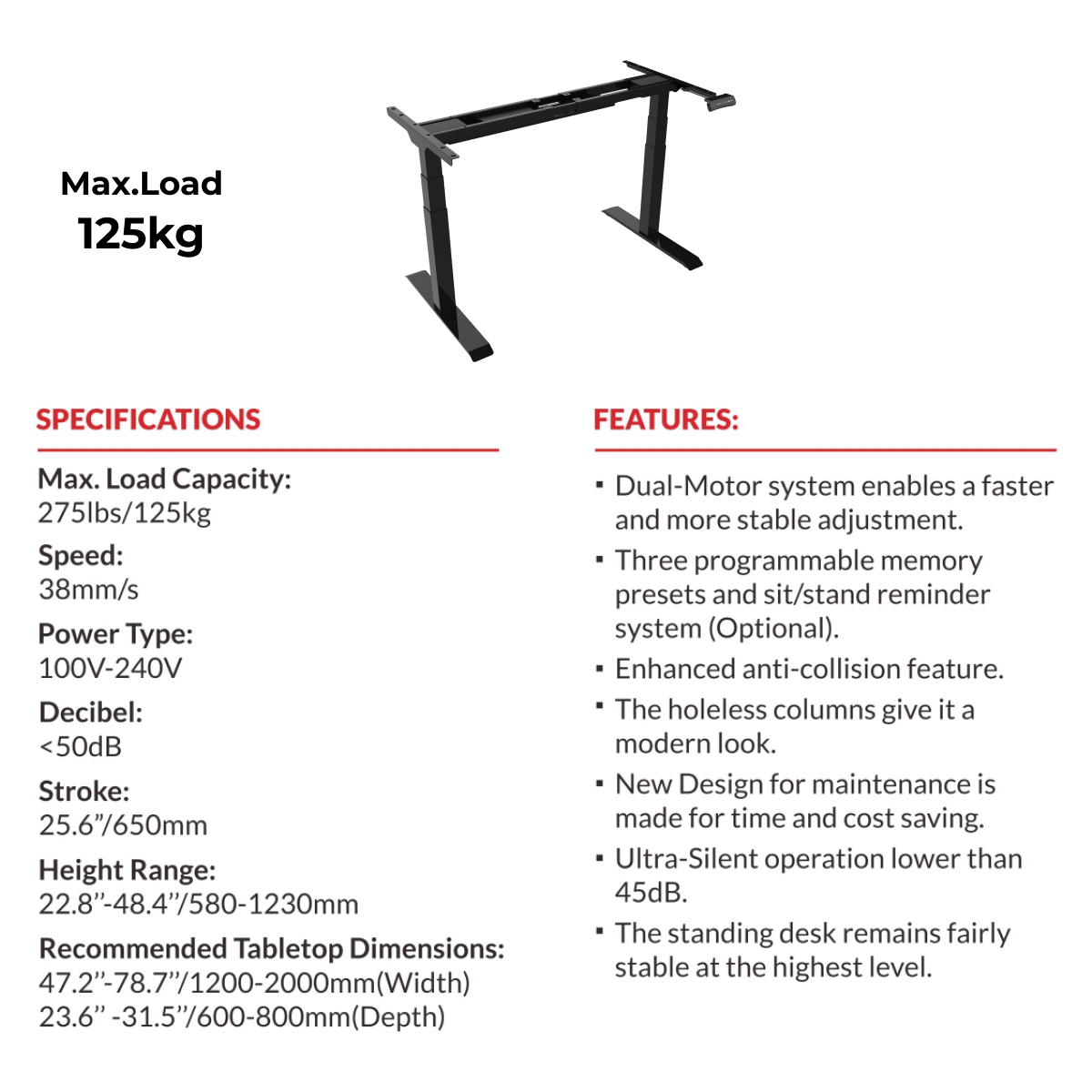

Technical Specifications:



• Column Stage 3-stage
• Motor Qty Dual motors

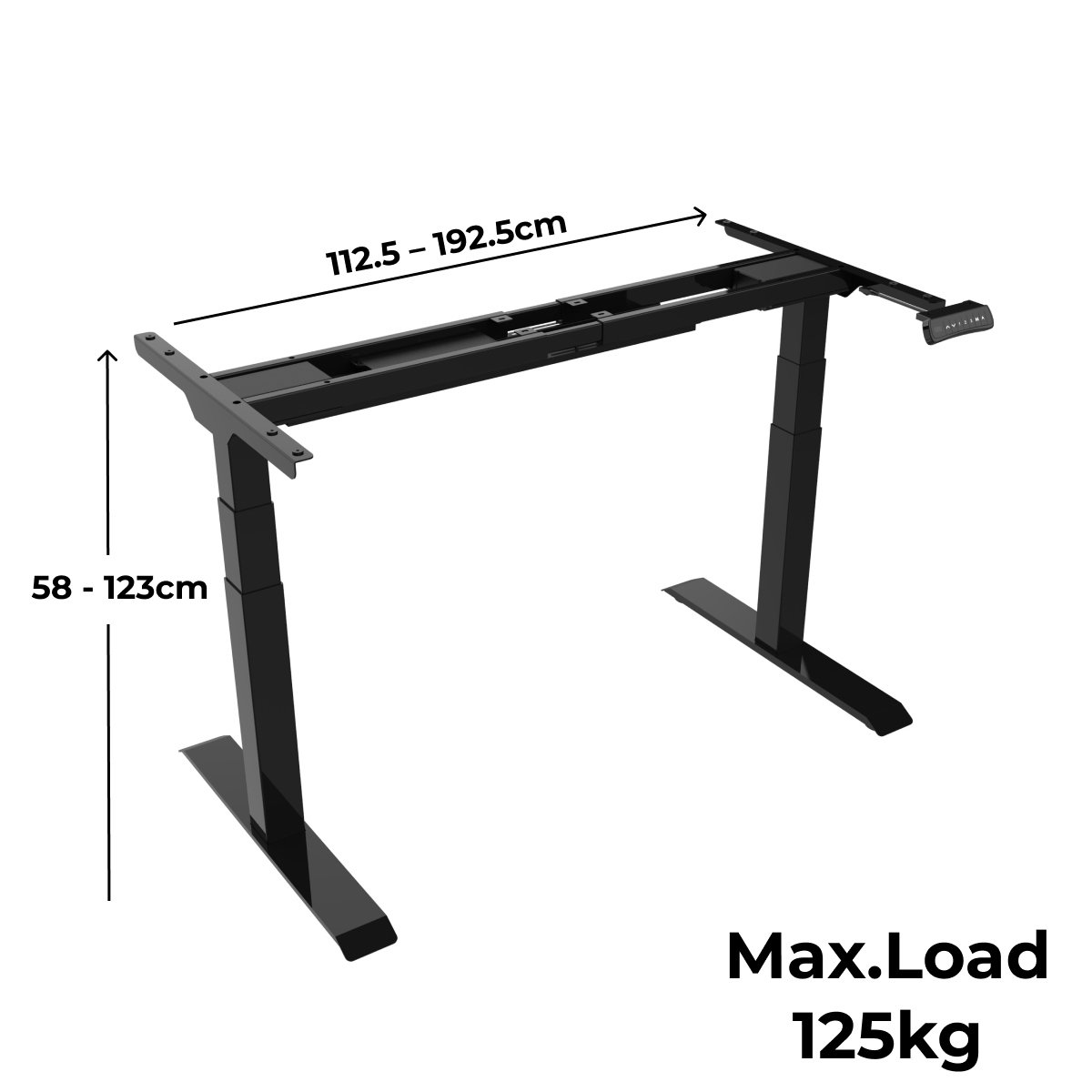

• Height Adjustable 580 - 1230mm
• Adjustable Width Range 1125 – 1925 mm
• Max. Speed 38mm/s
• Max. loading at full speed 125kg
• Noice <45dB
• Input Voltage 100V- 240V



In addition to efficiency in transport and design, also offers perks that users will enjoy each day of use for years to come. It boasts a height adjustment range of 24” to 49.6” which, combined with the knee room provided by the C-leg design, makes it an inclusive solution for taller-than-average users.

An optional sit-stand reminder system can be added to the control panel, which also boasts an option for three programmable height pre-sets. The dual-motor system enables faster and more stable automatic adjustment. The lifting columns adjust at 38 mm/s – but even with this quick adjustment, the columns operate quietly at less than 50 decibels. For adjustment safety, we’ve incorporated an enhanced anti-collision feature.

The Frame has a load capacity of 176 pounds and tabletop dimensions are 55.1” x 27.6”. The columns are set up in a three-stage standard column design in a square shape. All acatana standing desk frames offer a variety of colours and customization options as well as a 5-year frame and motor warranty.

With the introduction of the Frame, acatana continues our standard of innovation to produce benefits large and small, making lives easier for everyone from the distributor to the purchaser to the end-user.  We infuse value into our products not only through cost but also through comfort, aesthetic appeal and versatility in use.



Dual motors 3-stage with holeless frame

• 1. Square outer tube appearance,
• 2. Wide bottom and narrow top configuration
• 3. Adjustable Width
• 4.anti-collision function





Frame Only Standing Desk Height Adjustable Electric Sit Motorised Office Table

acatana height adjustable desks are designed to provide users with sit-stand flexibility. Our height-adjustable desks enable users to sit or stand easily and encourage healthy movements throughout the day. With acatana high-speed linear actuators, this transition time from sitting to standing can be cut to just 6 seconds, which is time-saving.



Benefits:

The new standing desk frame epitomizes acatana’s focus on end users’ integrated experience from installation to everyday use. It comes pre-assembled, saving time, effort and labor costs in assembly. Smart design choices offer optimum space usage and a clean look. Let’s examine the benefits of this new standing desk frame more closely.



Compact design for easy transport:

The desktop and lifting columns are integrated into one package for efficient shipping. Prior to packaging, the desk legs are adjusted to their lowest height and folded in so the bottoms of the feet face each other. In this position, they fit neatly into the footprint of the tabletop. This smart design folds to fit within the smallest possible package, making individual and bulk shipping efficient and cost-effective.



Super-fast installation:

 With the simple folding lifting columns, the assembles easily in less than 2 minutes, as the cross beam and legs are pre-assembled. Installers can simply unfold each leg away from the desktop and drill a few screws into place to secure the leg in a right angle. No additional work is required
