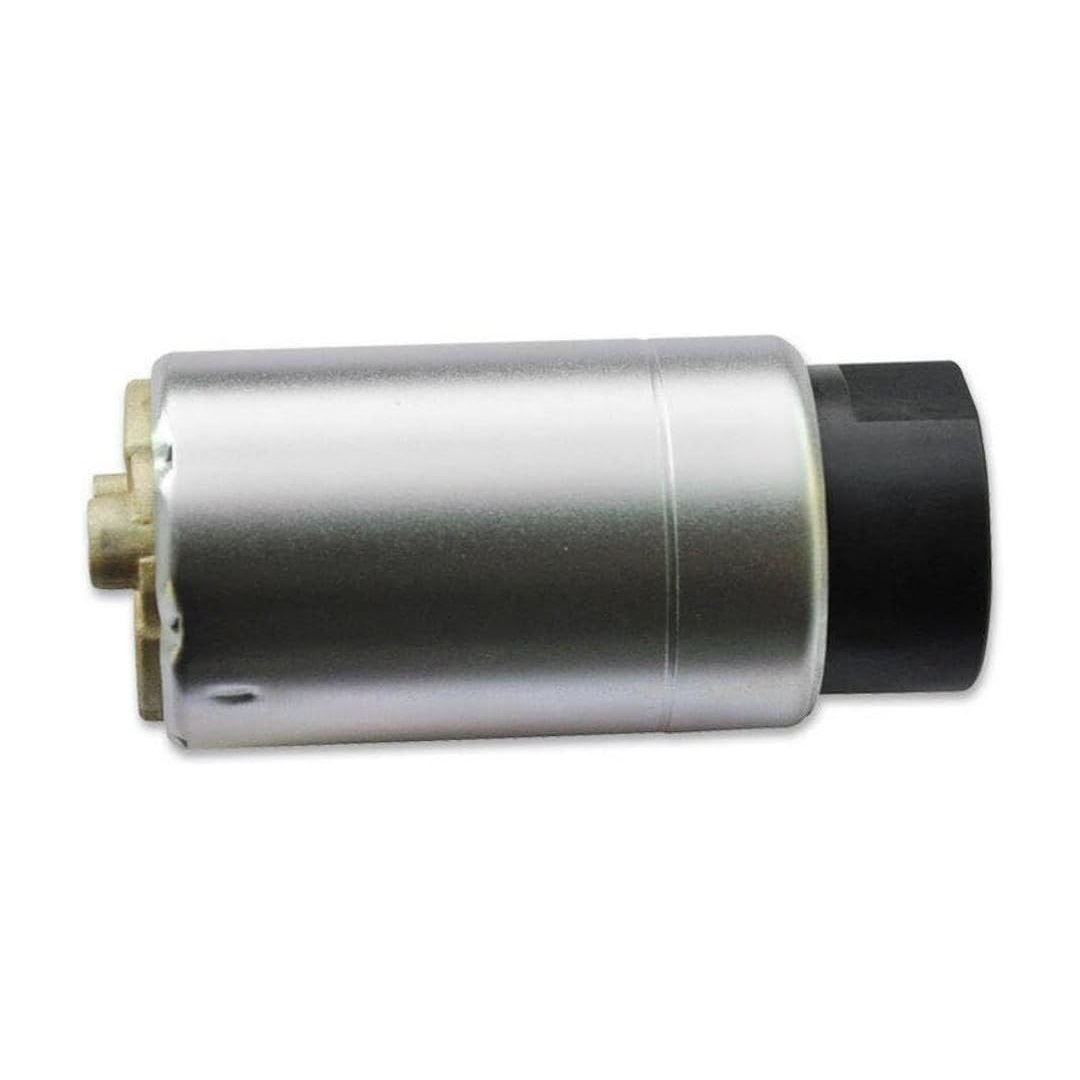

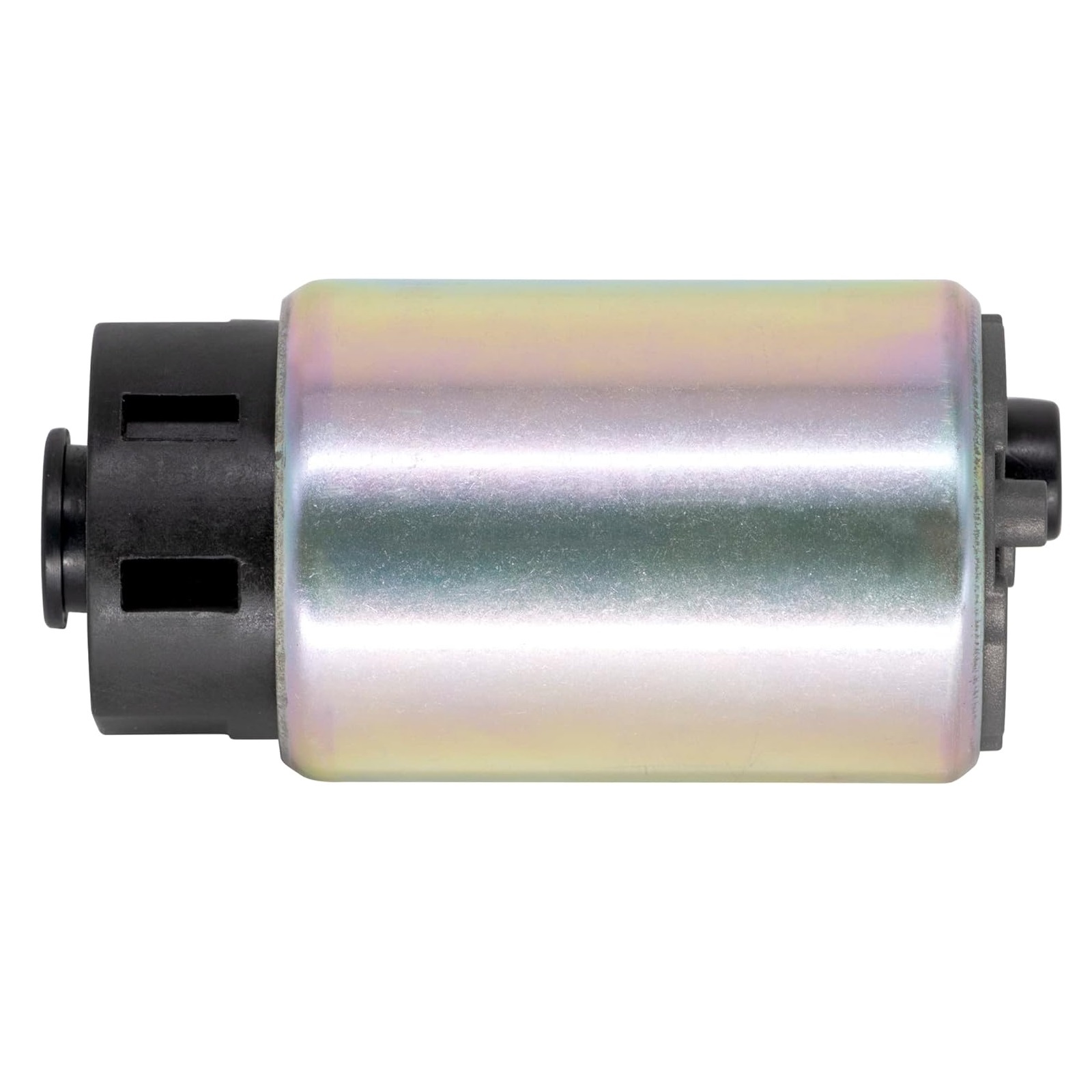

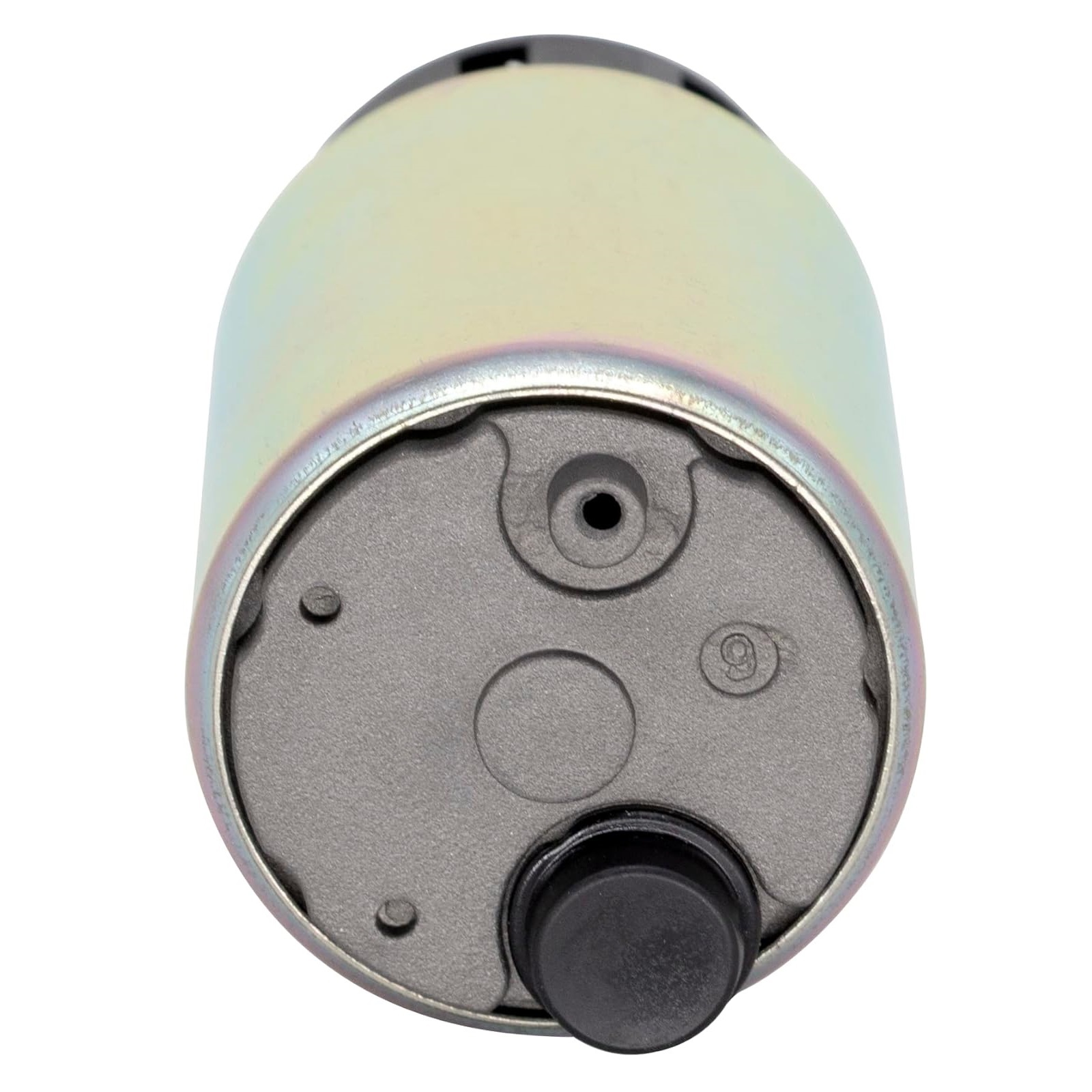

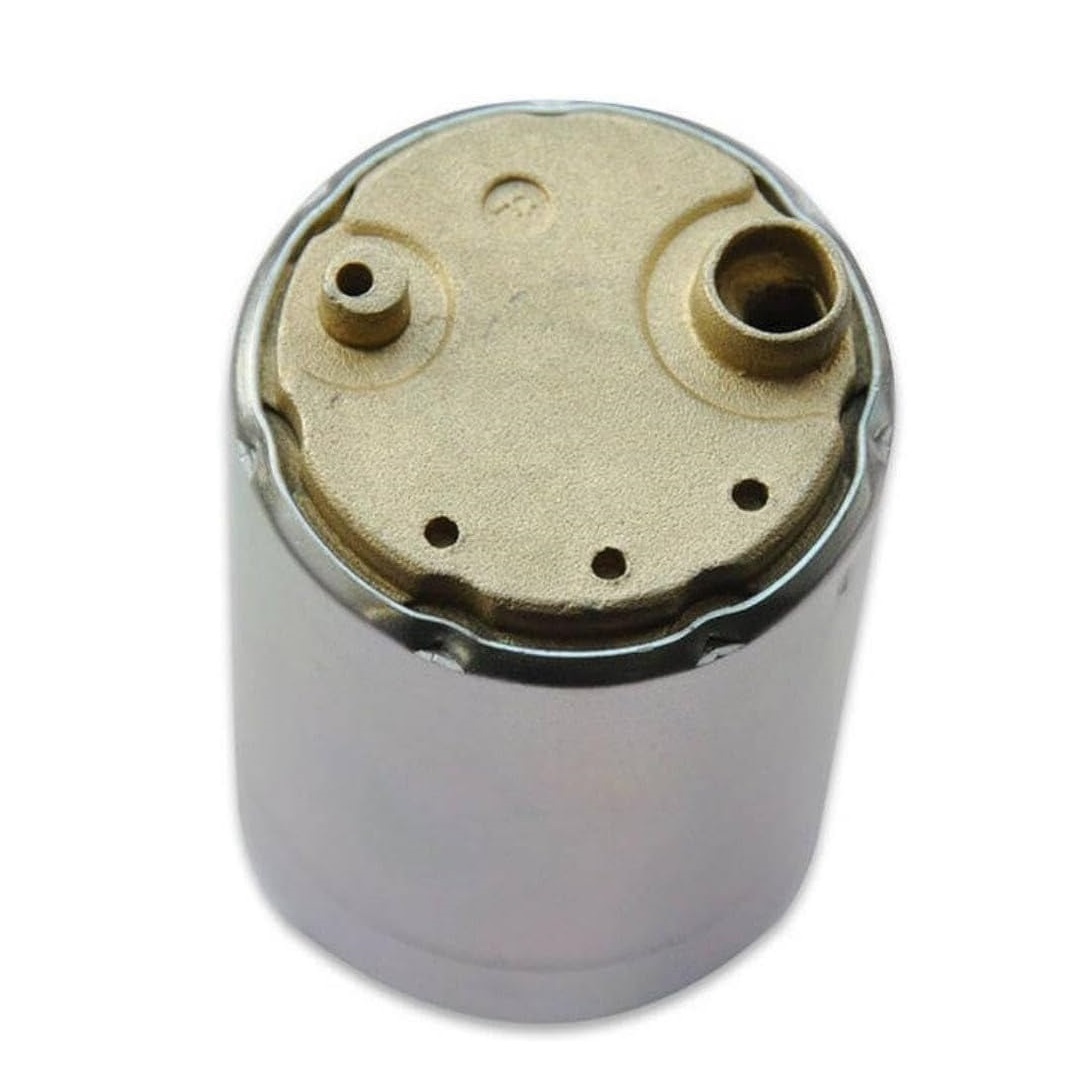

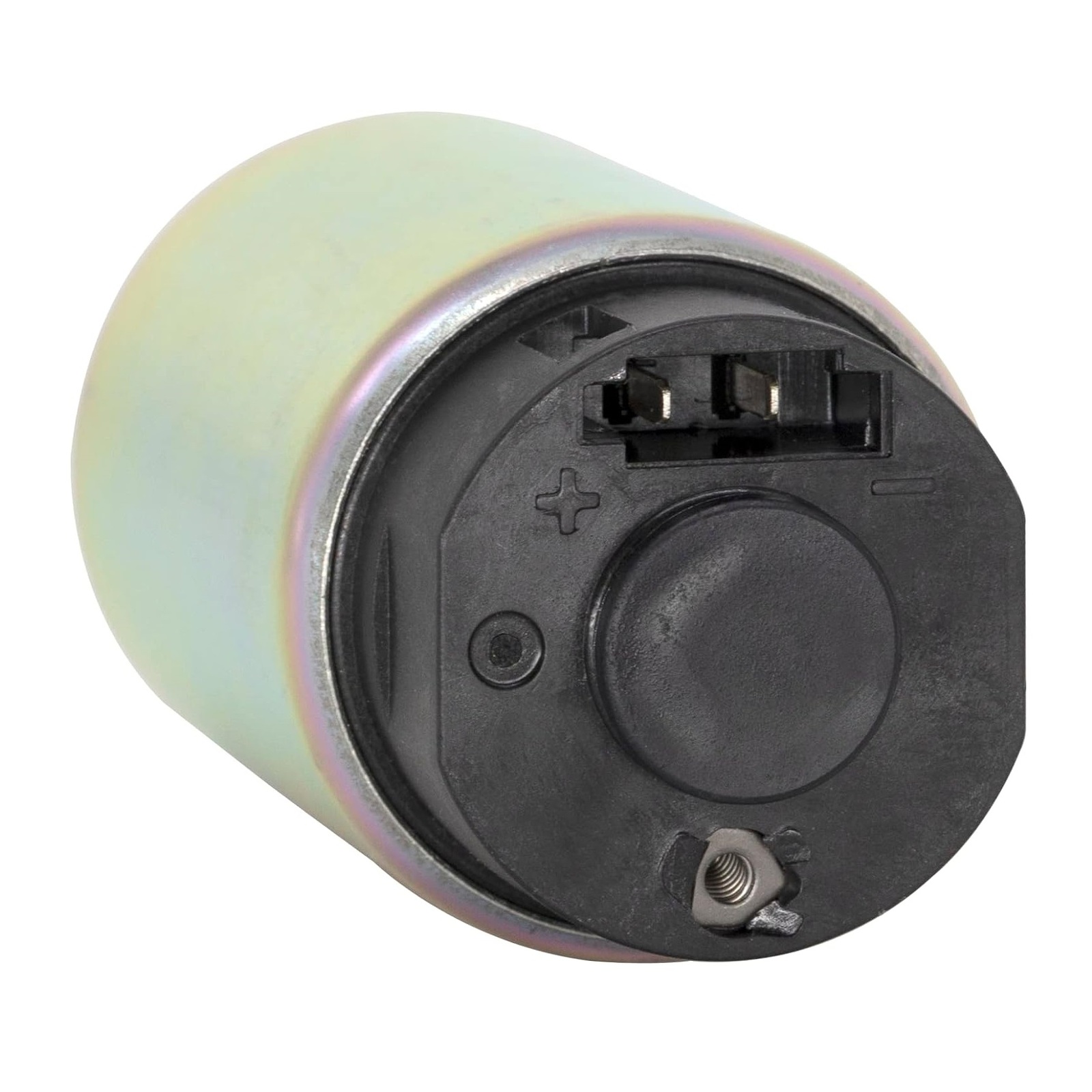

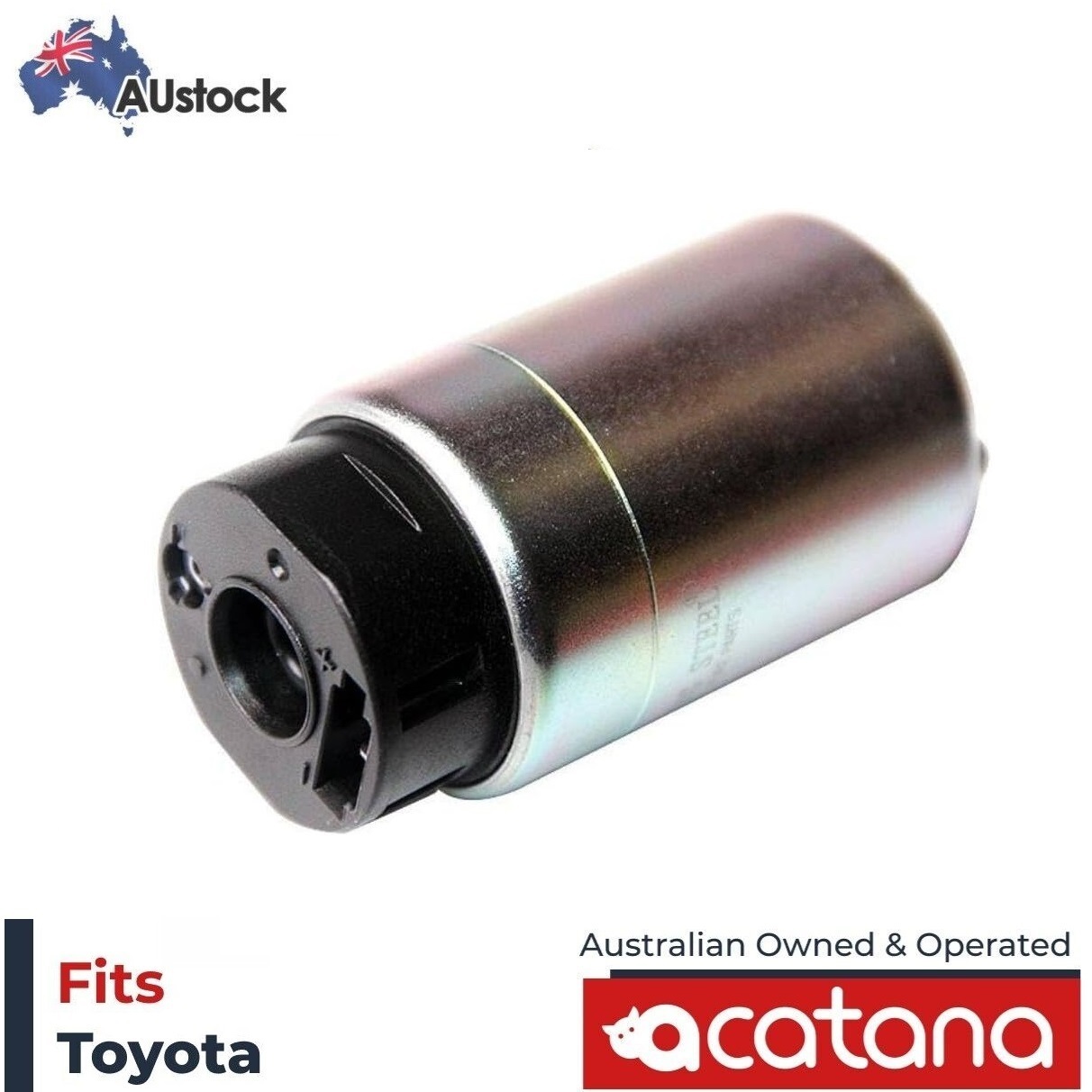

Electric Fuel Pump for Toyota Hilux 2005 - 2015 reliable Intank replacement for fuel system, faster pressurised, fuel is available as soon as the ignition switches, ready to fuel the engine before the engine is even cranking



Compatiblity:

• For Toyota Hilux 3/2005 - 9/2015 4.0L including SR5 GGN25R, 1GRFE engine



Reference OEM: 23220-0C050, 291000-0021, 23220-0P020, 23220-0H110, 23220-75040



Features:

• This electric fuel pump kit is designed with the original car radian in mind, ensuring a perfect fit for your Toyota
• The precise design of the fuel assembly and module ensures that it fits seamlessly into your vehicle's fuel system, providing reliable and efficient fuel delivery
• Made of high quality metal for maximum durability, ensuring a long service life and reliable performance
• This fuel pump kit is an original standard, direct replacement for the old or broken one. With this kit, you can easily restore your vehicle's fuel system to its original performance



Specification:

• Product Name: Fuel Pump
• Diameter: 38 mm
• Length: 72 mm
• Pump body length: 52 mm
• Pressure: 3 BAR
• Current: ≤ 5.5 A
• Voltage: 12 V
• Wide Open Flow: 100 L/H
• Voltage Total pressure range: 7.5 - 9.0 BAR
• Current at Max Pressure: ≤9.8 A



Procedure for replacing your fuel pump:

• First, you’ll need to lift the vehicle so you can remove the tank. If there’s gas in the tank, you’ll have to drain it into an approved container first.
• It's important to clean the tank thoroughly during the repair.
• Next, remove the clamps from the fill lines and then remove the fill lines as you prepare to drop the gas tank. You can use a rag to avoid getting dirt in the tank. Make sure to support the tank as you remove the straps and carefully lower the gas tank.
• Remove the pump assembly so you can replace it with a brand-new part. Keep in mind that some fuel pumps require parts to be transferred from the old unit.
• Then you just need to reverse the procedure. Get the pump installed and the pump retaining ring back in place and raise the tank close to the vehicle so you can reconnect the wire connectors and fuel lines. Reconnect the straps and fill lines with the tank properly positioned. Partially fill the tank and run the vehicle so that you can inspect for any leaks.
• Don’t forget to replace the fuel filter as well so that your new pump will run smoothly.



Package Includes：1x Electric Fuel Pump
