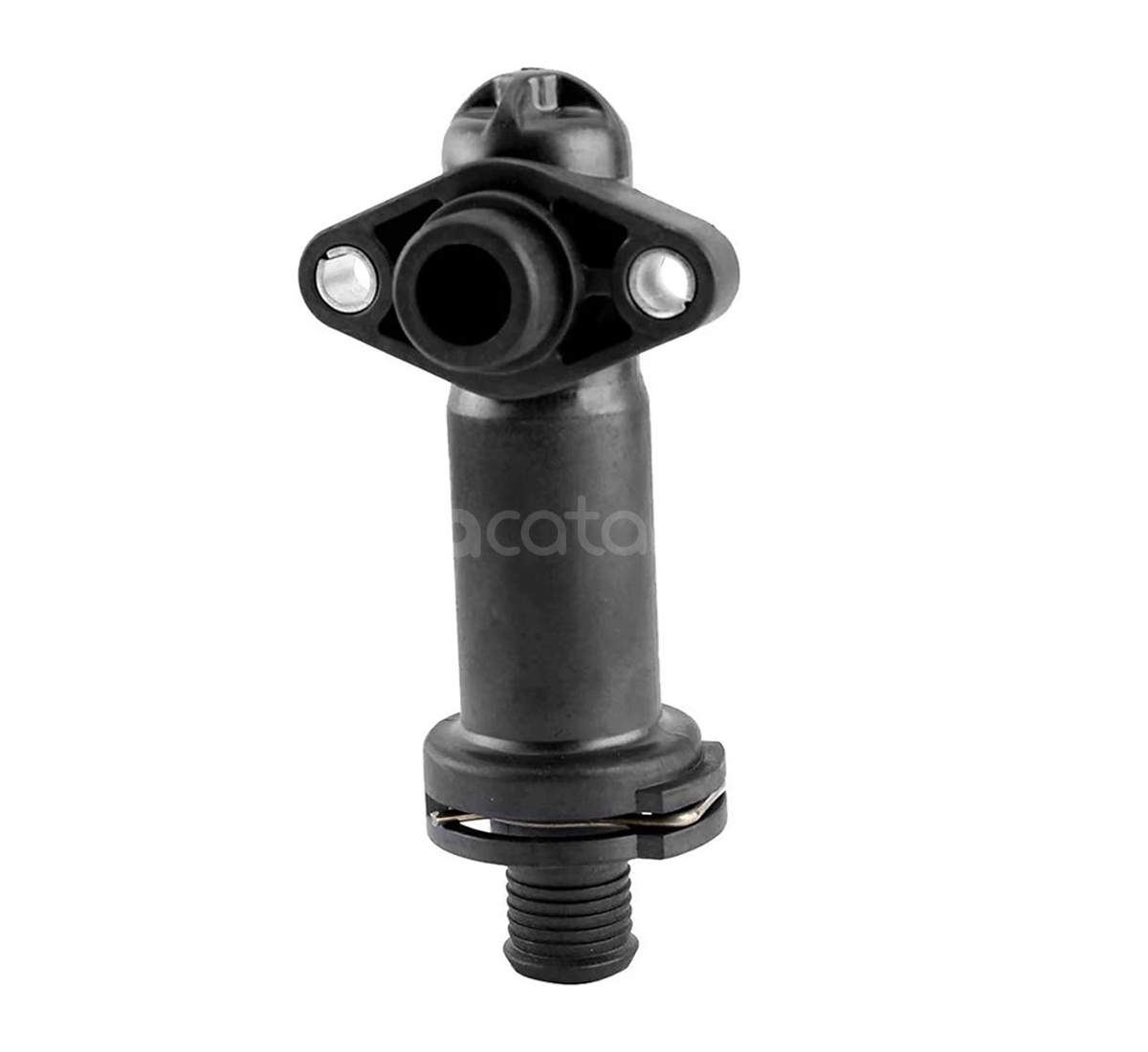

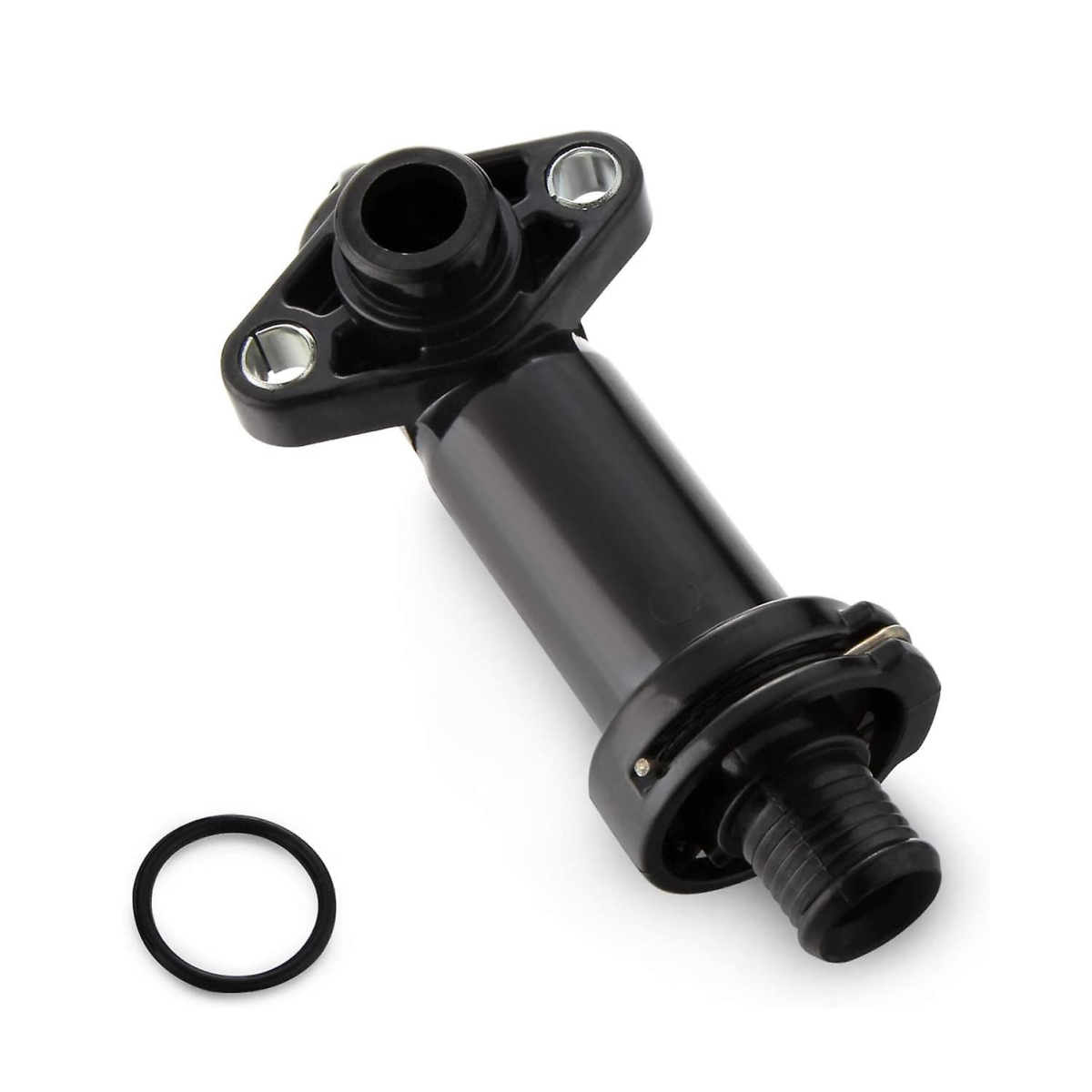

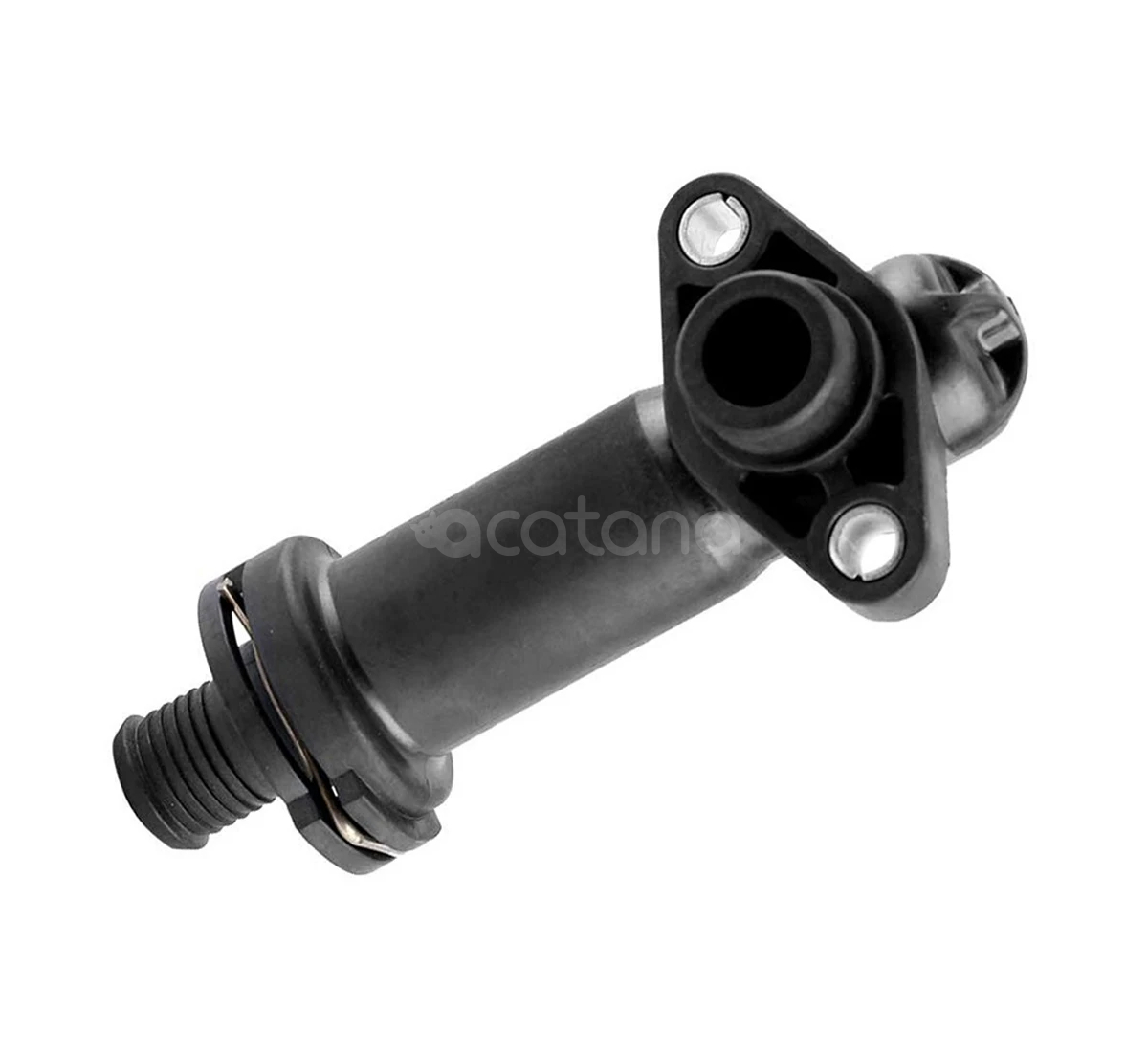

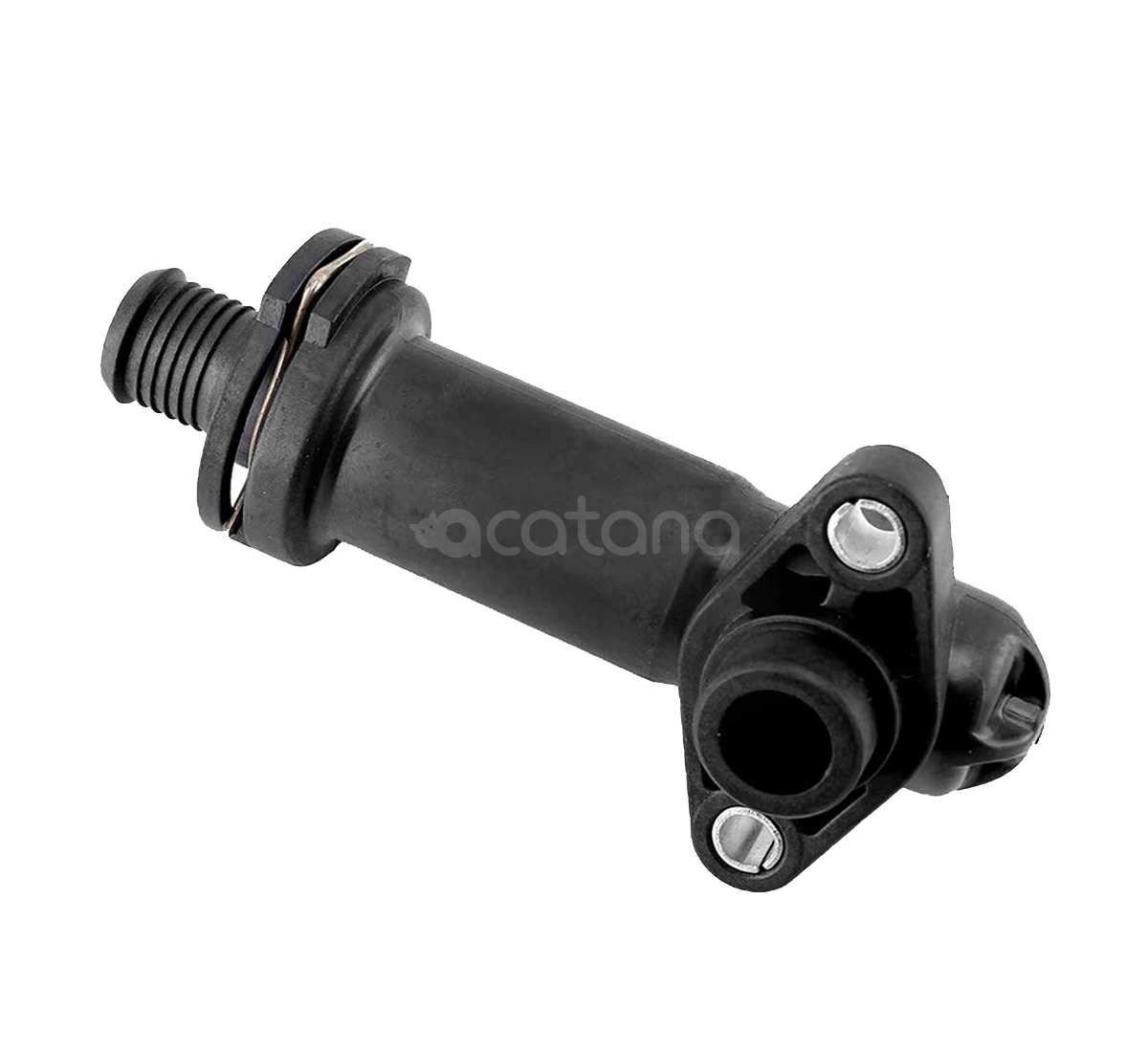

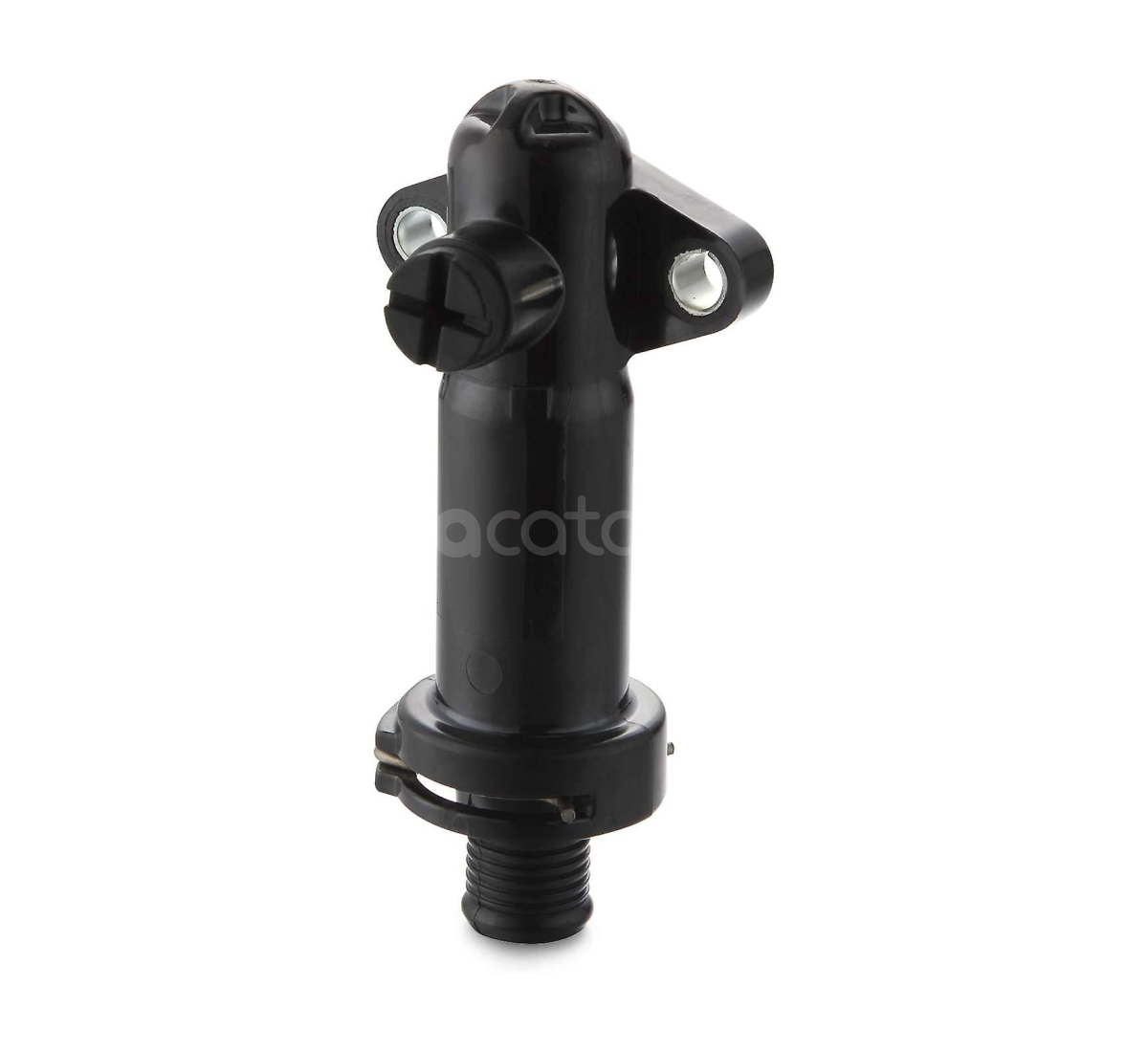

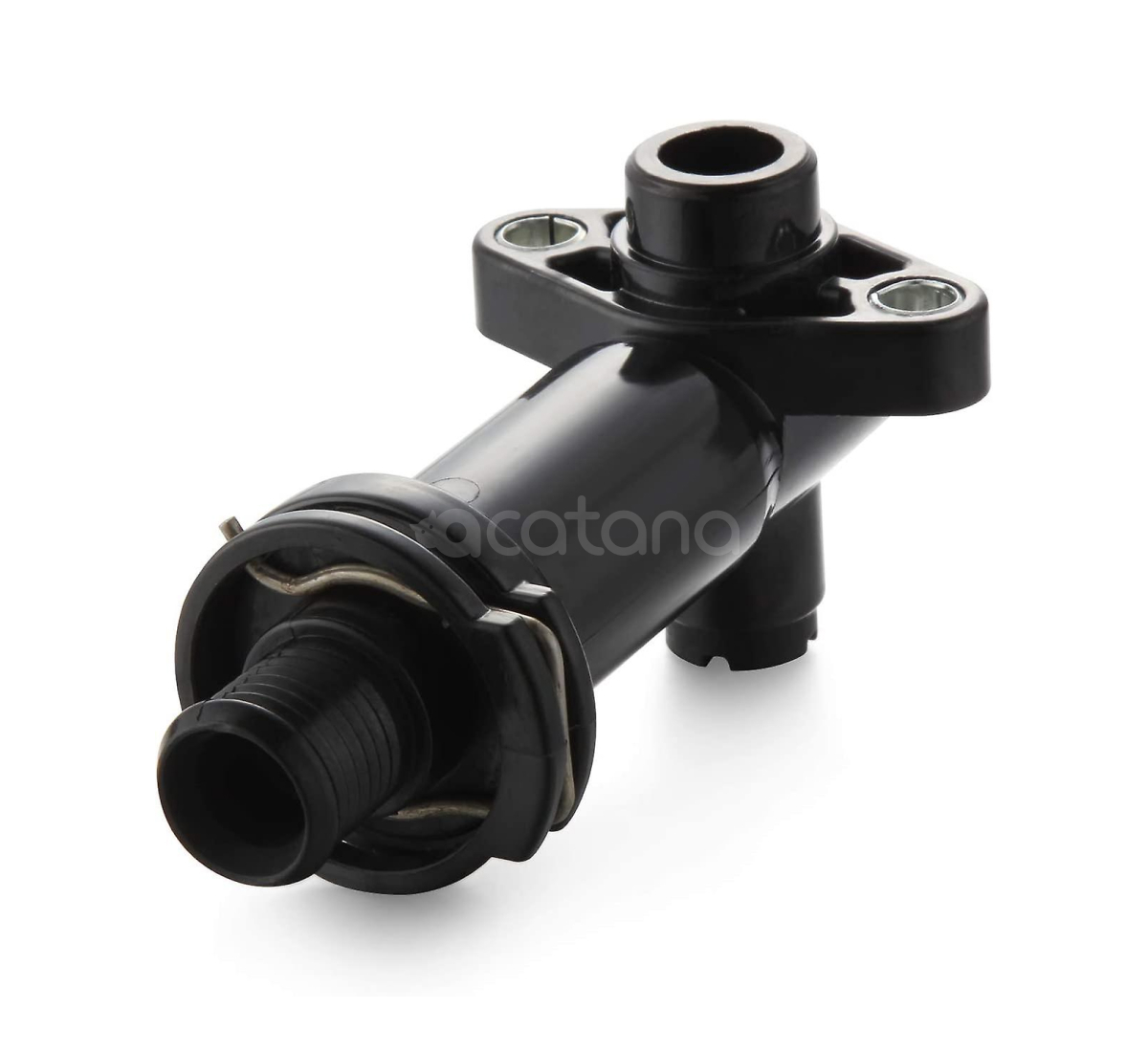

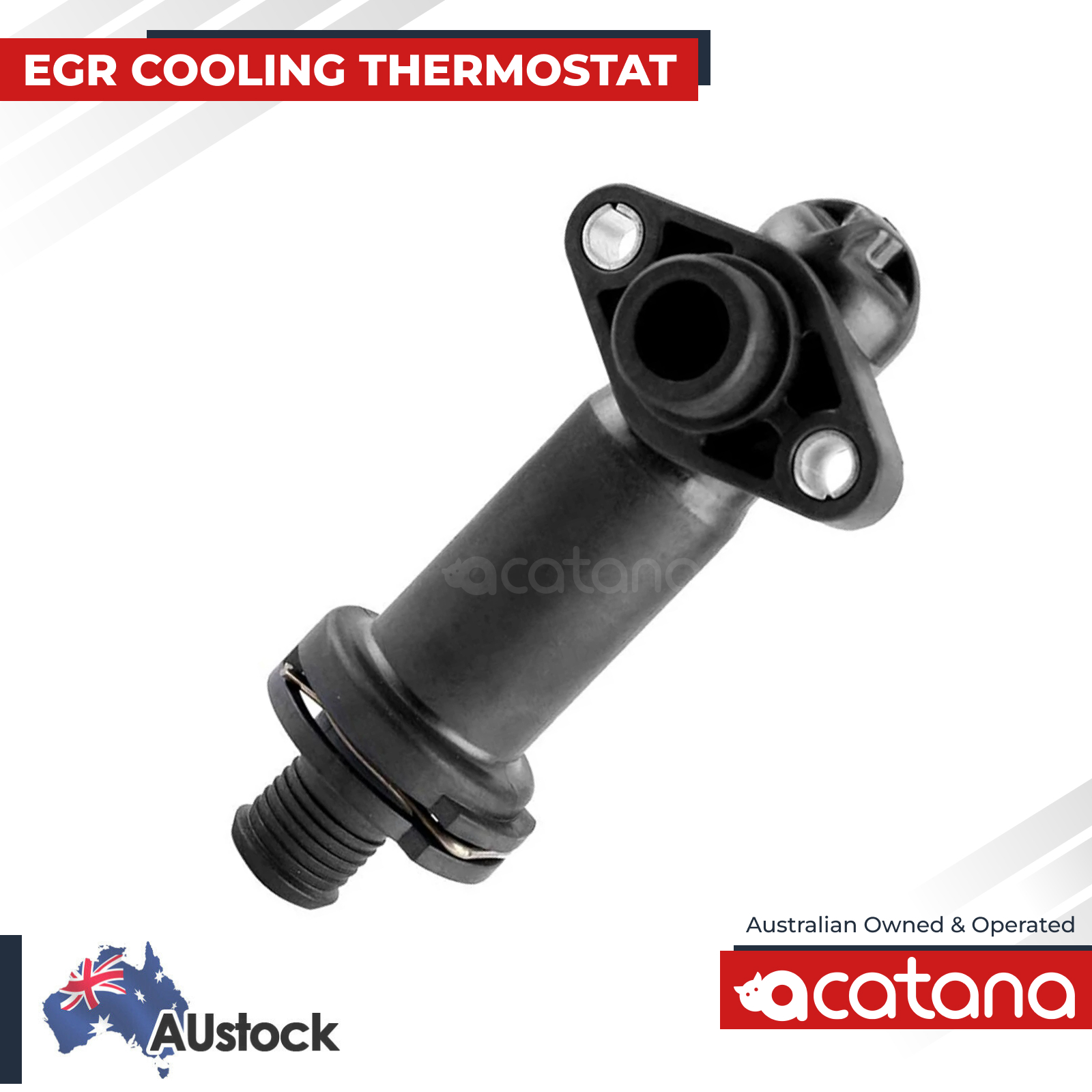

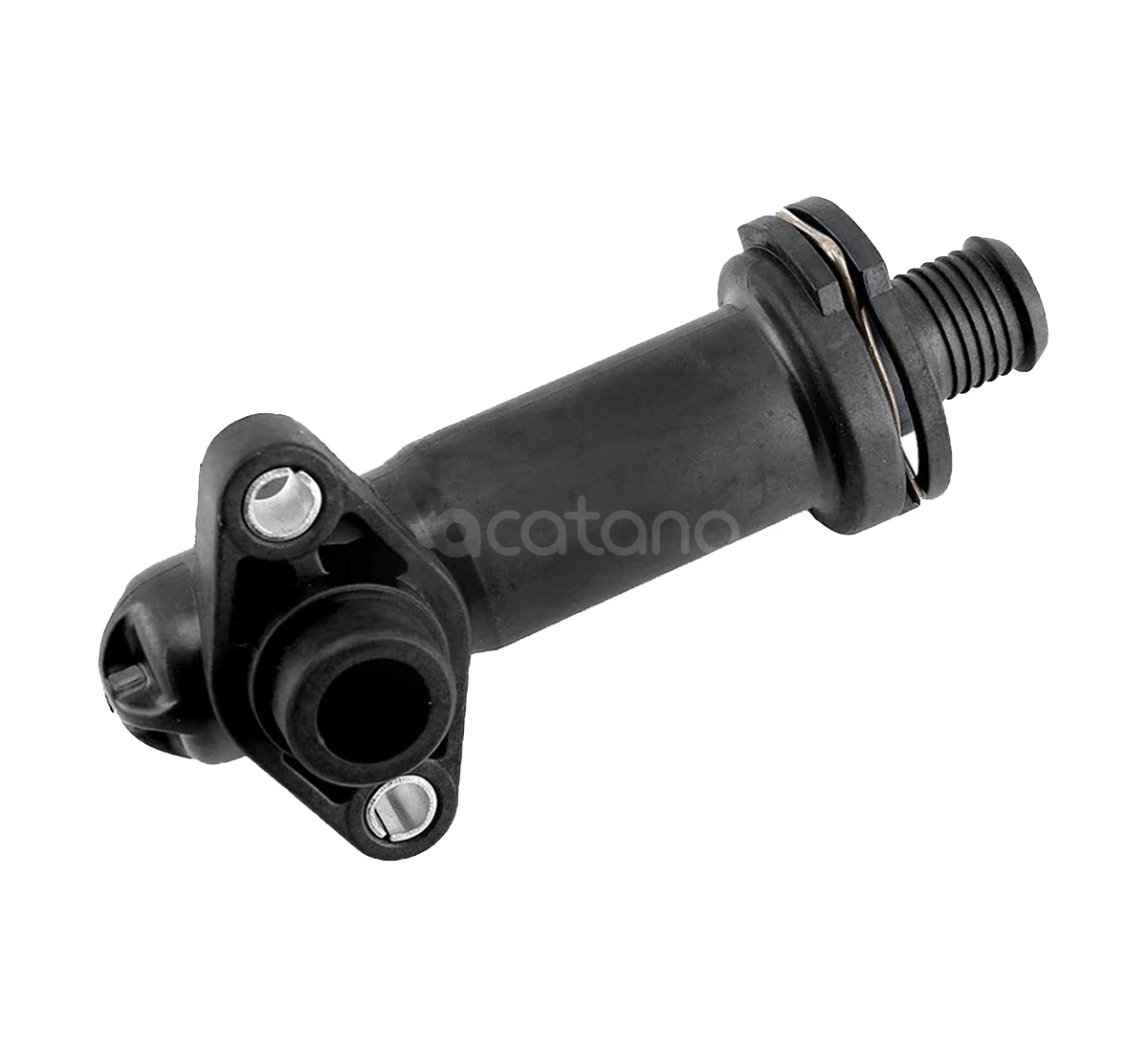

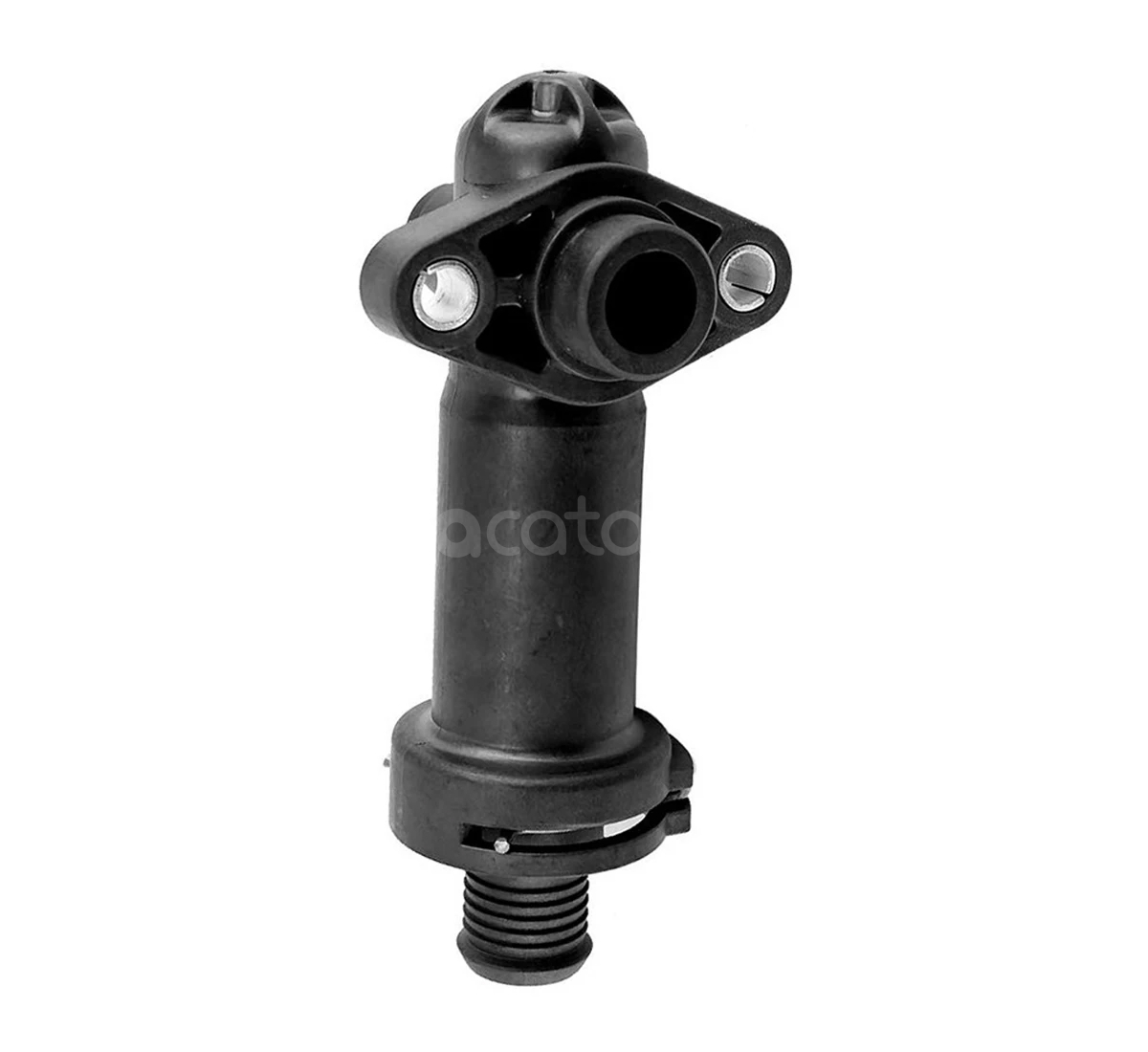

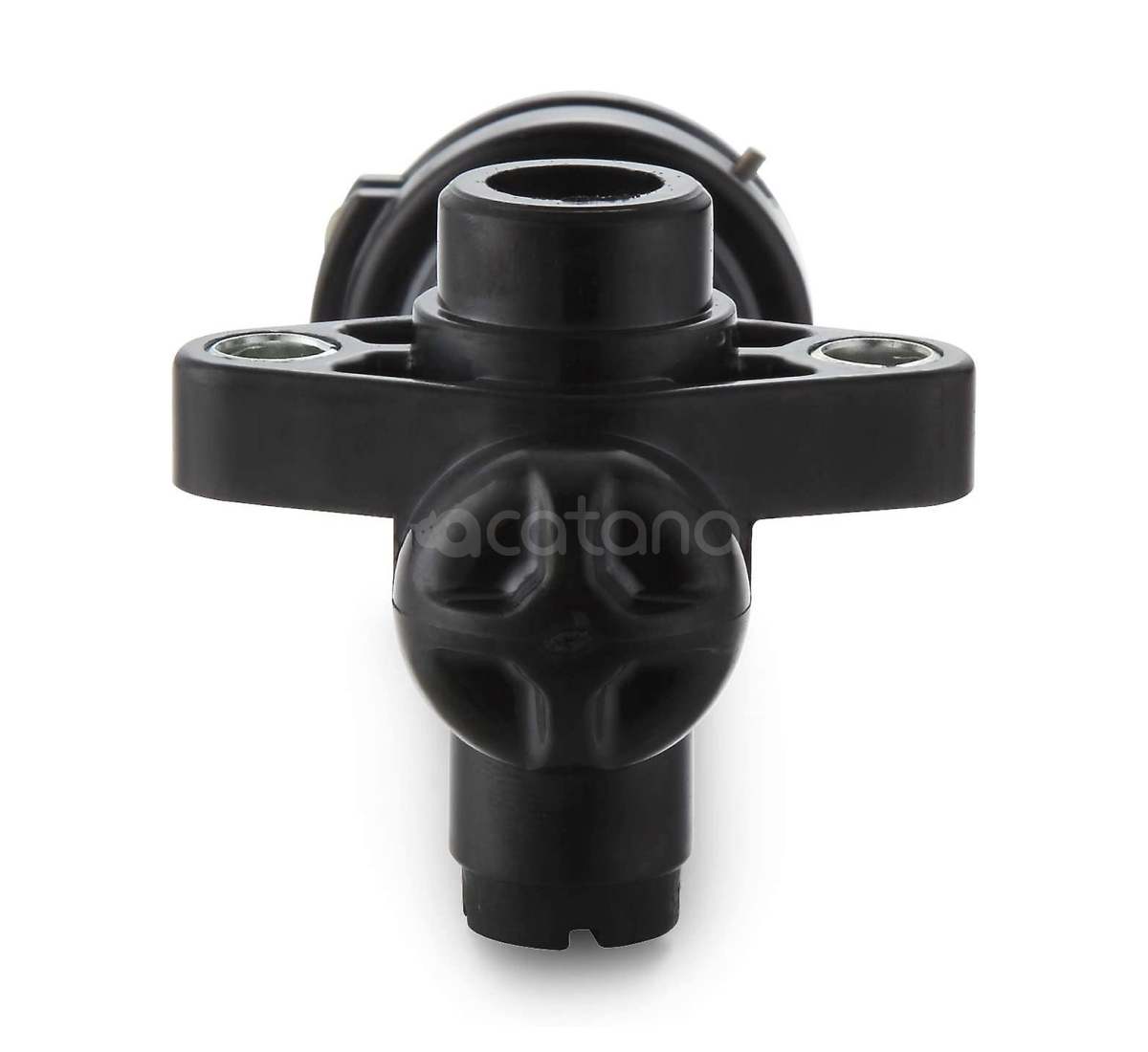

EGR Cooling Thermostat for BMW 1 E87 2007 - 2010 120 d reliable cooler thermostat replace of exhaust gas cooling recirculation system to cool down the exhaust gas before entering the intake manifold. Compatible reference OEM 11717787870



Brand: acatana auto parts

Model: EGR Cooling Thermostat



Features:

• Improves the performance of engine
• With cooler gas temperatures, comes greater gas density. This allows more air to enter the cylinders of the engine. In turn, this can lead to more power and greater performance
• Made of high quality materials, durable and practical to use
• Easy operation and stable performance



Compatibility fits for:

• BMW 1 (E87) 03.2007 - 10.2010 120 d



Also fits for:

• BMW 3 Sedan (E90) 12.2004 - 09.2007 320 d
• BMW 3 Sedan (E90) 12.2004 - 09.2007 320 d
• BMW 3 Sedan (E90) 12.2004 - 10.2011 320 d
• BMW 3 Sedan (E90) 09.2005 - 09.2008 330 d
• BMW 5 Sedan (E60) 09.2002 - 09.2005 530 d
• BMW 5 Sedan (E60) 09.2005 - 03.2007 530 d
• BMW X3 (E83) 09.2004 - 08.2007 2.0 d
• BMW X3 (E83) 01.2004 - 08.2005 3.0 d
• BMW X5 (E53) 10.2003 - 09.2006 3.0 d
• BMW X5 (E70) 02.2007 - 09.2008 3.0 d
• BMW X5 (E70) 10.2007 - 09.2008 3.0 sd



Compatible Reference OEM: 11717787870, 1171.7.787.870, 7787870, 6338003, 93172110



Specification:

• Material: ABS
• Opening Temperature: 70 °C
• Color: Black



How to replace EGR Cooling Thermostat:

• Undo coolant cap to release pressure. Do not attempt if engine is hot.
• Locate 2x bolts (9mm hex) and 1x hose-clip
• One of the bolts is obscured by a vaccum hose. This is fixed by a single bolt (star) - unscrew the bolt, and wiggle / prise gently / pull the hose from the hole. Once removed, ensure red O-Ring is intact and in-place, and then move the hose out of the way.
• Undo 2x bolts (9mm hex) and slowly lift the thermostat. There is a yellow O-Ring which creates the seal. Check it's condition and replace if necessary (60p from BMW).
• Locate the hose-clip and undo. Pull the thermostat to remove.
• The EGR valve did leak a little, which means you may need to top up once it's fitted.
• Fitting is the the reverse of removal. Once the new thermostat is in place, clean and dry the surrounding area, and run the engine for a moment to check for leaks.
• If coolant / water has spilled onto the belt below the thermostat, there may be a squeal from the belt at first



Package Included:

• 1 x EGR Cooling Thermostat
