Ergotron 45-476-026 Dual Monitor Stand Arm Desk Mount Screen Display LED LCD TV Holder Bracket

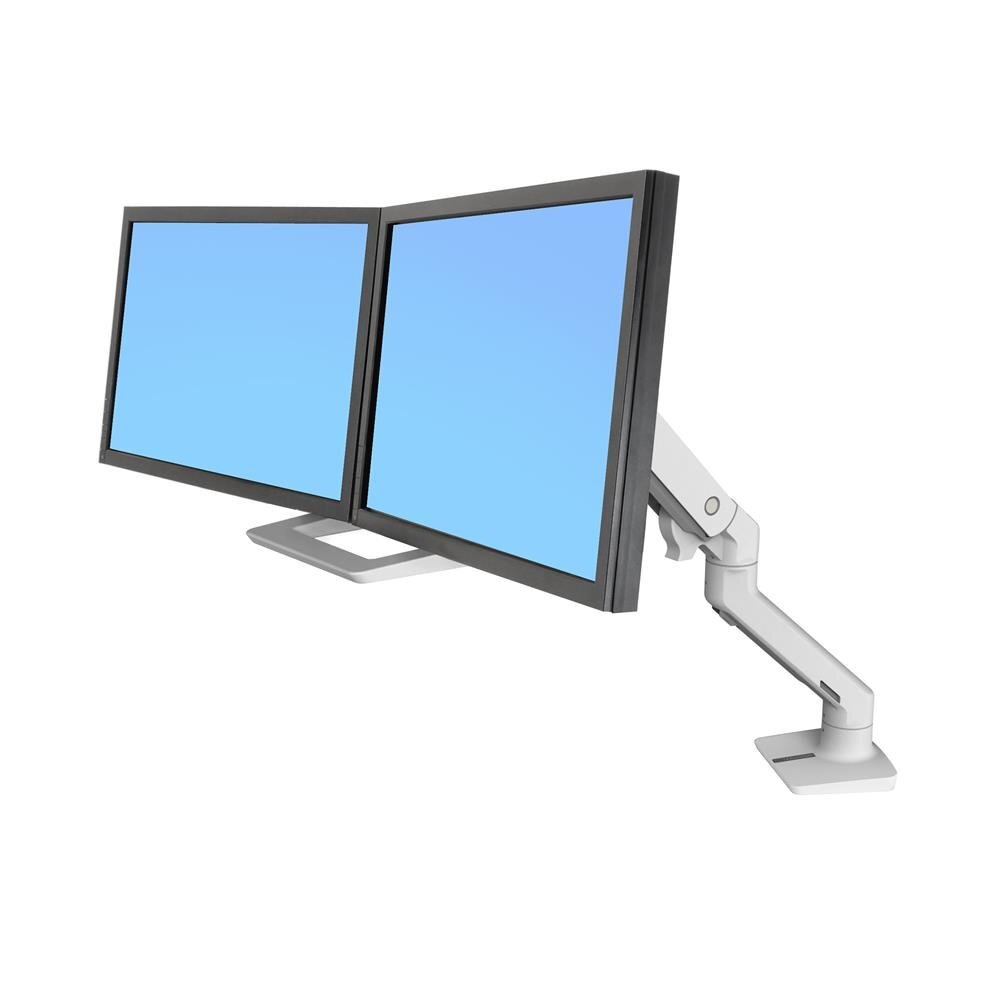

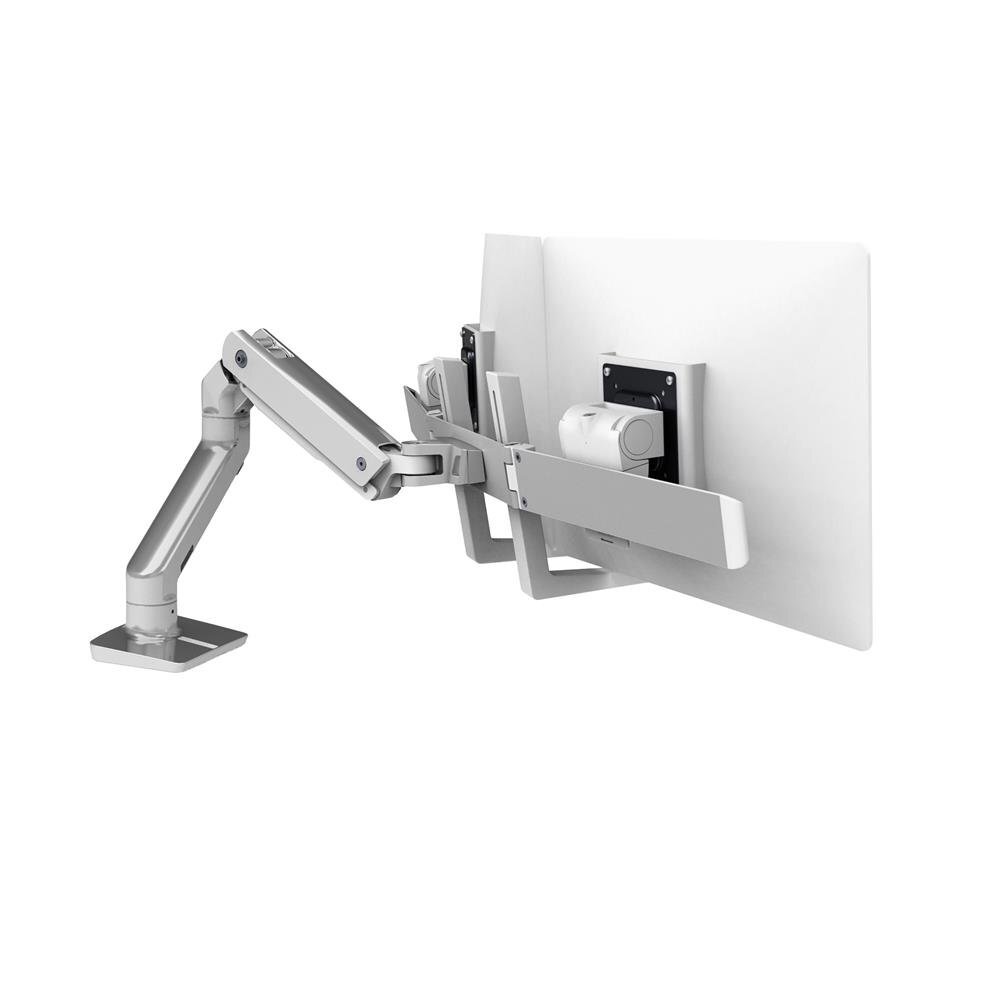

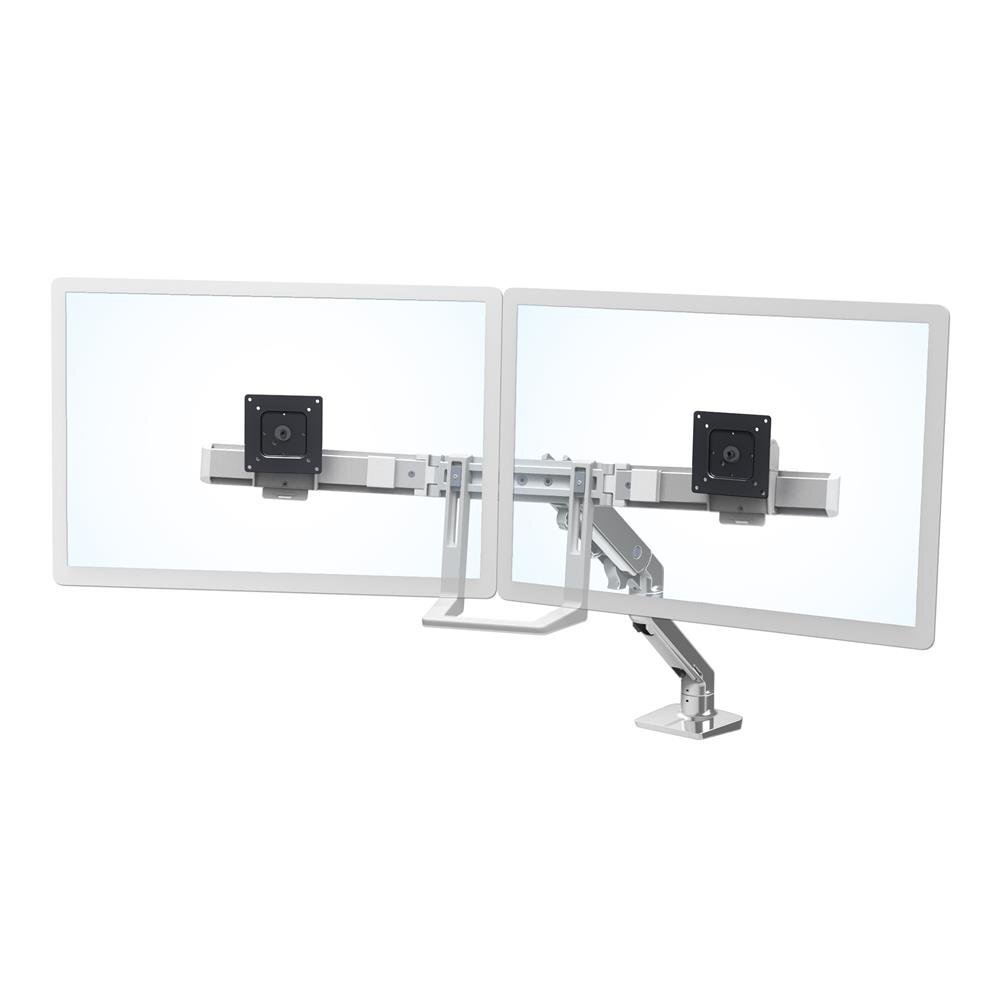

Mount two heavy monitors on Ergotron 45-476-026 HX Desk Mount arm up to 32" in size and 17.5 lbs in weight and free up valuable desk space. This arm's 11.5 vertical adjustments and 23.9" reach not only allows you to position your display to suit your preference but also lets you fold the arm in space-constrained areas. Both the monitors are installed on the hinged bow with pivots letting monitors pan and tilt independently so that working with colleagues becomes easier.

The higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing, and surveillance needs that demand heavy monitors. Modular ability to increase from dual monitor setup to triple monitor setup (with an HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white and polished aluminum, this arm looks slick and chic and comes with a ten-year warranty.

The HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The sleek new post design combined with the dual hinge bow works with two 32" monitors and includes a handle for easy positioning. Extension/retraction motion and integrated height adjustment capability promote user comfort.



Benefits

  • Increases viewing comfort: Helps reduce eye, back, and neck strain
  • Sleek new post design
  • The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment
  • Additionally, the hinged bow optimizes the viewing range for enhanced ergonomic comfort
  • Independent, quick-release monitor pivots with effortless rotation, pan, and tilt for custom positioning of each monitor
  • Rotation-stop on-base limits range to 180° and prevents the monitor from making contact with the wall
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Cable management feature routes cable tightly under the arm and through the extension, out of the way
  • Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
  • The folding arm frees up space in constrained areas
  • Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm




Description    HX Desk Dual Monitor Arm (polished aluminum)
Includes

  • Arm
  • Extension

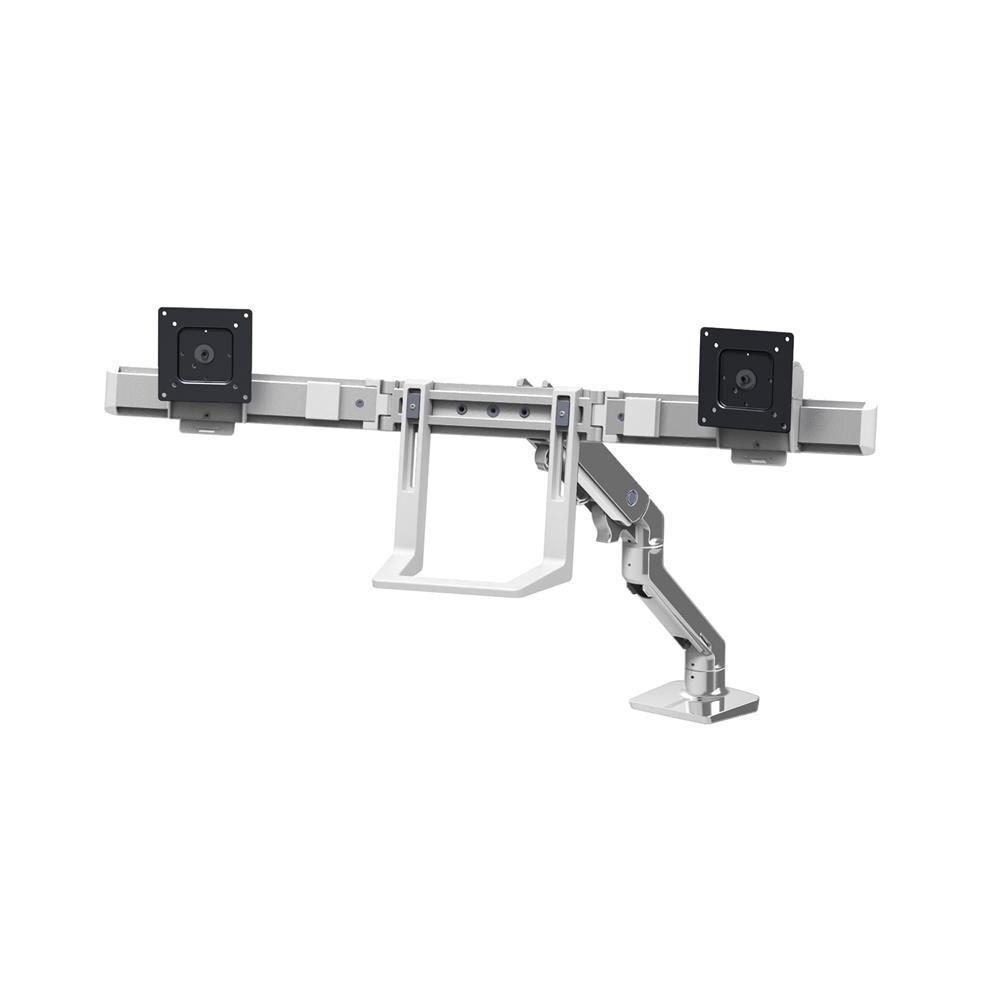

  • Hinge bow
  • (2) monitor pivots
  • Handle and desk clamp
  • Grommet mount
  • Monitor mounting hardware



Clamp Base    Clamp base ensures greater stability of display and arm
Desk Clamp    Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick
Grommet Mount    Grommet Mount (included) attaches through surface holes
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
Portrait or Landscape    Portrait/landscape rotation with lockout

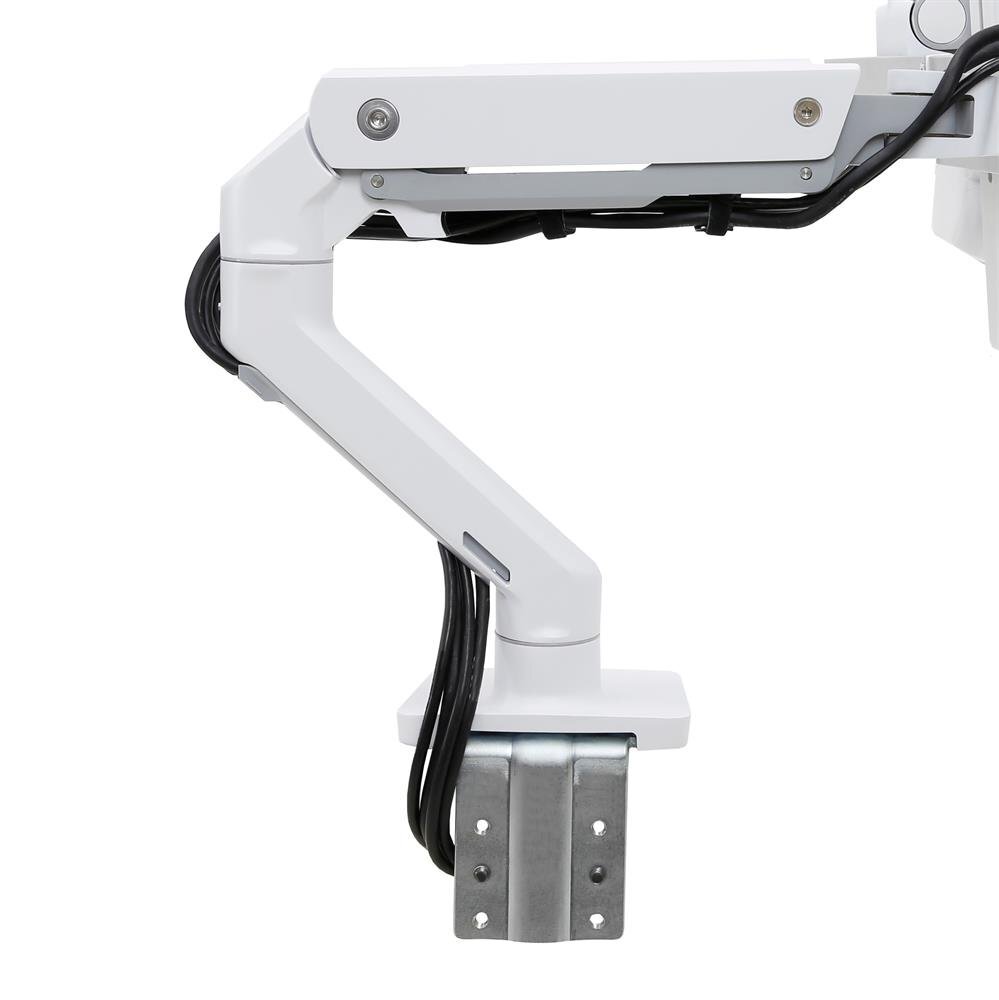

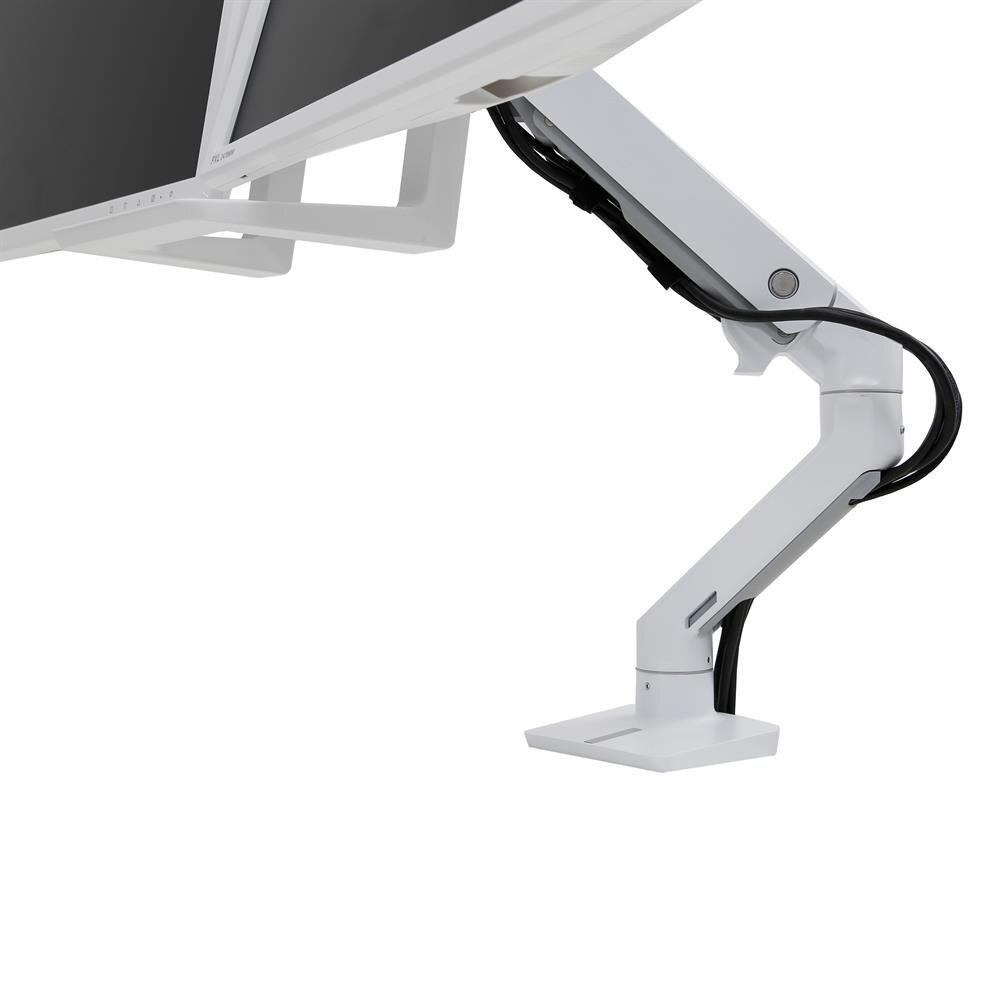

Cable Management    Streamline cable management that routes cables under arm and within the extension
Mounting Standards    VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Weight Capacity    Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
The monitor can be rotated 360° at the connection point of arm and extension; rotation is restricted to 180° at the connection point of extension and base
Hinge Bow    Pivots 40° inward and 90° outward
Tilt Range    70° backward, 5° forward
Pivots    Feature quick to install and release and feature effortless portrait to landscape 6° pan and tilt
Extended Reach    Up to 24.5" (60 cm) extended reach
Vertical Height Adjustment    11.5" (29.2 cm) vertical height adjustment
Shipping Dimensions    16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)
Shipping Weight    26.9 lbs (12.2 kg)



Specification:

  • Screen    Up to 32"
  • Capacity 5 - 17.5 lbs
  • Lift    2.3 - 7.9 kg
  • Tilt    29.2 cm 11.5"
  • Pan    75°
  • Rotation 180°
  • VESA MIS-D 360°
