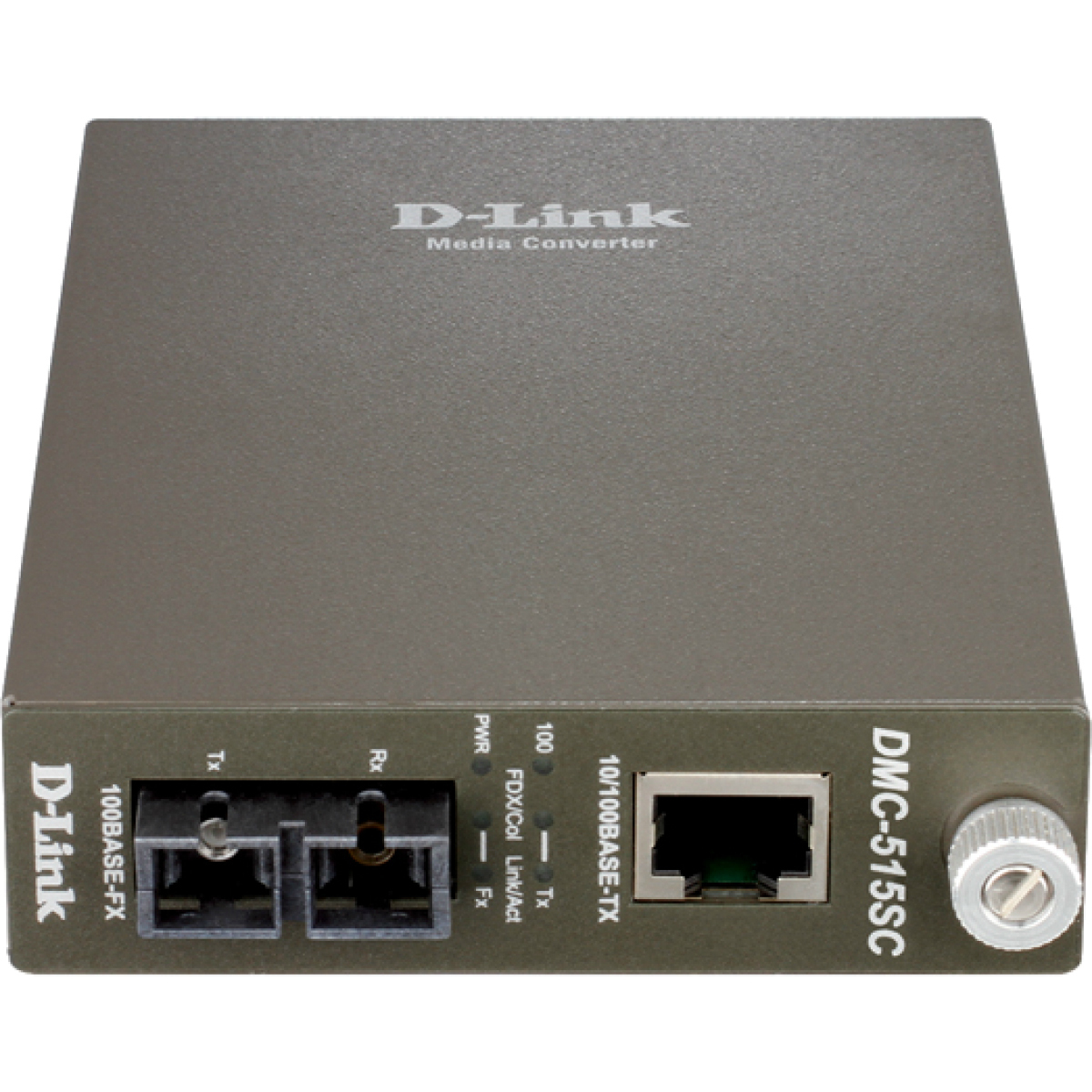

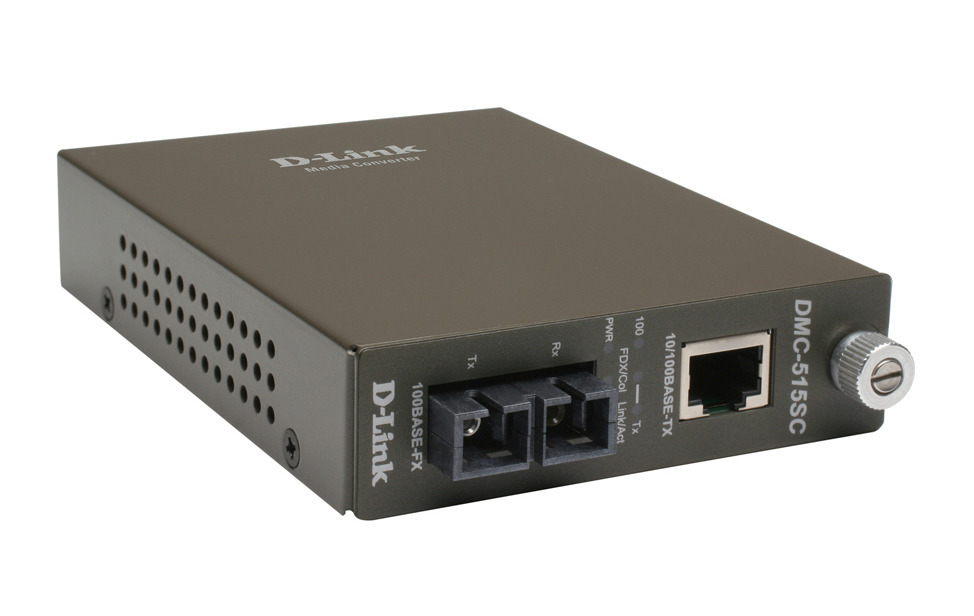

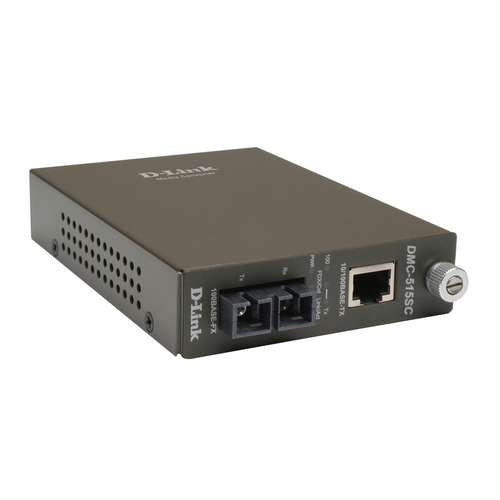

D-Link DMC-515SC Media Converter, 10/100 to 100BaseFX (SC) Singlemode Media Converter, up to 15km range distance
Product Code: DMC-515SC
Price:
Share This Item:
These converters convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided. DMC-515SC: Supports maximum 15km fiber cable distance. Product Features: One-channel media conversion between 10BASE-T/ 100BASE-TX and 100BASE-FX Fiber SC connector Auto negotiation of speeds and duplex modes on twisted-pair port Auto MDI-II and MDI-X One slide switch for configuring fixed half/full duplex modes Store-and-forward mechanism Back-pressure & IEEE 802.3x Flow Control compliant Full wire-speed forwarding rate Front panel status LEDs Can be uséd as a stand-alone device or with chassis Hot-swappable when uséd with chassis
| Standard | Fast Ethernet |
| Standart Data Transfer Rates | Fast Ethernet |
| Speed | 100 Mbps (half duplex) |
| Type | External |
| Packing Weight | 500 g |
| Interface | Ethernet |
| Ports | LAN (RJ-45) Optical |
| Standards Compliance | IEEE 802.3 IEEE 802.3u |
| Data Transfer Rates | Fast Ethernet, 100 Mbps (half duplex) |
| Packing Width | 250 mm |
| Packing Depth | 230 mm |
| Additional Features | One channel media conversion between 100BASE-TX and 100BASE-FX. Optical port for SC-connector. Auto Sensing and Auto-Negotiation Mode full-or half-duplex on the port for twisted pair. Auto MDI-II and MDI-X. Switch to preset mode full-or half-duplex. Transfer mode Store-and-forward. Mode "back pressure" and flow control IEEE802.3x. Transfer to wire speed. Status LED's on the front panel. Can be used as stand-alone device or with chassis. Hot-swappable when used with chassis. |
| Packing Height | 90 mm |
| Package Type | BOX |
