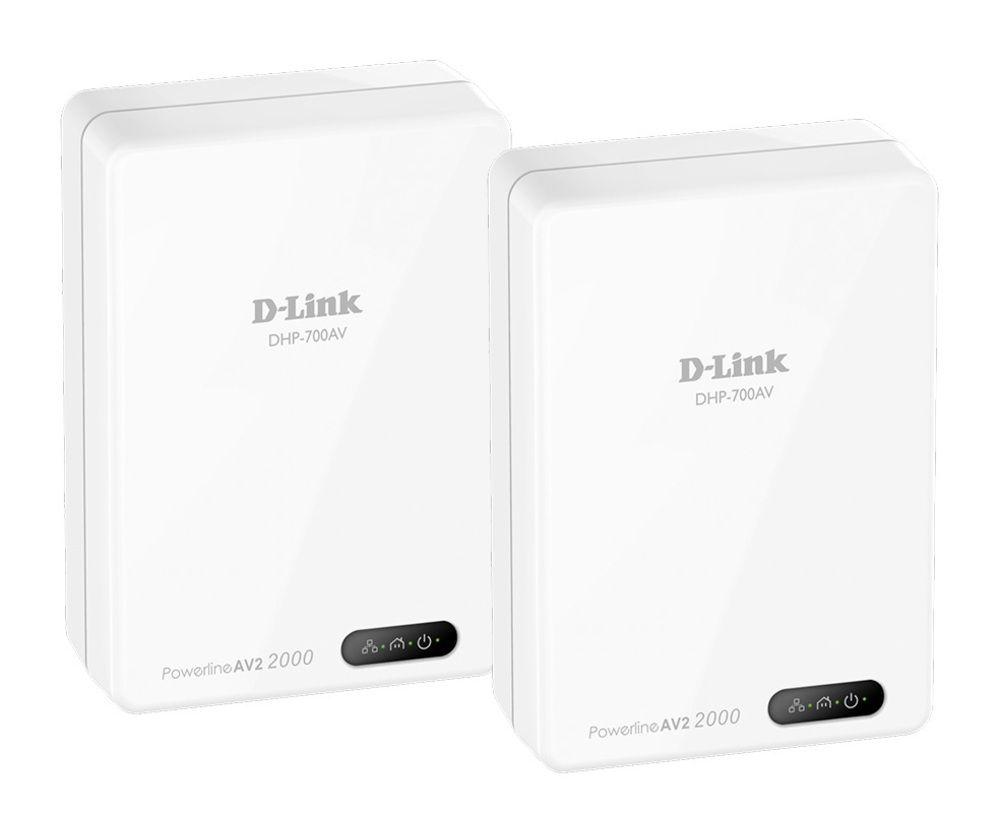

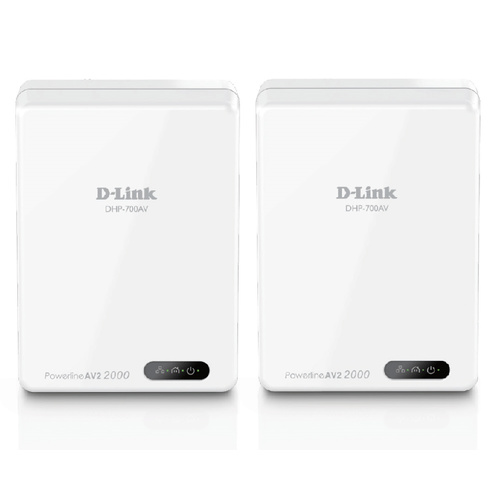

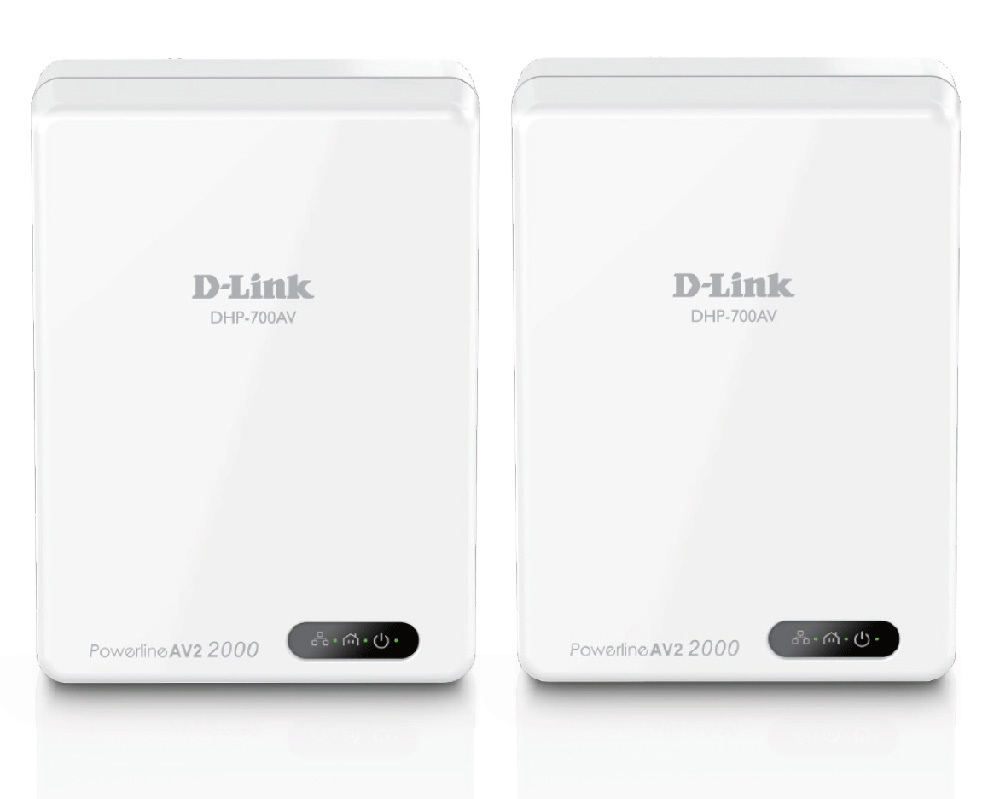

PowerLine AV2 2000 Gigabit Adapter

01

The DHP-700AV PowerLine AV2 2000 Gigabit Adapter uses your home’s existing electrical wiring to create a network or extend your existing network.1 Share the Internet connection in your study with a game console in your lounge, or connect two PCs in different rooms, all without the need to install additional network cabling.

Data Transmission Over Electrical Wiring

02

The D-Link DHP-700AV PowerLine AV2 2000 Gigabit Adapter turns every power outlet into a possible network connection to access digital media devices, game consoles, print servers, computers, and network storage devices throughout your home. Compliance with the HomePlug AV2 standard and backward compatibility with the HomePlug AV standard ensure that the DHP-700AV can be used with older PowerLine devices.

Ideal For Bandwidth-Intensive Applications

03

The DHP-700AV is capable of delivering data transfer rates of up to 1900 Mbps.2 This rapid transmission speed makes it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, VoIP calls, and online gaming. In addition, it prioritizes Internet traffic to help ensure that your streaming movies and music don’t skip or stutter while web surfing and downloading files at the same time. Now you can experience high-quality multimedia streaming throughout your home, all through your existing electrical wiring.

Higher speeds mean more entertainment

05

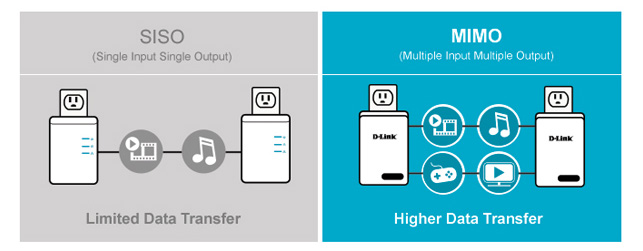

Stream more HD media, play more online games and transfer all of the large files you want. AV2 MIMO technology will guarantee you a higher data transfer rate

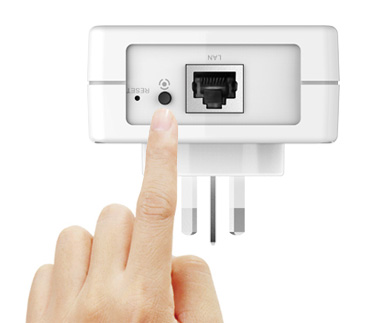

Easy setup

06

Simply plug and play. No need to configure or to remember passwords. A simple push of a button will get your network secured in minutes.

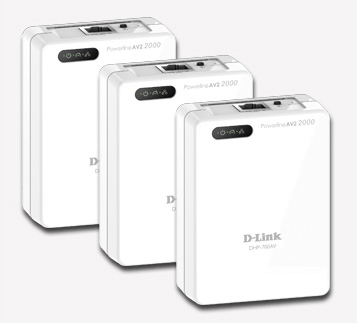

Extend your wired network

07

Extend your Powerline network by adding up to 16 adapters in total. Backward compatible with PowerLine AV, AV500.

Power saving mode comes in handy

08

Power Saving mode reduces power consumption up to 85% when compared with existing PowerLine Adapters.

Standards
• IEEE 802.3
• IEEE 802.3u
• HomePlug AV
• HomePlug AV2
• IEEE 1901

Ethernet Interface
• 10/100/1000Mbps Gigabit Ethernet

Minimum Requirements
• Electrical wiring with at least two available outlets on the same circuit
• Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
• Cable, DSL or Fiber Optics
• Router
• Computer with Windows® 8.1, Windows® 8, Windows® 7 , or Mac OS® X (v10.7)

Physical Dimensions
• 3.89 x 2.86 x 1.34 inches

Weight
• 0.4 lbs

Input Power
• 100V ~ 240V

LEDs
• Power, PowerLine, LAN (from right to left)

Temperature
Operating: 32 to 104 °F
• Storage: -4 to 149 °F
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

EMC Certifications
• FCC

Safety Certifications
• UL E258902

Package Contents
• 2 x PowerLine AV2 2000 Gigabit Adapters (DHP-700AV)
• Warranty documents
• 2 x Ethernet Cables
• Quick Installation Guide
