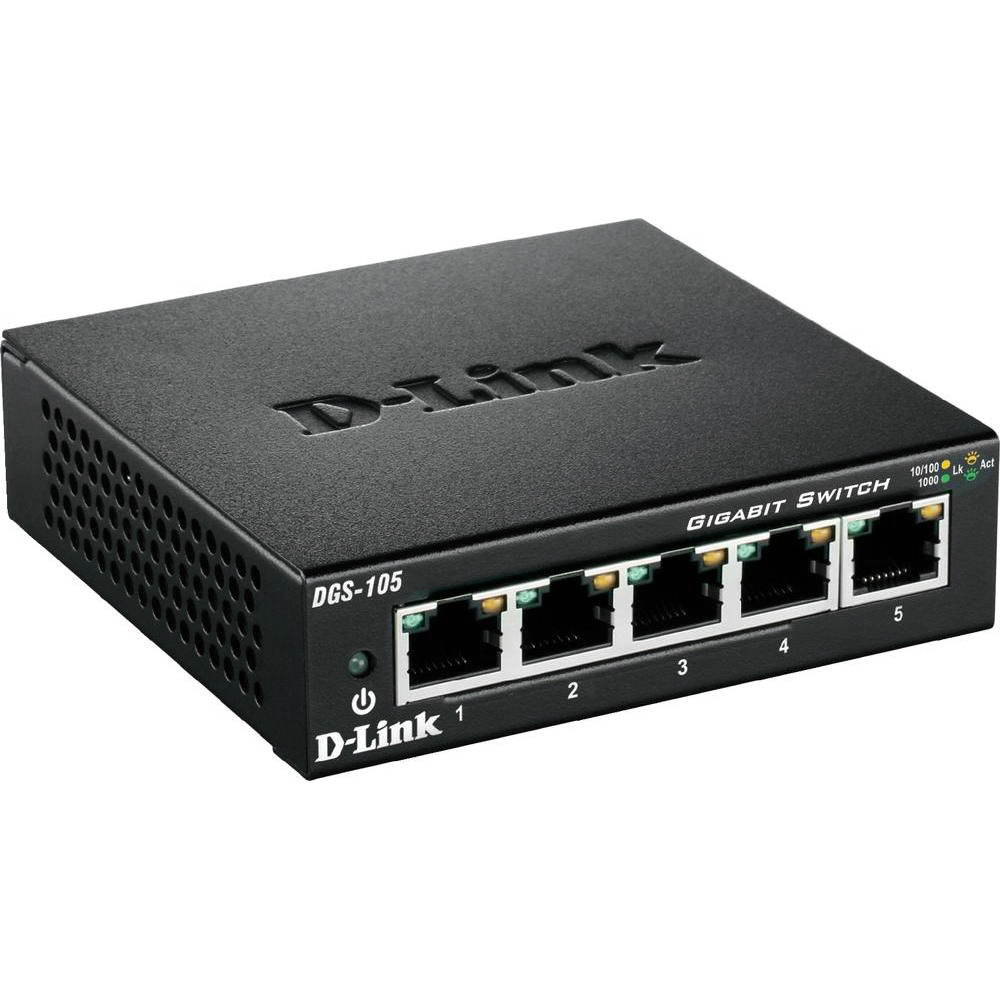

5-Port Gigabit Switch

01

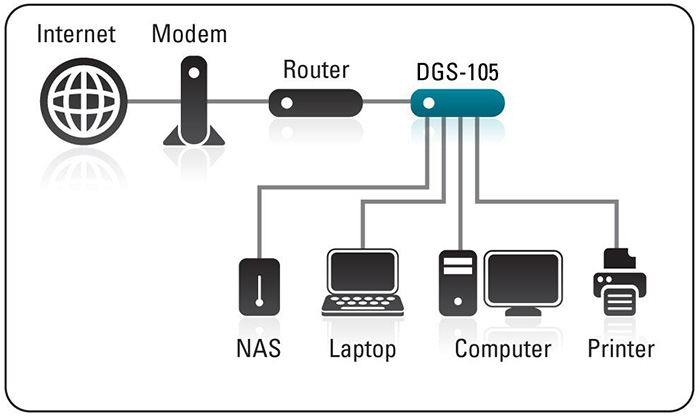

The DGS-105/108 5/8-Port Gigabit Switch is an economical, plug-and-play networking switchsolution for SOHO and small and medium businesses wanting to benefit from the increasedbandwidth of Gigabit Ethernet. It provides five/eight Gigabit ports that enable you to easilyexpand your network and provide a quick way to upgrade your network to Gigabit connectivity.

Fast and Reliable Networking

02

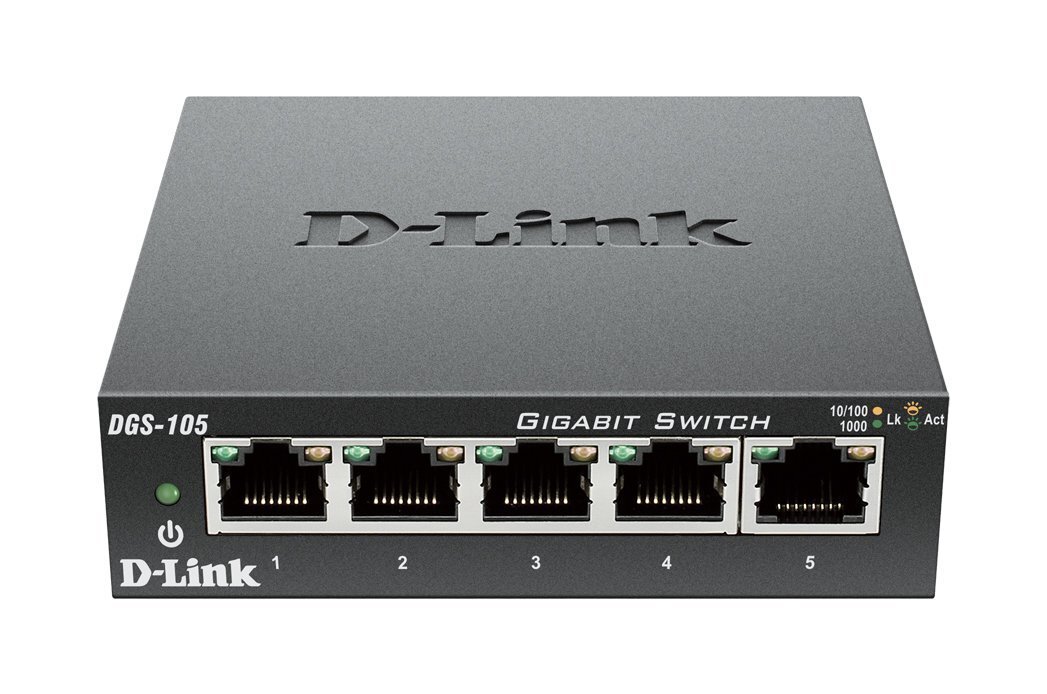

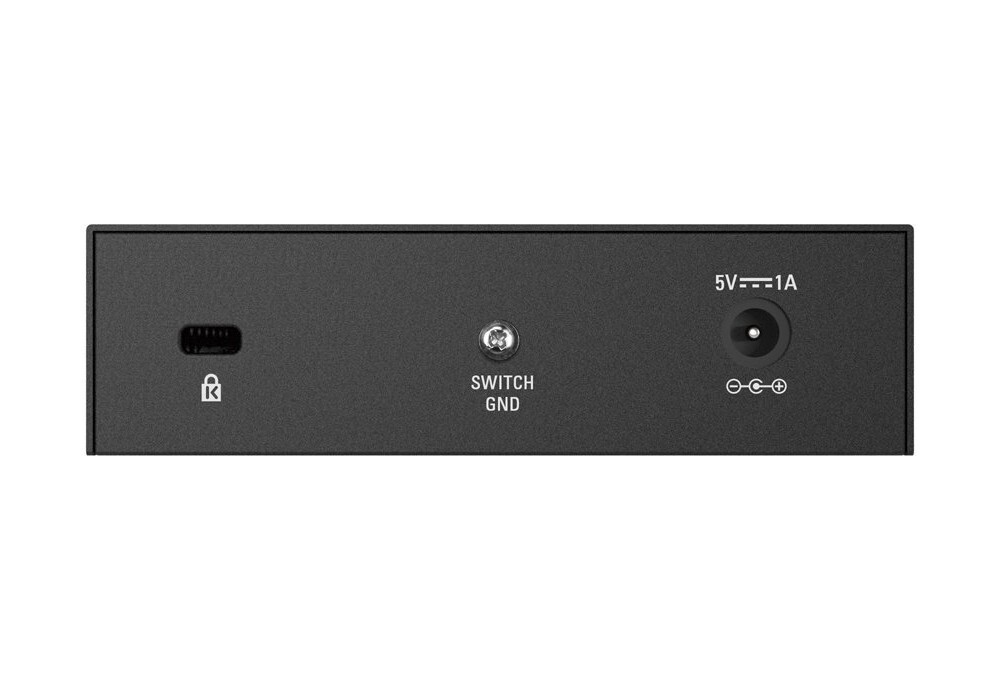

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105/1085/8-Port Gigabit Switch is ideal for transfering files quickly and online gaming. The DGS-105/108 features front, easy-to-access Ethernet ports with two color LED indicators per port toeasily distinguish link status. Additionally the switch features a Kensington Security Slot on therear panel where users can fasten the unit to a shelf or desk.

Conserve Energy

03

The 5-Port Gigabit Switch features D-Link’s Green Technology to save energy and reduce heat,which in turn extends product life without sacrificing performance or functionality. The switchsupports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connectedcomputer is shut down or when there is no Ethernet traffic, and will proceed to power downthe idle port, saving a substantial amount of power. In addition, the switch can also save energyby detecting the length of cable connected to a port and use only as much power as is required.Both of these features work together to help you save power automatically

Environmentally-friendly

04

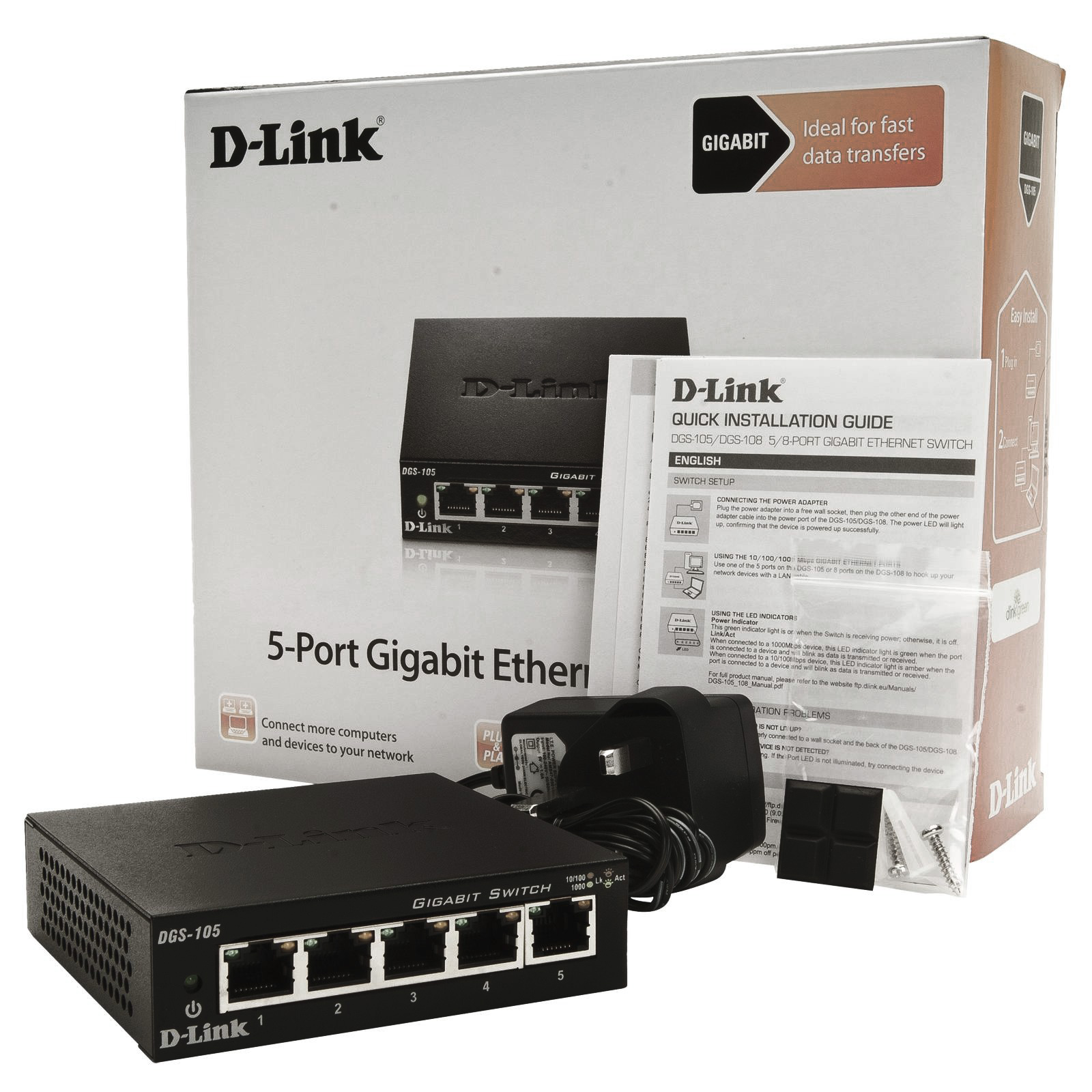

The 5-Port Gigabit Switch was designed with the environment in mind. It is compliant withEnergy Star Level V, CEC, and MEPS regulations which require the use of energy efficient poweradapters. The switch is built to comply with RoHS standards to minimize use of hazardousmaterials and is packaged with an EnergyStar Level V qualified power adapter in a recyclablepackaging making this product truly environmental friendly.

Product Highlights

05

High-Speed NetworkingGigabit ports allow you to connect up to five oreight devices for fast file transfers and smooth mediastreamingIntelligent Data StreamingQoS support enables clear VoIP calls and smoothonline gaming over the network connectionEco-Friendly and EconomicalEconomical yet innovative design runs cool and quiet



Switching Fabric



• 10Gbps

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.1pQoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• CSMA/CD

Data Transfer Rates

• Ethernet:
  • 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
  • 2000 Mbps (full duplex)

Topology

• Star

Network Cables

• 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method

• Store-and-forward

MAC Address Table

• 2K

MAC Address Learning

• Automatic update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 128KB per device

Jumbo Frames

• 9,216 Bytes

QoS

• 4 Queues,strict mode

General Specifications

DC Input

• External 5V/1 A Level “V” Power Adapter

Power Consumption

• Power On (Standby):
  • DC input: 0.2 watts
  • AC input: 0.74 watts
• Maximum:
  • DC input: 1.55 watts
  • AC input: 2.75 watts

Heat Dissipation

• Power On (Standby) AC input: 2.5234 BTU/h
• Maximum DC input: 5.2855 BTU/h

MTBF

• 593,755 hours

Operating Temperature

• 32 to 130 ?F (30 to 50 ?C)

Storage Temperature

• -14 to 158 ?F (10 to 70 ?C)

Operating Humidity

• 10% to 90% RH non-condensing

Storage Humidity

• 5% to 90% RH non-condensing

Dimensions

• 3.9 x 3.8 x 1.1 inches(100 x 98 x 28 mm)

Weight

• 0.57 lbs (256 grams)

Certifications

• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• CB

Warranty

• Limited Lifetime1

Ordering Information

DGS-105

• 5-Port Unmanaged Gigabit Switch
