Gigabit on Every Port

01

The 16/24-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to eachand every port for a truly high-speed network. If your network has a mix of legacy and moderncomputing capabilities, each port allows for standard Ethernet, Fast Ethernet, or GigabitEthernet connections. You have the latest technology available to every computer and deviceconnected to your network.

Innovative Design

02

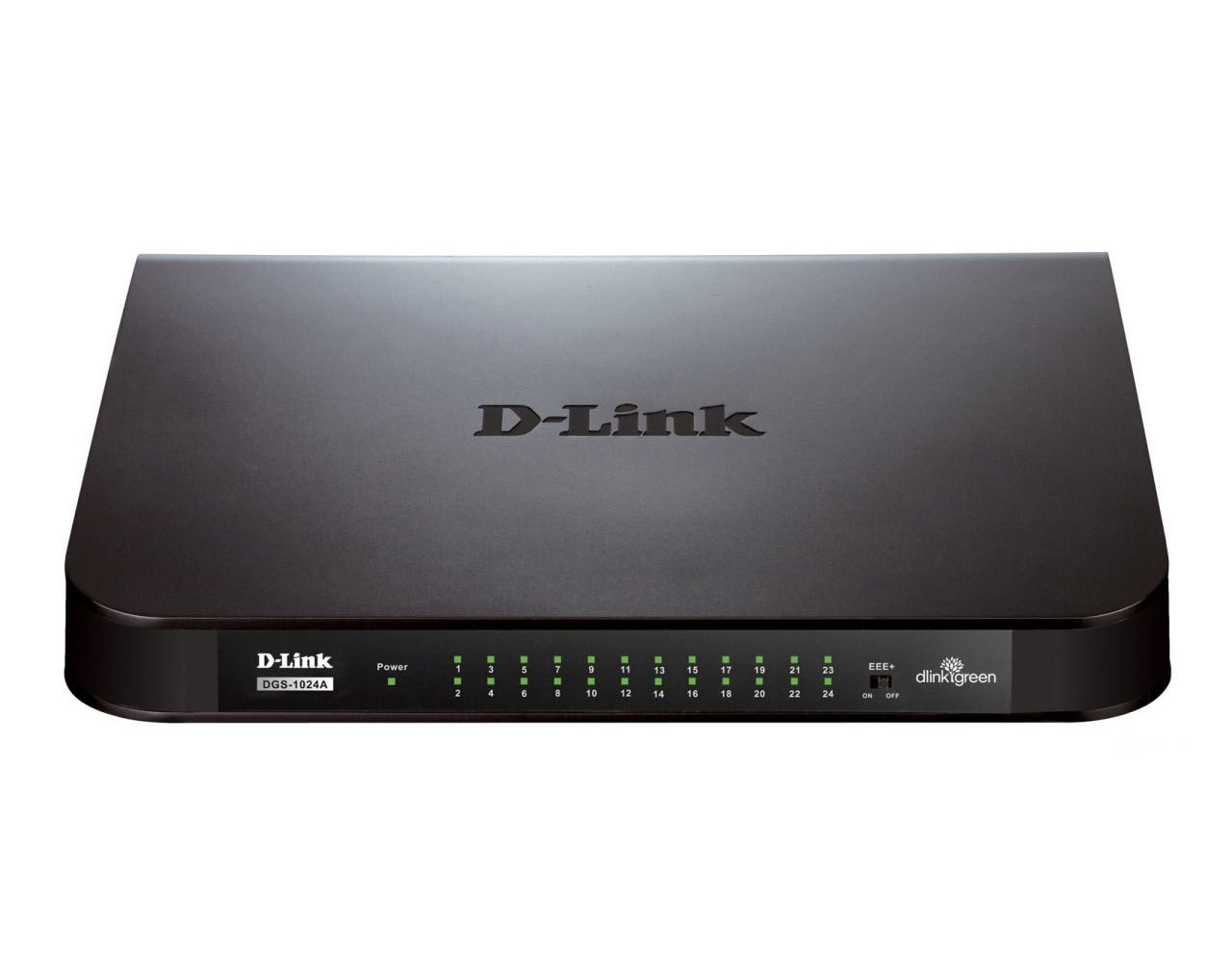

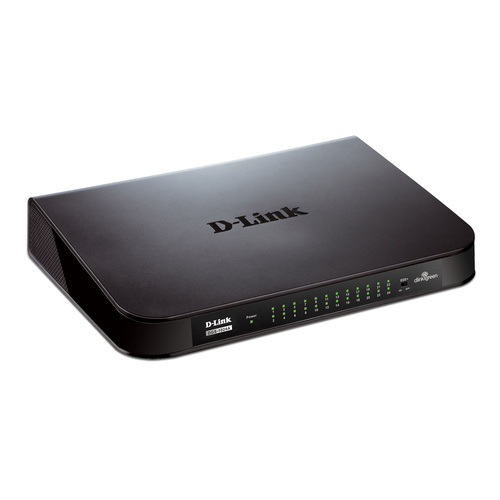

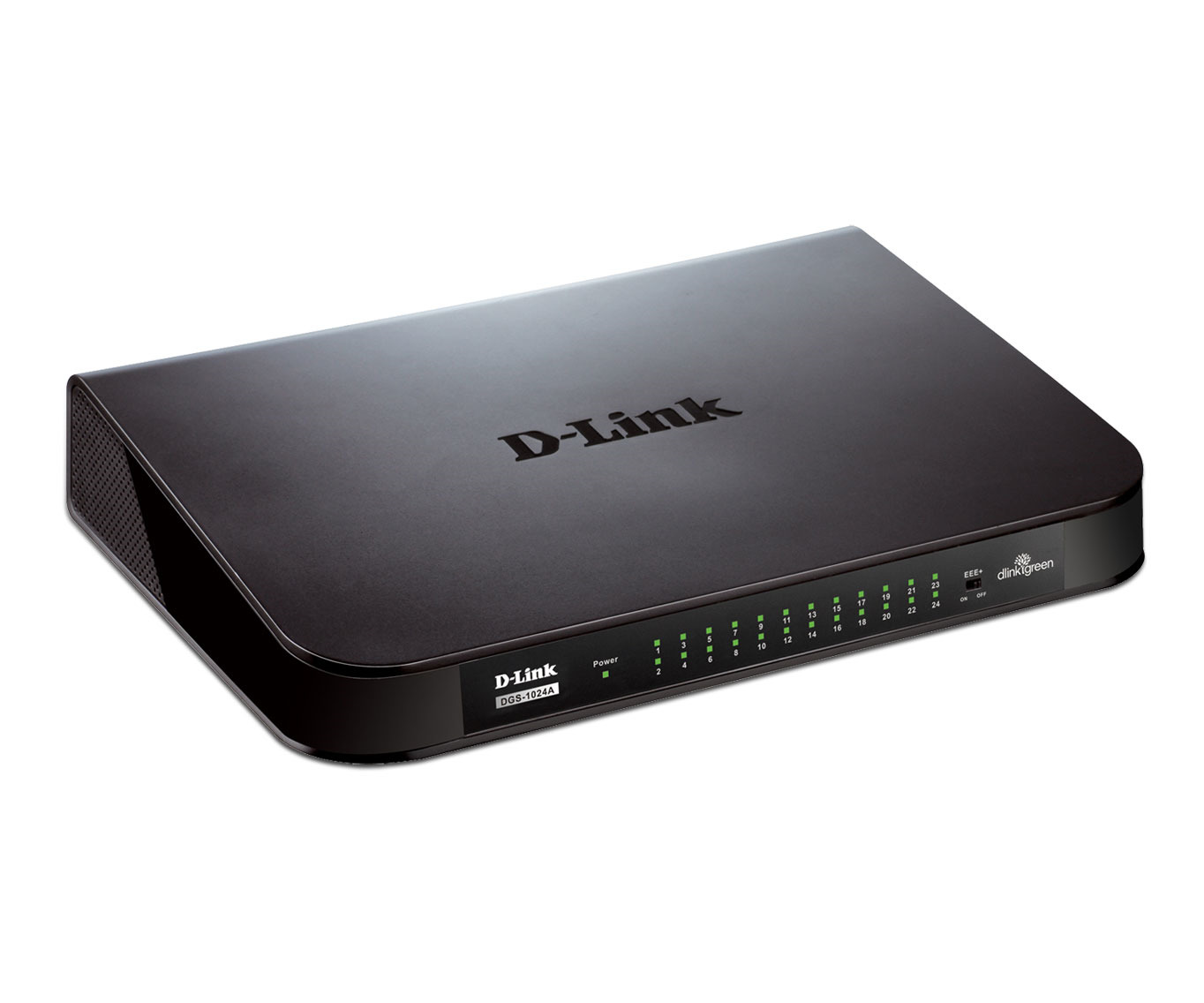

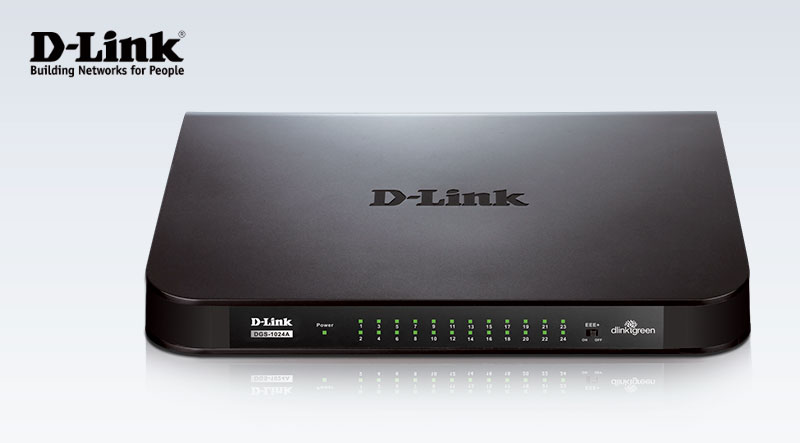

The sleek plastic case of the DGS-1016A/1024A series is an industry first for a high-performanceSOHO/SMB switch. Using a compact desktop style helps generate heat dissipation levelsthat allow for a fanless design, making the switches silent, as well as economical. The16/24-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and idealfor any business with big needs and a small budget.

Conserves Energy

03

The 16/24-Port Unmanaged Gigabit Switch series helps you conserve energy automaticallythrough several methods. It automatically powers down ports that have no link, allowing theswitch to save substantial amounts of power by cutting power usage for unused ports or anyports connected to computers that have been shut down. It can also detect connected cablelengths, and adjusts power usage accordingly, helping you save energy without affectingnetworking performance

Think Green

04

The DGS-1016A/1024A 16/24-Port Unmanaged Gigabit Switch series makes use of D-Link Green Ethernet technology, providing more energysavings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are alsoRoHS compliant, use recyclable packaging, and minimize the use of harmful substances.

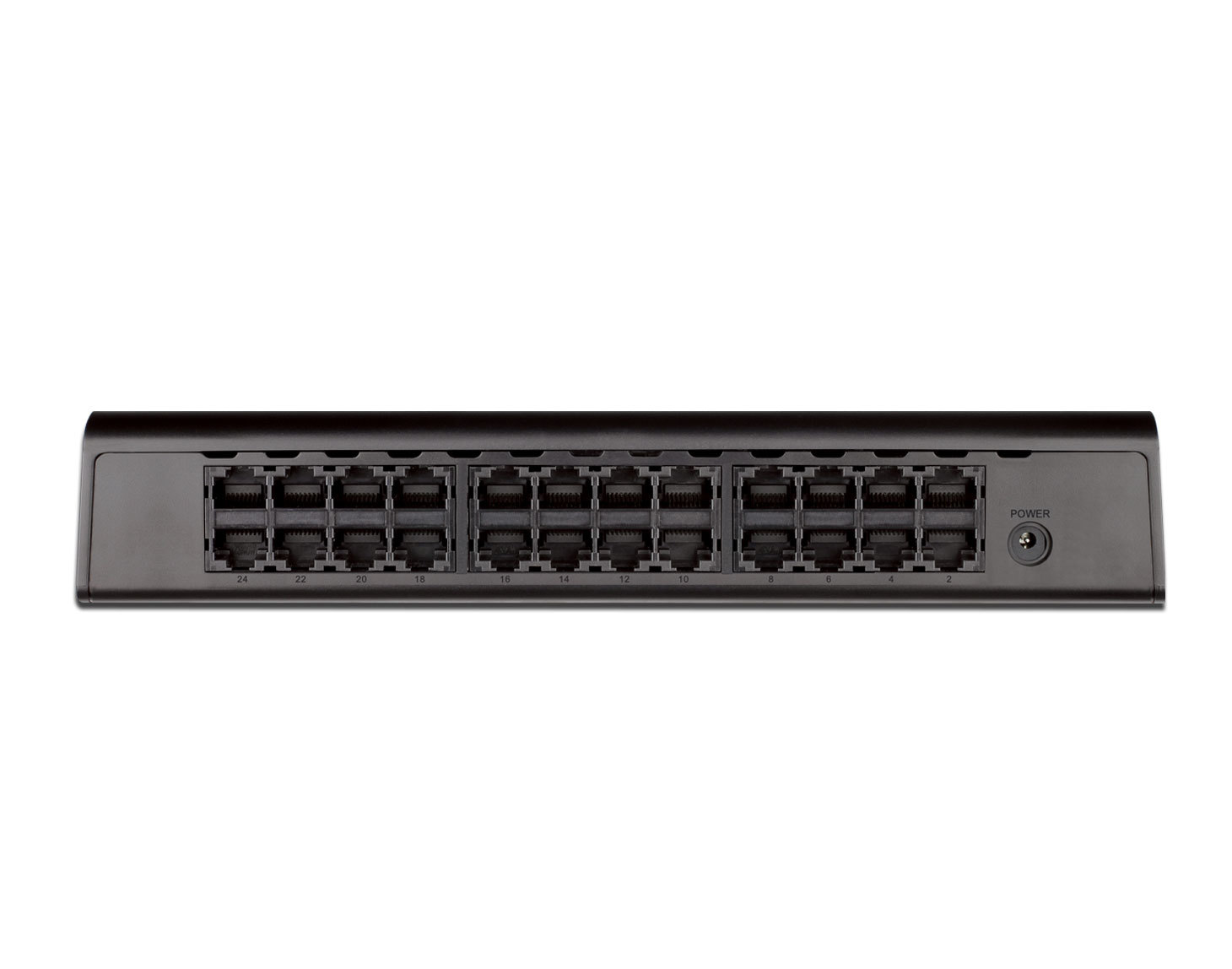

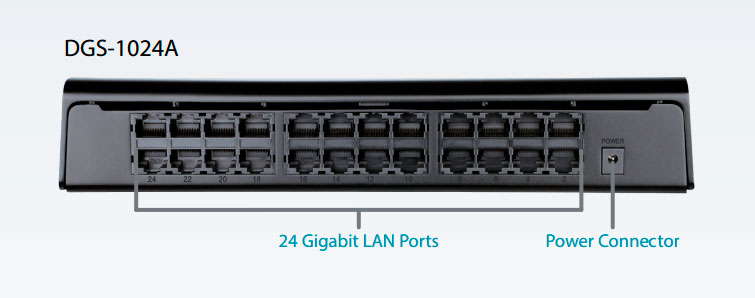

Number of Ports



• Twenty-four 10/100/1000 Gigabit ports

Switching Capacity

• 48Gbps

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet (EEE)

Data Transfer Rates

Ethernet:

• 10 Mbps (half duplex)
• 20 Mbps (full duplex)

Fast Ethernet:

• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Gigabit Ethernet:

• 2000 Mbps (full duplex)

Network Cables

10BASE-T:

• UTP CAT 3, 4, 5/5e (100 m max)
• EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T

• UTP CAT 5/5e (100m max)
• EIA/TIA-568 100-ohm STP (100 m max)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method

• Store-and-forward

MAC Address Table

• 16k

MAC Address Learning

• Automatic update

MAC Address Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 3.5Mbits

Jumbo Frames

• 9216 Bytes

D-Link Green

• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance

Power Inputs

• Switching 12V/1.5A level V power adapter

Power Consumption

• Power On (Standby): AC input: 6.86 Watts
• Power Max.: AC input: 14.17 Watts

Heat Dissipation

• Power On (Standby): AC input: 23.41 BTU/h
• Power Max.: AC input: 48.35 BTU/h

MTBF

• 401,516 hours

Operating Temperature

• 32 to 104 °F (0 to 40 °C)

Storage Temperature

• 14 to 158 °F (-10 to 70 °C)

Operating Humidity

• 10% to 90% non-condensing

Storage Humidity

• 5% to 90% non-condensing
