TUNED FOR LOW-NOISE OPERATION
RMx power supplies are tuned with a low-noise fan curve to ensure that, even at full load, fan noise is kept to a minimum.



80 PLUS GOLD CERTIFIED
The RM650x can deliver power with over 90% efficiency to keep energy consumption, noise, temperatures, and your power bill low.



100% ALL JAPANESE 105°C CAPACITORS
By using high-end electrolytic capacitors, the RM650x delivers the unwavering power and long-term reliability you’ve come to expect from a CORSAIR power supply.

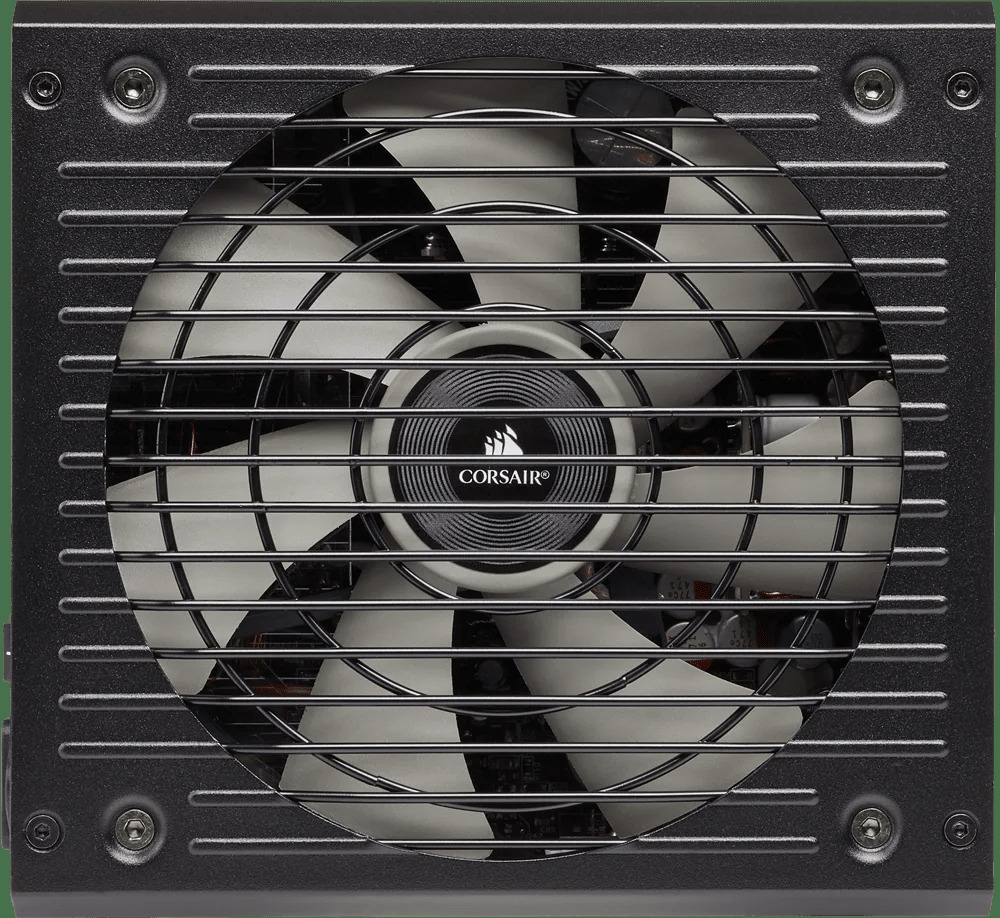

ZERO RPM FAN MODE
At low and medium loads the RM650x’s cooling fan doesn’t spin until you need it, for near-silent operation.



COMPACT SIZE
The RM650x’s 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases

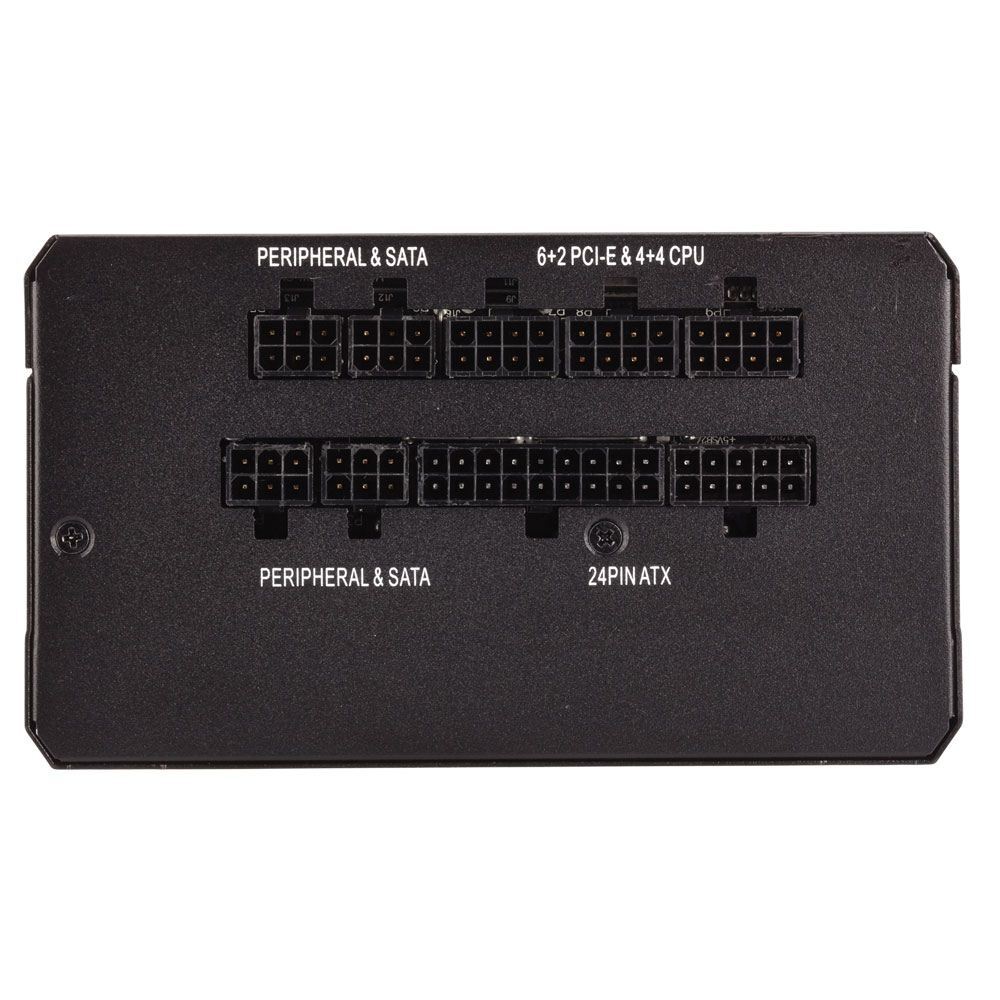

FULLY MODULAR CABLES
The RM650x’s fully modular power cables mean that you only connect the cables your system needs, making clean and tidy builds easier.



TEN-YEAR WARRANTY
CORSAIR offers a ten-year warranty on all RMx series power supplies, your guarantee of reliable operation that will last across several system builds. If you run into any problems during the installation or use of an RMx power supply, CORSAIR global customer support is ready to help.

Specifications
Product Type	Power Supply
Weight
Compatible/Used for	ATX12V v2.4 and EPS 2.92 standards
Connectors	ATX, EPS, Floppy, PCIe, SATA
Dimensions	150 x 86 x 160 mm
Form Factor	ATX
Input Voltage
Power Output	650 W
Type	ATX



SPECIFICATIONS

Adjustable Single/Multi 12V Rail - No

ATX Connector - 1

ATX12V Version - v2.4

Continuous output rated temperature C - 50°C

Continuous power W - 650 Watts

Fan bearing technology - Rifle Bearing

Fan size mm - 140mm

MTBF hours - 100,000 hours

Multi-GPU ready - Yes

80 PLUS Efficiency - Gold

PSU Form Factor - ATX

Zero RPM Mode - Yes

Cable Type - Low-Profile, All Black

Dimensions - 150mm x 86mm x 160mm

EPS12V Connector - 1

Floppy Connector - 1

Modular - Fully

PCIe Connector - 4

SATA Connector - 9
