CONNECT EASILY TO A COMPUTER NETWORK

01

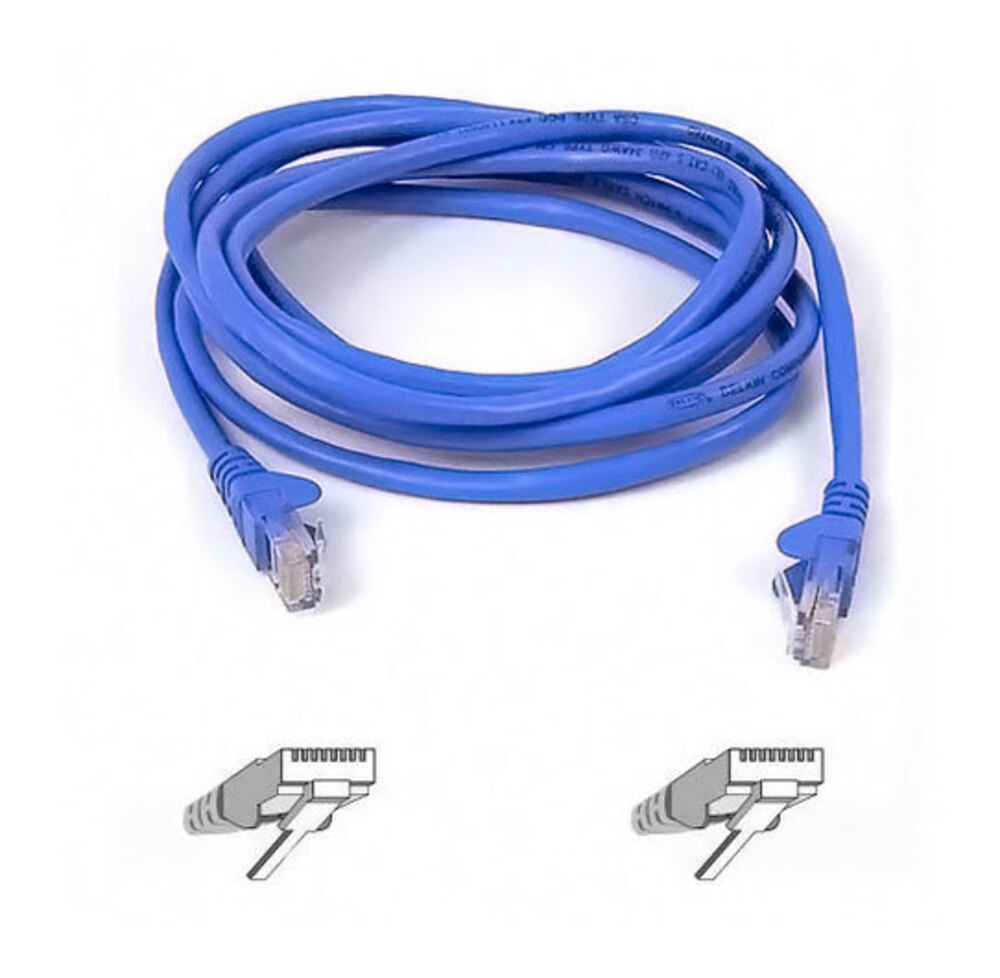

Upgrade your network and enjoy clean and clear transmissions with the Belkin CAT6 Snagless Ethernet Patch Cable. This patch cable lets you connect a laptop or desktop computer to a wall outlet, modem, router or another networking device. It meets the CAT6 standard and is suitable for use with 100/1000BASE-T networks. Patch cables are also handy in home offices and hotel rooms to establish a wired Internet connection.

KEY FEATURES

02

1. 4 UTP stranded copper wires

2. Durable PVC jacket

3. RJ45 plugs with 50-micron gold-plated connectors

4. Molded strain relief with snagless design

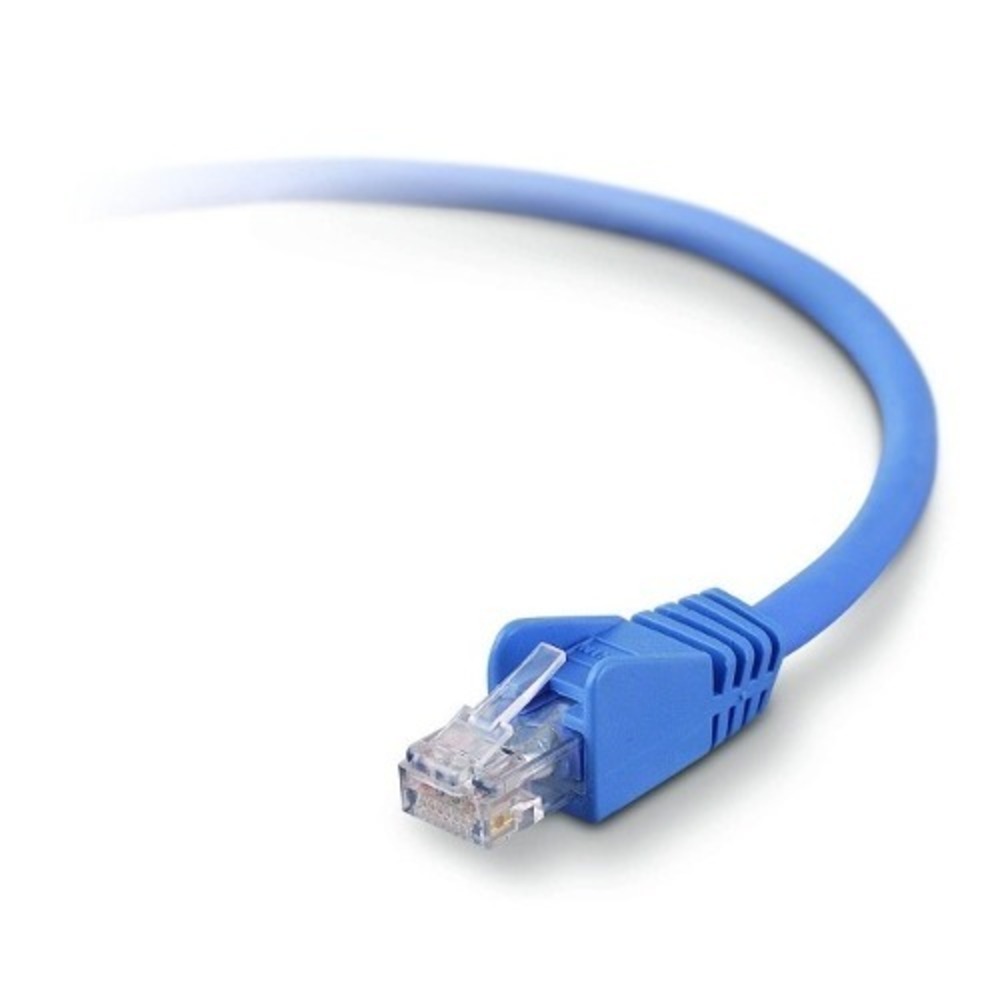

RJ45 PLUGS WITH GOLD-PLATED CONTACTS FOR A CLEAR SIGNAL

03

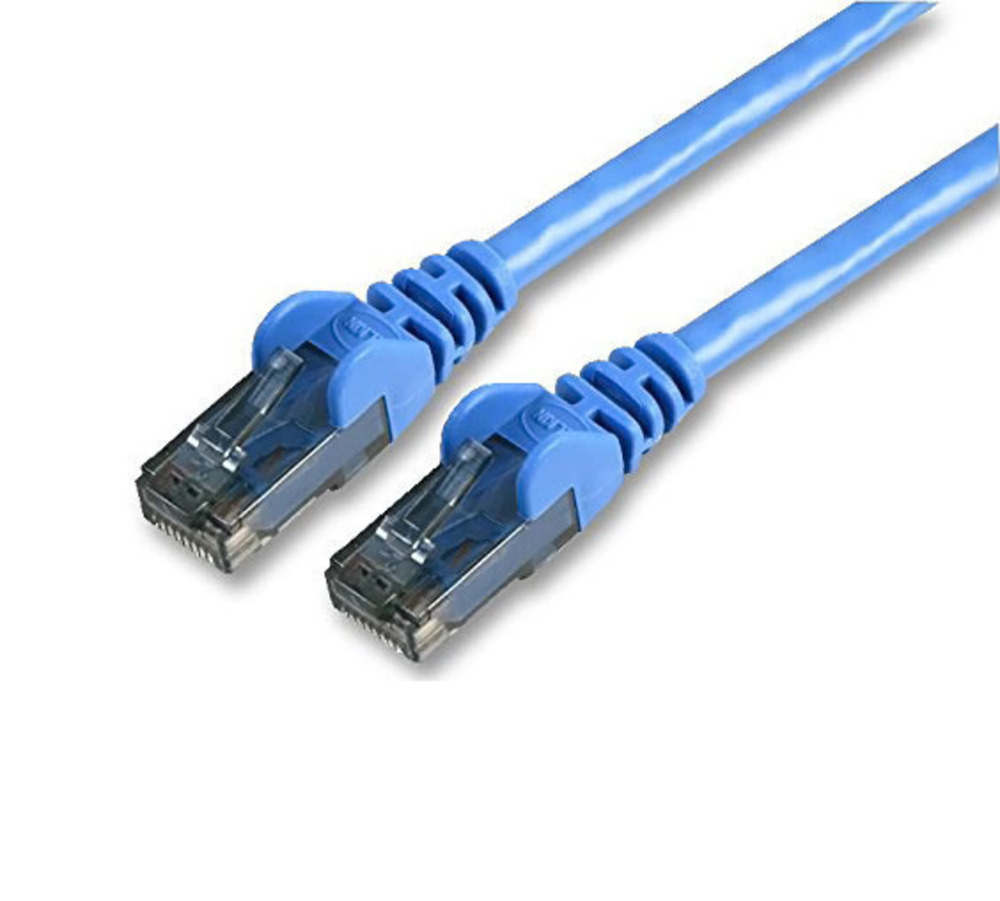

The Belkin CAT6 Snagless Ethernet Patch Cable features an RJ45 male connector on each end. Internal load bars ensure accurate plug positioning and consistent high performance, while 50-micron gold-plated connectors resist corrosion and wear and deliver a clean, clear signal.

GIGABIT SPEEDS WITH CAT6 TECHNOLOGY

04

Made with Unshielded Twisted Pair (UTP) stranded copper wires, this cable meets the CAT6 Ethernet network cable standard and can support Ethernet speeds of up to 1 gigabit per second. Unlike CAT5 technology, CAT6 cables fully use all four pairs of twisted copper wires for greater bandwidth and speed.

LESS CROSSTALK WITH TWISTED PAIR WIRES

05

The CAT6 Snagless Ethernet Patch Cable features 4 UTP 24 AWG (American Wire Gauge) stranded copper wires to reduce electromagnetic interference. Stranded cables are more pliable than solid cables, making them better suited for travel. Plus, the wires are housed in a durable PVC outer jacket for abrasion and corrosion resistance.

RESISTS WEAR WITH SNAGLESS-TYPE MOLDINGS

06

This Ethernet cable includes a molded strain relief with ridges at each end that provides flexibility, reduces stress and allows the patch cable to move without cracking or breaking away from the plug for greater durability. And, the snagless molds protect each RJ45 plug, preventing damage during installation.



Characteristic Impedence	100±15Ω @ 1 ~ 550MHz
Conductor Construction	Bare Stranded Copper
Conductor Resistance	93.8Ω/km/20°C max
Conductor Size	24AWG x 4pairs
Connectors	1 x RJ-45 - male
Dielectric Strength	AC 1.5kV
Flame Retardant Test	CM
Insulation Material	HDPE
Jacket Material	PVC
Mutual Capacitance	56pF/m max
Propagation Delay	536nS/100m max @ 550MHz
Spark Test	2.5kV
Standards Compliance	ISO/IEC 11801; TIA/EIA-568-B.2-1
Structural Return Loss	8.6dB min at 550MHz
Cable Type	Cat 6
Cable Characteristic	Unshielded twisted pair (UTP)
Jacket Diameter	5.9±0.15mm
Connector Type(s)	50 micron gold-plated connector
