ASUS RT-AC56S 01



  02



  03





  • Network Standard

    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6

  • Product Segment

    AC1200 enhanced AC performance : 300+867 Mbps

  • Coverage

    Medium homes

  • Data Rate

    802.11n : up to 300 Mbps
    802.11ac : up to 867 Mbps

  • Antenna

    Internal PCB antenna x 4

  • Transmit/Receive

    MIMO technology
    2.4 GHz 2 x 2
    5 GHz 2 x 2

  • Memory

    128 MB Flash
    128 MB RAM

  • Operating Frequency

    2.4 GHz / 5 GHz

  • Encryption

    64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support

  • Firewall & Access Control

    Firewall:SPI intrusion detection,DoS protection
    Access control:Parental control, Network service filter, URL filter, Port filter

  • Management

    UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, Universal Repeater, System Event Log

  • WAN Connection Type

    Internet connection type :
    WAN Bridge support
    Multicast Proxy support
    Multicast Rate Setting support

  • Ports

    RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
    USB 2.0 x 1
    USB 3.0 x 1

  • Button

    WPS Button, Reset Button, Power Switch, Wireless on/off Button

  • Features

    Airtime Fairness
    SmartQoS
    - WMM
    - User definable rules for IP/MAC/Port
    - Upload and download bandwidth management
    - ACK/SYN/FIN/RST/ICMP with highest priority
    Parental Control
    Guest Network : 2.4 GHz x 3, 5 GHz x 3
    VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
    VPN client : PPTP client, L2TP client, OpenVPN client
    Mac OS Backup
    Enhanced media server (AiPlayer app compatible)
    - Image : Jpeg
    - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
    - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
    AiCloud personal cloud service
    3G/4G data sharing
    Printer Server
    - Multifunctional printer support (Windows only)
    - LPR protocol support
    Download Master
    - Support bt, nzb, http, ed2k
    - Support encryption, DHT, PEX and magnet link
    - Upload and download bandwidth control
    - Download scheduling
    AiDisk file server
    - Samba and FTP server with account management
    Dual WAN
    IPTV support

  • LED Indicator

    Power x 1
    LAN x 1
    WAN x 1
    USB x 2
    Wi-Fi x 2

  • Power Supply

    AC Input : 110V~240V(50~60Hz)
    DC Output : 12 V with max. 2 A current

  • OS Support

    Windows® 10
    Windows® 8.1
    Windows® 8
    Windows® 7
    Windows® Vista
    Windows® 2000
    Windows® ME
    Windows® XP
    Windows® Server 2003
    Windows® Server 2008
    Mac OS X 10.1
    Mac OS X 10.4
    Mac OS X 10.5
    Mac OS X 10.6
    Mac OS X 10.7
    Mac OS X 10.8
    Mac OS X
    Linux Kernel (Support Ubuntu only)
    Linux

  • Dimensions

    147 x 205 x 66 ~ mm (WxHxD)

  • Weight

    406 g

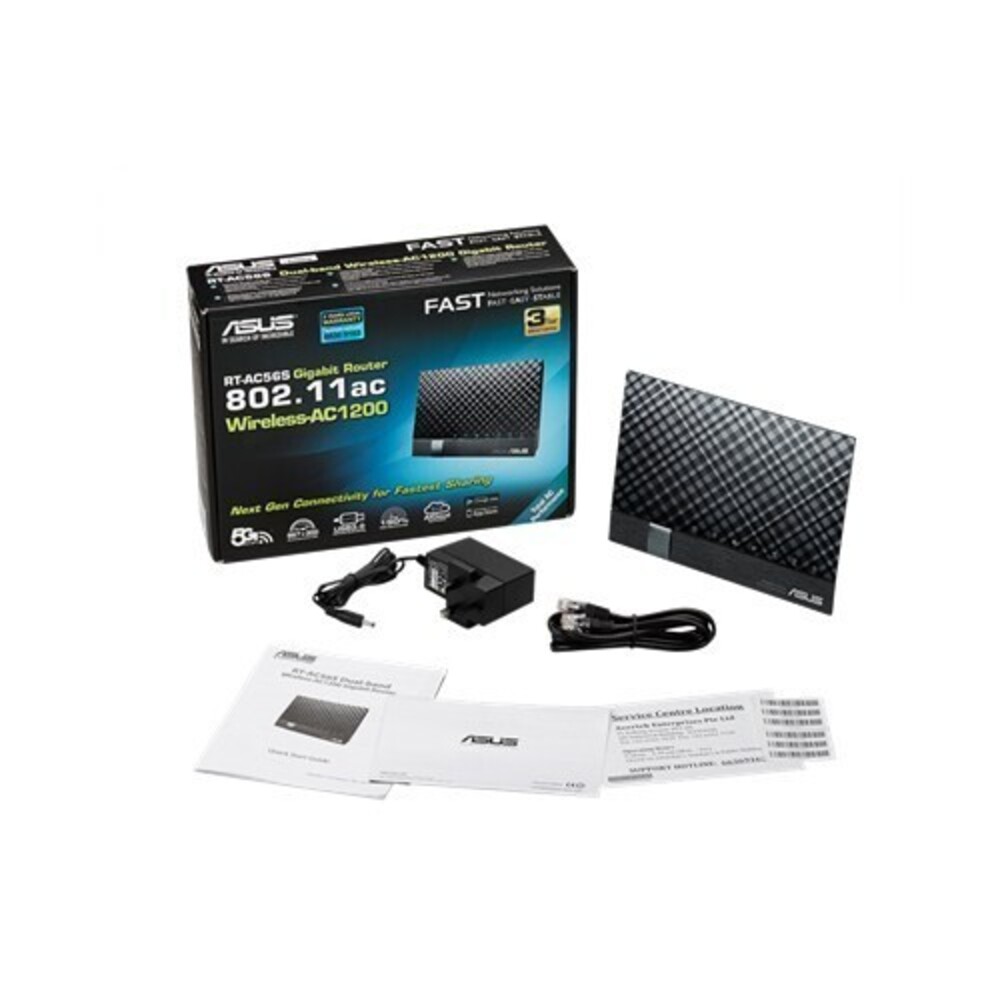

  • Package Content

    1 x RT-AC56S Dual Band Wireless-AC1200 Gigabit Router
    1 x RJ-45 cable
    1 x Power adapter
    1 x Warranty card
    1 x QSG

  • Operation mode

    Wireless router mode
    Range extender mode
    Access point mode
    Media bridge mode



Network Type Wireless
WAN-port Wi-Fi
Packing Weight 1220 g
Ports 4 x 10/100/1000 Mbps RJ45
Wi-FiSpeed 867 Mbps 300 Mbps
Frequency Wireless 2.4 GHz 5 GHz
LAN Speed 1 Gbits
Antenna On-Board
Wireless Security 4-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support
Antennas Quantity Internal PCB antenna x4
Standards Compliance IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11ac IEEE 802.3u
Additional Features Product Segment AC1200 enhanced AC performance : 300+867 Mbps Coverage Medium homes Data Rate 802.11n : up to 300 Mbps 802.11ac : up to 867 Mbps IPTV support Transmit/Receive MIMO technology 2.4 GHz 2 x 2 5 GHz 2 x 2 Memory 128 MB Flash 128 MB RAM 3G/4G data sharing / Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Management UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, Universal Repeater, System Event Log AiDisk file server - Samba and FTP server with account management
Security Firewall:SPI intrusion detection,DoS protection Access control:Parental control, Network service filter, URL filter, Port filter
Packing Width 320 mm
Packing Depth 240 mm
Packing Height 50 mm
Package Type BOX
VPN Pass-Through PPTP L2TP IPsec
