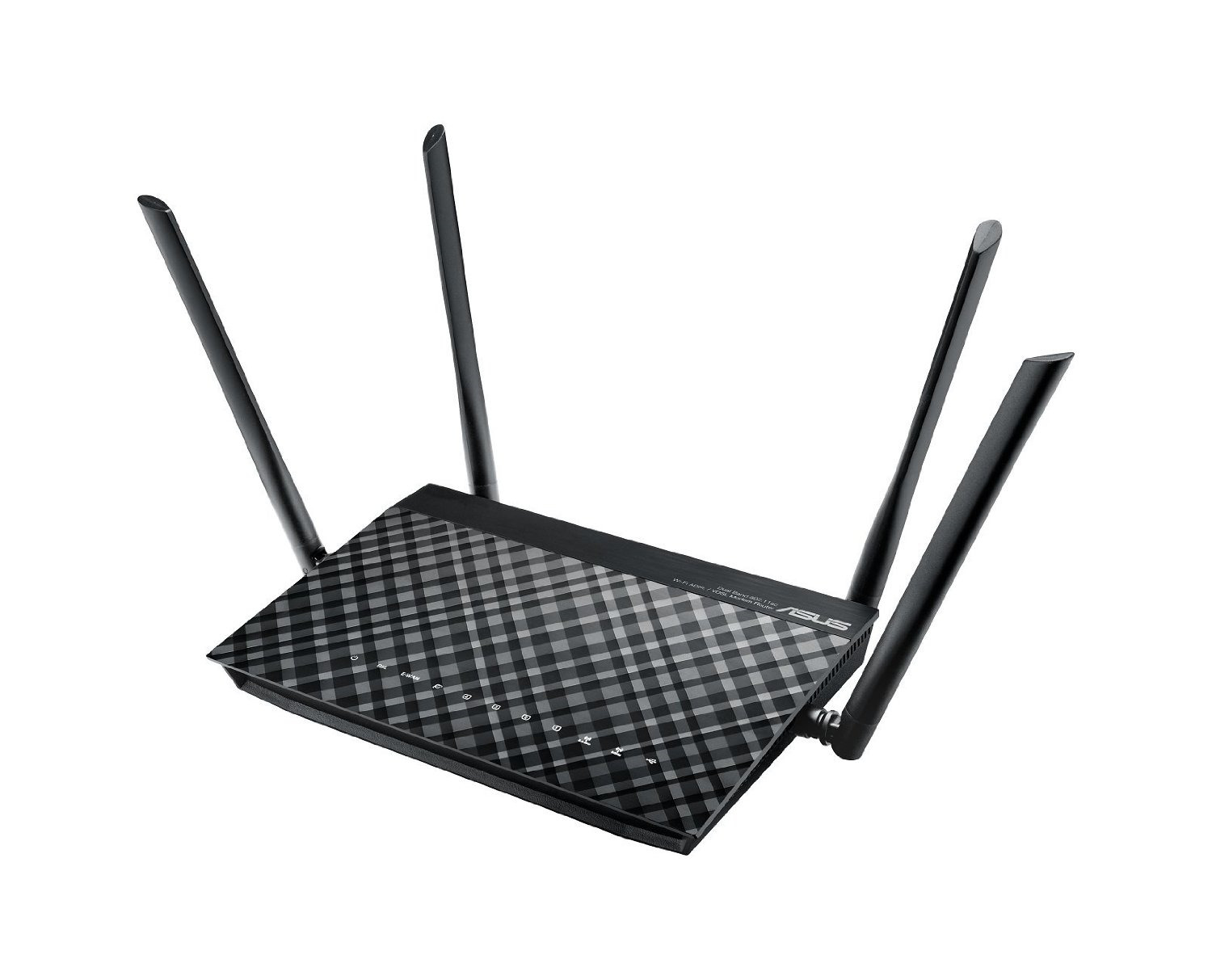

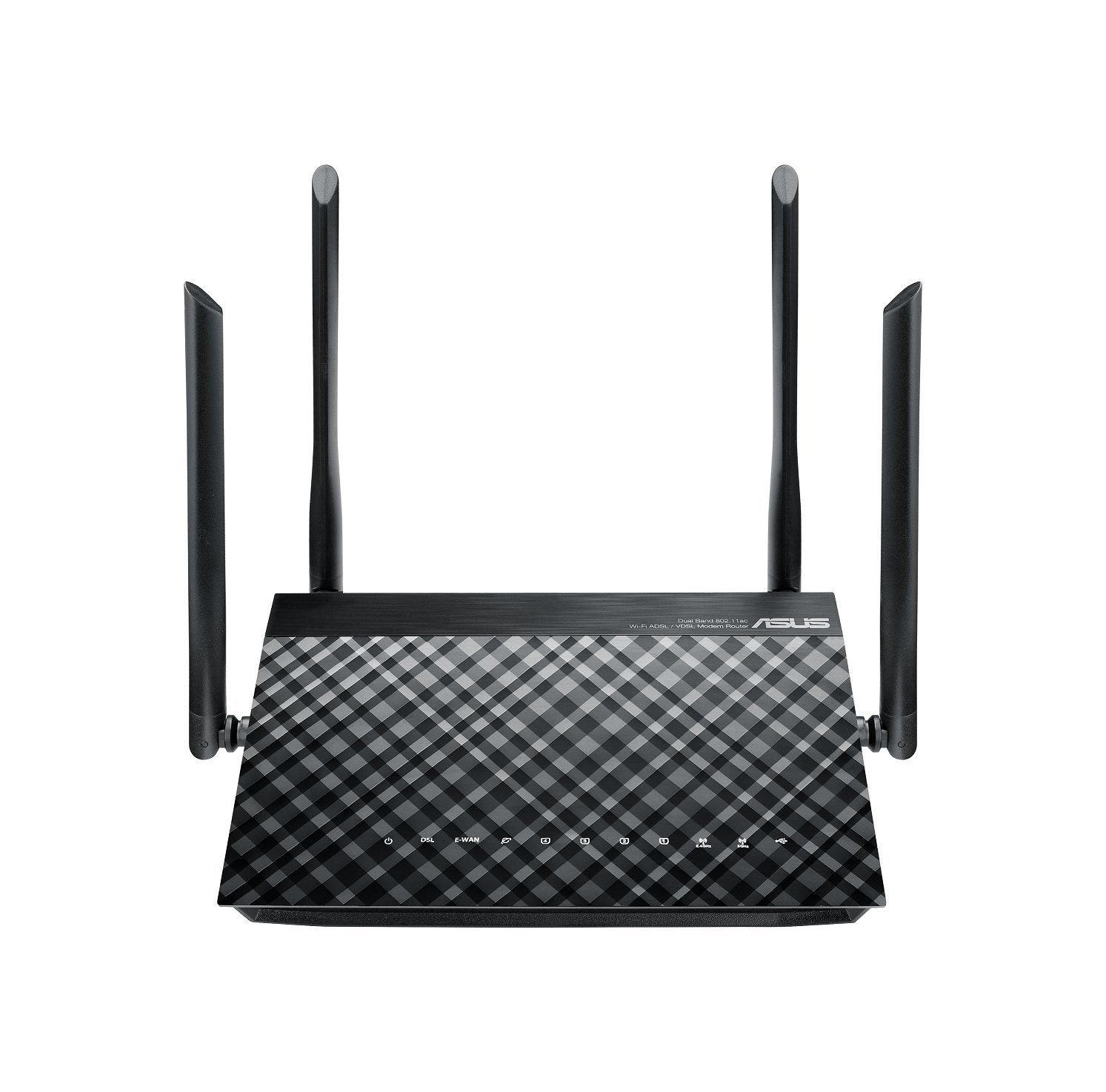

DSL-AC52U Dual Band 802.11ac Wi-Fi ADSL/VDSL Modem Router01
Future-proofed versatility with 802.11ac wireless speeds

The ASUS DSL-AC52U is a ADSL/VDSL 802.11ac Wi-Fi modem router, with combined dual-band data rates of up to 733Mbps. On the 5GHz band, 802.11ac gives 433Mbps wireless data rates, while 2.4 GHz 802.11n performance supports 300Mbps. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services, the top specification completes future-proofing.
ASUS AiRadar enhances the Wi-Fi stability and improves coverage up to 150%. Most importantly, the universal beamforming not only works on 802.11ac clients, but also 802.11a/b/g/n clients. Equipped with powerful hardware NAT acceleration and built-in Gigabit Ethernet, the DSL-AC52U gives you full Gigabit internet performance, with a WAN-to-LAN throughput performance of over 900 Mbps.
USB 2.0 port allows the DSL-AC52U to share printer and scanner over a network, and it can also operate as high-speed NAS (Network Attached Storage) device when external storage is connected.
The easy-to-use ASUSWRT graphical user interface unlocks the power of the DSL-AC52U giving robust control to optimize your network for you. 30-second set-up and easy traffic management means even network newbies can enjoy its sophisticated features, while power users will love its Download Master, IPv6 support, multiple wireless SSIDs and secure VPN access.

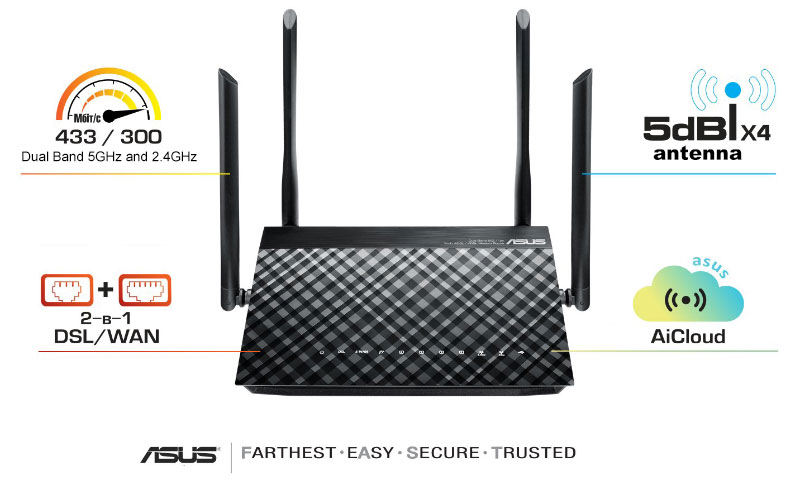

  • Concurrent Dual Band: 433Mbps on 5GHz and 300Mbps on 2.4GHz.
  • Two WAN ports for DSL and Ethernet offer double the choice – wireless router or DSL modem.
  • Compatible with VDSL2, ADSL2/2+, ADSL, fiber and cable services for complete future-proofing.
  • Gigabit Ethernet ports for the fastest, most reliable internet performance.
  • Multi-purpose USB port supports file sharing, printer sharing, media streaming and 3G/4G support.
  • VDSL/ADSL WAN multi service for IPTV support.
  • PPTP/Open VPN server and VPN client support.
  • Download Master and enhanced media server let you download and stream anywhere.
  • ASUS AiCloud lets you access, sync, share and stream data anywhere.

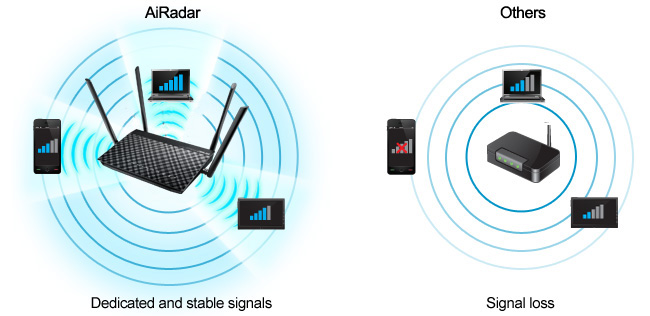

Enhanced signal range and stability02
ASUS AiRadar intelligently improves wireless connections by using exclusive ASUS RF fine-tuning. This ensures extended coverage, dynamic data speed increases, and enhanced stability.
Total flexibility with DSL, Ethernet or 3G/4G LTE Internet connections03
DSL-AC52U has multiple ways to connect to the Internet, with a choice of DSL, Ethernet or 3G/4G LTE*. You can use DSL-AC52U as a DSL modem Wi-Fi router or a standalone Wi-Fi router according to your needs. And with the ability to switch instantly between connections if one fails (and switch back again when it’s fixed) or combine multiple connections for more bandwidth, it’s perfect for reliable, always-on internet connectivity.

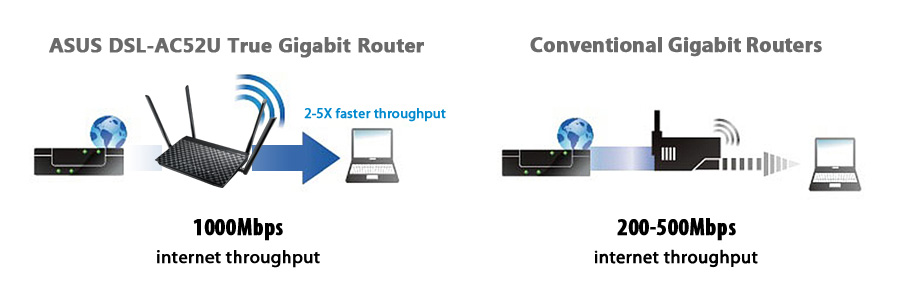

Gigabit Internet browsing with hardware NAT04
Equipped with a powerful hardware NAT acceleration engine and built-in Gigabit Ethernet, the DSL-AC52U gives you full Gigabit performance. Its WAN-to-LAN throughput performance is over 900 Mbps, which is more than 4.5 times that of traditional software-based NAT Gigabit routers. This reduces the possibility of bottlenecks on fast internet connections.
Add external storage, printers, and other devices to your network05
Make DSL-AC52U your media and device center. With built-in two USB ports, connect external storage drives, printers, scanners and many other USB-enabled devices to share with your networked PCs. Having your devices networked, lets you access them easier than ever before.

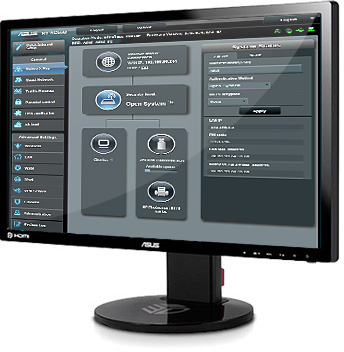

Robust control and optimization with DSL ASUSWRT06
With the DSL-ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. The whole-new dashboard interface lets you manage all clients and settings via a single graphical interface, and provides 1-click updates.
ASUS AiCloud – Your world on demand07
ASUS AiCloud keeps you connected to your data wherever and whenever you have an internet connection. It links your home network and online web storage service and lets you access it through the AiCloud mobile app on your iOS or Android smartphone or through a personalized URL in a web browser.
Download and stream anywhere08
Download Master and enhanced media server let you download and play multimedia files stored on router-attached USB storage on a wide range of compatible devices such as PC, pad, PS4, Xbox, and smart TV. Download Master can also download files while your PC is turned off, and allows you to manage and monitor download status remotely.
VPN server and VPN client support09
DSL-AC52U offers a simple VPN server and VPN client setup to access a home network or the internet privately and securely. Easily set up a VPN server with PPTP/Open VPN protocol support with no need for paid VPN services or a dedicated VPN server. DSL-AC52U also turns your network-connected devices into VPN-enabled clients via PPTP/L2TP and Open VPN protocols without additional VPN software required.

  • Network Standard
    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
  • Product Segment
    AC750 complete AC performance : 300+433 Mbps
  • Wi-Fi Data Rate
    802.11a : 6,9,12,18,24,36,48,54 Mbps
    802.11b : 1, 2, 5.5, 11 Mbps
    802.11g : 6,9,12,18,24,36,48,54 Mbps
    802.11n : up to 300 Mbps
    802.11ac : up to 433 Mbps
  • xDSL Data Rate
    VDSL2/ADSL2+/ADSL2/ADSL multimode
    Support Annex A/B/I/J/L/M
    Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
    VDSL2 interface compliance with ITU-T G.993.2
    ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
    ITU-T G.992.2 (G.lite), Annex A, and B Compliant
    ANSI T1.413 Compliant
    ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
    ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
    ITU-T G.993.2 Compliant, Annex A, B
    ITU-T G.993.5 (Vectoring)
    ITU-T G.998.4 (G.inp) Improved impulse noise protection
    ATM and PTM (dual-priority)

    VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
    ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
    ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps
  • Features
    DHCP server, firewall/NAT, DynDNS
    VPN server(PPTP/OpenVPN)
    VPN client(PPTP/L2TP/OpenVPN)
    Dual WAN Fail over/Fail back/Load balance
    Traffic monitor/Quality of Service (QoS)
    DSL spectrum
    IPTV(VDSL/ADSL WAN)
    DSL feedback mechanism
    Save/Resotre configuration file
    WiFi Bandwidth Limiter
  • Antenna
    External dBi antenna x 4
  • LED Indicator
    Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1
  • Button
    WPS Button, Reset Button, Power Button, Wireless on/off Button

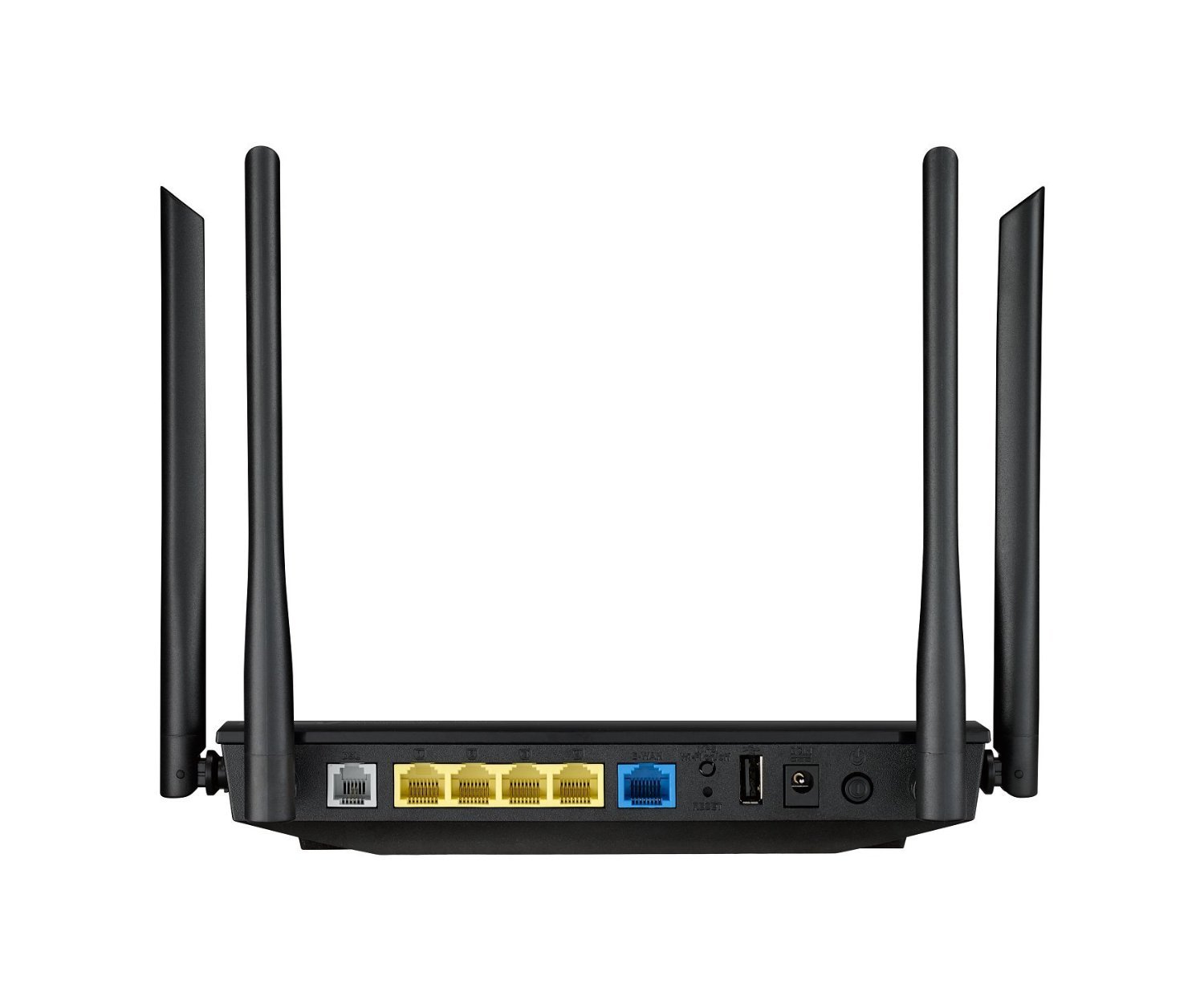

  • Ports
    1 x RJ11 for xDSL
    4 x RJ45 10/100/1000 BaseT for LAN
    1 x RJ45 10/100/1000 BaseT for WAN
  • USB Ports
    USB 2.0 x 1
  • USB Applications
    Printer Server
    FTP Server
    Download Master
    3G/4G sharing
  • Operating Frequency
    2.4GHz
    5GHz
  • Router Special Features
    3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
  • Operation Channel
    13 Europe (ETSI)
  • Memory
    128MB NAND flash/128MB DDR3
  • Output Power
    ac mode : 17 dBm
    b mode : 20.5 dBm
    g mode : 18.5 dBm
    n mode : 17 dBm
    a/n mode : 19 dBm
  • Security
    64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
  • Management
    Web-based GUI configuration
    Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
    UPnP IGD 1.0
    Auto VPI/VCI detection
    Configuration backup and restore
    Diagnostics
    Log & Trace function
  • Utilities
    - Download master:
    .Support BT, NZB, HTTP, ED2K
    .Support encryption, DHT, PEX and magnet link
    .Upload and download bandwidth control
    .Download scheduling

    - Media server:
    .Image: JPEG
    .Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
    .Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

    - Printer Server:
    .Multifunctional printer support(Windows only)
    .LPR protocol support
  • VPN Support
    IPSec Pass-Through
    PPTP Pass-Through
    L2TP Pass-Through
    PPTP server
    OpenVPN server
    PPTP client
    L2TP client
    OpenVPN client
  • Power Adapter
    AC Input : 110 ~240 V(50~60HZ)
    DC Output : 12 V/1.5 A
    Power Consumption : 18 W Max.
  • Certificates
    CE, Telepermit, RCM
  • Dimensions
    20.7 x 14.9 x 3.6 ~ cm (WxDxH)
    (Without Bezel)
  • Weight
    360 g (Device Only)
  • OS Support
    Windows® 10
    Windows® 8.1
    Windows® 8
    Windows® 7
    Windows® Vista
    Windows® 2000
    Windows® XP
    Mac OS X 10.1
    Mac OS X 10.4
    Mac OS X 10.5
    Mac OS X 10.6
    Mac OS X 10.7
    Mac OS X 10.8
  • Package Content
    DSL-AC52U Dual-band 802.11ac VDSL/ADSL Modem Router
    RJ-45 cable
    RJ-11 cable
    Support CD(User manual and utility)
    Power adapter
    Warranty card
    Quick start guide
    Splitter (varies with regions)
Network TypeWireless
WAN-portEthernet
Packing Weight1000 g
Ports4 x 10/100/1000 Mbps RJ45 1 x RJ11 1 x Gigabit WAN Port
Frequency Wireless2.4 GHz 5 GHz
Wi-FiSpeed433 Mbps 300 Mbps
LAN Speed1 Gbits
AntennaExternal/Detachable
Wireless Security64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Antennas Quantity4
Standards ComplianceIEEE 802.11ac IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.3u
Additional FeaturesCompatible with VDSL2, ADSL2/2+, ADSL, fiber and cable services for complete future-proofing 1 x RJ11 for xDSL Memory: 128MB NAND flash/128MB DDR3
Security64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
System RequirementsWindows 10 Windows 8.1 Windows 8 Windows 7 Windows Vista Windows 2000 Windows XP MAC OS
Packing Width370 mm
Packing Depth290 mm
Package ContentsDSL-AC52U Dual-band 802.11ac VDSL/ADSL Modem Router RJ-45 cable RJ-11 cable Support CD(User manual and utility) Power adapter Warranty card Quick start guide
Packing Height70 mm
Package TypeBOX
VPN Pass-ThroughPPTP L2TP IPsec
