Ultra Quiet Cooling Fan Silent 92mm for Computer Case PC Cooler Bearing 3-Pin



ARCTIC offers innovative solutions incessantly - changing impossible user requirements into new. Always focused on our customers, ARCTIC is devoted to deliver excellence through a strong dedication and a high sense of commitment. In light of the ever-changing consumer landscapes, we aspire to continue to expand and diversify our products and solutions. From computer cooling and peripherals to audio and digital home entertainment, we strive to enrich people's lives by creating innovative, user friendly yet affordable products with a great value of benefit. For us value for money is a key factor - a constant our customers rely on.

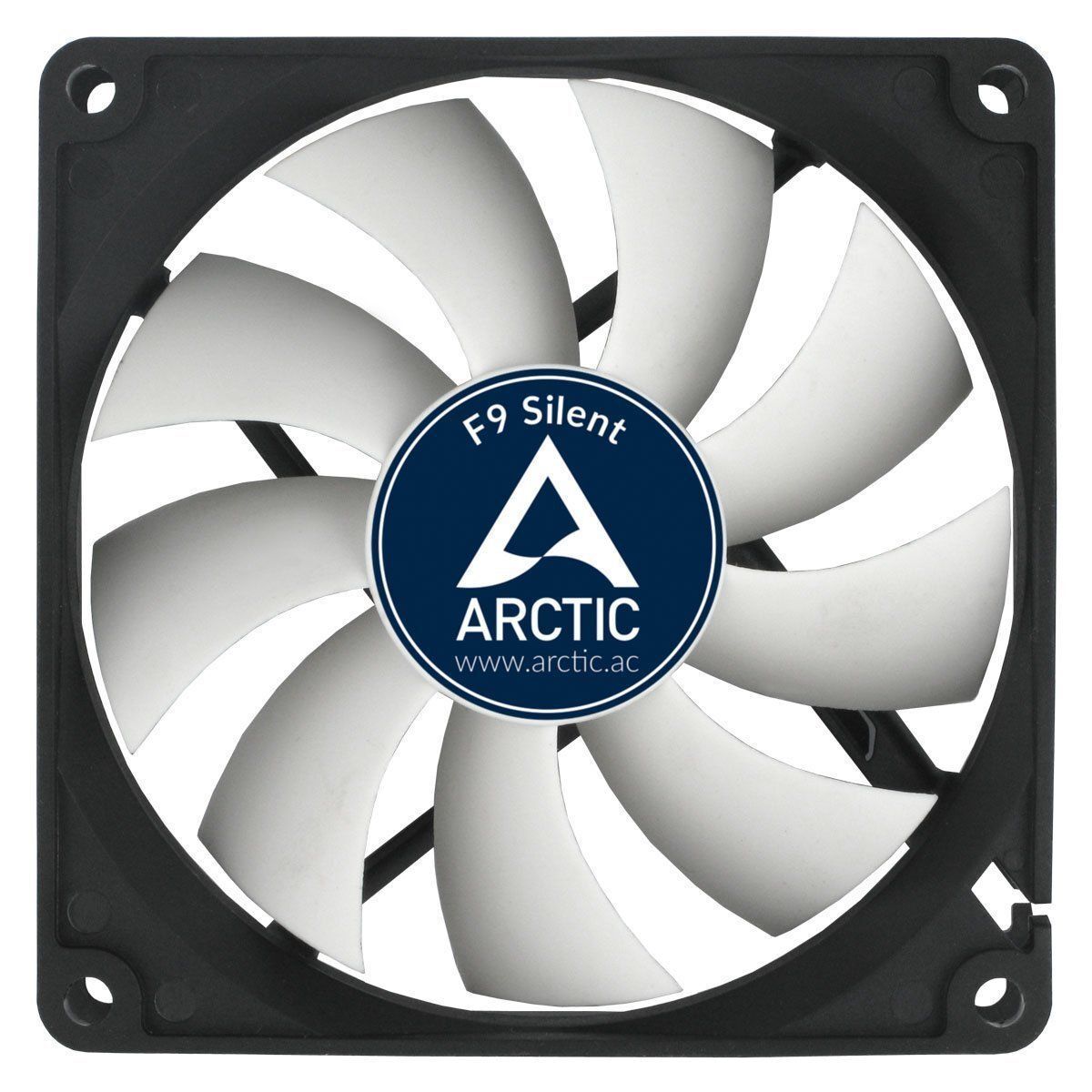

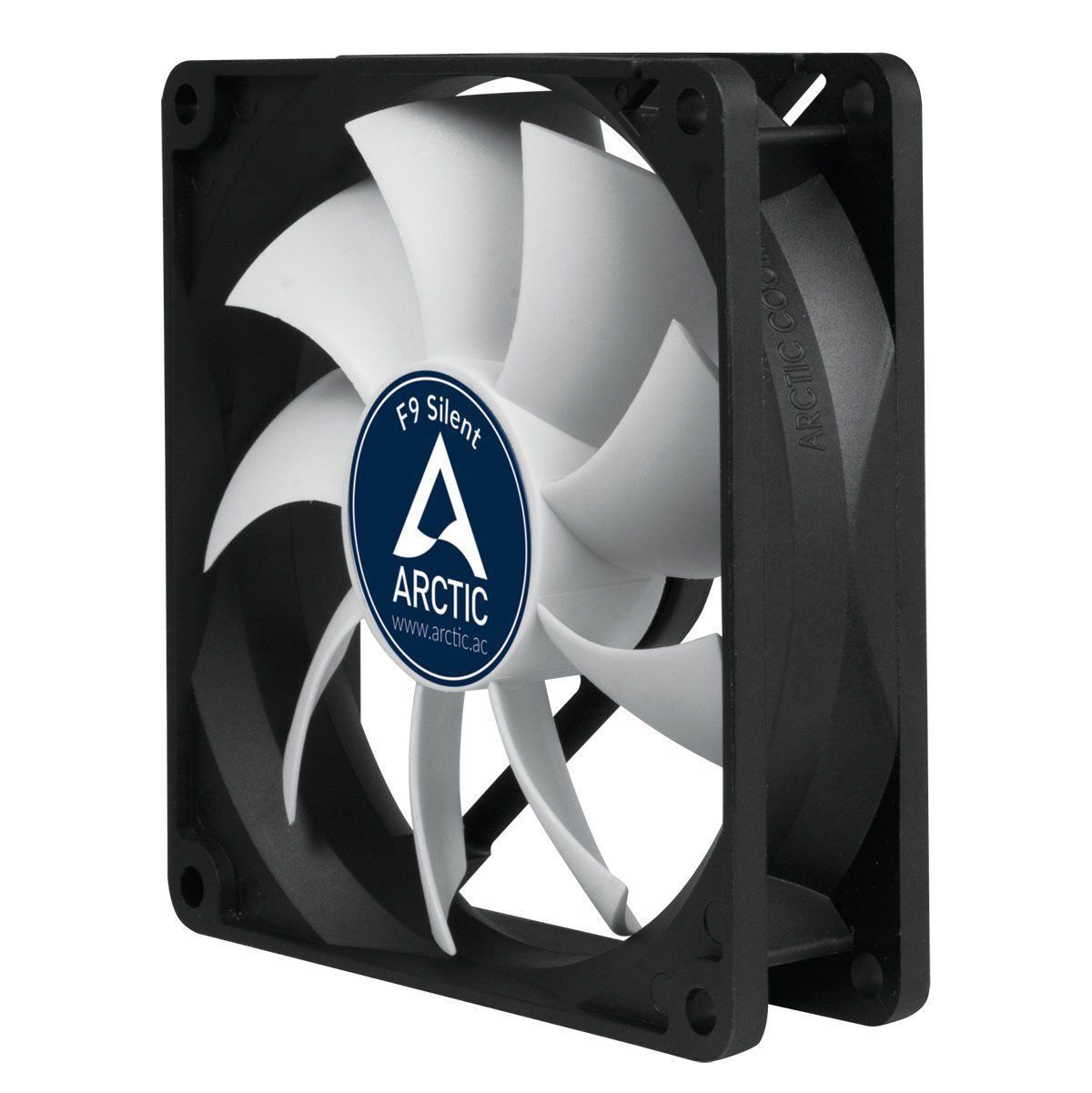

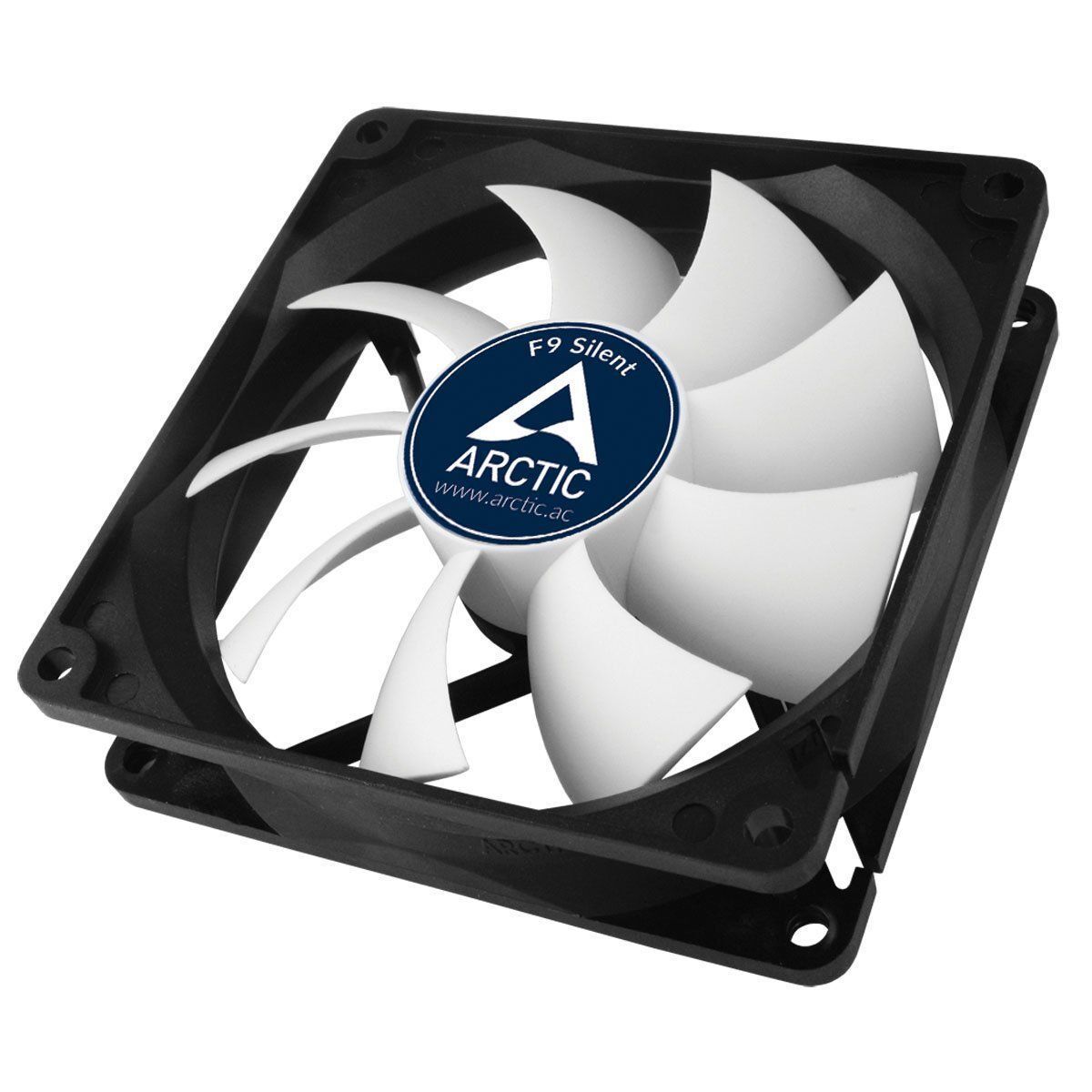

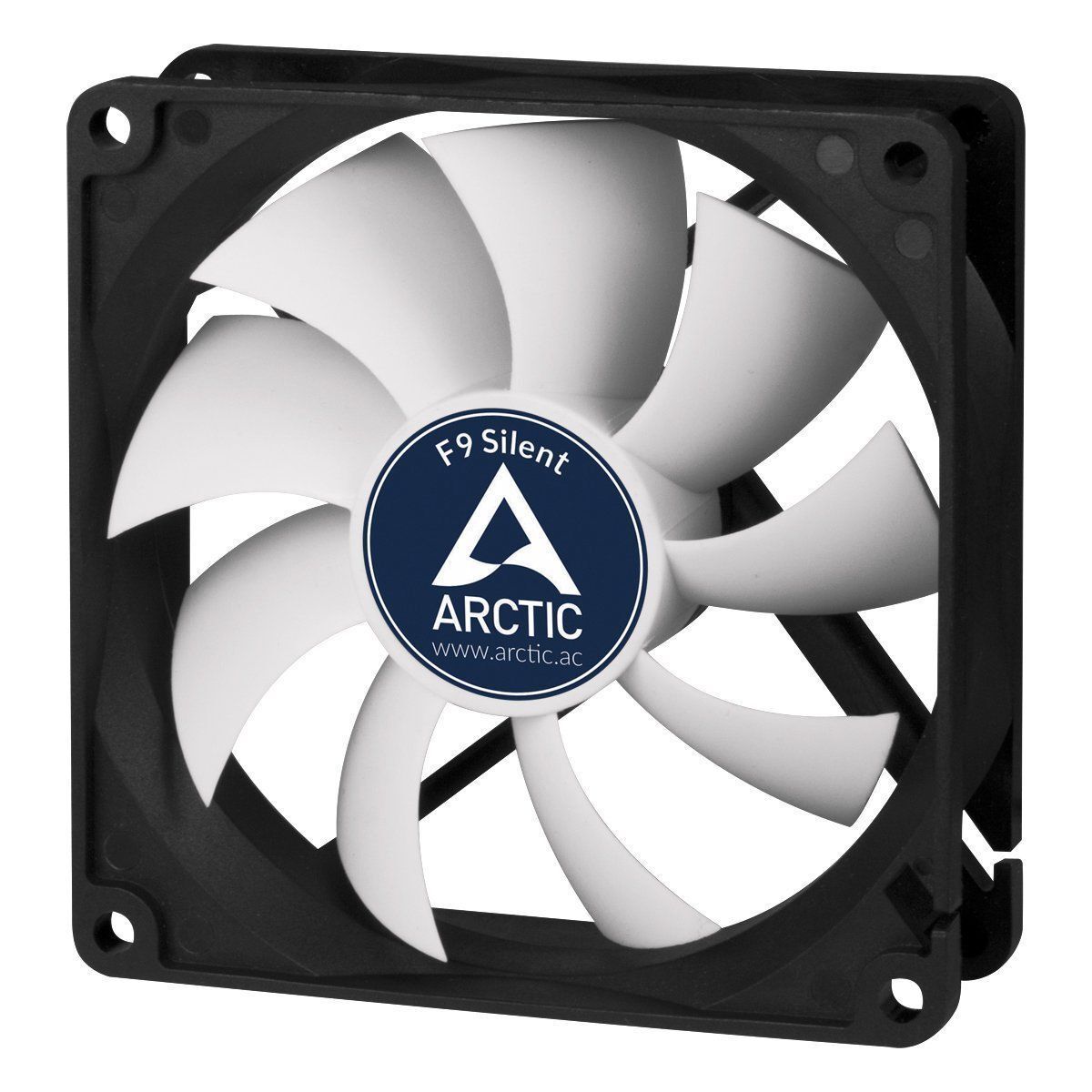

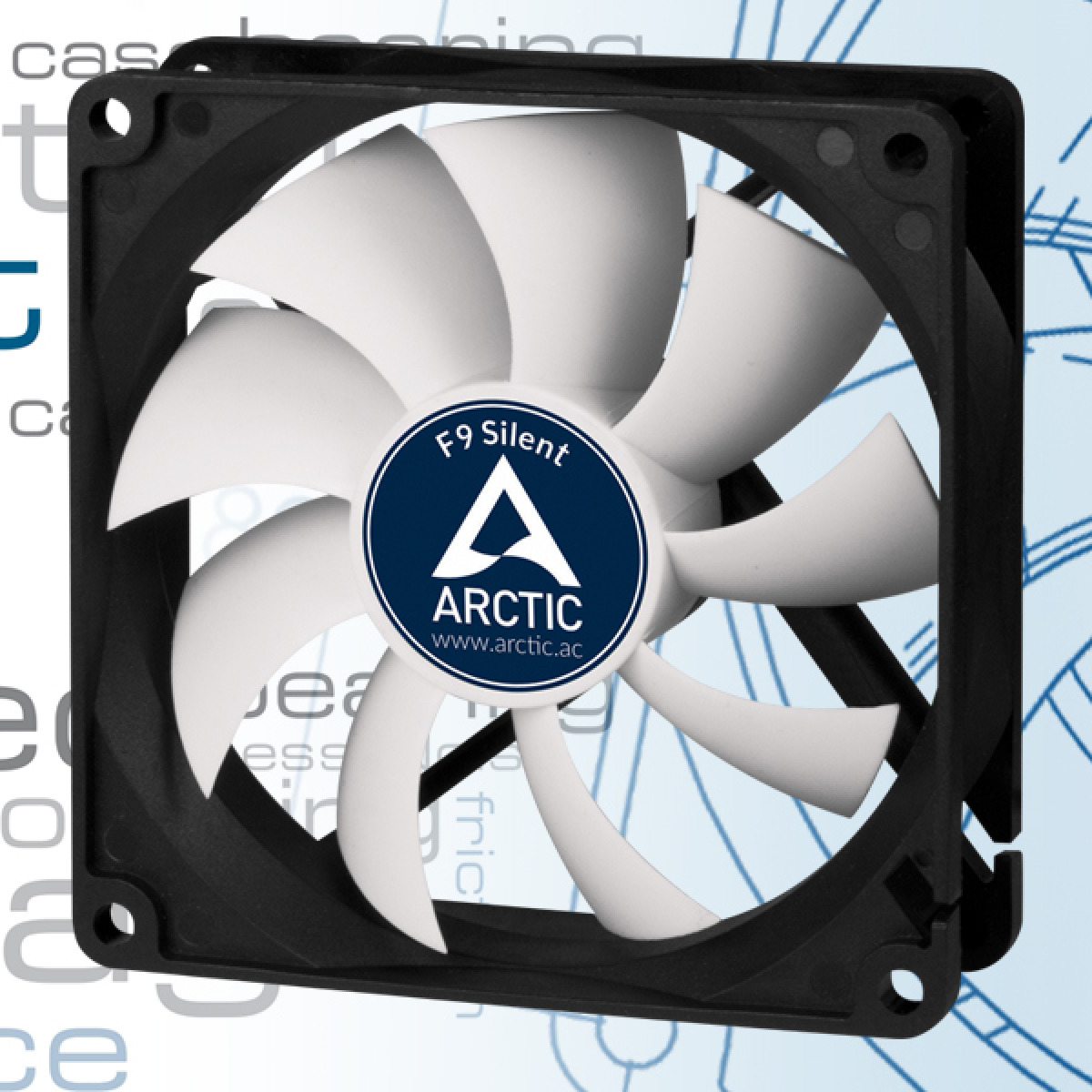

Extra Quiet 92 mm Case Fan F9 Silent

  • Fan Size: 92 x 92 x 25 mm
  • Speed: 1000 RPM
  • Connector: 3-Pin



Features:

  • GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW: At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise. Our impeller is not just quiet but moves at a given fan speed more air than any other product.



  • LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.



  • INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION: The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.



  • TECHNICAL DATA: Fan speed: 1000 RPM, Airflow: 21.2 CFM/36 m³/h (@ 1000 RPM), Noise Level: 0.08 Sone (@ 1000 RPM), Pin: 3-pin



  • TWO WAY INSTALLATION: Blow warm air out of the case, draw cool air into your case



Performance

  • Fan Speed: 1000 rpm
  • Airflow: 21.2 CFM/ 36 m³/h
  • Static Pressure: 0.40 mm/H²O
  • Noise Level: 0.08 Sone



Fan

  • Fan Frame: Standard
  • Controll Type: Fixed Speed
  • Connector: 3-Pin-Connector
  • Fan Bearing: Fluid Dynamic Bearing



Electric Characteristics:

  • Typical Voltage: 12 V DC
  • Starting Voltage: 4 V
  • Current/ Voltage: 0.057 A / 12 V
  • Cable Lenght: 400 mm

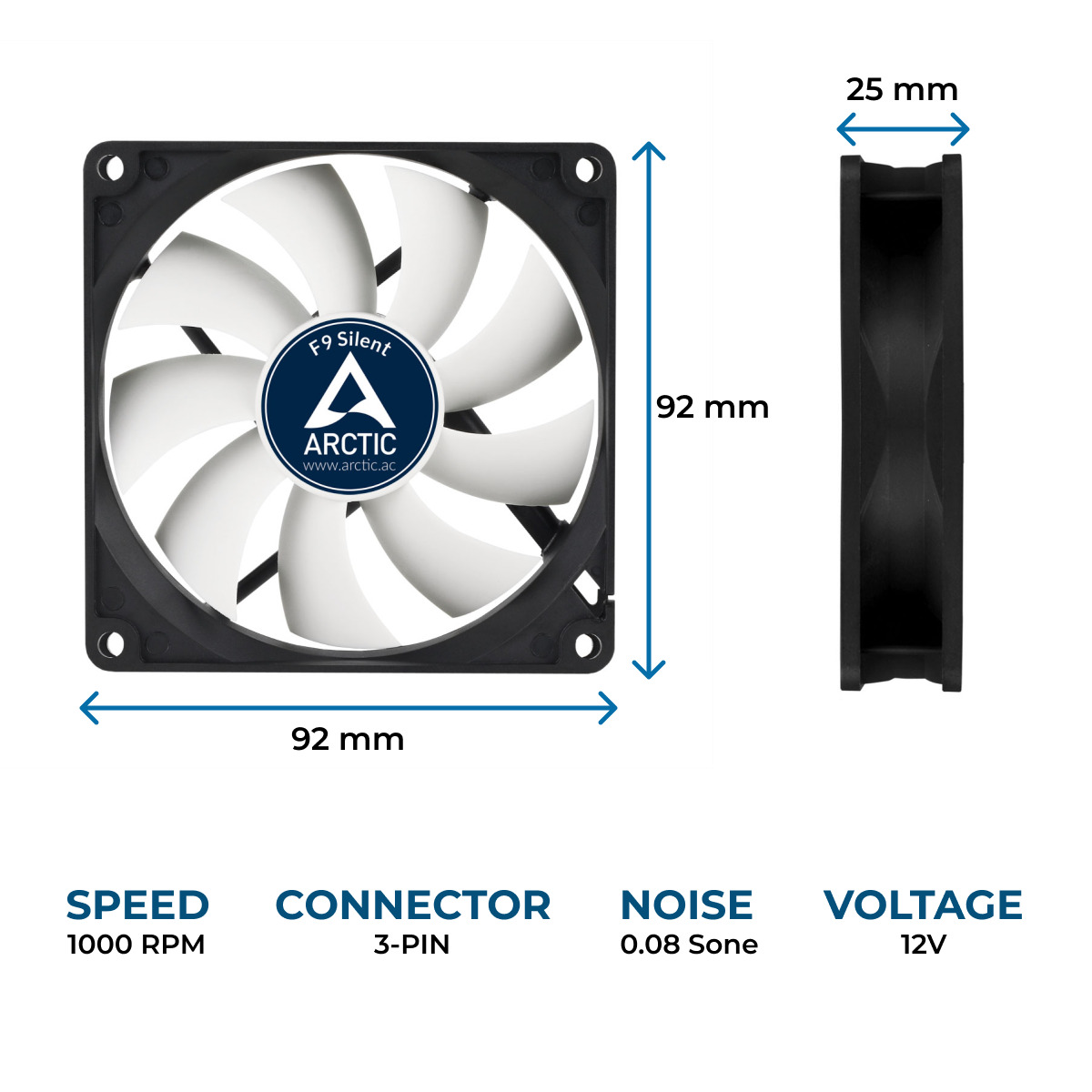

Size & Weight

  • Lenght: 92 mm
  • Width: 92 mm

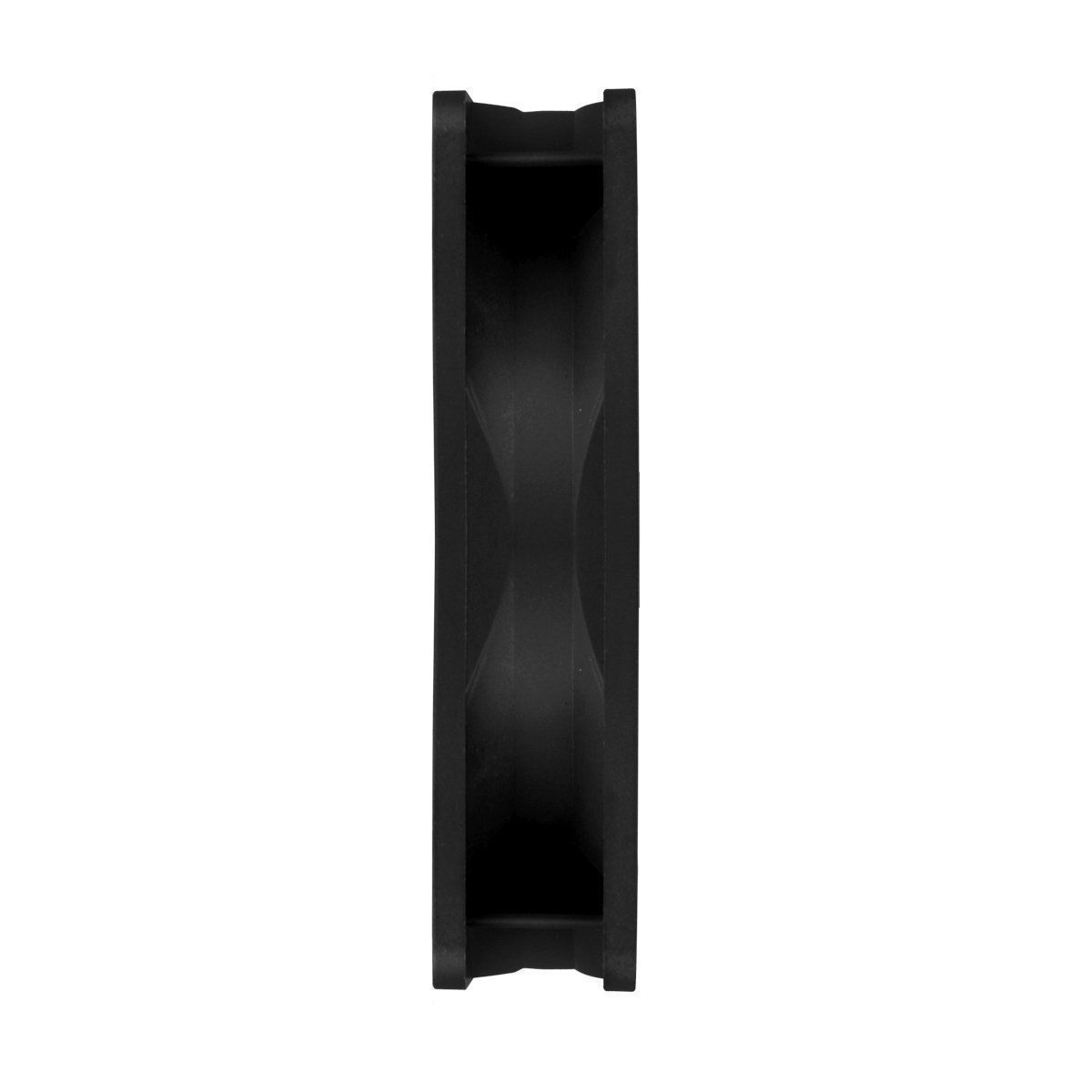

  • Height: 25 mm
  • Weight: 84 g
