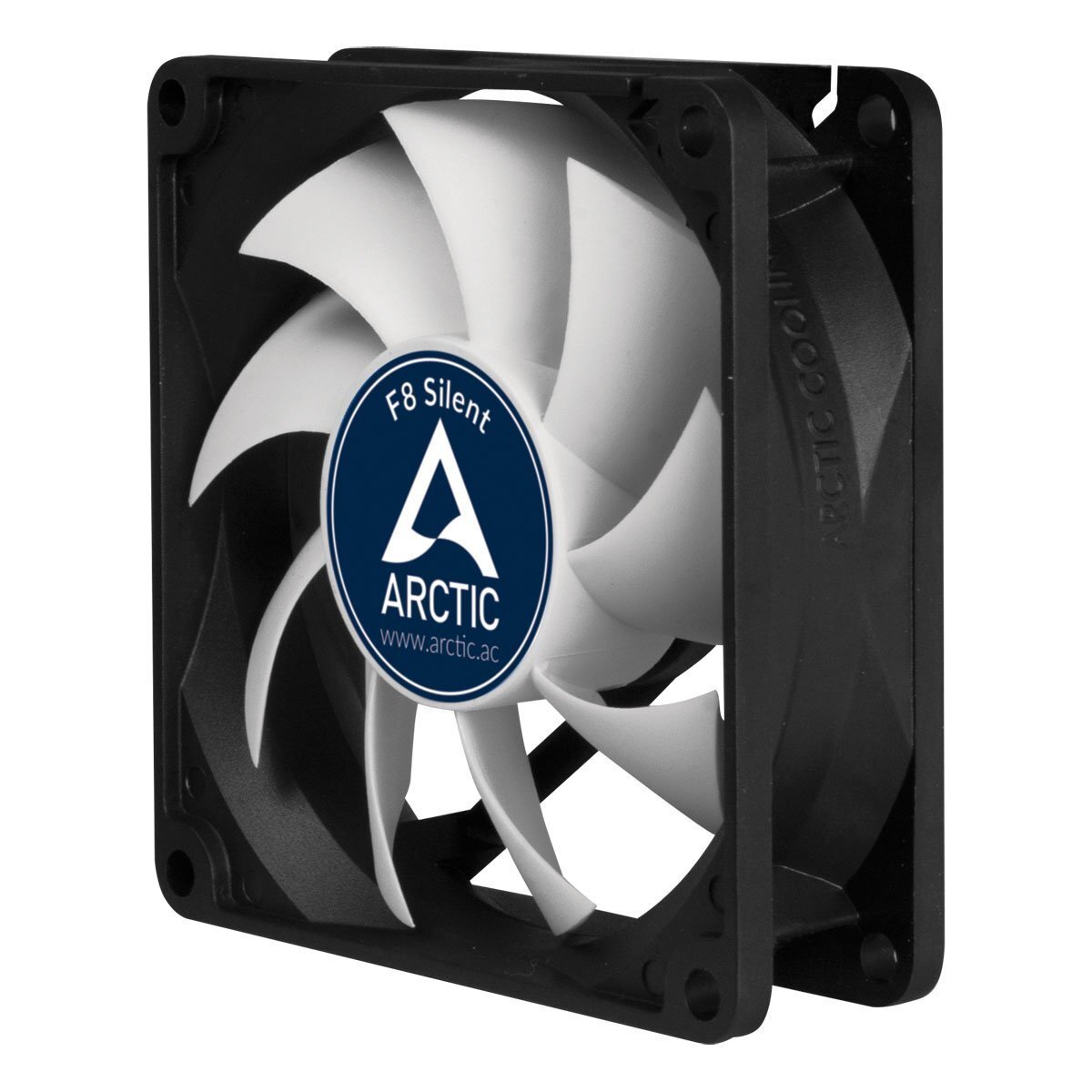

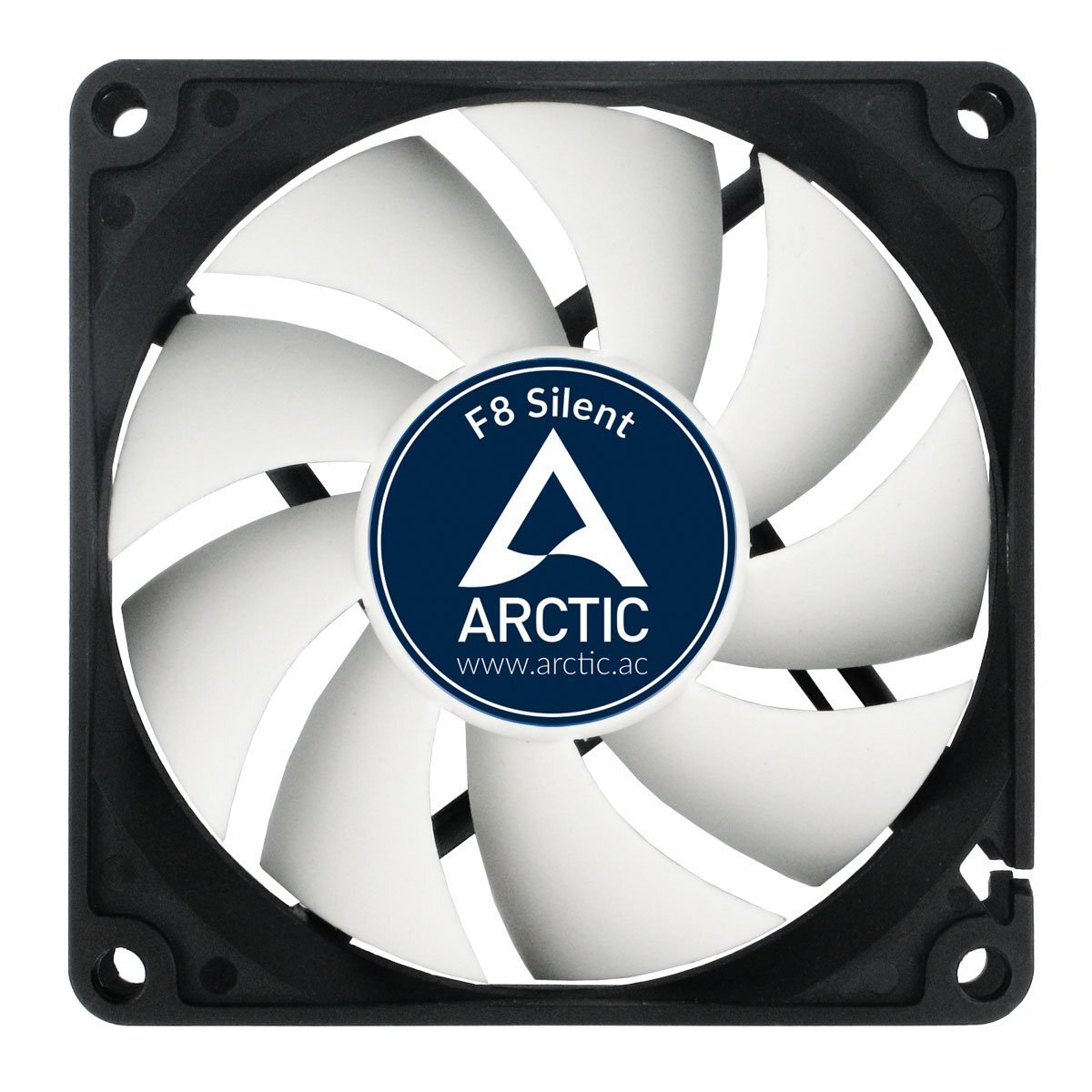

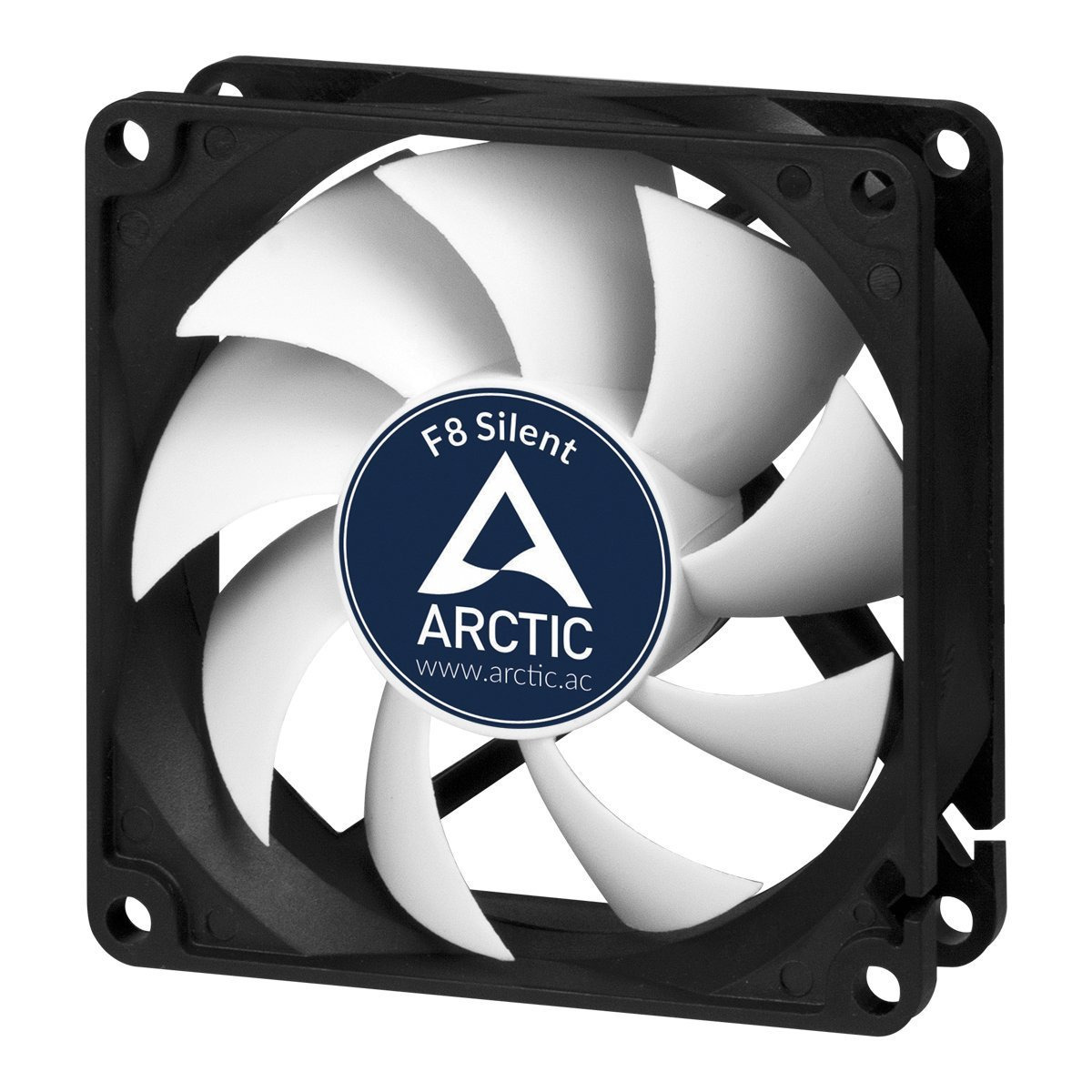

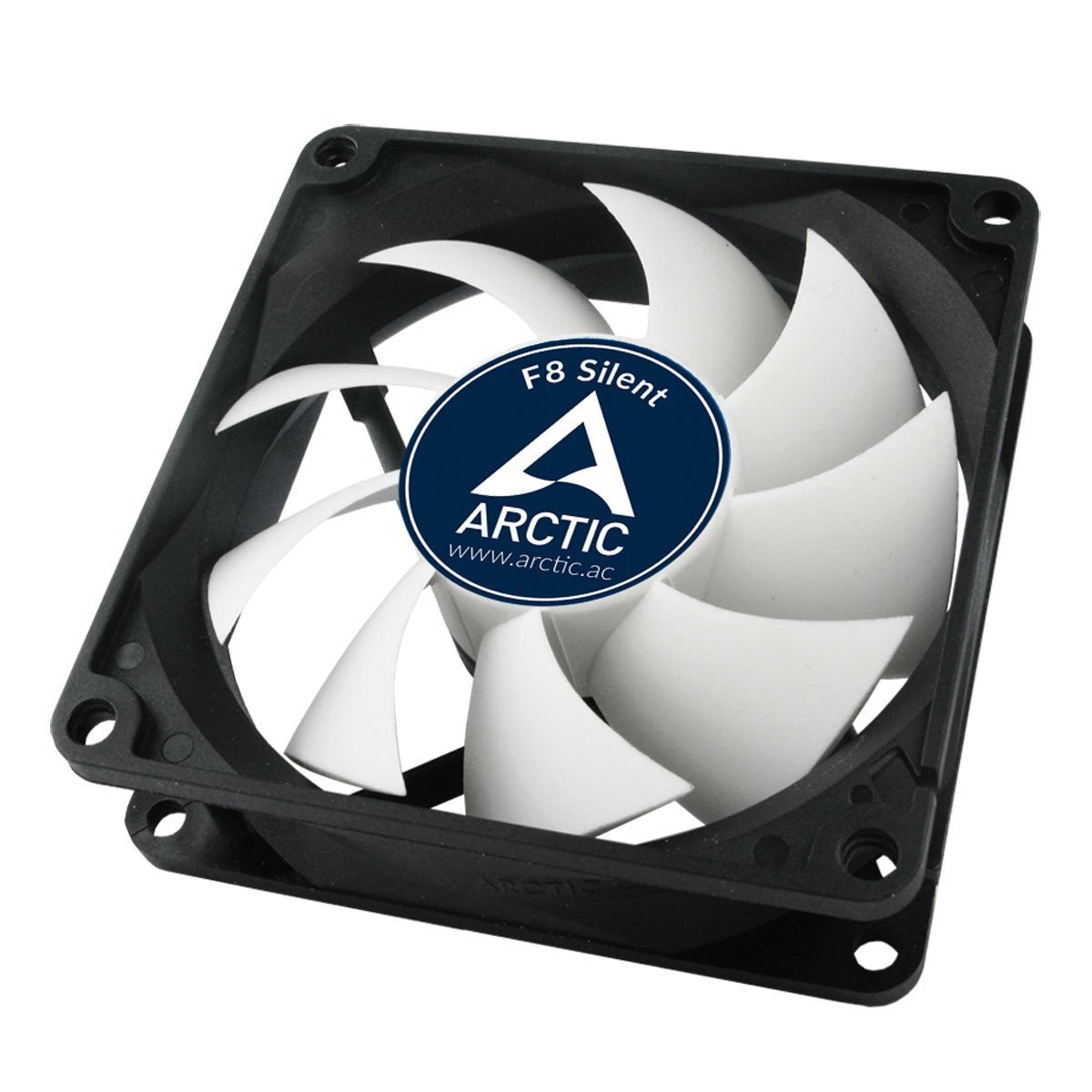

80mm Case Fan Low Noise Quiet Fluid Bearing 3-pin Arctic Cooling F8 SILENT White

ARCTIC offers innovative solutions incessantly - changing impossible user requirements into new. Always focused on our customers, ARCTIC is devoted to deliver excellence through a strong dedication and a high sense of commitment. In light of the ever-changing consumer landscapes, we aspire to continue to expand and diversify our products and solutions. From computer cooling and peripherals to audio and digital home entertainment, we strive to enrich people's lives by creating innovative, user friendly yet affordable products with a great value of benefit. For us value for money is a key factor - a constant our customers rely on.



Package included:

  • 1x Arctic Cooling 80mm Case Fan




Features:

  • OPTIMISED FOR STATIC PRESSURE: During the development of the new F8 Silent, special emphasis was placed on a focused airstream and thus a high static pressure
  • INNOVATIVE DESIGN: Design of fan blades improves air flow and facilitates efficient ventilation, impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure
  • MORE EFFICIENT TECHNOLOGY: The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new F8 Slient to run much more efficiently than its predecessors

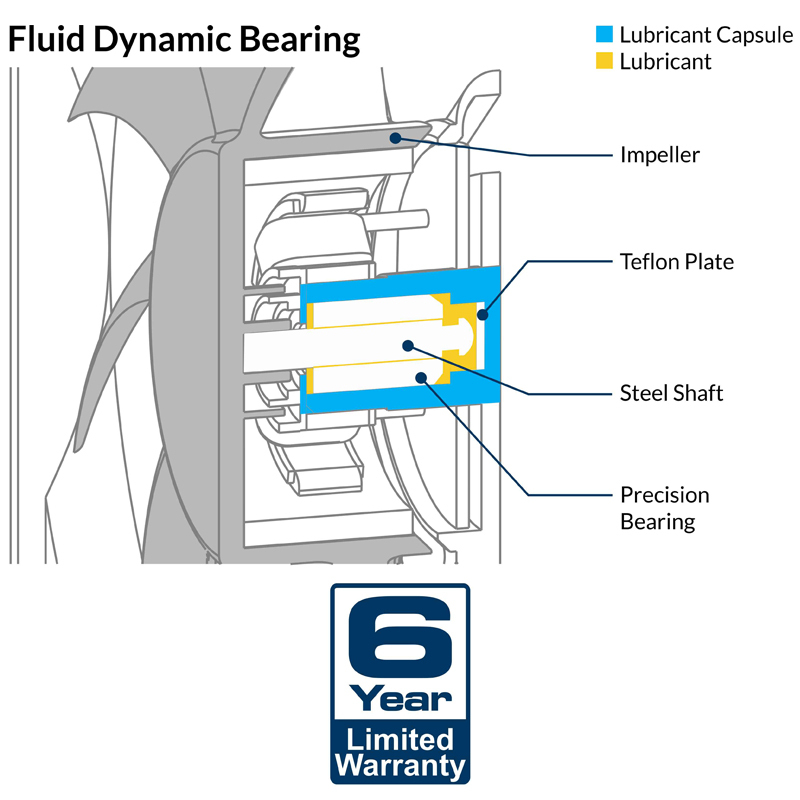

  • LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage, thus this bearing is as quiet as a sleeve bearing but comes with a higher service life
  • TECHNICAL DATA: Fan speed: 1200 RPM, Airflow: 15.1 CFM/ 25.7 m³/h (@ 1200 RPM), Noise Level: 0.08 Sone (@ 1200 RPM), Pin: 3-pin
  • TWO WAY INSTALLATION: Blow warm air out of the case or Draw cool air into your case



Specifications:

  • Fan Speed: 1200 rpm
  • Airflow: 15.1 CFM/ 25.7 m³/h
  • Static Pressure: 0.54 mm H₂O
  • Noise Level: 0.08 Sone
  • Operating Ambient Temperature: 0 - 40 °C
  • Fan Frame: Standard
  • Control Type: Fixed Speed

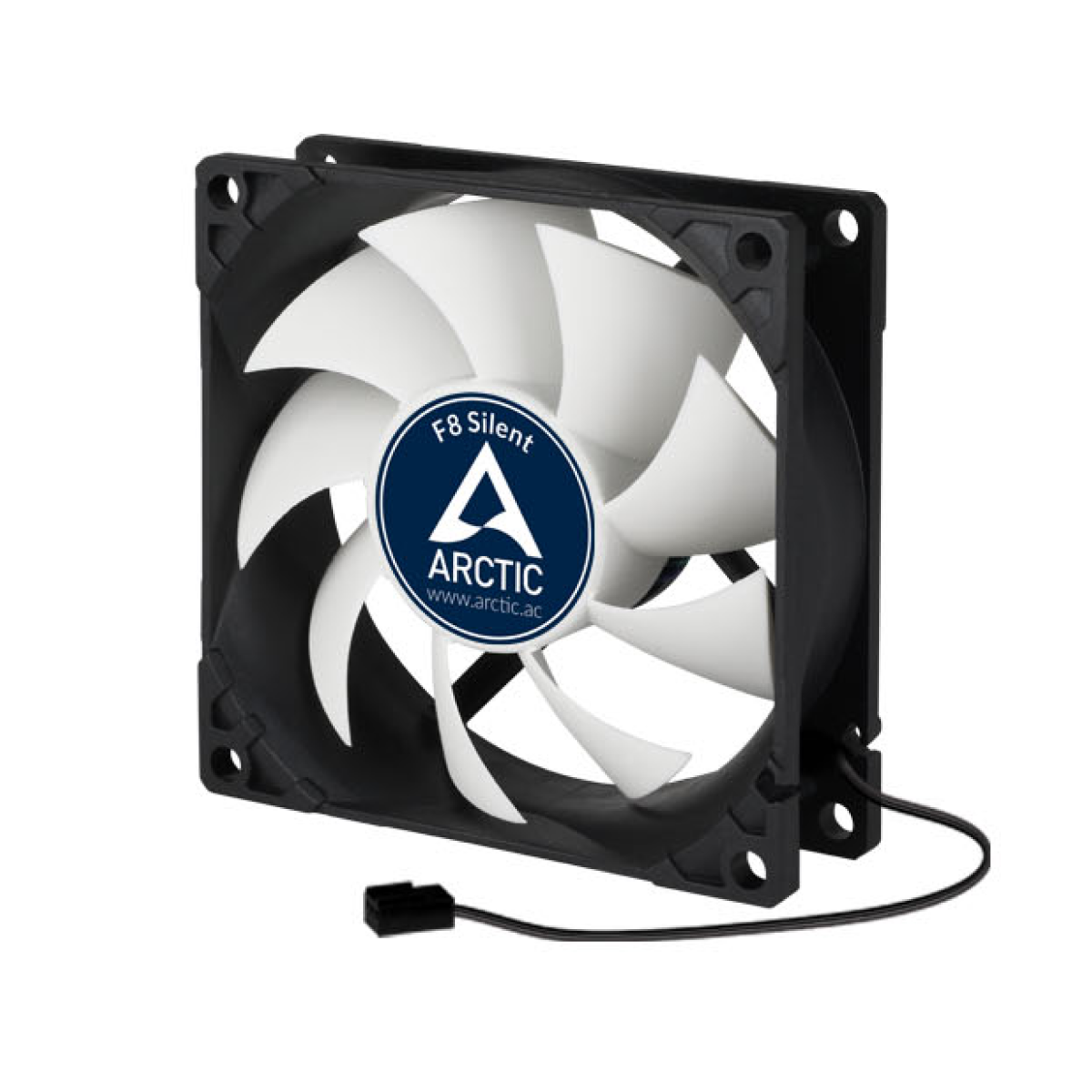

  • Connector: 3-Pin-Connector
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage: 12 V DC
  • Starting Voltage: 4.5 V
  • Current/ Voltage: 0.053 A / 12 V
  • Cable Lenght: 400 mm

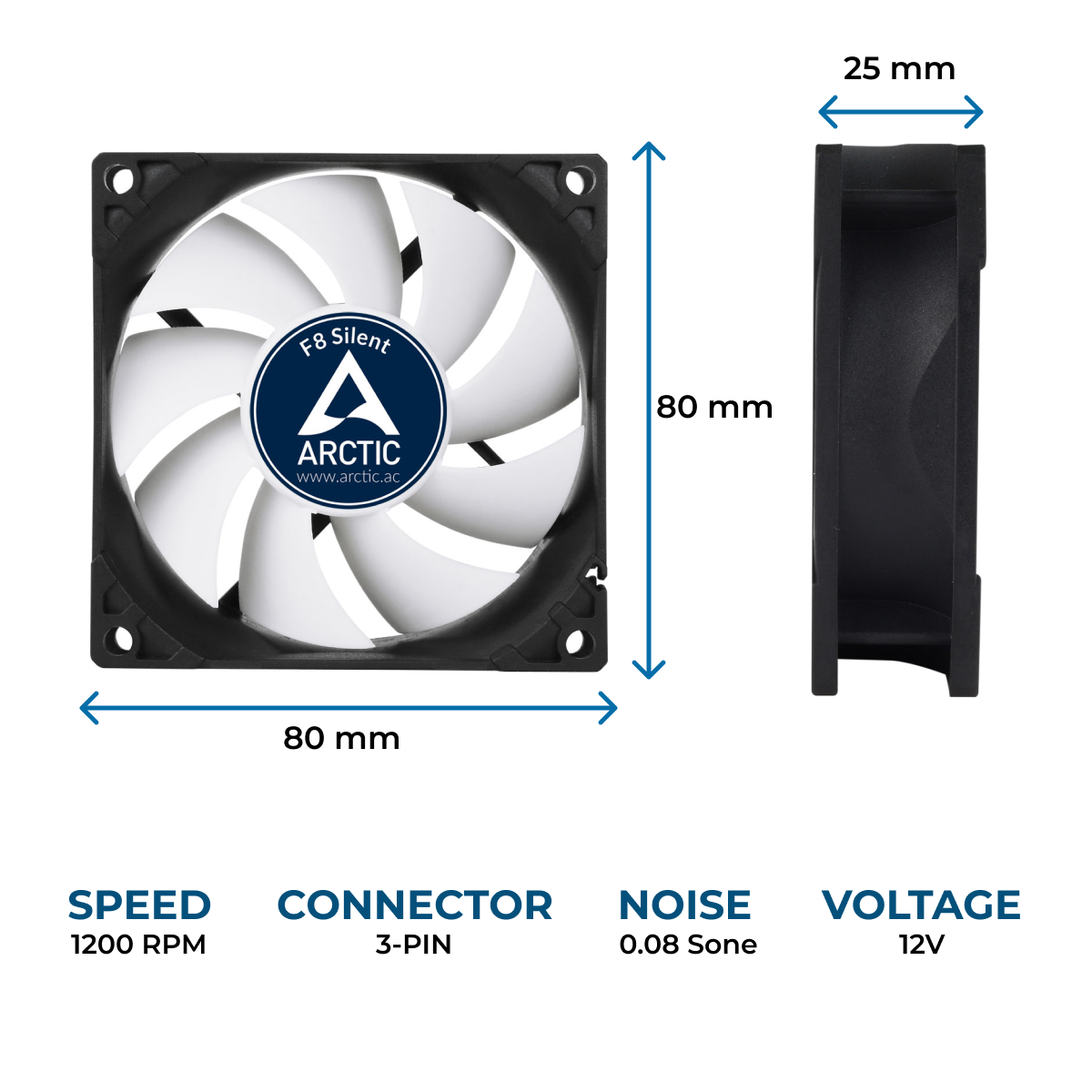

  • Lenght: 80 mm
  • Width: 80 mm

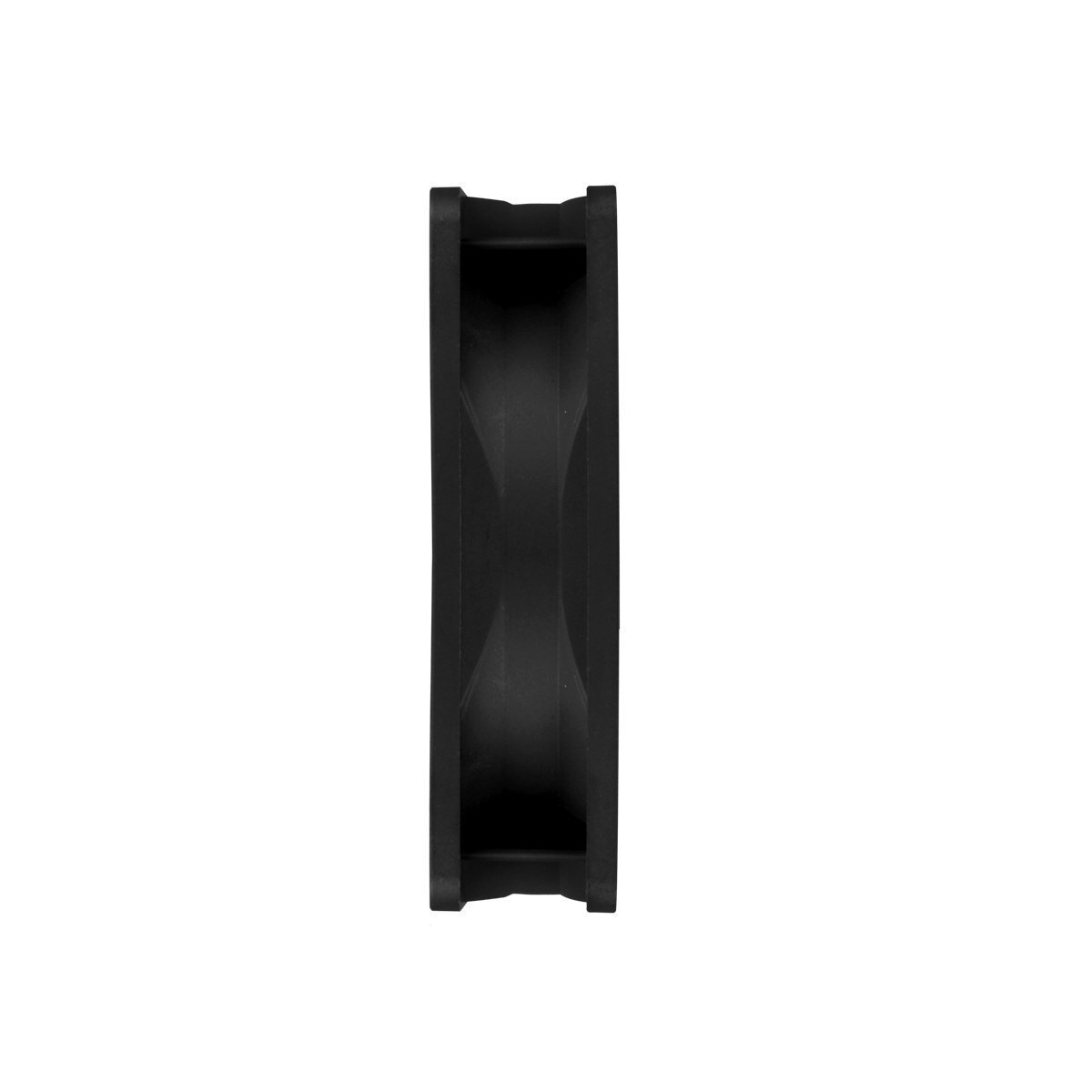

  • Height: 25 mm
  • Weight: 71 g

Package included:

  • 1x Arctic Cooling 80mm Case Fan



Performance

  • Fan Speed: 1200 rpm
  • Airflow: 15.1 CFM/ 25.7 m³/h
  • Static Pressure: 0.54 mm H₂O
  • Noise Level: 0.08 Sone
  • Operating Ambient Temperature: 0 - 40 °C
  • Fan Frame: Standard
  • Control Type: Fixed Speed
  • Connector: 3-Pin-Connector
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage: 12 V DC
  • Starting Voltage: 4.5 V
  • Current/ Voltage: 0.053 A / 12 V
  • Cable Lenght: 400 mm
  • Lenght: 80 mm
  • Width: 80 mm
  • Height: 25 mm
  • Weight: 71 g

So good. Very silent, but still effective airflow

By: on 18 April 2021
I bought this fan to replace a very noisy stock fan for my 3d printer PSU. I converted it two a 2-pin, so it is running at full speed, and I can't believe how quiet it is. I struggle to hear it with my ear right against it. Remarkable. Definitely a go to fan for true silent running.
