Greater Efficiency - Less Noise at Higher Airflow 01

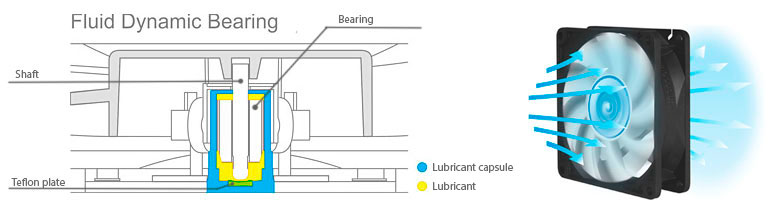

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life. At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.

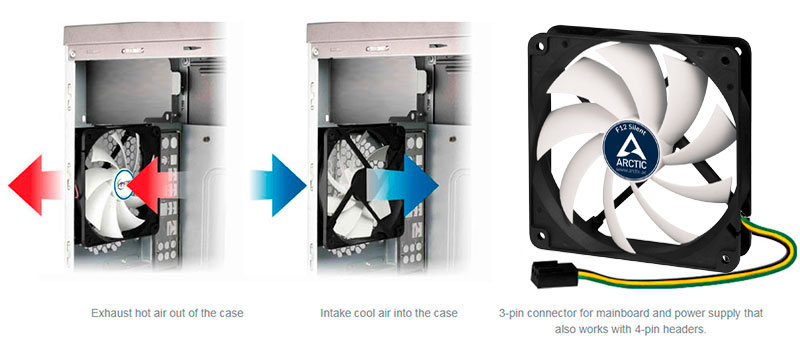

Different installation 02



Innovative Design Enables Quiet and Efficient Ventilation 03

The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

Fan



Performance

Fan Speed:

1,350 RPM (@ 12V DC)
900 RPM (@ 7V DC)
650 RPM (@ 5V DC)

Air Flow:

74 CFM / 126 m³/h (@ 1,350 RPM)

Noise Level:

0.3 Sone (@ 1,350 RPM)

Electrical Characteristics

Typical Voltage:

12V DC

Start-up Voltage:

2.7V DC

Cable Length:

400mm

Voltage Current
12V DC (Norminal) 0.24A
7V DC 0.14A
5V DC 0.10A

Connection

Motherboard: +12V DC
3-pin socket


Size & Weight

Standard 120 mm fan holes

Packaging & Box Content



Warranty
