Aerocool Tacsens 600W PSU01
  • The most valuable power supply for entry-level system builder.
  • Compatible with ATX 12V 2.3.
  • High-end SECC with black powdercoated case.

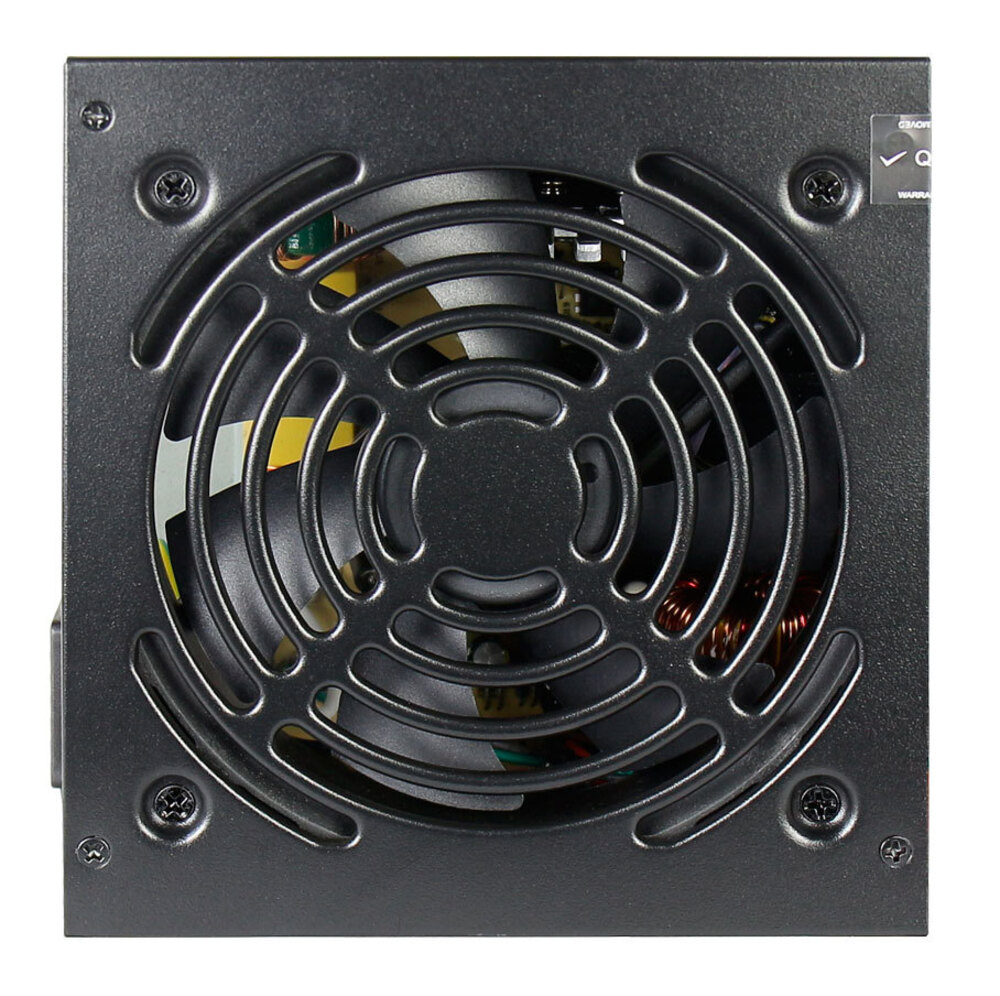

  • Silent 12cm fan with smart fan speed control.
  • Supports C6/C7 power saving mode on Intel Haswell CPU.
  • Powerful single +12V rails offer the most compatible DC output to support high-end graphic card and CPU.
  • Long cable length at least 450mm supports high-end case with "Bottom" PSU position.

OPP/OVP/UVP/SCP electrical protection included:

  • Over Voltage Protection: The +5V/+12V/+3.3V DC output are protected against the over voltage condition. Maximum value can't be over 6.5V at 5V terminal and 15.5V at 12V, 4.3V at 3.3V.
  • Over Power Protection: The power supply will be shutdown and latch off when output power is 105%~150%.
  • Under voltage protection: In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown state when +12V,+5V & +3.3V outputs under 60% of it's maximum value.
  • Short Circuit Protection: Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will auto-recovery.

  • Power Specifications:
    • AC Input: 230VAC 4A 47-63Hz
    • DC Output:Max Current/Wattage
      • +3.3V: 18A/120W
      • +5V: 15A/120W
      • +12V: 14A/324W
      • -12V: 0.3A/3.6W
      • +5Vsb: 2.5A/12.5W
      • Total Combined Wattage: 600W
  • Environmental Requirements:
    • Operating / Storage Temperature Range:
      • Operating ambient: 0ºC min ~ +40ºC max
      • Non operating ambient: -20ºC ~ +60ºC
    • Humidity (non condensing):
      • Operating ambient: 10% ~ 90% relative humidity
      • Non operating ambient: 5% ~ 95% relative humidity
    • Altitude:
      • Operating ambient: 0 to 10,000 ft
      • Non operating ambient: 0 to 50,000 ft
  • Noise Level Output:Loading(%) / Noise (dBA)
    • 20% / 18.7dBA
    • 40% / 19.2dBA
    • 60% / 21.8dBA
    • 80% / 26.2dBA
    • 100% / 30.8dBA
ModelTacens T600W
Wattage600 W 460 - 600 W
Packing Weight1900 g
TypeATX12V
Connectors2 x Peripheral 2 x SATA 1 x Floppy 1 x 6 Pin 20+4-Pin 1 x 4+4 Pin ATX/EPS
Cables TypeNon-Modular
Packing Width233.2 mm
FeaturesHaswell Ready
Packing Depth176 mm
Additional FeaturesSupports C6/C7 power saving mode on Intel Haswell CPU Powerful single +12V rails support high-end graphic cards and CPUs Long 450mm cable length to support high-end cases with "Bottom-mount" PSU position
Packing Height103 mm
Fans1 x 120 mm
Package TypeBOX
SubjectUsual
Wattage600 W 460 - 600 W
