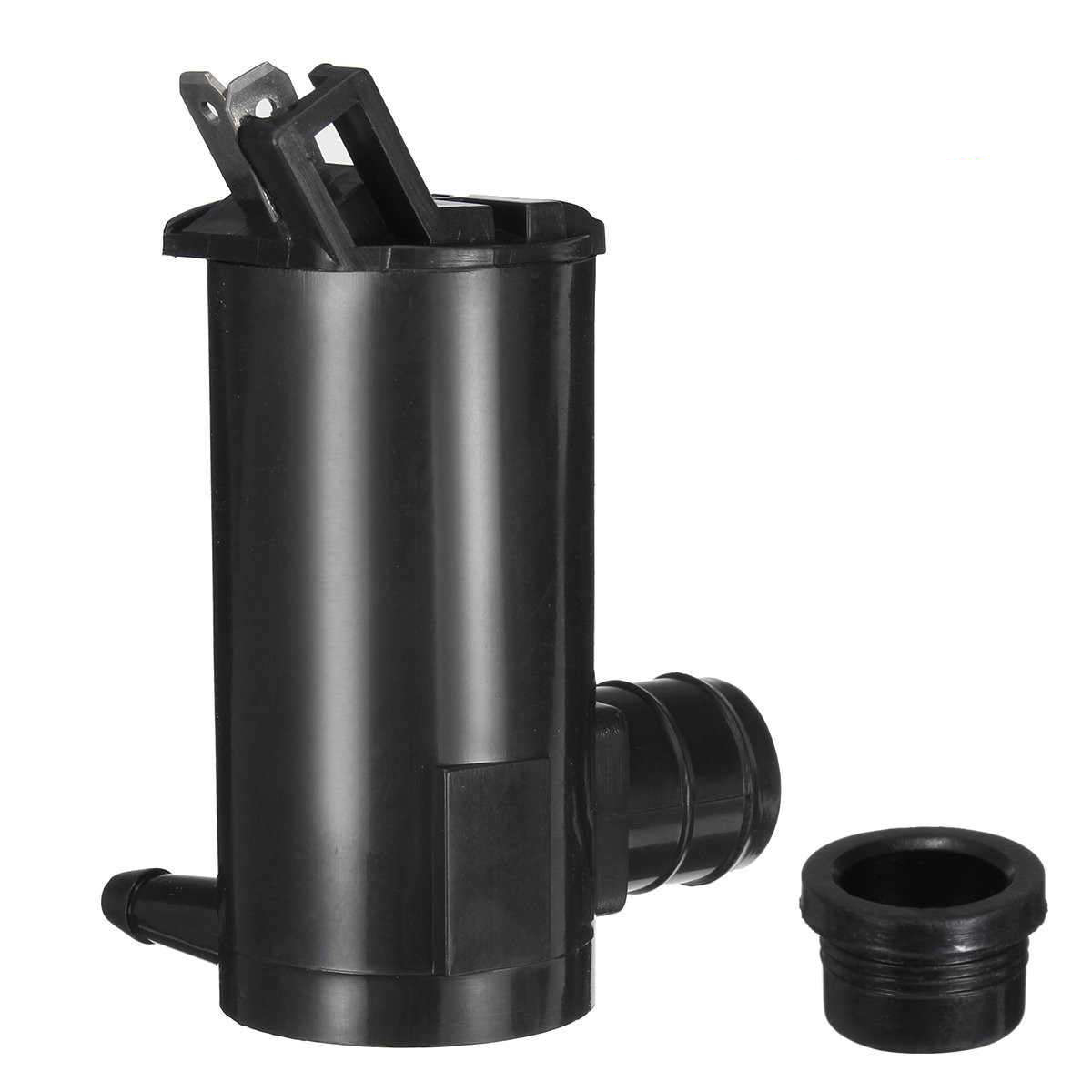

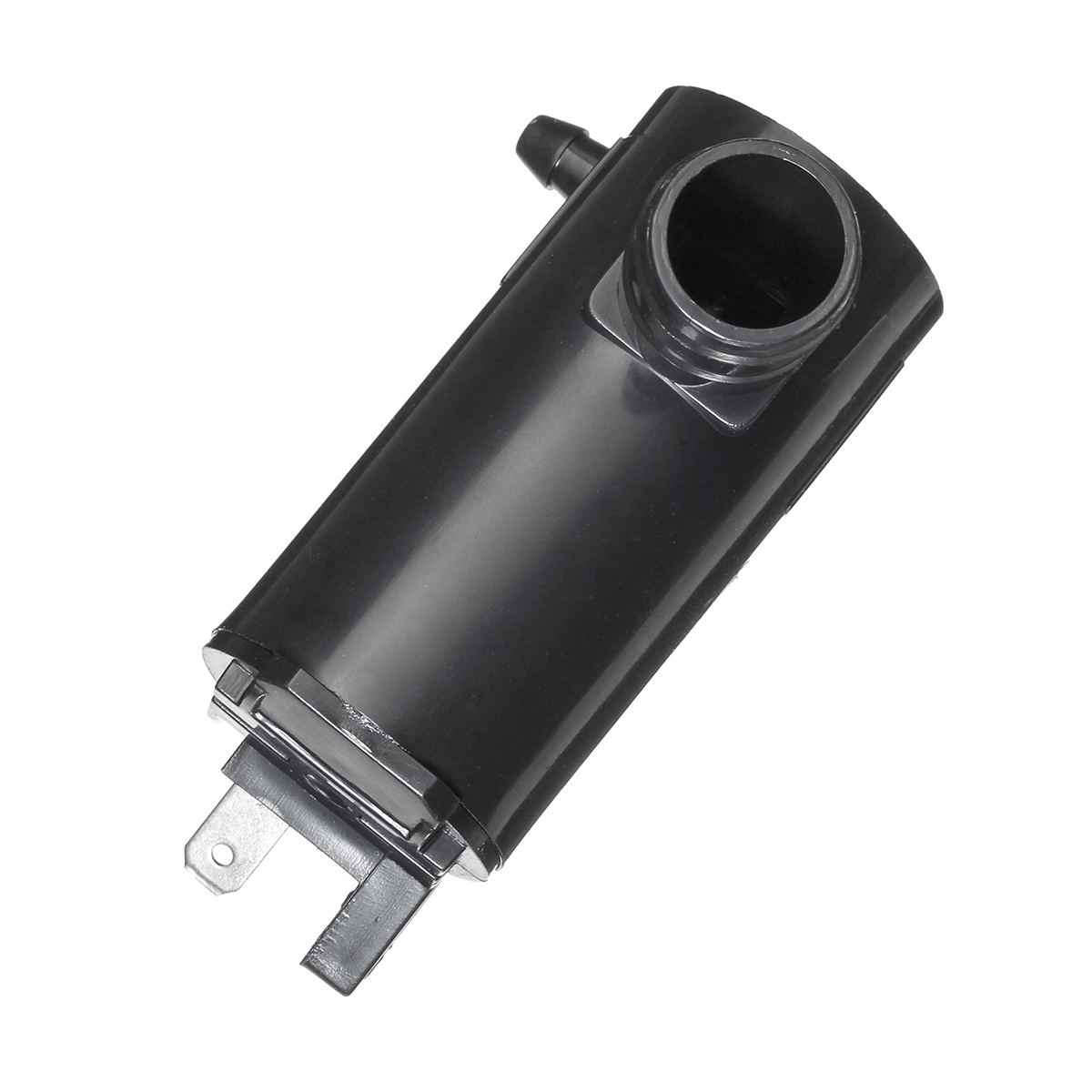

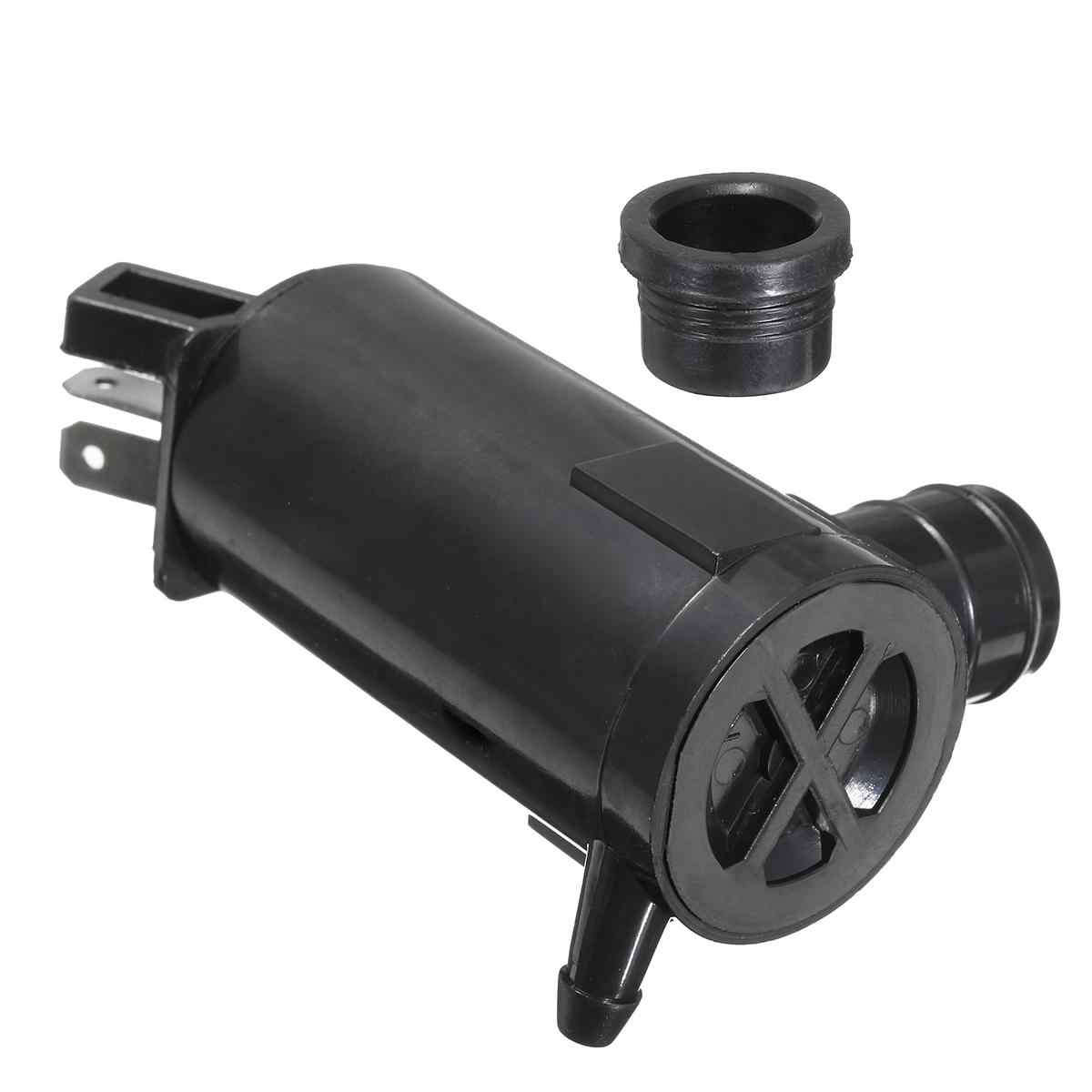

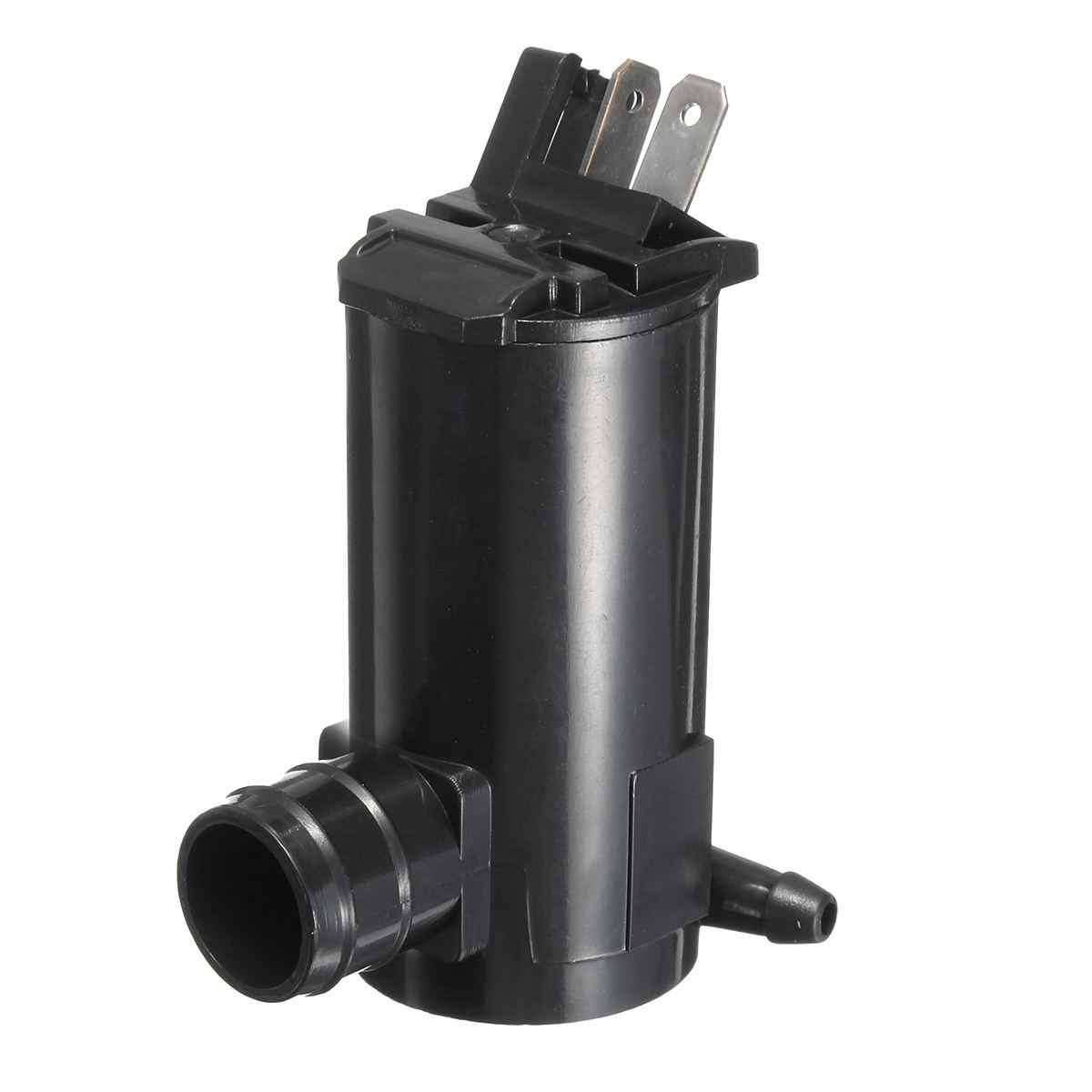

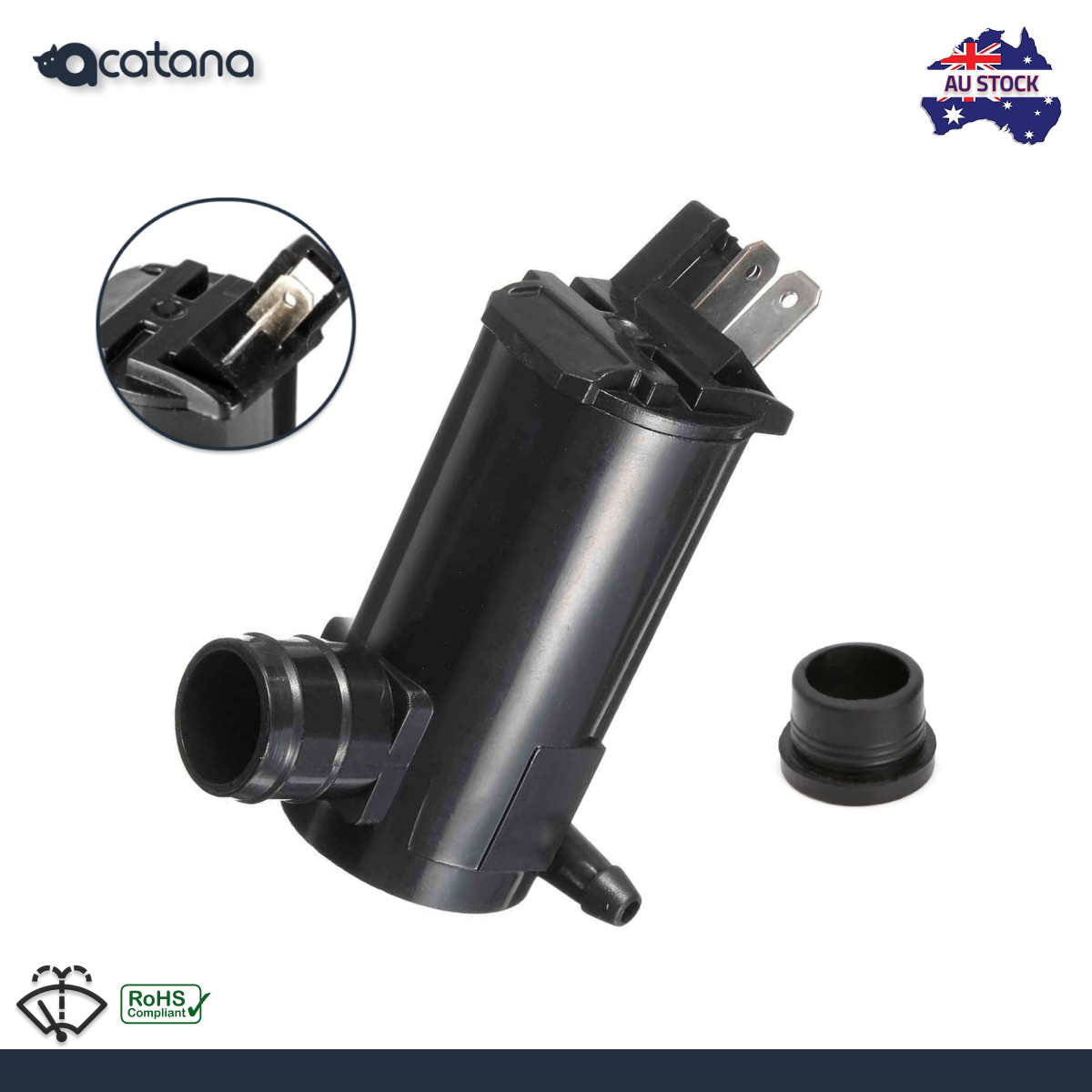

This is a replacement windscreen washer pump for your Suzuki Grand Vitara 1998 - 2005. If your windscreen washers don't spray water or the washer fluid reservoir is leaking, you may need to replace your windshield washer pump and grommet. The LZ-101B model is the original OEM quality for repairing or replacing a faulty windscreen washer fluid pump.

Compatibility for:

• Suzuki Grand Vitara SQ416 1999 - 2005 2door Hardtop
• Suzuki Grand Vitara SQ416 2000 - 2002 2door Softtop
• Suzuki Grand Vitara SQ420 1999 - 2005 3door Hardtop
• Suzuki Grand Vitara SQ420 1998 - 2005 4door Wagon
• Suzuki Grand Vitara SQ625 1998 - 2005 5door Wagon

Installation position: Front, Rear

Reference OEM Numbers: 83BB17K624AA, 83BB17K624BA, 6140949, 6156960, 9851

Specifications:

• Brand: acatana auto parts
• Model: LZ-101B
• Colour: Black
• Condition: Brand New
• Material: Plastic
• Quantity: 1pc
• Voltage 12 volt

Easy installation - replace it by yourself.

• First, disconnect the old one of the tanks, and unscrew the stopper that holds the feed hoses in place.
• Attach electrical connection, hoses and reservoir.
• Make sure there is plenty of screenwash in the reservoir and test.

Package includes:

• 1x Wiper Windshield Spray Motor
• 1x Rubber Ring Grommet
• Packaging Type: Box
• Fitment: Direct Replacement

Note and recommendations:

• It is always recommended to clean the bottle, and clear pipes before replacement as sludge can build up in the tank and cause damage to the new wiper fluid pump
• Please check OEM numbers, and photos when placing an order
