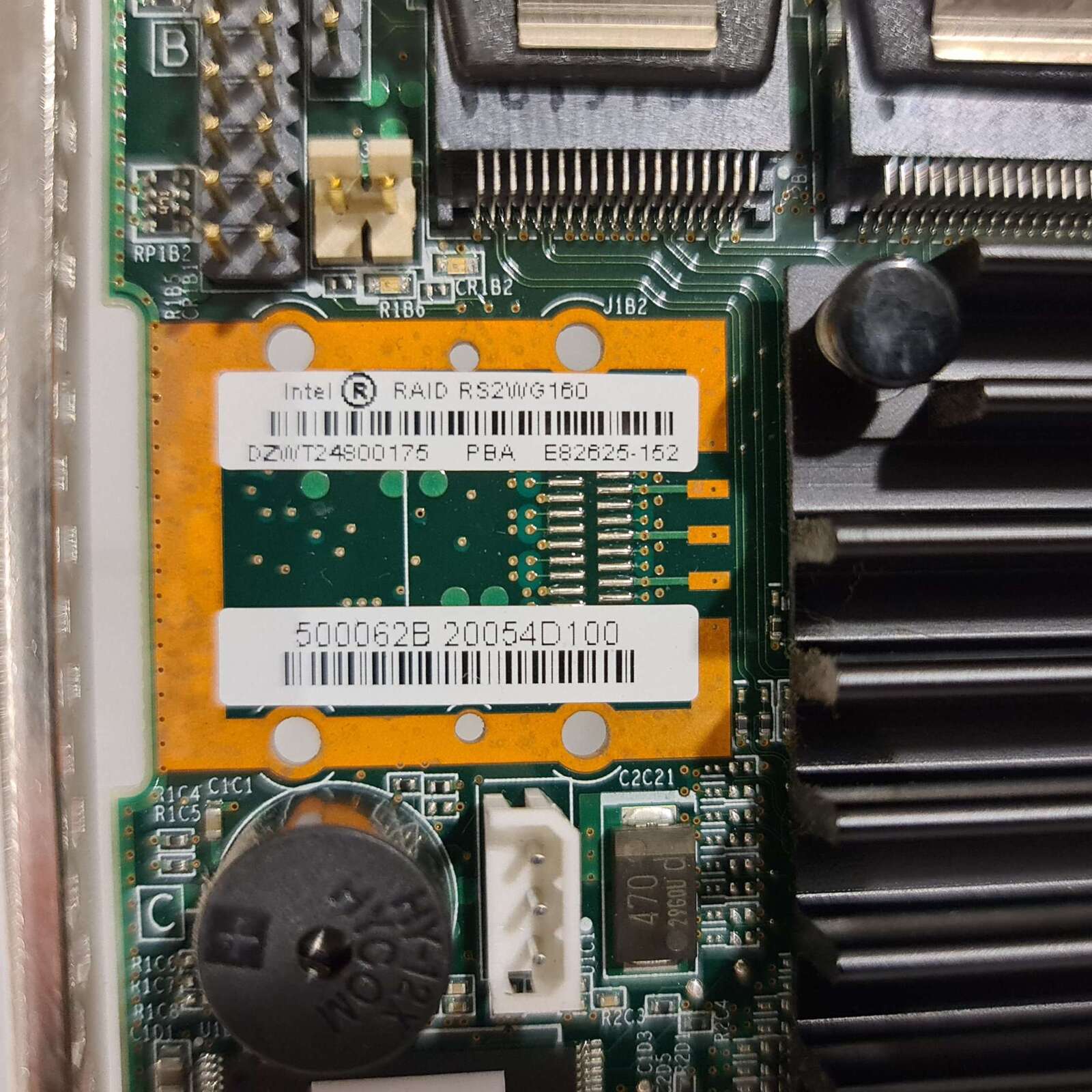

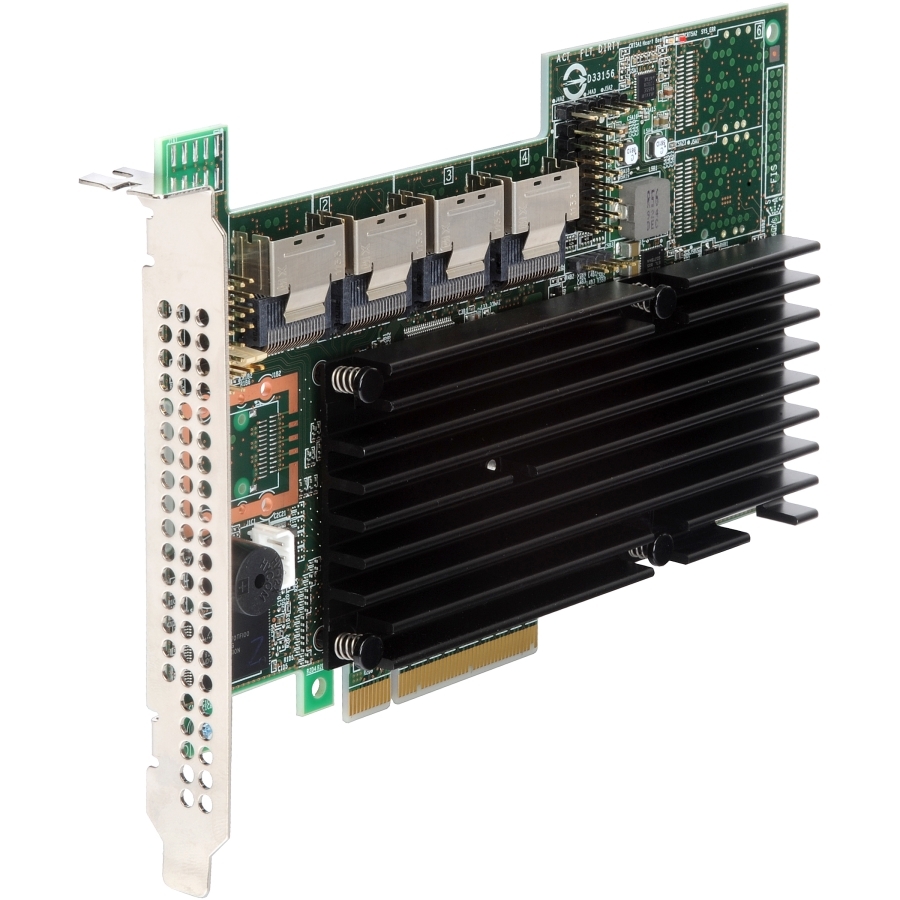

Intel RAID Controller with optional battery RS2WG160

Features

• LSI SAS2108 ROC controller providing SAS 2.0 compliance including 6Gb/s data transfer
• Embedded 512 MB 800 MHz cache (ECC DDR2 memory) to efficiently store data in transition

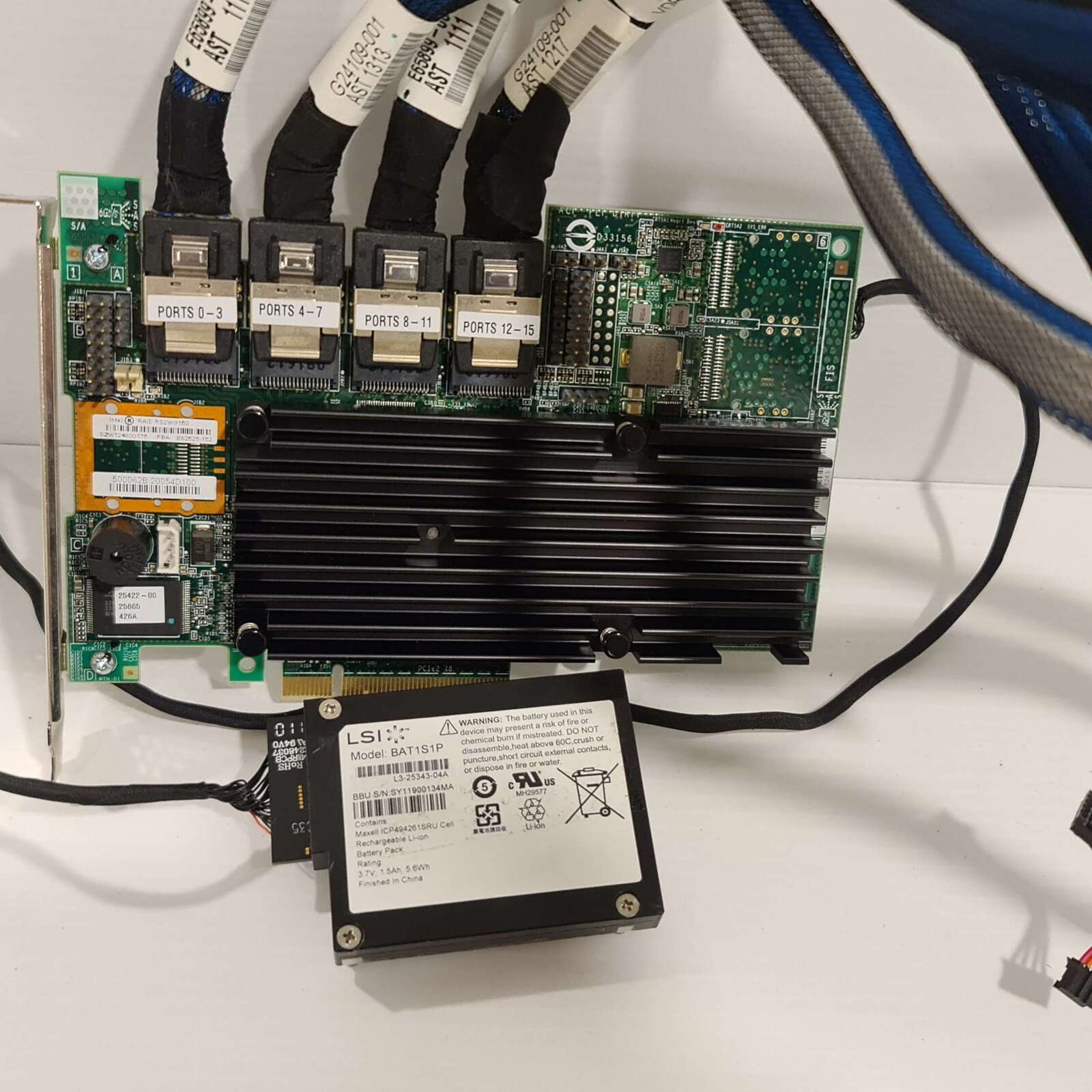

• Sixteen Internal Ports with four SFF8087 (Mini-SAS) connectors
• Speaker to deliver audible alerts
• x8 PCI Express Generation 2 interface for fast communication with the server board

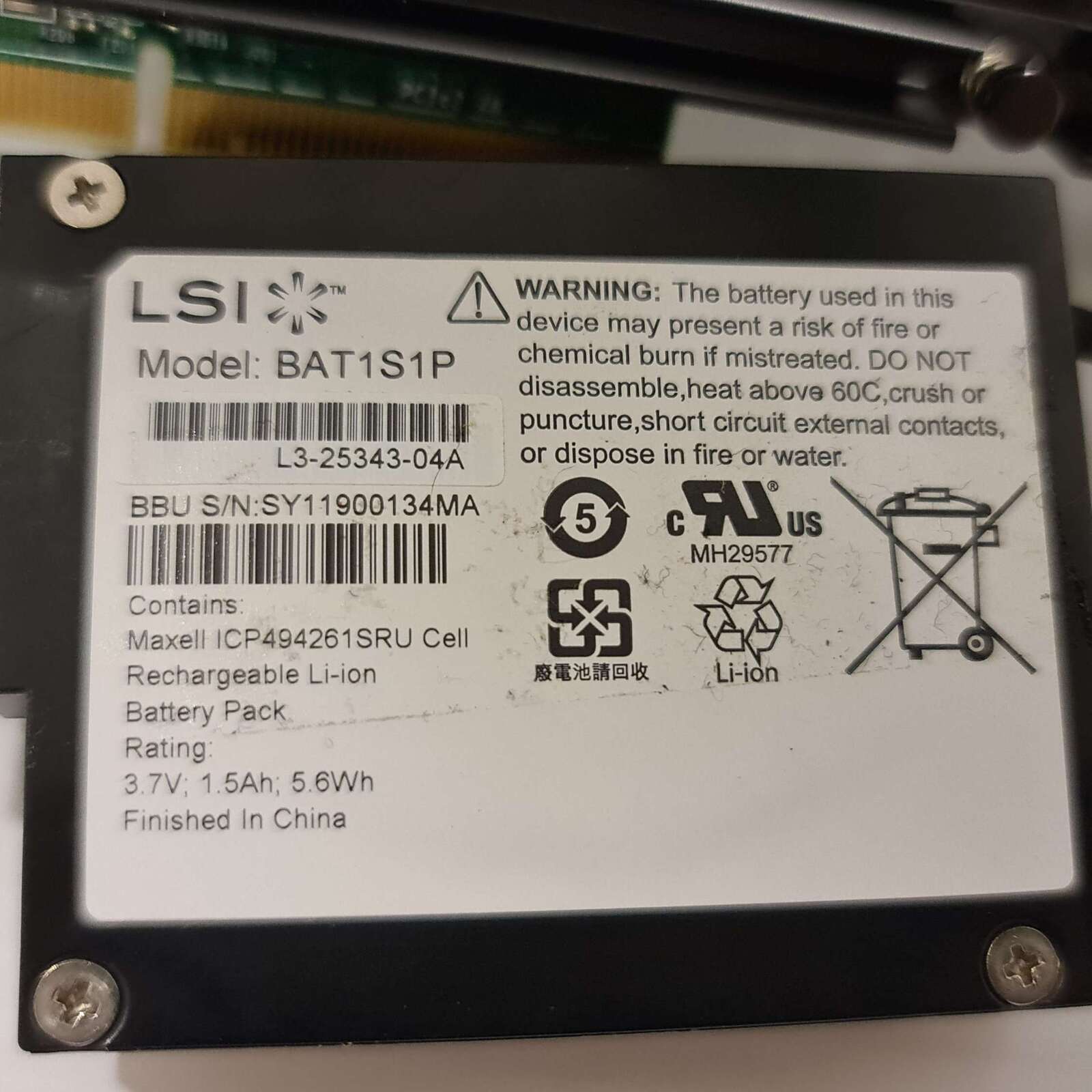

• Optional Intel® Smart Battery AXXRSBBU7 for up to 72 hours of cache data retention (not shown)

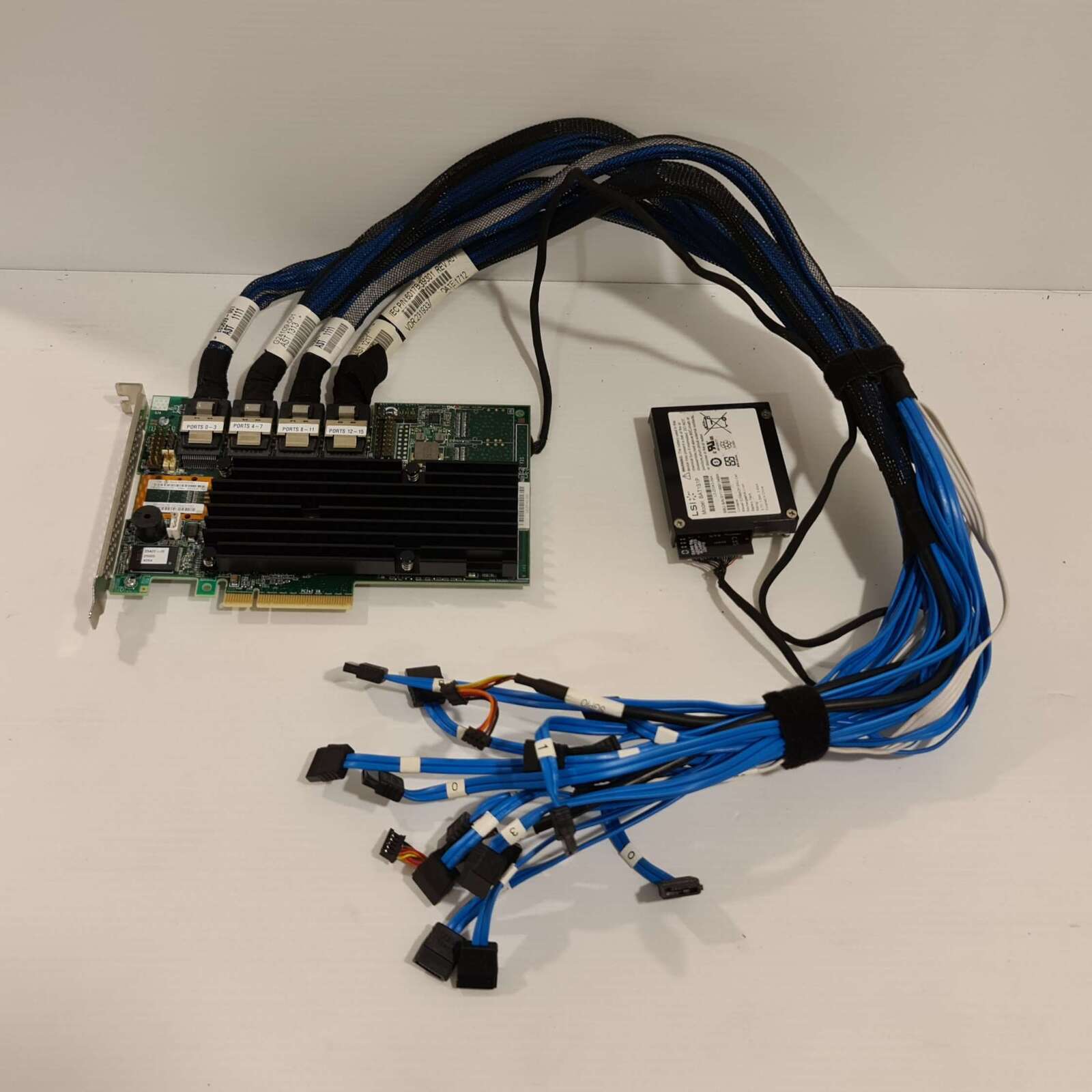

• Four internal cables with SFF8087 connectors on each end (not shown)

The Intel® RAID Controller RS2WG160, with sixteen internal ports, connects up to 16 drives inside the server via direct connection or passive backplane. In addition, this controller is excellent for growing storage requirements as it can support up to 128 devices by leveraging SAS expander technology.

Furthermore, the RS2WG160’s SAS-2 architecture delivers data transfer rates of up to 6Gb/s per port, and brings new features and improved performance regardless of whether the storage solution utilizes 3Gb/s or 6Gb/s SAS or SATA drives. All Intel RAID solutions are validated across multiple platforms with Intel® boards, chassis, and systems.

Customized training, as well as Intel® service and support, make Intel the one source for customers seeking data protection, increased productivity, and simplified IT.
